Online Flying 5w Uv Laser Logo Brand Laser Marking Machine Bar Code QR Code Laser Printer For Plastic Bottles

  1. Genuine flying software support win 7/8/10
  2. High speed Digital Galvo 7210 scanner double red pointer
  3. Taiwan Meanwell power supply support 100V- 240V
  4. 1.2M height pillar,easy to combine with users’ production lines (support customize)
  5. CNF-130 flying marking software with pad free (for flying marking machine)
  6. Omron Encoder and Amplifier (detector)

Product Detail

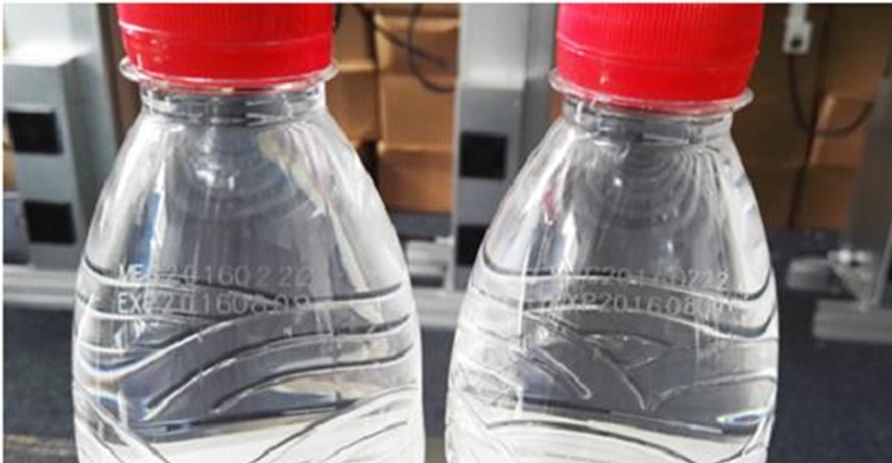

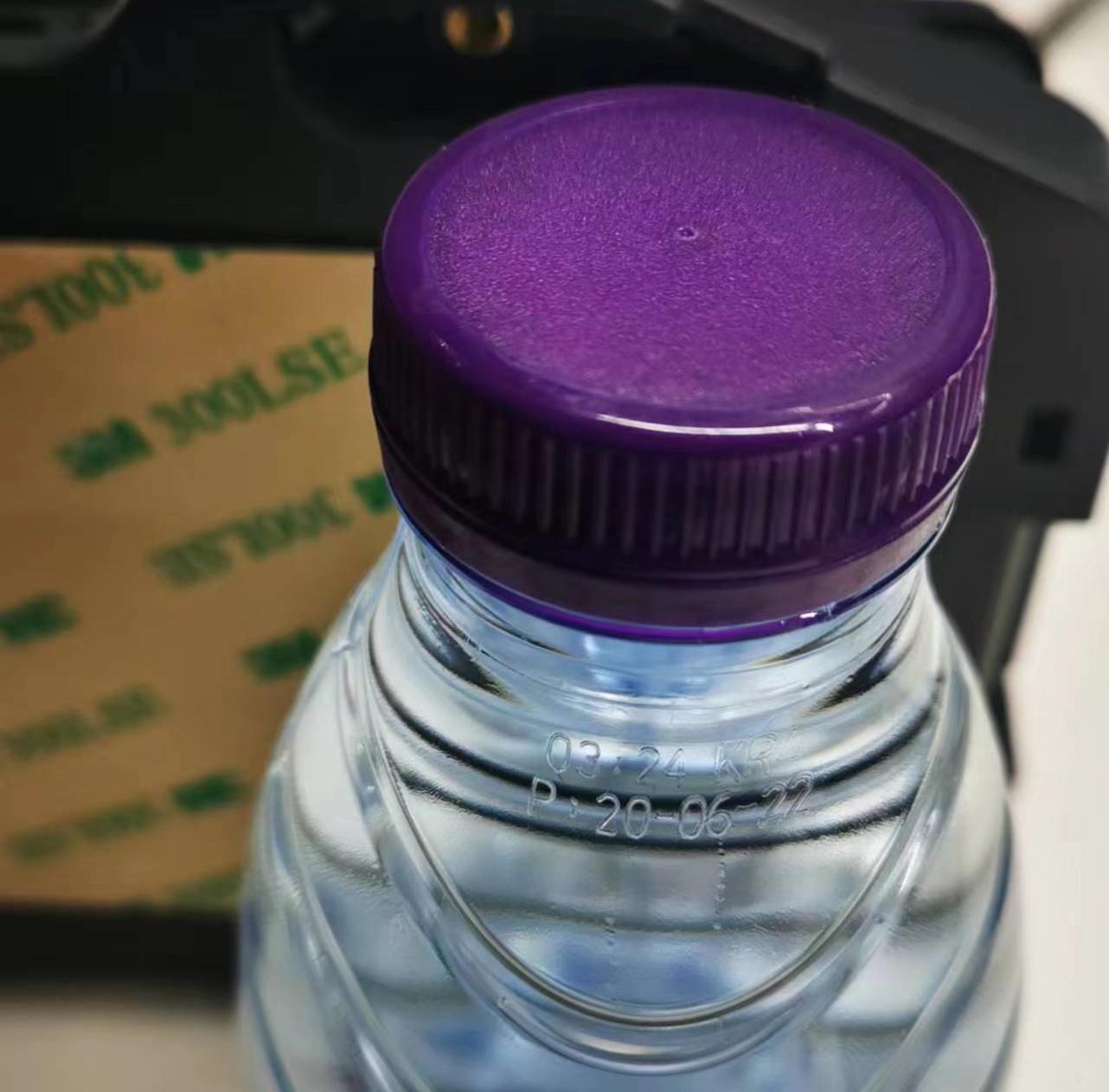

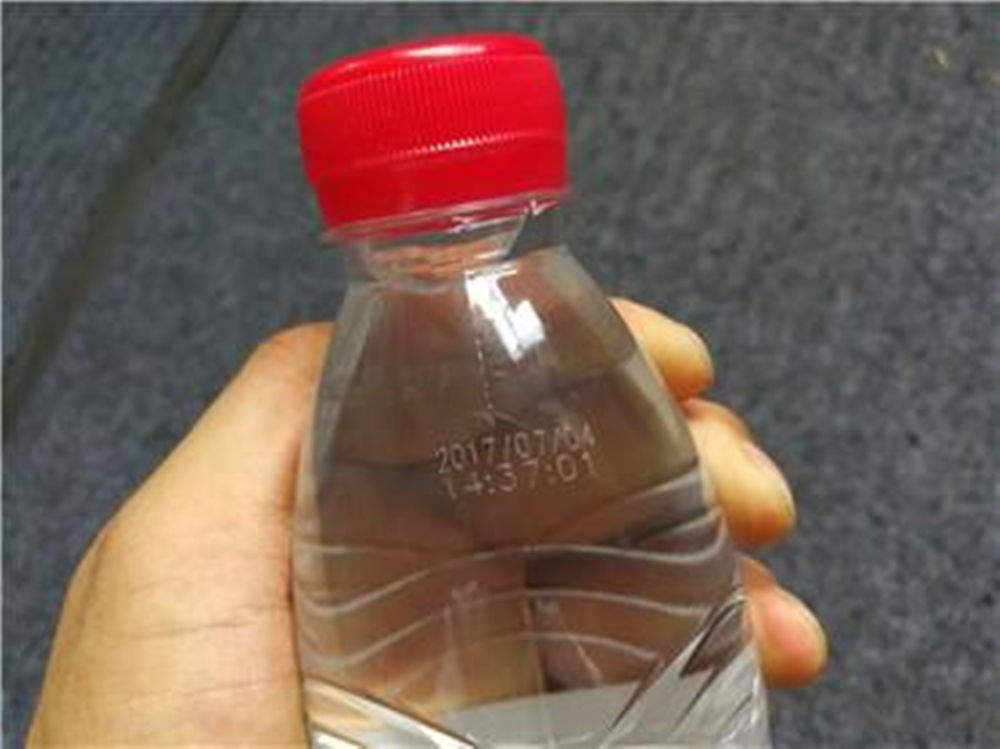

QR Code Marking Display

Tech Specifications

Model DW-20FF
Work Area 110*110mm-300*300mm( Optional )
Laser Power 20W/30W/50W/100W
Fiber laser generator Raycus (Optional IPG)
Laser Pulse Frequency 20KHz – 200KHz
Laser scanner Sino-Galvo SG7210 (Optional Scanlab)
Graphic format supported AI, DXF, DST, DWG, PLT, BMP, DXF, JPG, TIF, AI etc
Support operation system Win7/8/10 system
Red light dot Yes
Power supply Taiwan MW (MEANWELL)
Wavelength 1064±10nm
Beam Quality M2 <2
Min Line Width 0.01mm
Min Character 0.15mm
Marking Speed ≤10000mm/s
Marking Depth ≤0.5mm
Repeat Precision ±0.01mm
Power Supply 110V /220V(±10%)/50Hz/4A
Gross Power <500W
Laser Module Life 100000h
Cooling Style Air Cooling
Operating Temperature 10℃-35℃
Humidity 5% to 75% (Free of Condensed Water)

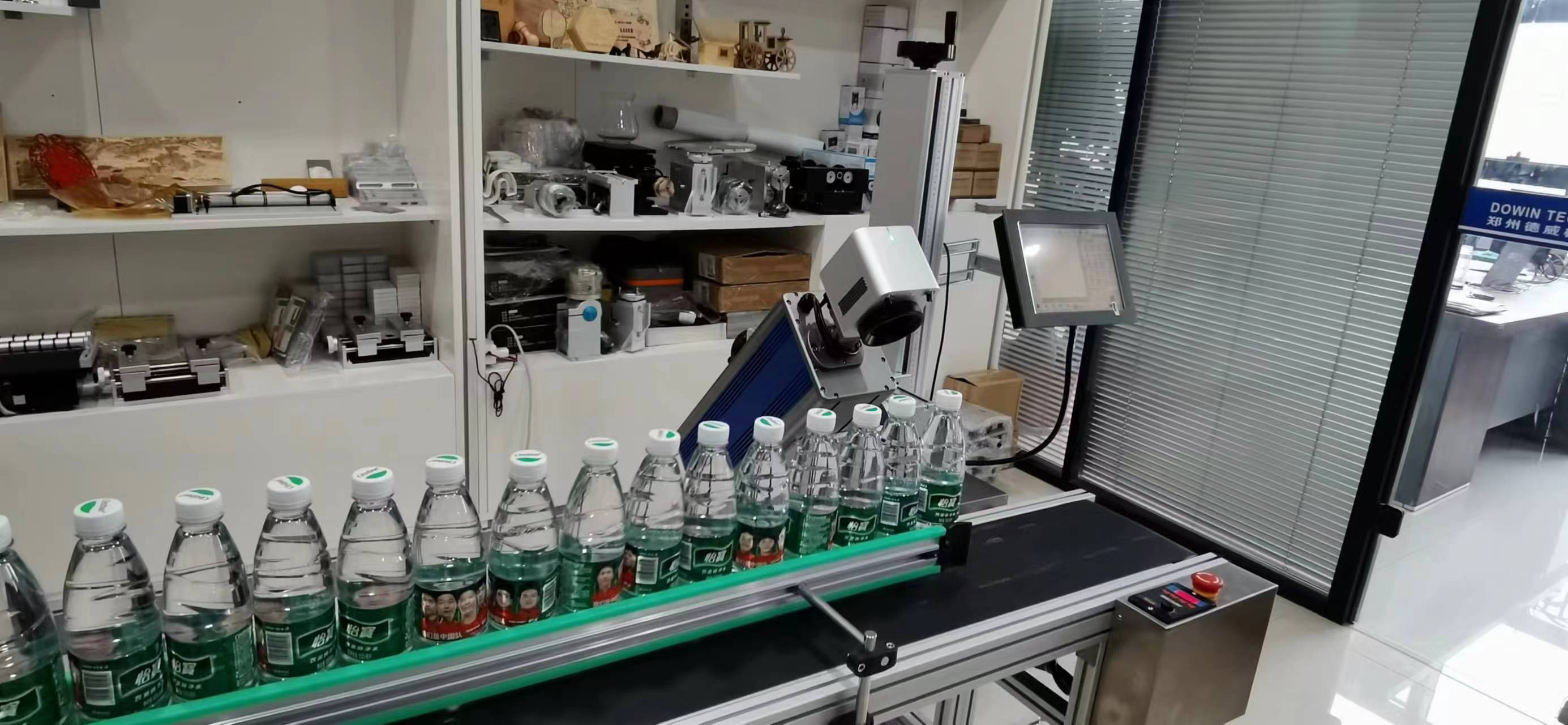

Flying co2 laser marking machine is suitable for cables, PE pipes, then it is especially suitable for automatic production line of date code or bar code.

According to customer's different needs matching fiber, CO2, UV and other models and automatic assembly line work bench to meet customer requirements of flight standards system, to achieve assembly line operations to improve production efficiency.

Compared with ink jet printer, laser marking machine has functions of noconsumption,no pollution, no noise, energy saving and environmental protection.

Encoder and sensor

SYNARD & DAVI Laser Source

The DAVI brand laser source has a normal working life of 100,000 hours. The industry's best quality CO2 supplier, microfiber beam 0.001mm; the laser's overall 2-year warranty.

SG7210 & 2206 Galvanometer Scanner

High speed flying galvanometer scan is high precision and quality laser scanning system makes the marking speed up to 12000mm/s.

Opex Facial Lens

We adopt Imported opex wavelength facial lens with top quality, and there are 110*110, 150*150, 175*175, 200*200, 300*300mm working size lens, let you choose.

Different marking requirements will need different conveyor. such as we have pen conveyor,packing bag conveyor.

Encoder and Sensor

Using encoders, the moving speed of the work platform can be transmitted in real time, and the laser marking software can handle marking by itself according to different moving speeds.

Control System

Using famous Taiwan“MW" power supply with stable performance.professional technology and long life time.

Laser Bracket

The laser bracket adopts precision alloy and imported precision linear device, which can adjust the angle of the laser head 180 degrees, the adjustable range of front and rear is 250 mm, and the adjustable range of up and down is 1200 mm. The flexible table has multiple screw holes, which is convenient for customized installation and can be matched Use in production lines.


It is capable to mark the metal materials and partial non-metal materials, especially suitable for some fields required more precise and higher smoothness.

The machine is widely used in the electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelers accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc.
