Big Enclosure Safety Model Fiber Laser Marking Machine

  1. Superior laser beam and uniform power density, stable laser power.
  2. Quick speed without deviation, small volume, good stability, performance reached the international advanced level.
  3. Enclosed design, environmental protection
  4. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
  5. Mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

Tech Specifications

Model DW-20FBE
Laser source Raycus
Laser Type Fiber laser
Positioning Way Red light pointer
Laser power 20W 30W 50W 100W
Laser Module Life 100000 hours
Weave length 1064 nm
Cooling Style Air cooling
Graphic format supported AI, DXF, DST, DWG, PLT, BMP, DXF, JPG, TIF, AI etc
Support operation system Win7/8/10 system
Marking area 110mm*110mm~300mm*300mm
Total power ≤500W
Marking speed 7000mm/s
Operating Voltage 220v /110v 50~60Hz
Marking depth 0.01-1mm
Support system Win XP,7,8,10 system
Repetition Precison 0.01mm
Certificate ISO, CE
Minimum Character 0.01 mm
Control software EZCAD software
Minimum Line Width 0.01mm
upported Format PLT, DXF, DST, AI, SDT, BMP, etc.
Packaging Dimension 172*85*123CM
Gross weight 280KG

Details

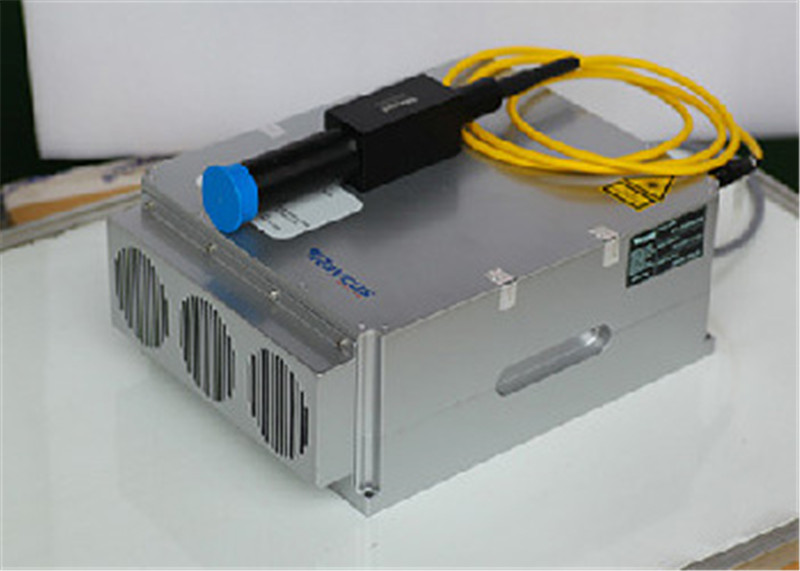

Laser generator
Original Raycus laser source,the best brand in China

Big enclosure safety model fiber laser marking machine (6)
Big enclosure safety model fiber laser marking machine (8)

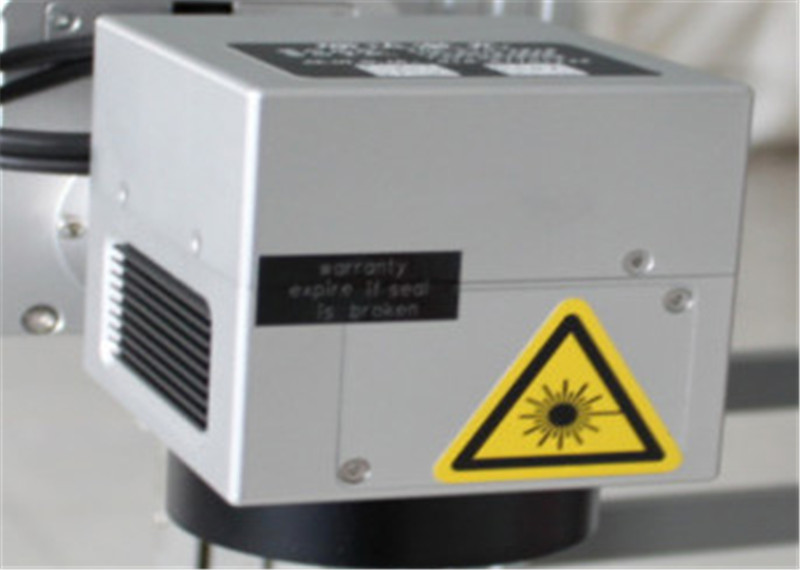

F-thata galvo scanner
Galvo laser head from Beijing Sino-galvo company
(stable,high reliable than other brand)

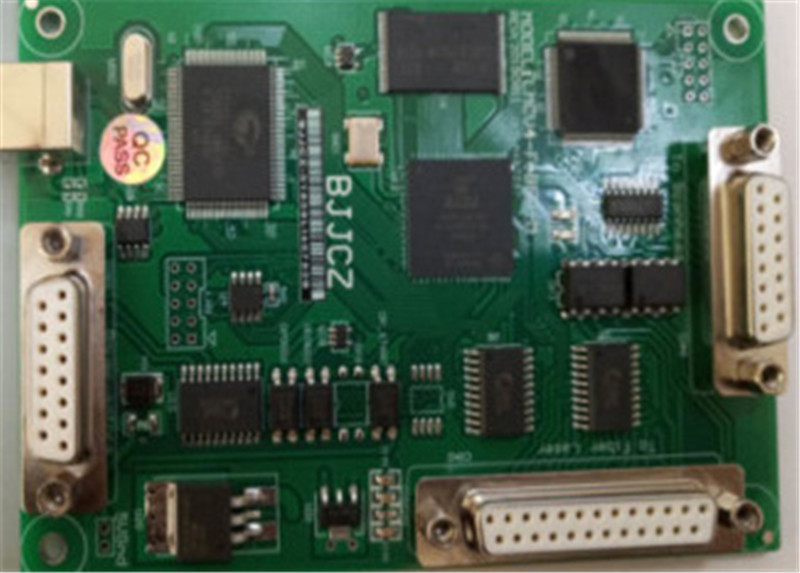

Control motherboard
Control card:original BJ EZCAD

Big enclosure safety model fiber laser marking machine (1)
Big enclosure safety model fiber laser marking machine (4)

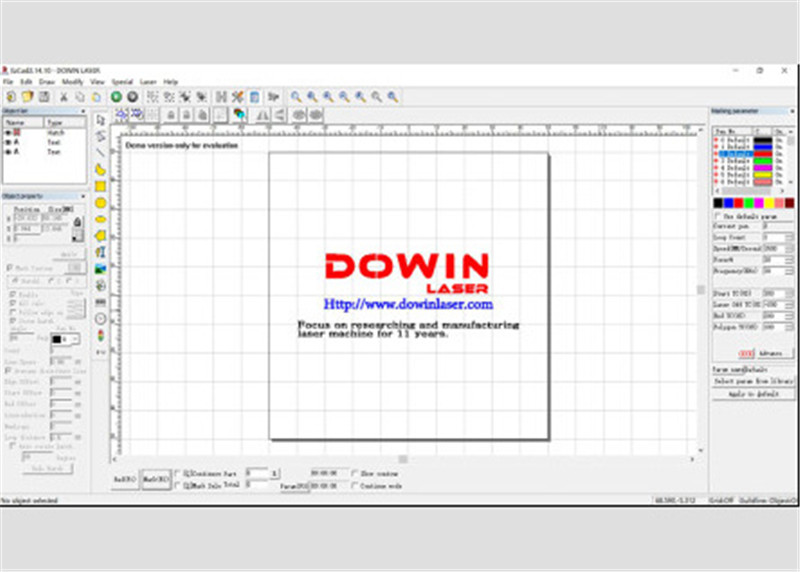

Control software
Professional fiber laser marking software,it support win7/8/win10

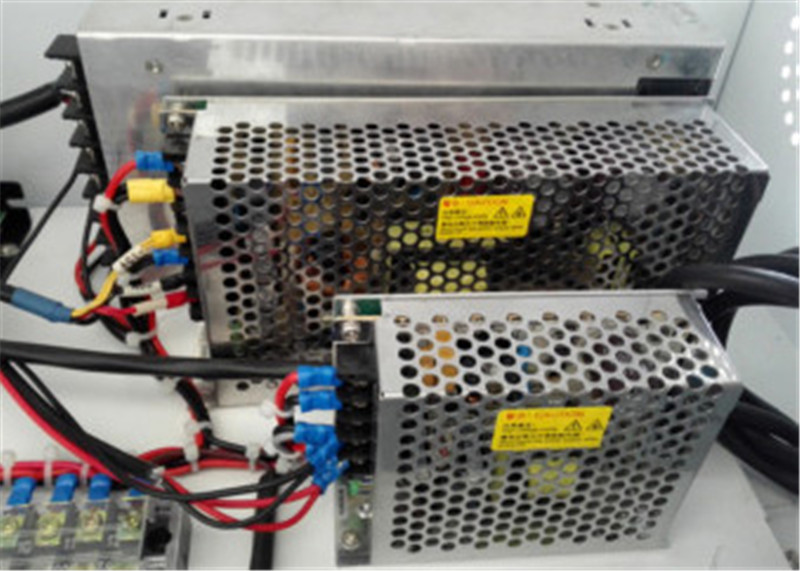

Power supply
TAIWAI MEAN WELL famous brand power supply,Stable performance
Support 100V~240V

Big enclosure safety model fiber laser marking machine (2)
Big enclosure safety model fiber laser marking machine (3)

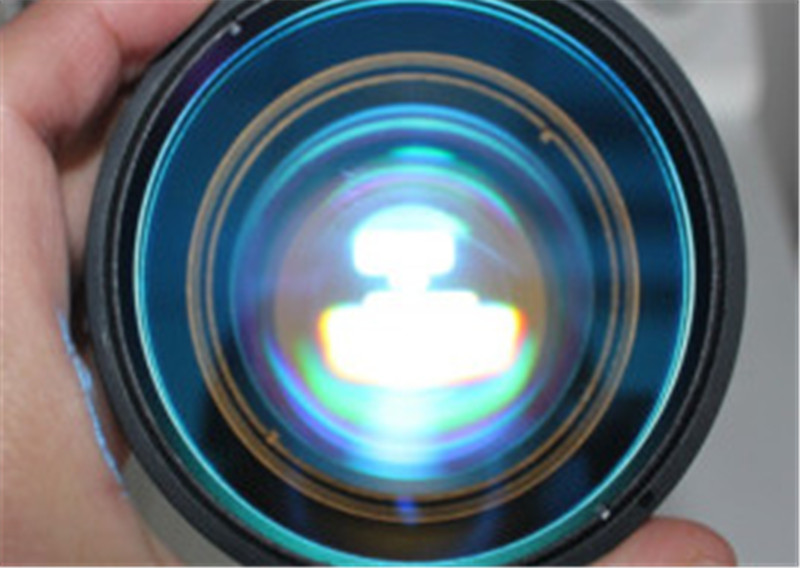

Lens: OPEX Lens from Wavelengh company

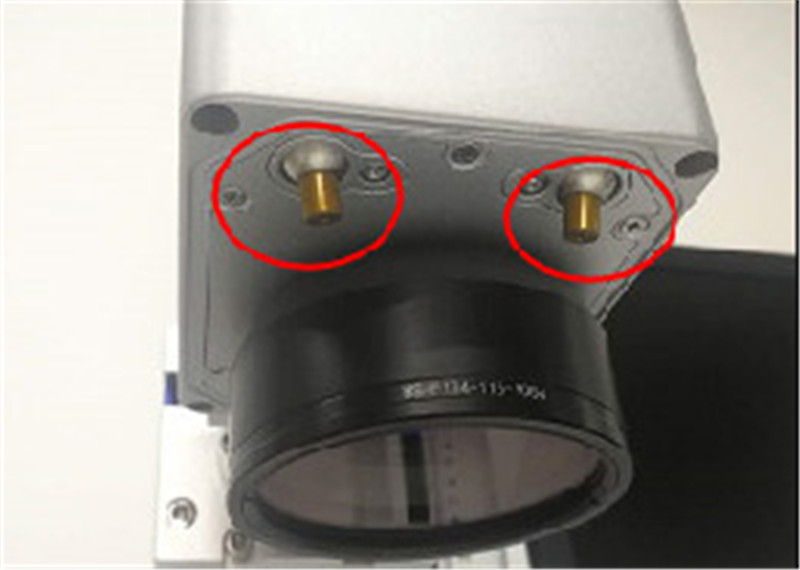

Double  Red lights
Help you easily find the focus length

Big enclosure safety model fiber laser marking machine (5)
Big enclosure safety model fiber laser marking machine (7)

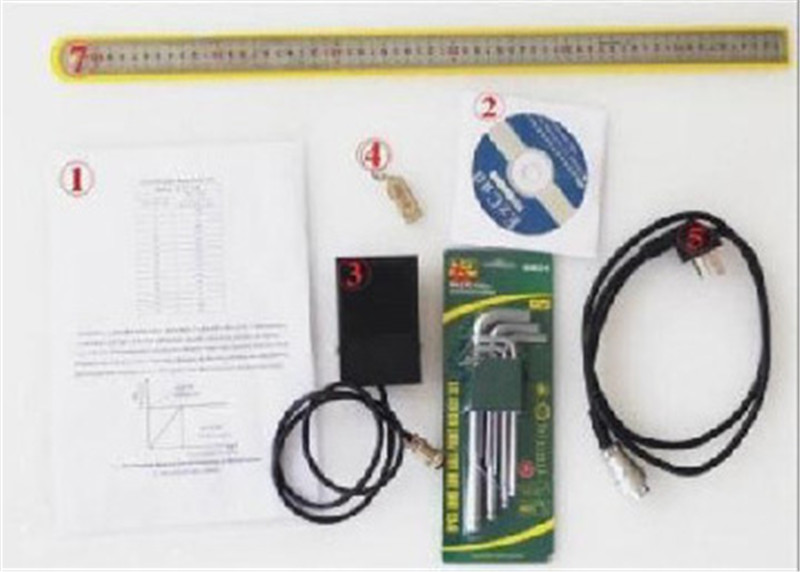

Spare parts
Foot padel, screw driver, USB flash driver...

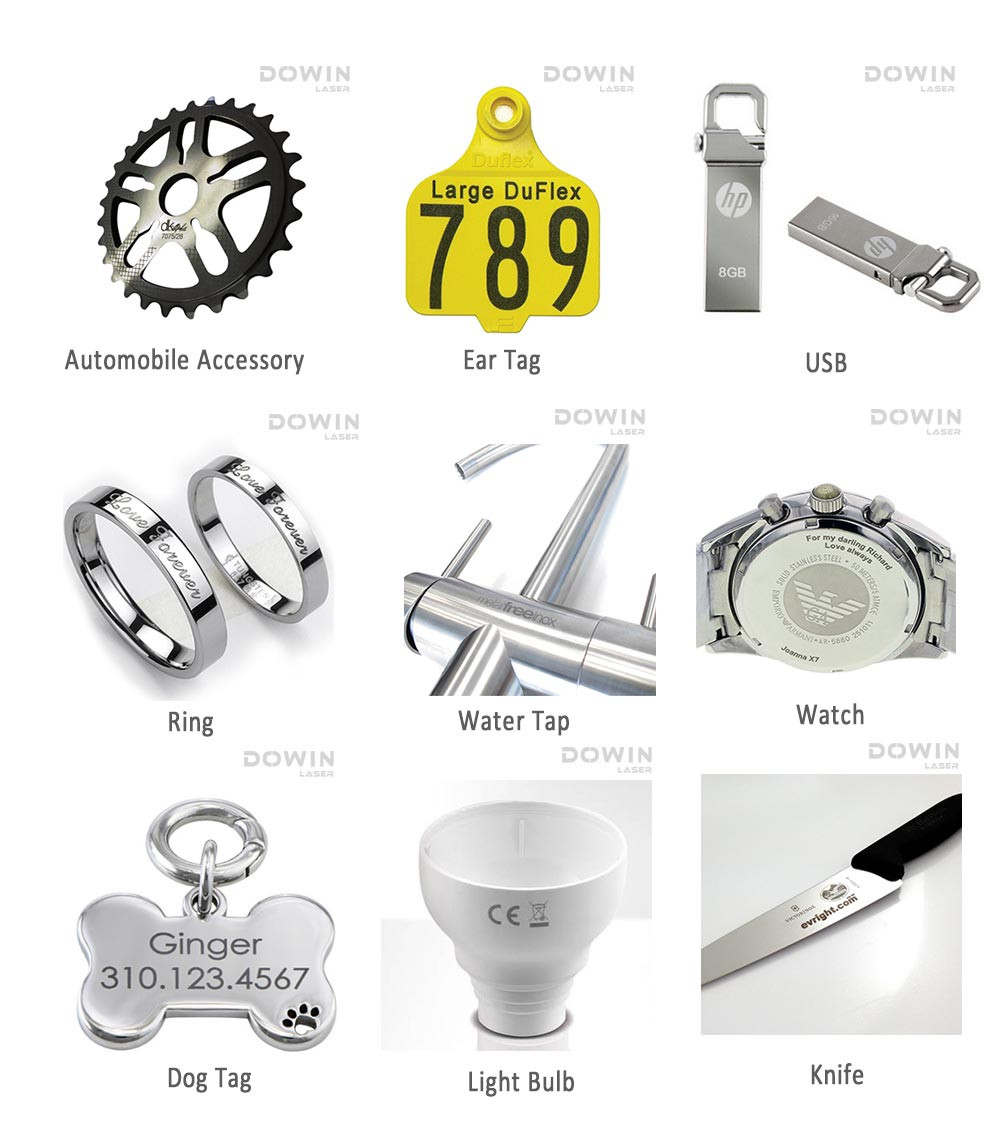

Application

Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.

Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising,logo

Big enclosure safety model fiber laser marking machine

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
