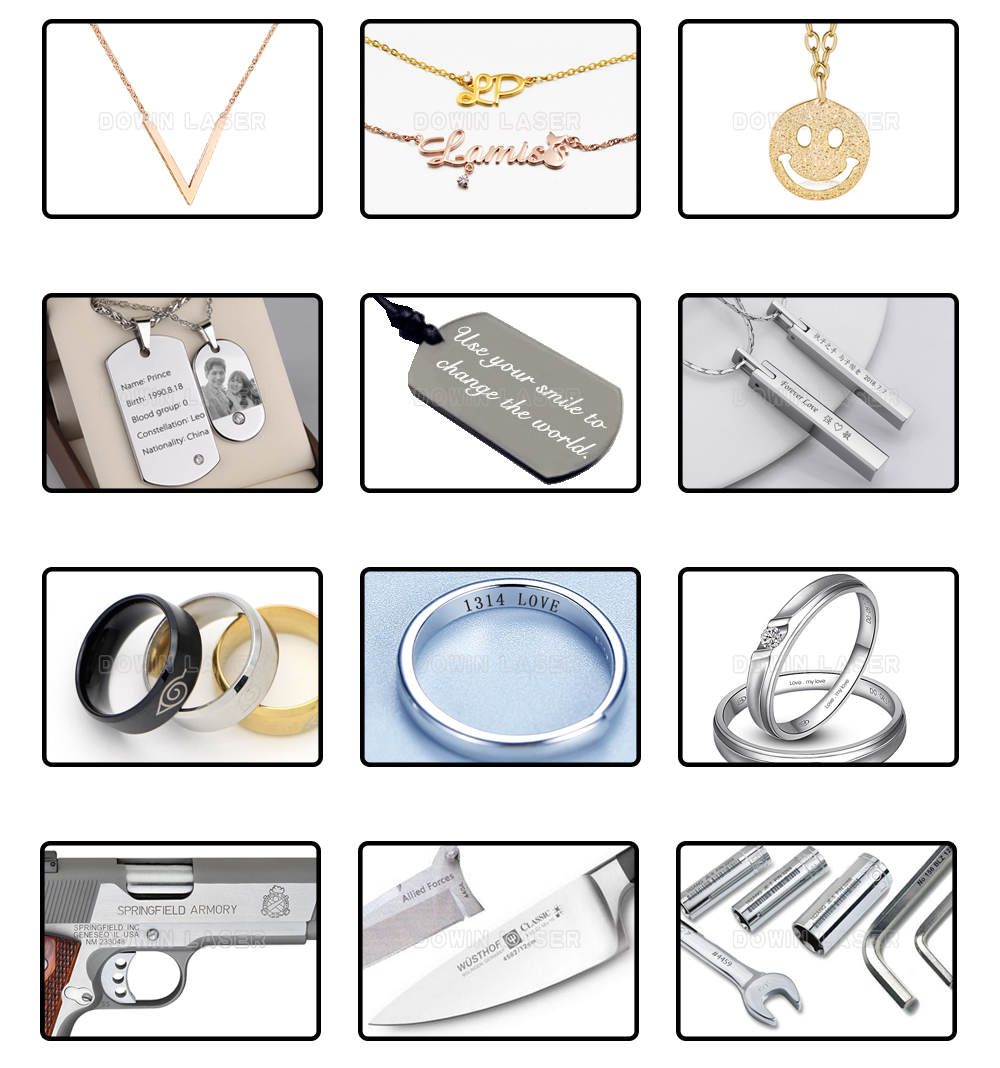

Ring Marking Effect Display
Tech Specifications
| Laser types | Fiber laser marking machine |
| Laser power | 20W/30W/50W/100W |
| Laser source brand | Raycus |
| Optical quality | <0.5 |
| Laser wavelength | 1064nm |
| Standard marking area | 110 x 110 mm |
| Optional marking area | 150x150mm, 200x200mm, 300x300mm |
| Working table | Aluminum alloy working table |
| Working speed | 7000mm/s |
| Positioning accuracy | ±0.01mm |
| Laser frequency | 1-4000kHz |
| Control system | Digital offline control system( USB Controller) |
| Cooling system | Air cooling |
| Power supply | AC220V ± 5% 50/60HZ / AC110V, 60HZ |
| Support operation system | Win7/8/10 system |
| Format supported | AI , BMP, PLT, DXF, DST , PCX, JPG etc. |
| Machine size | 73x48x54cm |
| Gross weight | 55KG |
| Optional collocation | Rotary attachment |
| Gross power | ≤800W |
| Working temperature | 0-40℃ |
Features
Fiber laser marking machine is a commonly used laser marking machine on the market. It mainly emits light through a laser. After the integrated beam reacts with the surface of the object at a suitable position, the corresponding text symbols are etched on the surface of the object.

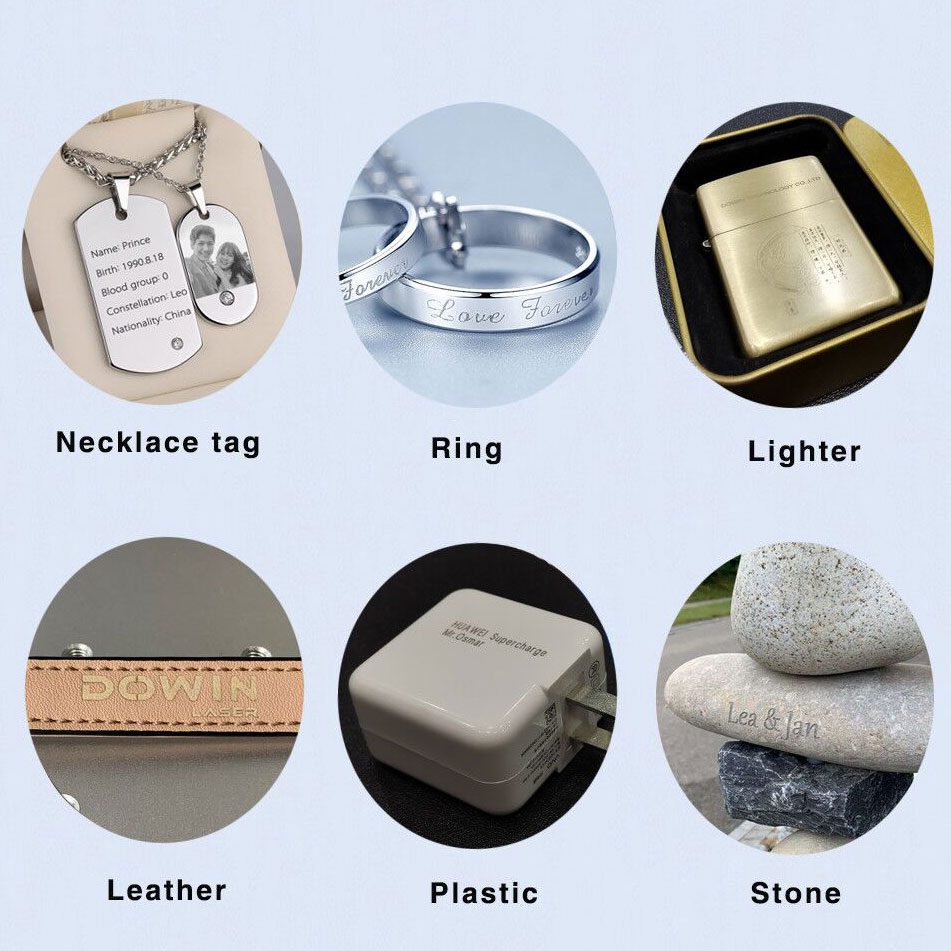

It has a wide range of applications, including daily hardware materials, kitchen utensils, surgical machinery, auto parts, gold and silver jewelry, plastic pipes, leather, electronic components, lacquer materials and so on.

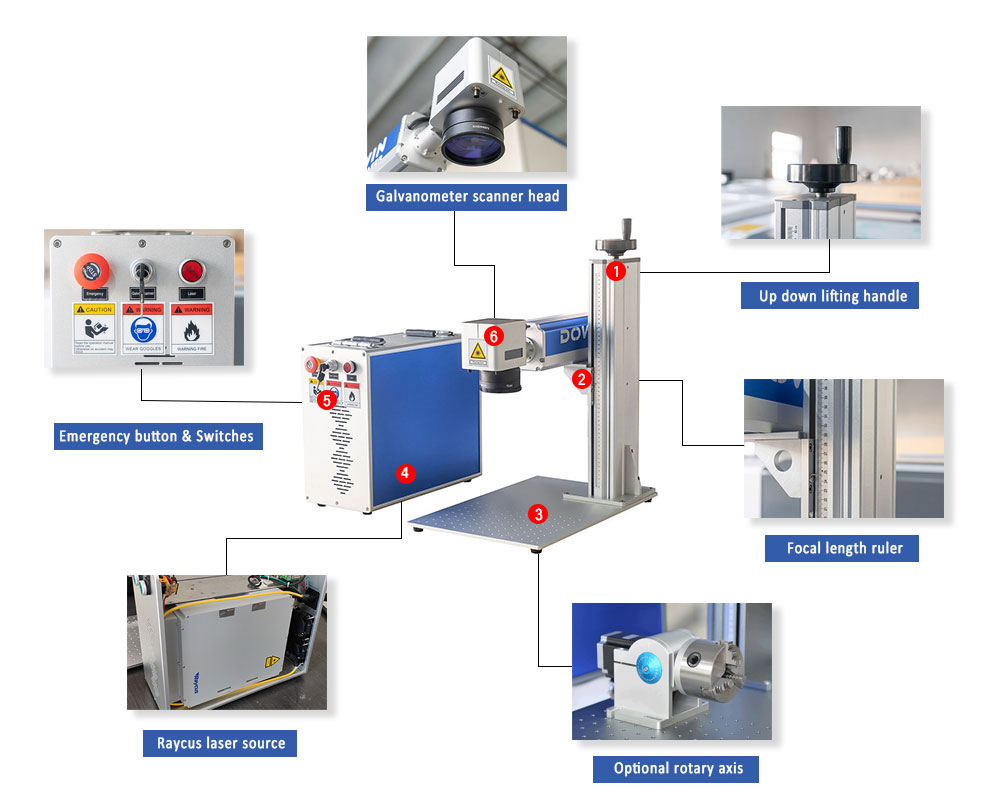

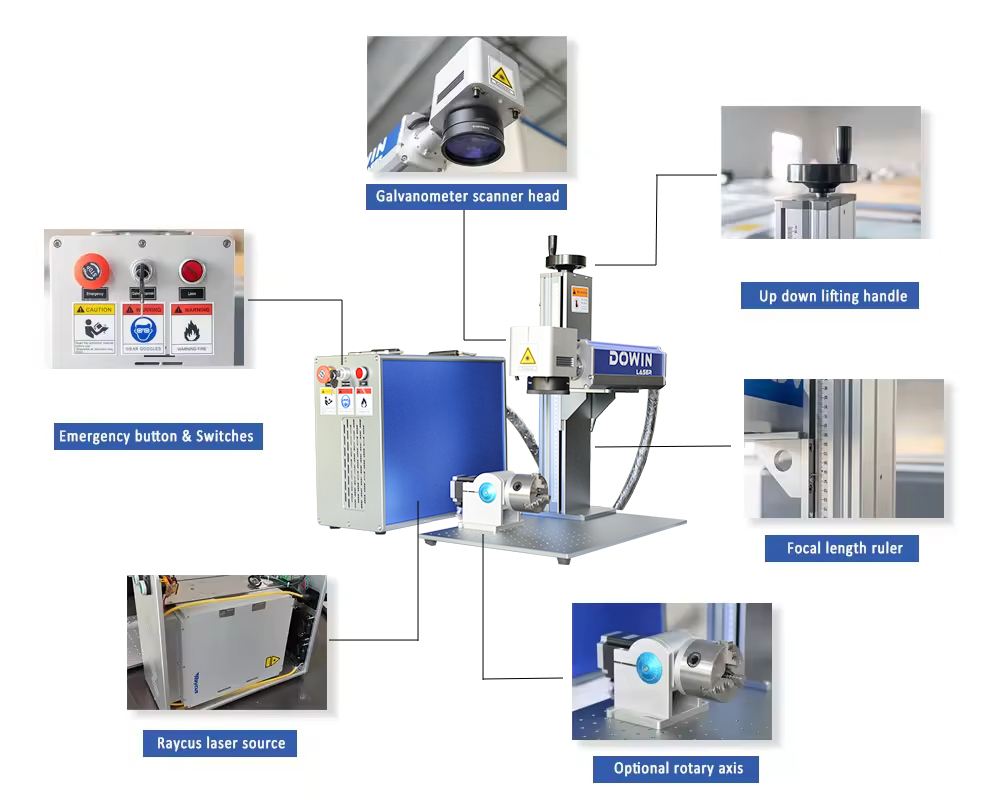

Product Details

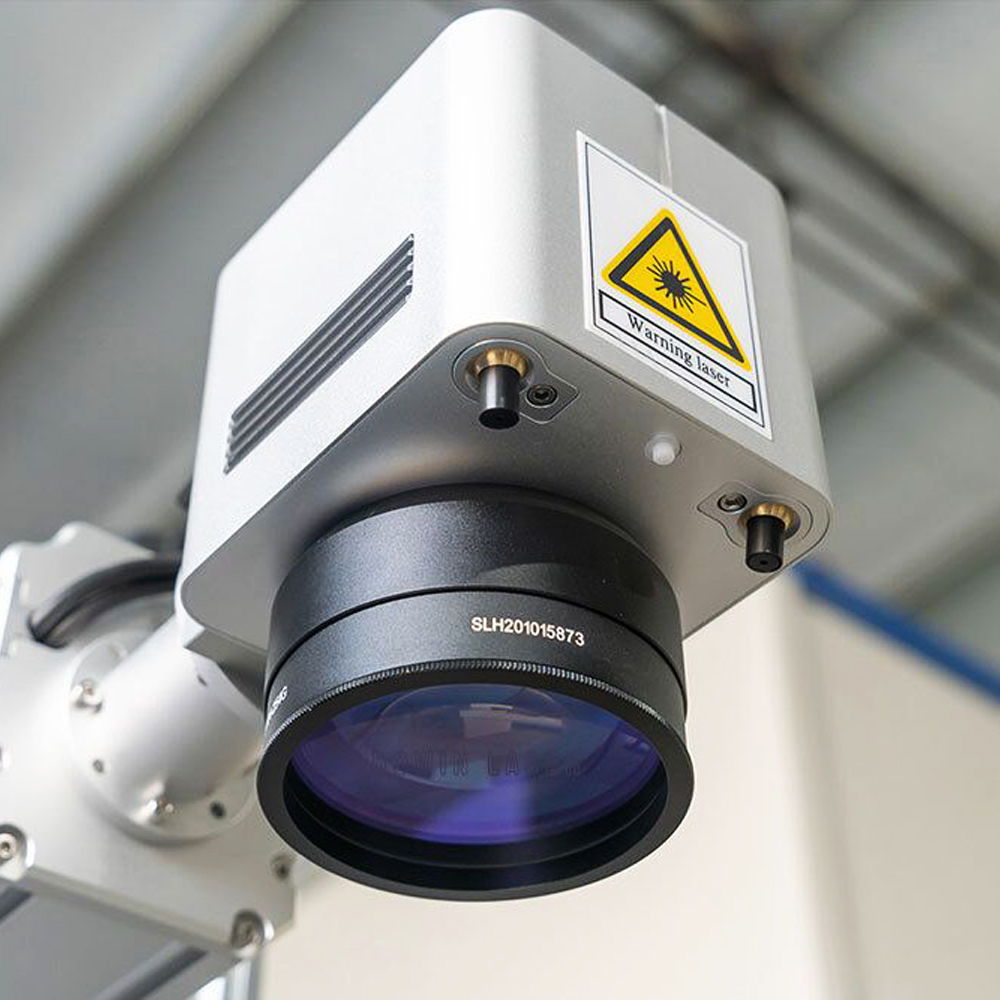

Galvo.
Ultra-high-definition galvanometer, dual infrared focus,good running stability, high positioning accuracy,and fast marking speed.
Lifting Shaft.
Manufactured by professional manufacturers, high-quality materials, effective and stable,with clear positioning accuracy.

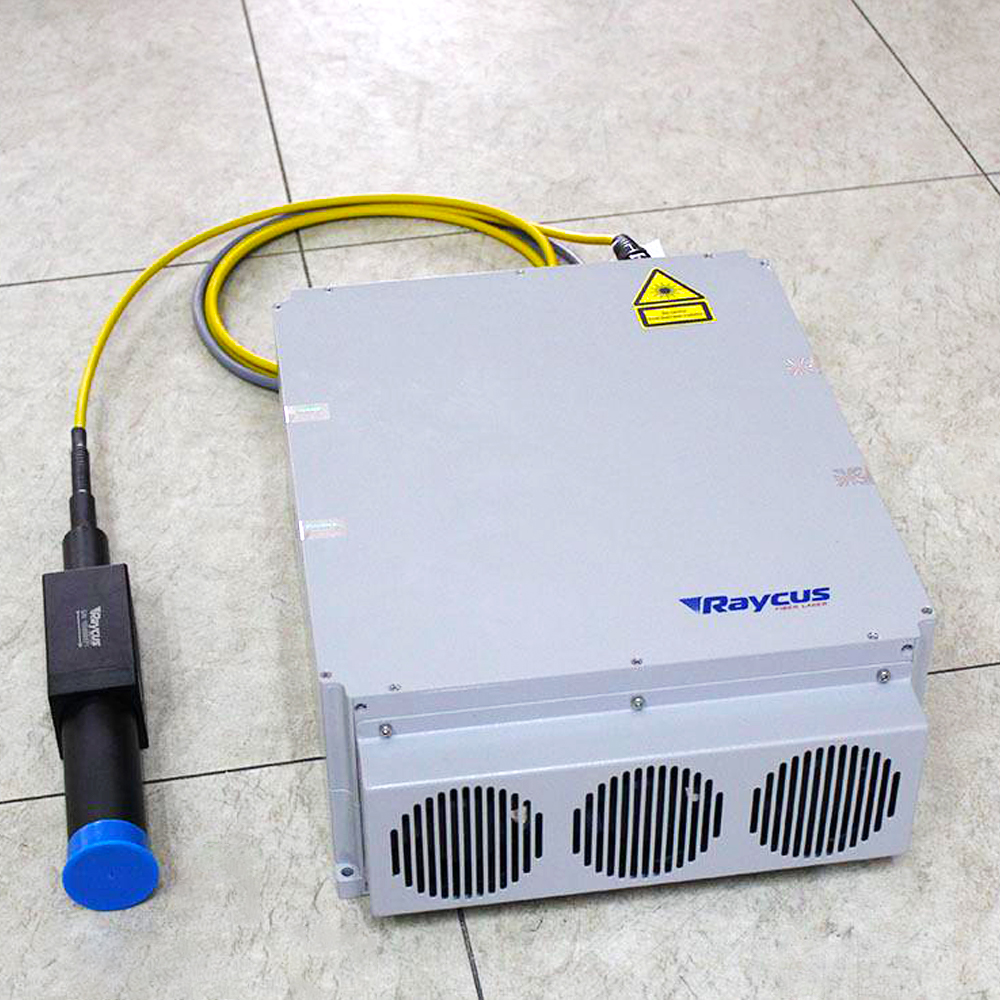

Raycus Laser Source.
Famous brand,with stable and long life time,max reach 100000+hours JPG,JPT laser source all available.
Field Lens.
lndustrial-grade field lens,with clear focus,good light perception, and clearer compliance.

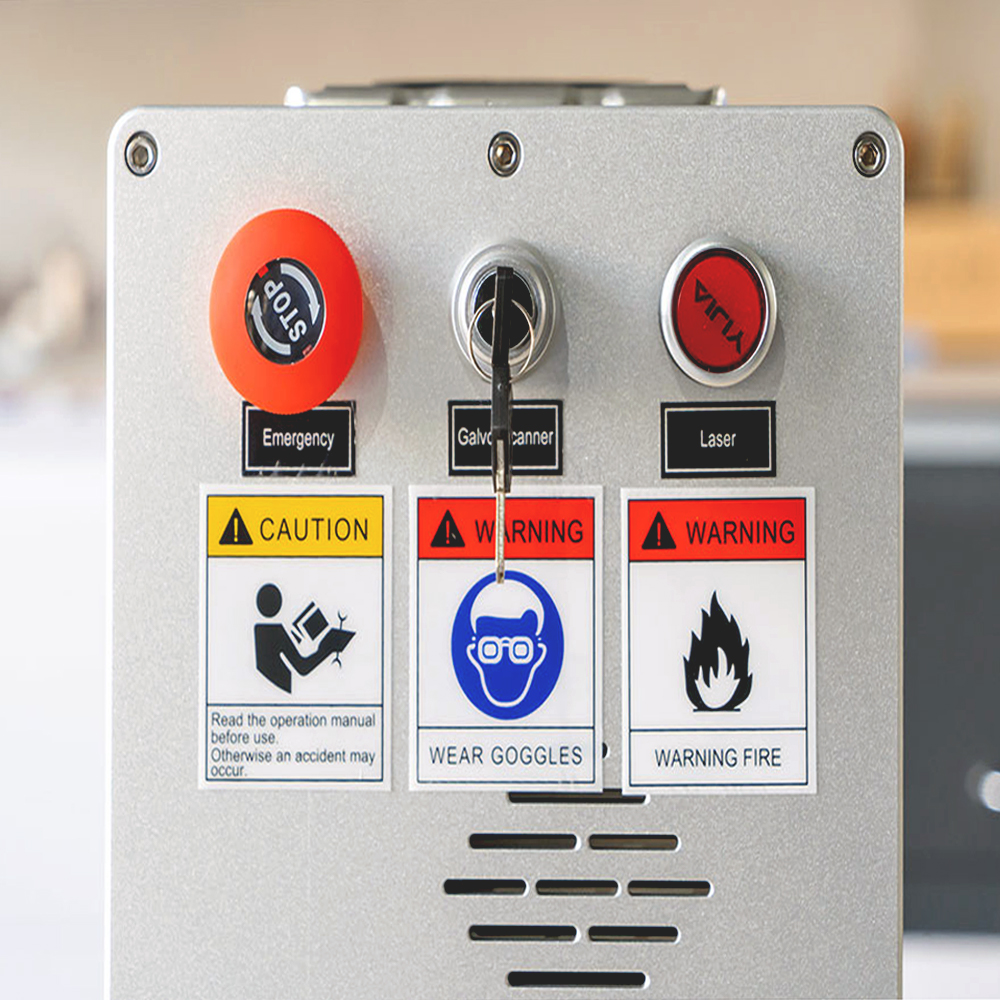

Control Panel.
Safe,easy to learn,and easier to control the machine.

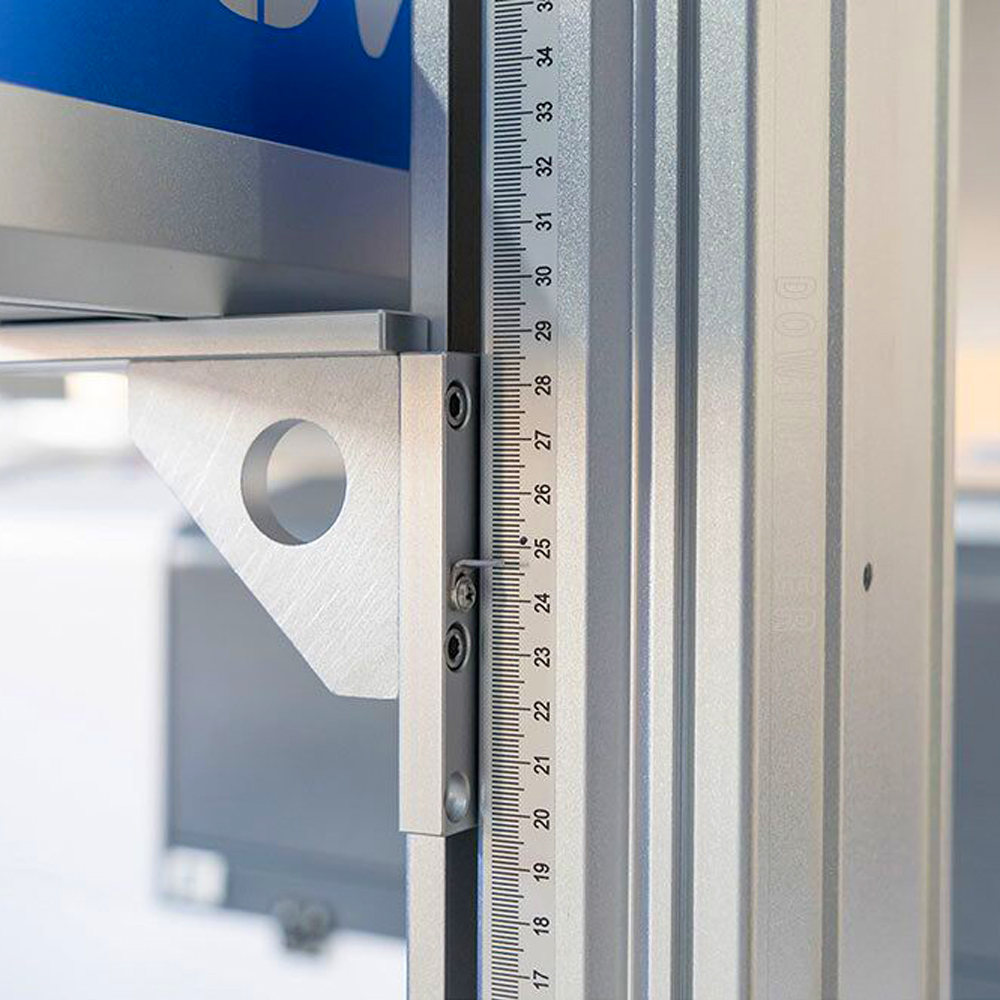

Focal Length Ruler.
Made according to international standards, fine handling with zero error.High-precision ruler, convenient,quick and accurate marking.

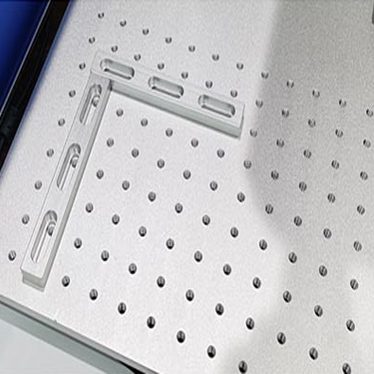

Alumina Plate.
High-precision all-aluminumwash positioning plate, standard positioning holes,to meet the positioning needs of different products.
Smart Control Card.
Professional marking software,Powerful editing function,Support Windows XP, Win 7, Win 10 system.

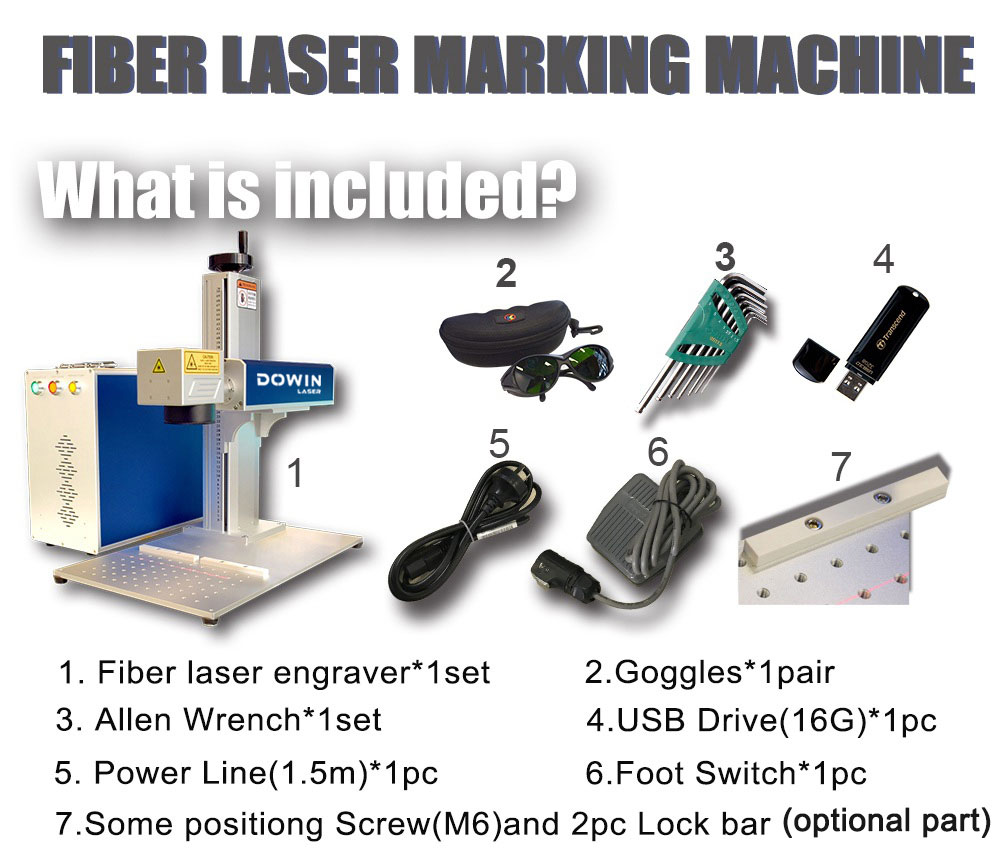

How Many Extra Accessories Will You Get If You Buy This Machine?
Will The Package Be Damaged In Transit?

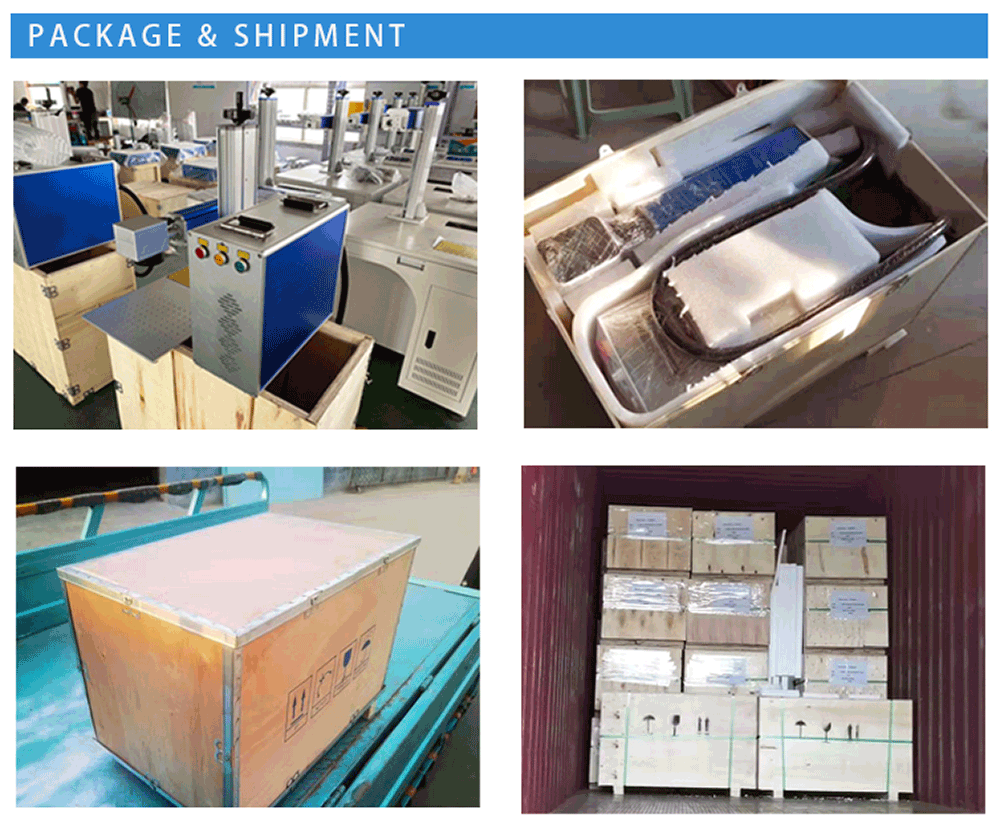

Packing Method:
1. Standard carton, filled with sponge, protective packaging, suitable for air transportation.
2. The wooden box is free of fumigation, suitable for sea and air transportation.
3. Customized packaging according to customer requirements.
Is The Machine Quality Guaranteed?
Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
Customer's Feedback
Our Exhibitions
Welcome To Cooperate With Us ,Let Us Do The Best Service For You.
Request
1.What is your main processing requirement? Laser cutting or laser engraving (marking) ?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. Your company name, website, Email, Tel (WhatsApp…)?Are you reseller or need it for your own business?
5. How do you want to ship it , by sea or by express , whether do you have your own forwarder?
