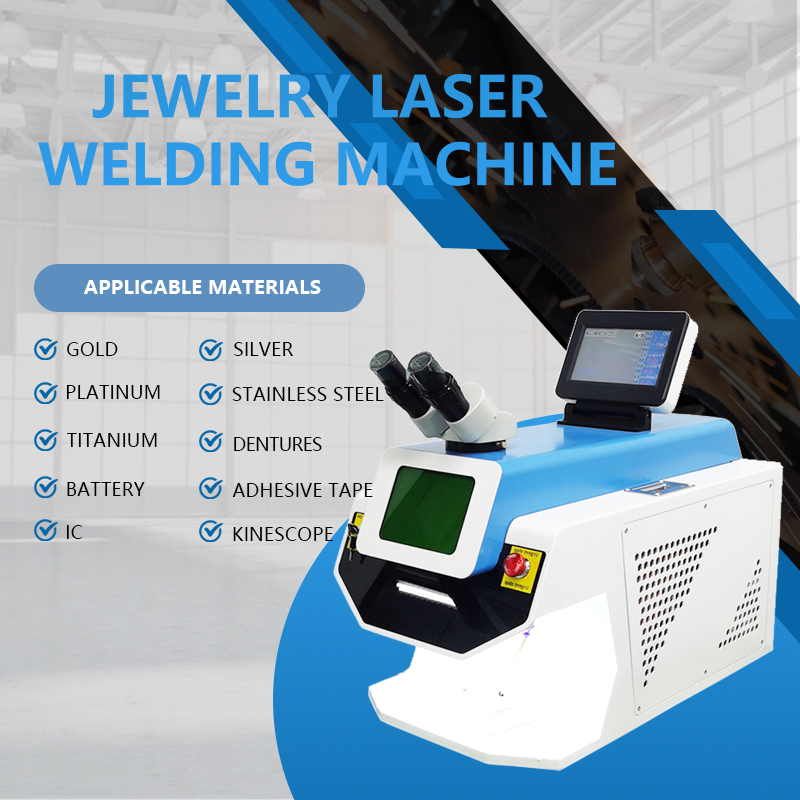

Jewelry laser welding machine

No consumable part, one time investment
No pollution but Firmer welding
Easy operation, fast welding speed ,save your time to make more profit .
Not many requirements to the operator, only simple training can operate well

What is the advantage of Dowin jewelry laser welding machine?

01

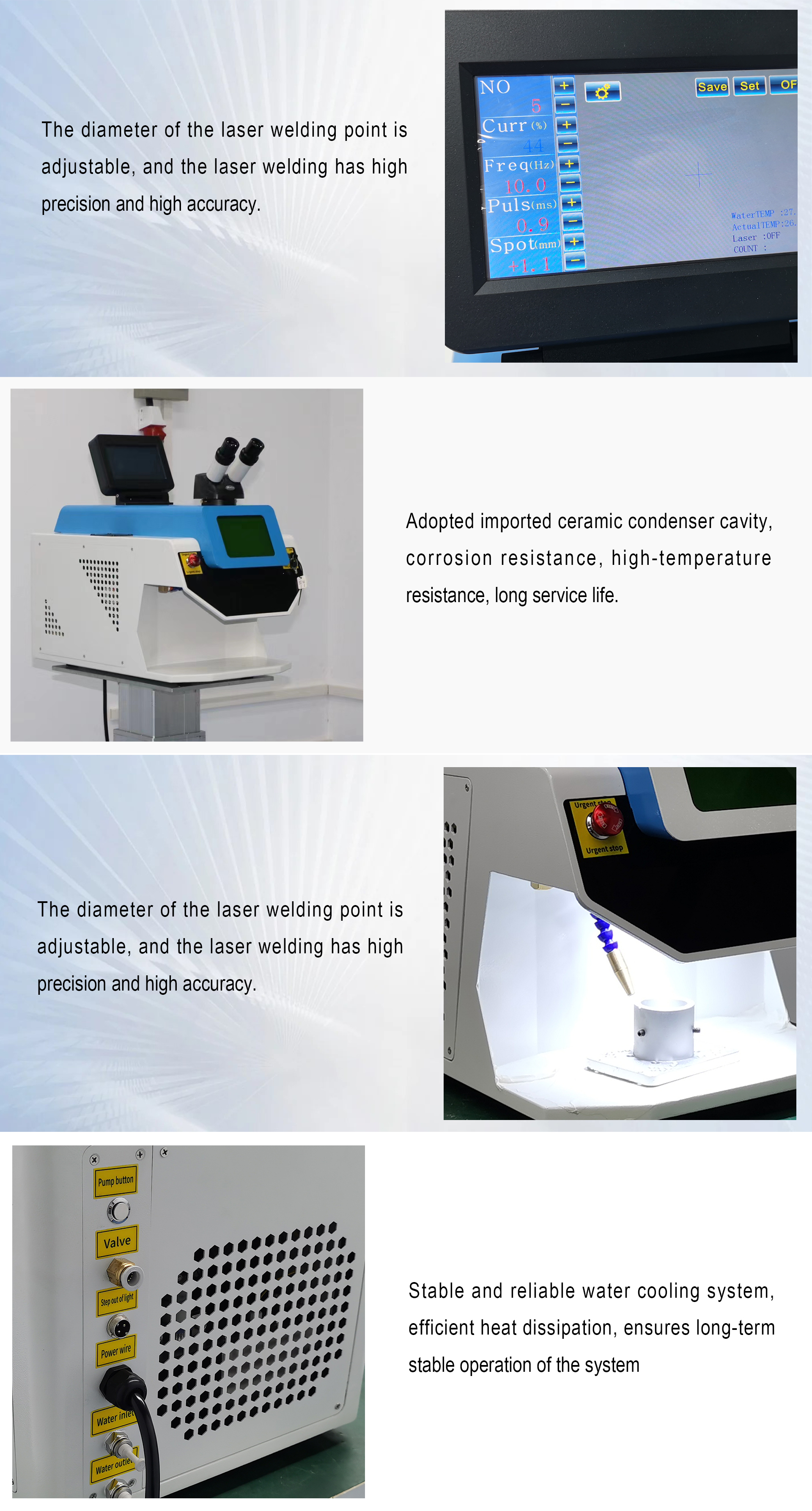

Adopted imported ceramic condenser cavity, corrosion resistance, high-temperature resistance, long service life.The laser power feedback control system to ensure the stability of laser energy output.

02

Motic microscope observation operation,clear and more convenient for operation.

03

The diameter of the laser welding point is adjustable, and the laser welding has high precision and high accuracy.

04

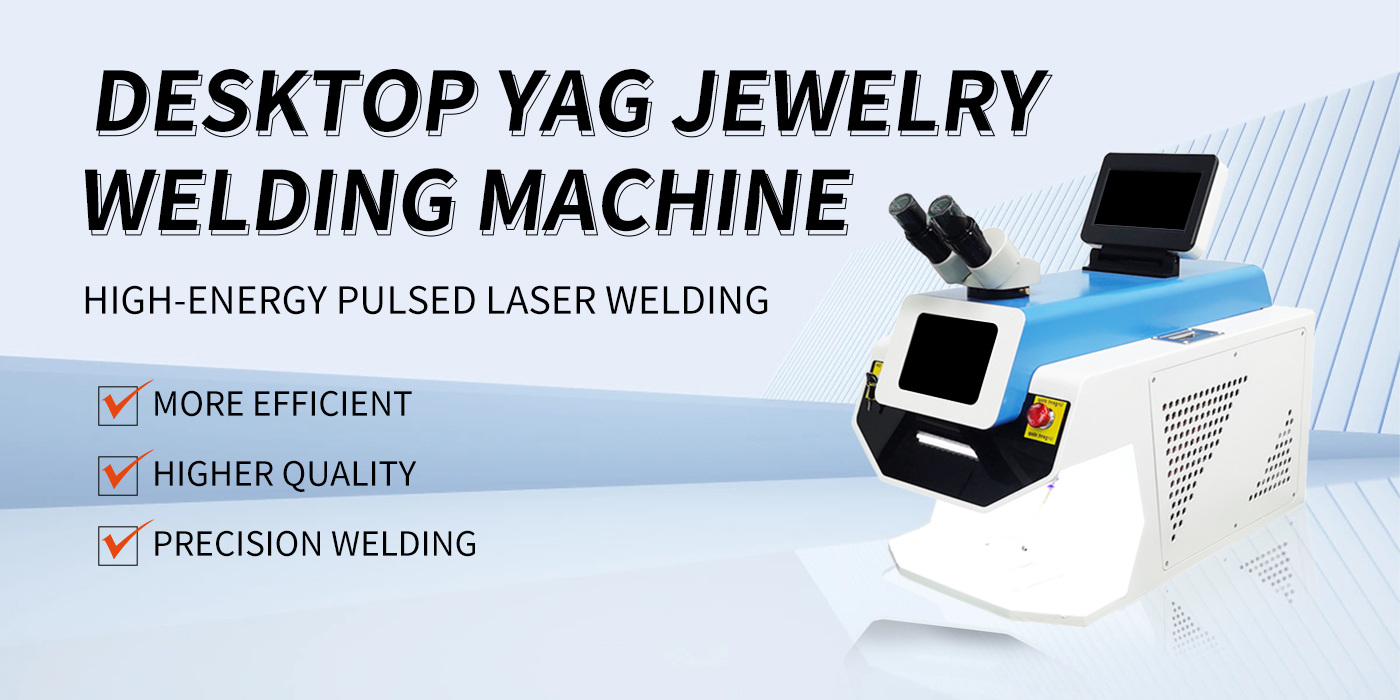

YAG machine can welding narrow place, deep cavity repair welding, will not hurt the surrounding wall. It will not deform the mold product or sink around the weld pool.Make up for the short comings of traditional argon arc welding, cold welding in the repair of the fine surface of the welding

05

Special argon gas protection, control system can freely adjust the inlet and outlet time, repair welding site and substrate will not burn oxidation.When welding fine corners, it will not burn edges.

Technical parameter

Model No.	DW-JW 150W DW-JW 200W
Laser Source	Nd: YAG
Laser Wavelength	1064nm
Rated Power	150W 200W
Laser Energy	60J 80J
Pulse Width	≤20ms
Pulse Frequency	≤50Hz
Beam Diameter	0.1-3.0mm
Power Supply	220V±10% /50Hz
Observing System	microscope
Chamber Illumination	Xenon lamps
Parameters Memorization	10 groups
Protection Alert	flow alert
Language Display	Chinese/English
Shield Gas Supply	One line
Cooling System	water cooling
Power Consumption	5KW 6KW
Running Environment	5℃-30℃, 5%-75% humidity

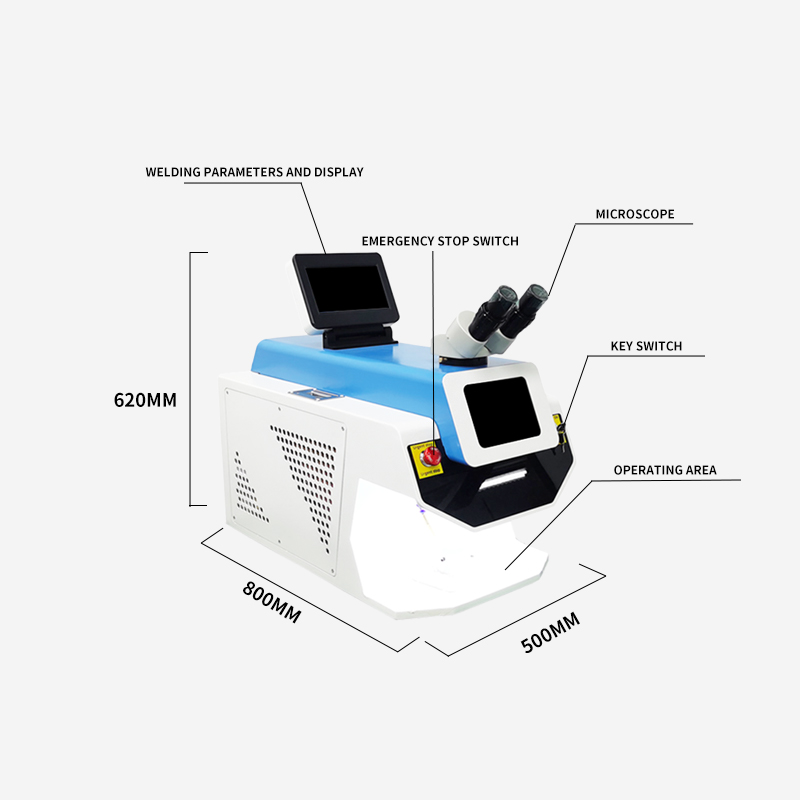

Packing size/Gross Weight	11469136cm/130kg(welder)+50kg(chiller)

Application

It is mainly used for jewelry and dental industries, spot welding blisters and repairing of gold and silver jewelry. It is suitable for multiple metals such as gold, silver, platinum, stainless steel and titanium, and its alloy materials. It can also be used for dentures and tiny precision devices such as battery nickel. Welding in the fields of tape, integrated circuit leads, clock spring, picture tube, electron gun assembly, etc.
