3D fiber laser marking machine for curved surface engraving deep carving

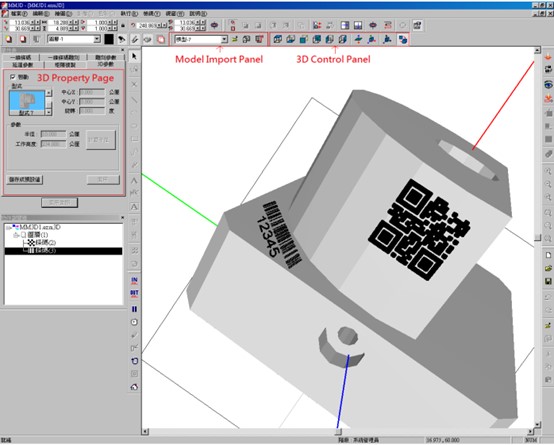

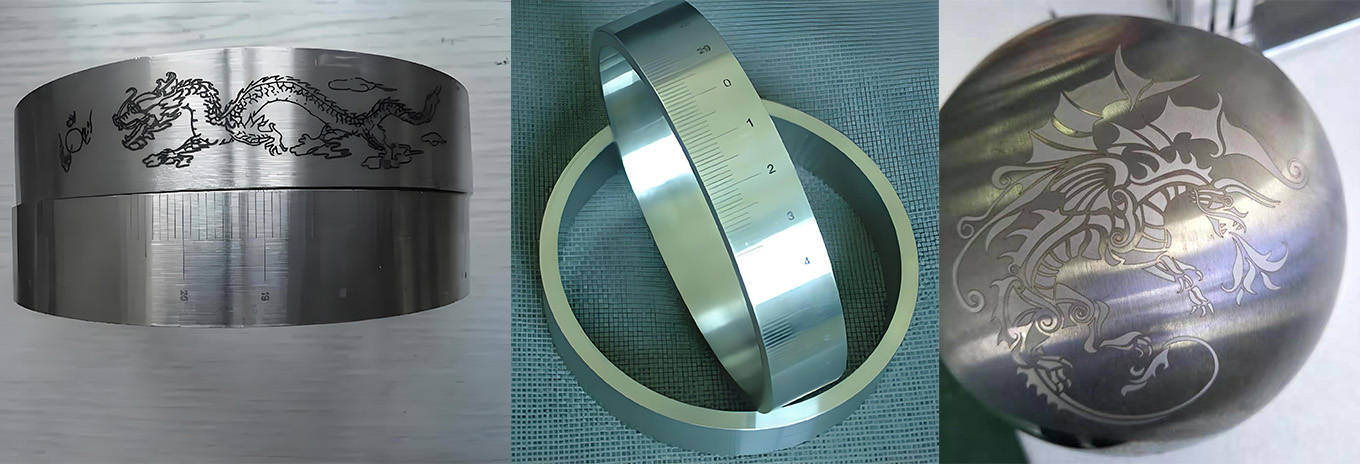

Curved surface marking: In the traditional 2D marking machine, the work piece must be placed on the same plane, and the processing surface must also be on the same plane, in order to achieve the marking once formed, and the surface marking cannot be completed. The 3D laser marking machine uses MM3D marking software, has combined the third marking axis(focal shifter) control ability, which could help user marking on irregular curve surface. After user import the 3D model in STL format, DXF file as marking path, MM3D will paste the draw-ed graphic on the model surface. At this time, user could put the working-piece on the proper marking position to complete marking task.

Get a Quote

Send Email to Us

Get Price on Whatsapp

Product Detail

3D Dynamic focus laser marking machine has more powerful function. And it is suitable for different surfaces and shapes. For example, you can mark products with round, cylindrical, conical, concave/convex, or triangular shapes. This is possible due to the 3D laser machine's ability to adjust the laser beam position and focal length.

Video introduction

Video introduction of 3D fiber laser marking machine

Tech Specifications

Model	3D Dynamic Focus Laser Marking Machine
Laser Power	50W/60W/100W/200W
Working Area	110X110mm-300X300mm
Laser Wavelength	1064nm
Frequency	1KHz~400KHz
Laser Module Life	>100000 hours
Power Supply	220V±10% 50HZ or 110V±10% 60HZ
Marking Depth	adjustable according to materials
Packing Size	8878115cm
Packing Weight	120KG

Note: As products are constantly updated, please contact us for the latest specifications.

How 3D Fiber laser marking machine works?

Can quickly change the laser focal length and laser beam orientation, and can achieve curved surface marking that cannot be done in 2D.

Deep carving: The traditional 2D marking has inherent defects when deep carving the object surface. As the laser focus moves upward during the engraving process, the laser energy acting on the actual surface of the object will drop sharply, which seriously affects the effect and efficiency of deep engraving. Therefore, it is necessary to move the lifting table at a specific height every specific time during the engraving process to ensure the laser surface gathering effect.But 3D Fiber laser marking machine uses Dynamic focusing system to make sure efficiency of deep engraving

3D fiber laser marking machine for curved surface engraving deep carving (3)

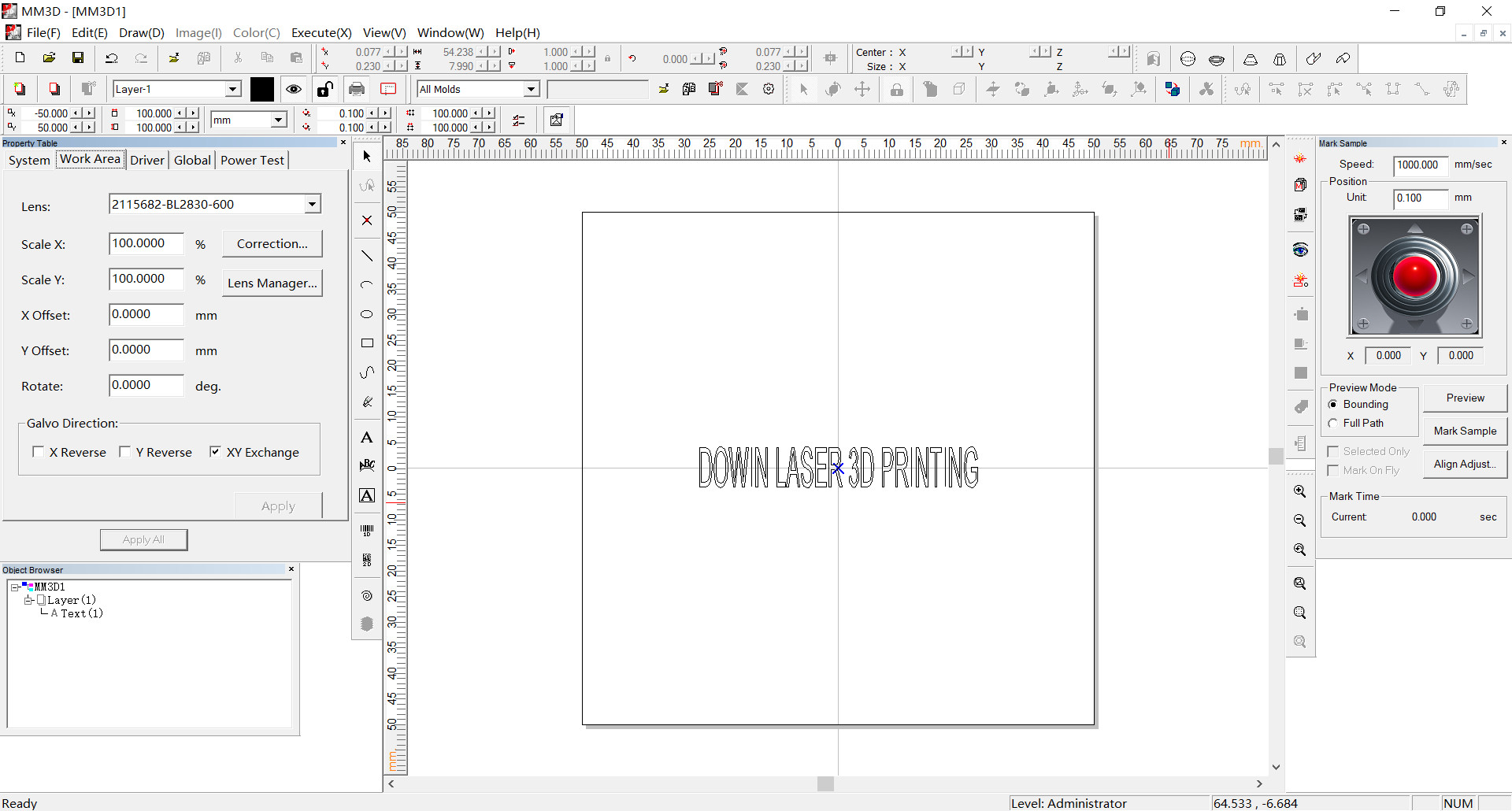

Professional 3D Marking Software

MM3D marking software is easy to operate, and professional 3D model engraving, can also real-time preview, what you see is what you get.

And MM3D marking software supports X,Y, or Z axis motion, and adjust the focal length automatically, no need alignment etc. complex processer. operation flexible, and efficiently.

Function Introduction

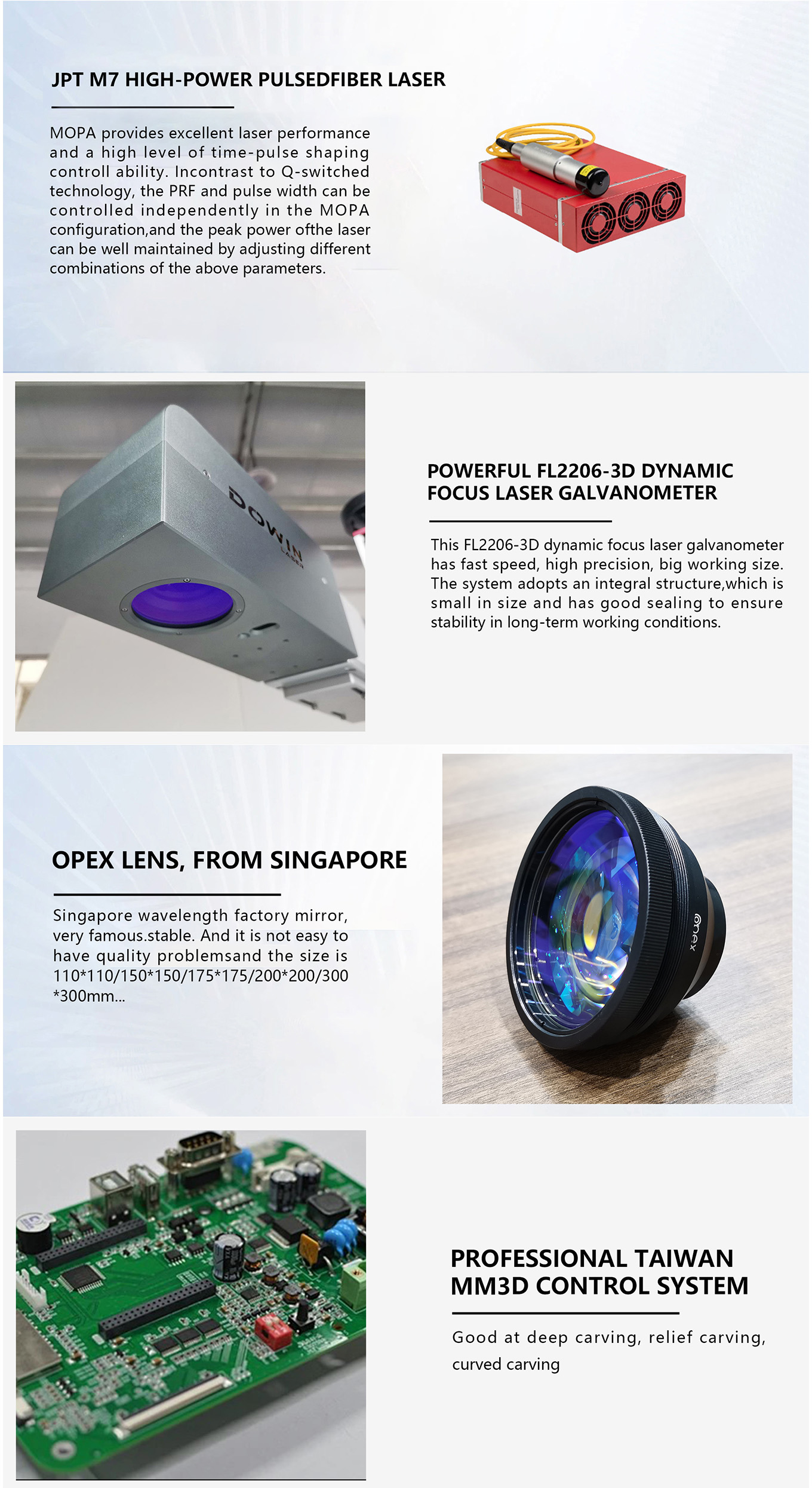

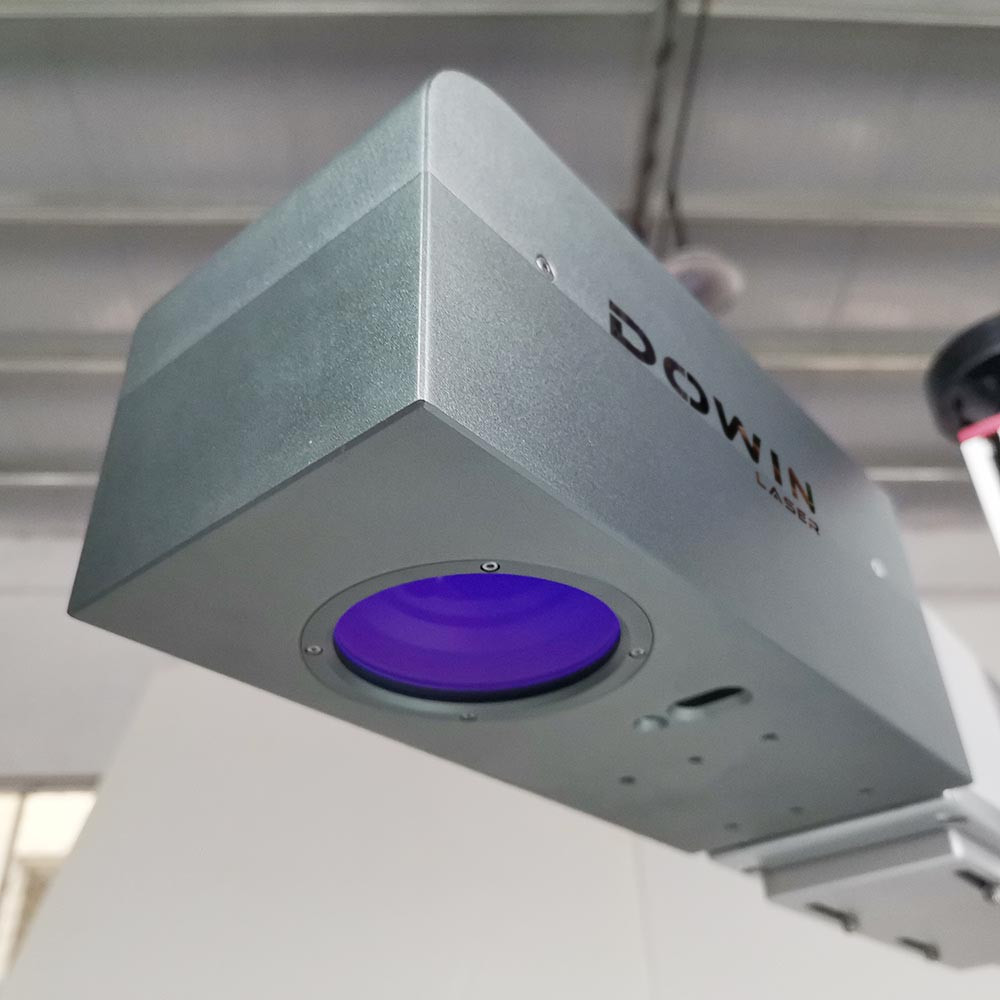

3D dynamic focus laser marking machine adopt special core components, with high-speed, high precision 3D galvo (FL2206-3D), and with our 3D specified software, and control system (MM3D system).

it can engrave on any curved workpieces in a fine process, there is no off-focus problem.

It can also automatically adjust focus length any time for deep engraving, which makes process efficiency and marking quality much better than traditional 2D fiber laser marking machine.

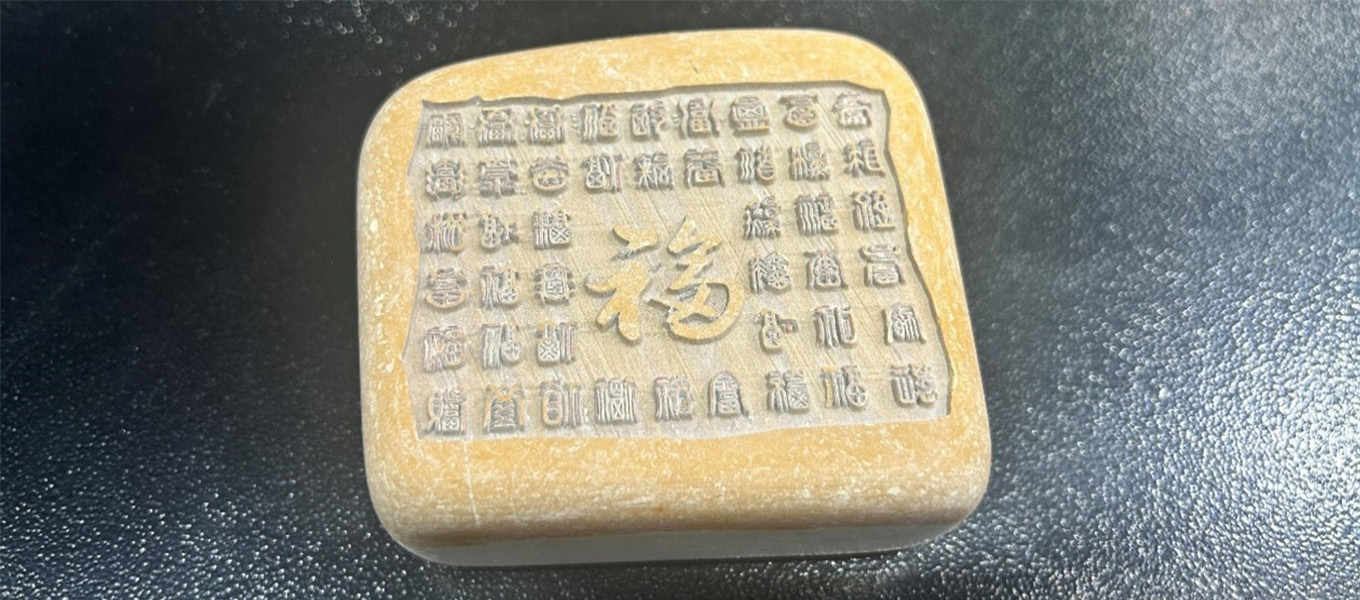

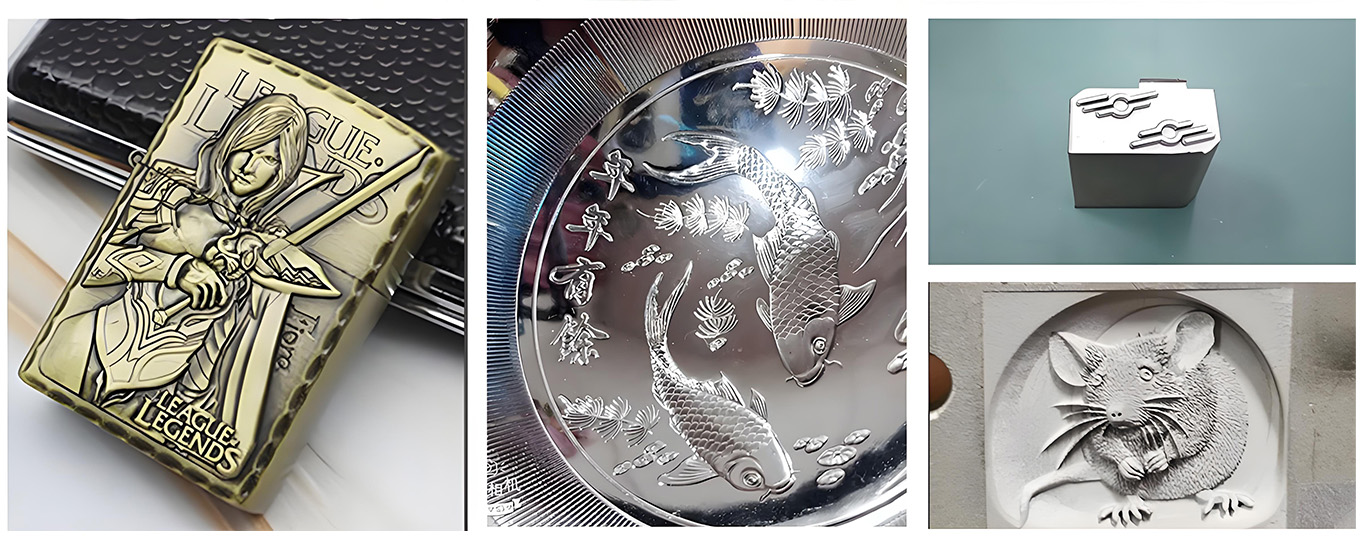

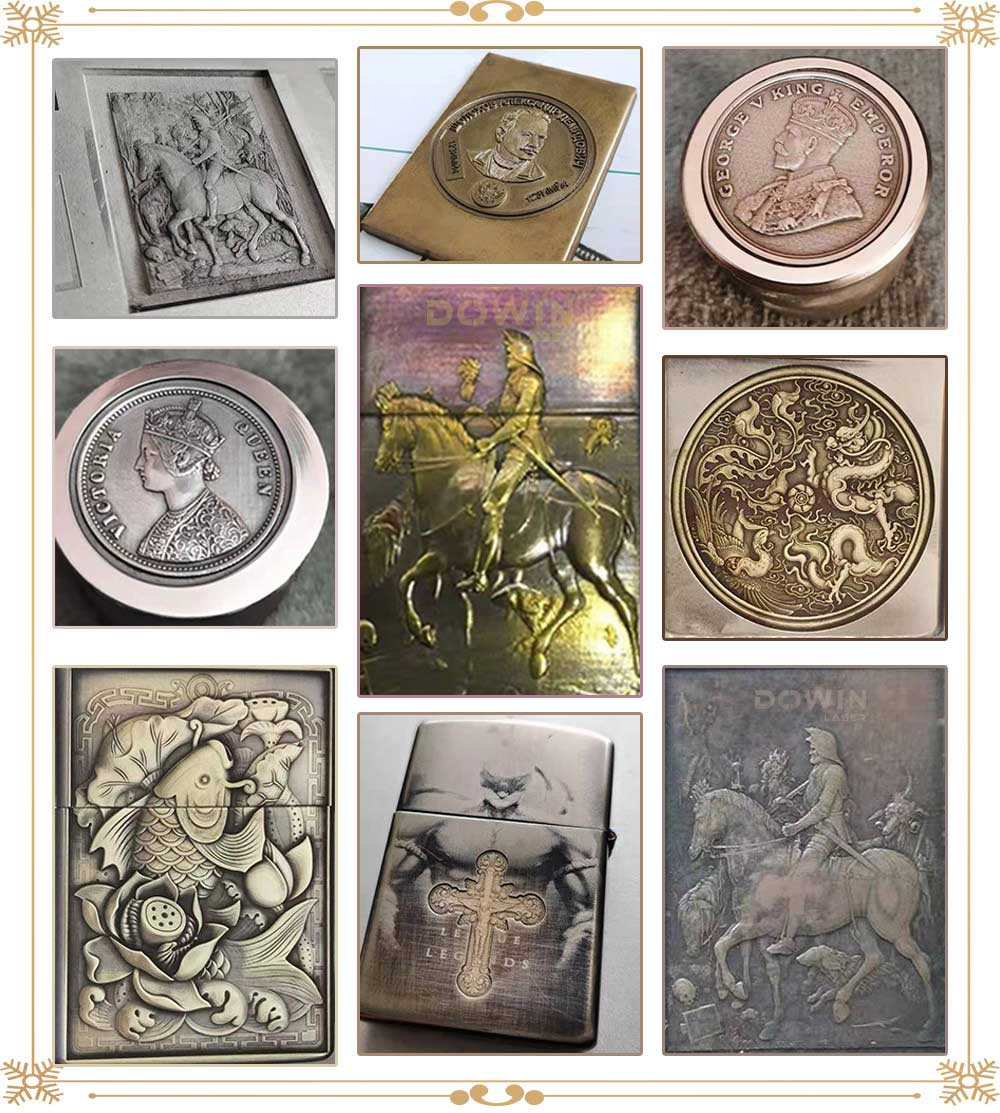

And relief engraving is one of special skills about 3D dynamic focus laser marking machine, can work on objects with vivid engraving effect. Than traditional 2D fiber laser marking machine, it cannot achieve.

We make real 3D marking function come true, leading a new era of laser processing.

3D Dynamic focusing system and Taiwan MM3D 3D software makes your 3D fiber laser marking dreams and design come true !

Application

3D fiber laser marking machine Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary ware, tool, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

3D fiber laser marking machine Applicable Materials

Curve Surface Metals(including rare metals), engineering plastic, electroplating materials, coating materials, plastics, rubber, epoxy, resin, ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.
