Desktop small enclosure model fiber laser marking machine

Enclosed design, The safety factor is particularly high, open door protective system, when open the cover laser stops.

  1. Laser source: Raycus famous laser source, 3 years warranty
  2. Galvo head:Our galvo head add double red lights focus and alarm-light device,find focus faster and more accurately
  3. Control software:use 100% genuine BJJCZ -EZCAD control software ,it supports XP WIN7 /8 /10 32/64 bit operating system,support multiple languages
  4. F-theta-lens:use the best OPEX brand lens from Wavelength length
  5. Power supply:use genuine Taiwan Mean Well brand power supply,safer and more durable

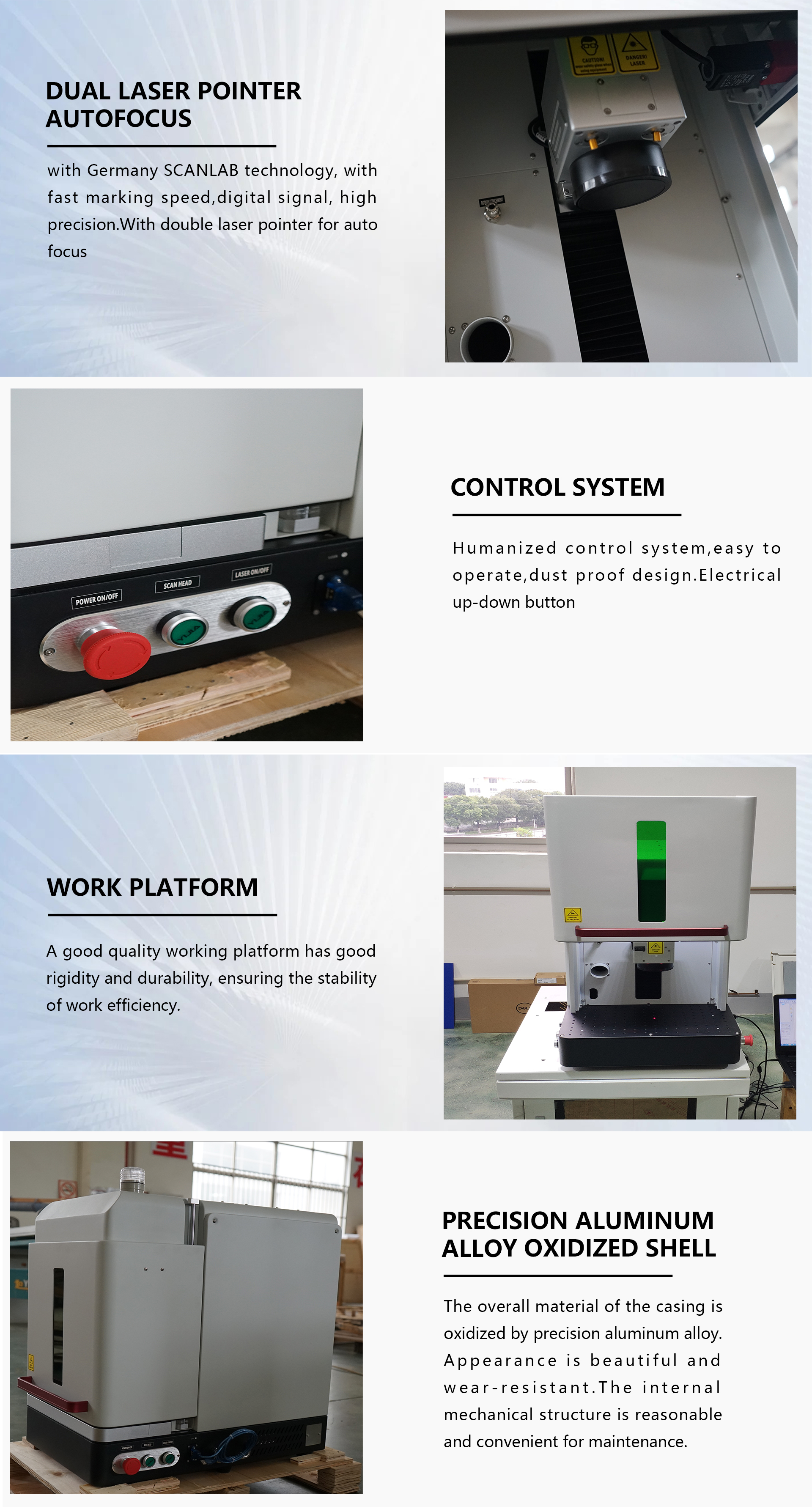

Product Detail

Tech Specifications

Model

DW-20FDE

Working area

110*110(150*150/175*175)mm

Laser Power

20W (optional 30w 50w)

Laser source

Raycus

Wavelength

1064nm

Software

Genuine EZCAD

Repetitive frequency

20kHz-100kHz

Cooling mode

Air Cooling

Pulse width

<100ns

Peak power

25-80KW/10KHz

Marking speed

7000mm/s

Mini line width

0.01mm

Location accuracy

<10urad

Support operation system

Win7/8/10 system

Graphic format supported

AI, DXF, DST, DWG, PLT, BMP, DXF, JPG, TIF, AI etc

Packing Size

82*69*90cm

Power supply

110V-220V/50-60Hz

Power consumption

Less than 800W

Red laser pointer

Double red lights

Open door protection system

Optional

Rotary

Optional

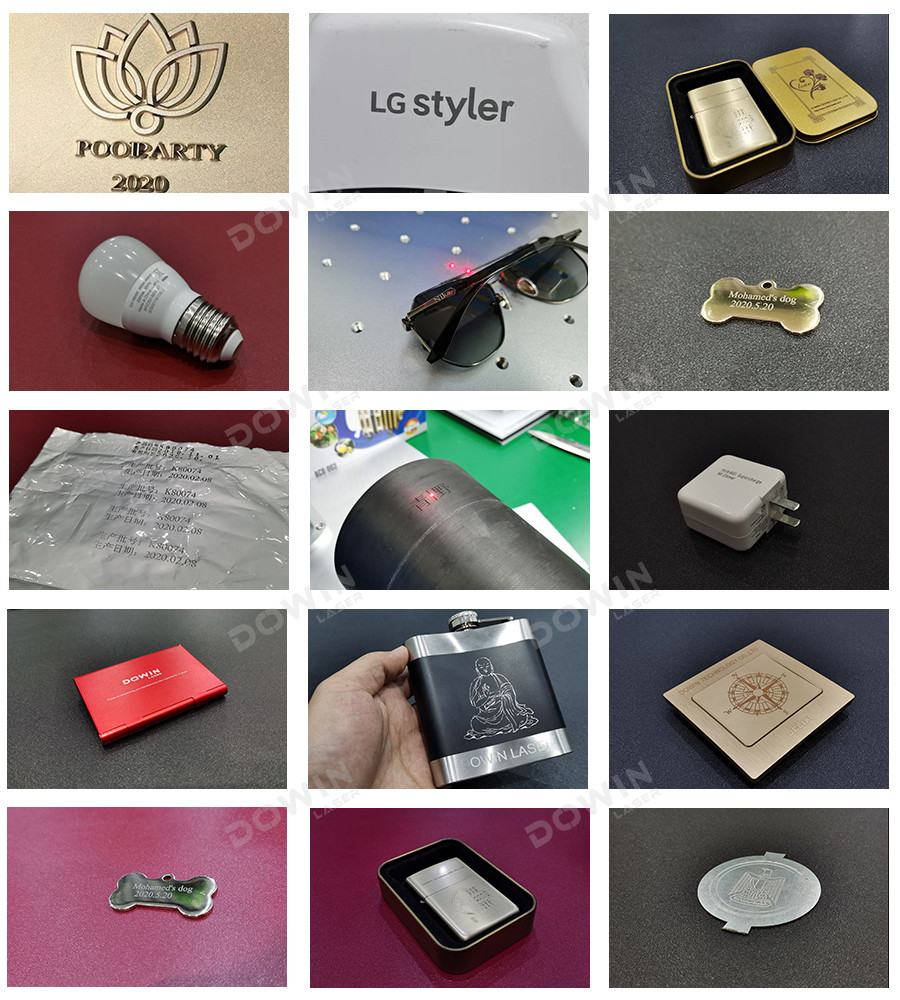

Application

Enclosed jewelry metal fiber laser marking machine is a fast and clean technology that is rapidly replacing older laser technologies. Direct laser marking and laser engraving has now become a common process in the jewelry industry.

It offers a non-contact, abrasion-resistant, permanent laser mark onto almost any type of material including gold, platinum, silver, brass, stainless steel, carbide, copper, titanium, aluminum as well as a wide variety of alloys and plastics.

Desktop small enclosure model fiber laser marking machine
Marking Material Both metal and some non-metal.Metal: carbon steel/ mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel ( gold, silver, titanium, etc. ) special surface treatment ( aluminum anodized, plating surface, surface oxygen breaking of aluminium and magnesium alloy)

Non-metal: plastics such as ABS, PVC, HDPE , PP, PC, PE, rubber, resin , etc.

Applied Industries 3C, food, medicines, gifts, trademark signs, the phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, knives, watches, jewelry, cars accessories, luggage buckle, cooking utensils, stainless steel products and other industries.
Marking Content Identification text, serial numbers, corporate logos, 2-D data matrix, bar coding, graphic and digital images, or any individual process data can be produced with laser engraving.
