Big power glass tube CO2 laser marking fast engraving machine

Working size:0-400*400mm
(Optional Dynamic focusing can mark max 1200*1200mm)

  1. Sino-galvo 2808 galvanometer
  2. Honeycomb working table
  3. S&A CW-5200 water chiller free
  4. Genuine EZCAD software support win 7/8/10
  5. Famous brand-Beijing RECI W4(100W-130W)Co2 laser tube
  6. Taiwan Meanwell power supply

Product Detail

Standard features

Big power glass tube CO2 laser marking fast engraving machine

S&A brand chiller CW-5200, the best brand water chiller Made in China

Big power glass tube CO2 laser marking fast engraving machine

Beijing RECI laser tube, the best brand CO2 seal laser tube in China

Big power glass tube CO2 laser marking fast engraving machine

Genuine BJJCZ control board, stable with reliable after-sale service

Big power glass tube CO2 laser marking fast engraving machine

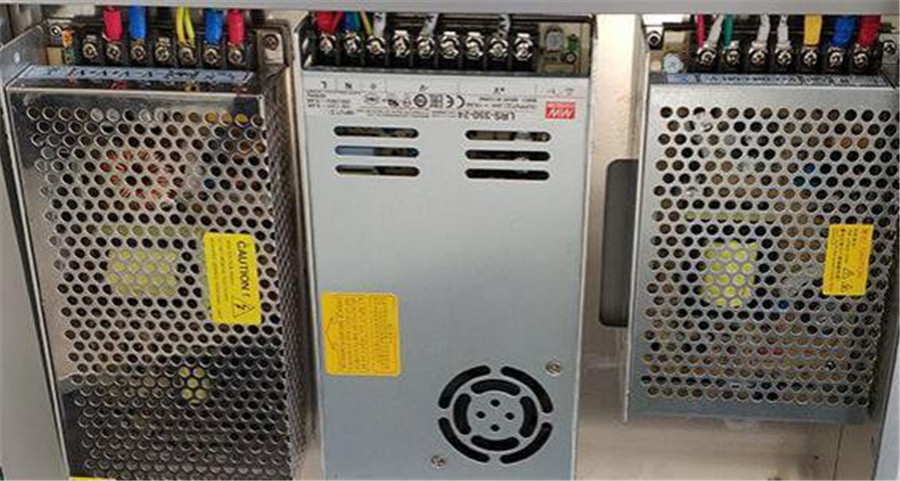

Genuine Taiwan MW brand laser power supply and other control switch power supply ,individually installed to ensure that the laser is protected from electromagnetic interference from other controllers during operation, making the laser's power output more stable and efficient.All the dual power supplies adopt domestic famous brands, which can ensure the long-term working power of the laser is stable.12 month warranty is provided.

Big power glass tube CO2 laser marking fast engraving machine

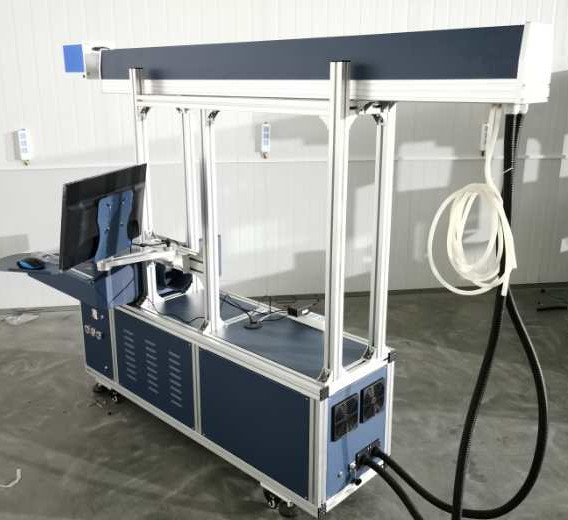

Strongly built frame

Big power glass tube CO2 laser marking fast engraving machine

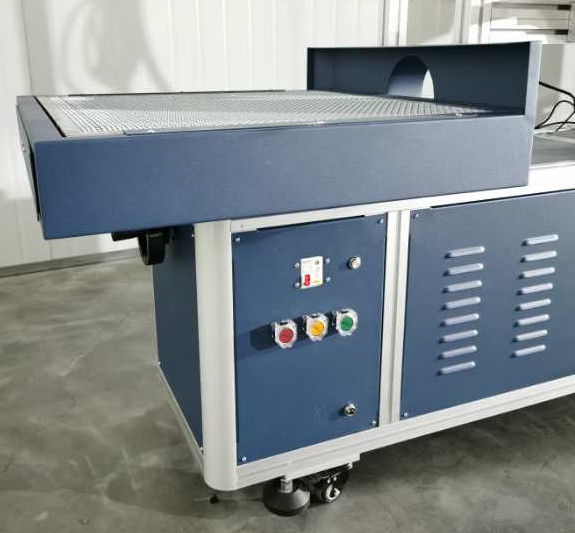

Up-down cutting table, easy to find correct focus distance  for different thickness objects

Video introduction

Technical parameters

Model DW-100CO2
Marking scope 0-400*400mm

(can upgrade 600*600mm/800*800mm/1200*1200mm)

Power 100W-130W
Laser sources  RECl CO2 tube
Laser Head Scanning head
Wave length of laser 10.6um
Mark linewidth 0.1mm
Minimal character 0.3mm
Marking speed ≤7000mm/s
Support format PLT, BMP, DXF, JPG, TIF,AI etc
Repeated accuracy <0.01mm
Software Genuine EzCad software
Power supply 110V/220V/ 50~60Hz
Process Material Non-metal Materials
Cooling ways Water cooling
Interface USB
Packing Weight 220KG
Packing size 2300*550*1500mm

※What is the difference between Co2 glass laser tube engraving machine and CO2 glass tube marking machine?

Both of them use the same glass laser tube, the gas release wavelength of 10.64um laser, Co2 laser engraving machine uses mechanical XY axis and laser head, focus distance is short , so it could be used for deep engraving and cutting, but speed slow . The CO2 laser marking machine energy is amplified by galvanometer scanning and F-Theta mirror focus, control standard control card in computer and laser, image, text, figures and lines on the work piece according to the user's requirements for marking, speed is much faster, please refer to videos on our website to see the speed difference.

※What is the difference between Co2 glass laser marking machine and CO2 RF metal tube laser marking machine?

CO2 laser marking machine, namely carbon dioxide laser marking machine, is divided into RF tube CO2 laser marking machine and glass tube CO2 laser marking machine. CO2 laser marking machine is a laser galvanometer marking machine using CO2 gas as working medium.
RF metal tube is costly , small power lower than 60W is popular,its marking size is smaller ,normally 110*110mm -300*300mm,Glass tube CO2 laser marking machine power is 80w-150W, use glass tube like RECI. Could be used for big size marking like 300*300mm ,600*600mm- 1200*1200mm(use dynamic 3D galvo scanner)

Big power glass tube CO2 laser marking fast engraving machine (5)
Big power glass tube CO2 laser marking fast engraving machine (3)
Big power glass tube CO2 laser marking fast engraving machine (1)
Big power glass tube CO2 laser marking fast engraving machine (4)
Big power glass tube CO2 laser marking fast engraving machine (2)

※Application &Samples.

This machine is designed for clients who want to mark big size nonmetal like wood ,acrylic ,paper , leather , Jeans... is stable and reliable, and has 24 hours continuous working ability. It is suitable for continuous production of large quantities, varieties and high precision machining environment.
