CO2 Laser Marking Machine

CO2 laser marking machine, namely carbon dioxide laser marking machine, is divided into RF tube CO2 laser marking machine and glass tube CO2 laser marking machine. using CO2 gas as working medium. Wavelength of 10.64um laser, the laser energy is amplified by galvanometer scanning and F-Theta mirror focus, control standard control card in computer and laser, image, text, figures and lines on the work piece according to the user’s requirements for marking.

Main Configuration
& Feature

The machine is stable and reliable, and has 24 hours continuous working ability. It is suitable for continuous production of large quantities, multi varieties and high precision machining environment.

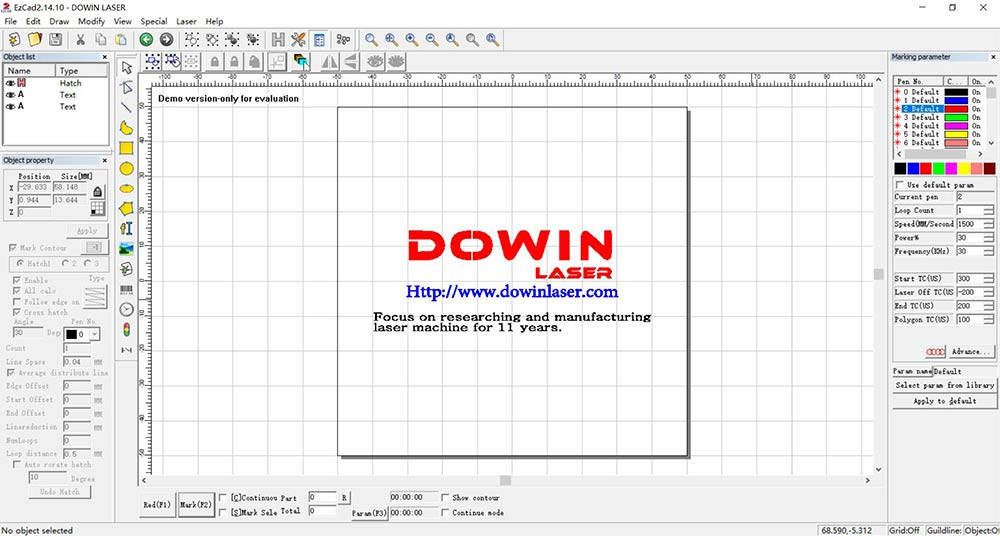

We use Original BJJCZ main board ,EzCad software, stable performance,support Win7/ 8 /10 system. Machine with several language can be available, the most important thing is it quite easy to operate.

CO2 laser marking DW-30CO2
CO2 laser marking DW-30CO2

Details

01

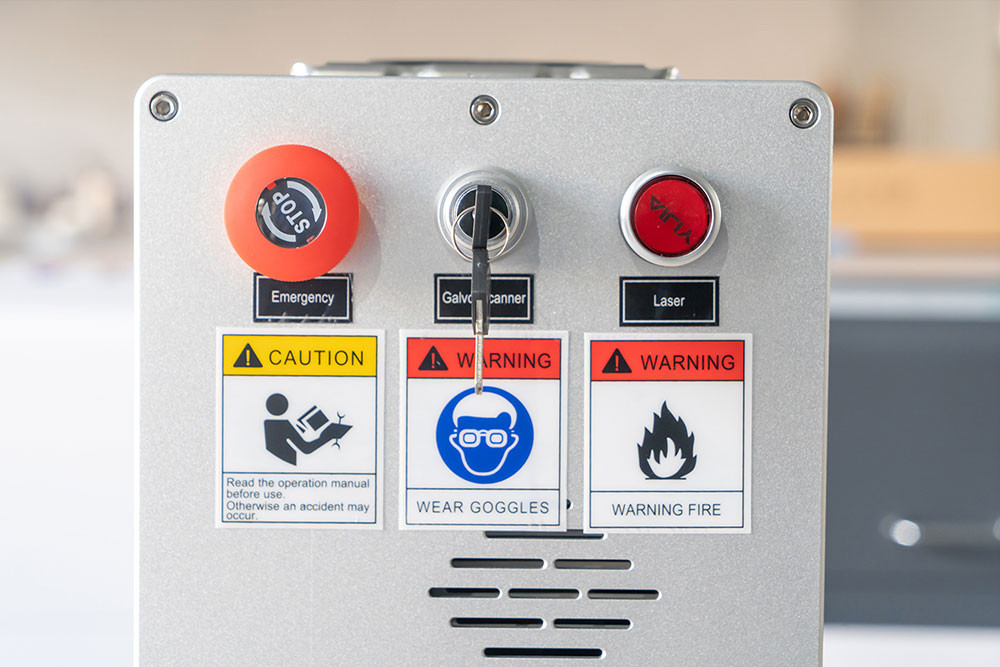

Full front and back pass-through door allows long materials pass through, Special back shape design allows accessories to be placed under machine, its neat and space-saving.

CO2 laser marking DW-30CO2
CO2 laser marking DW-30CO2 (3)

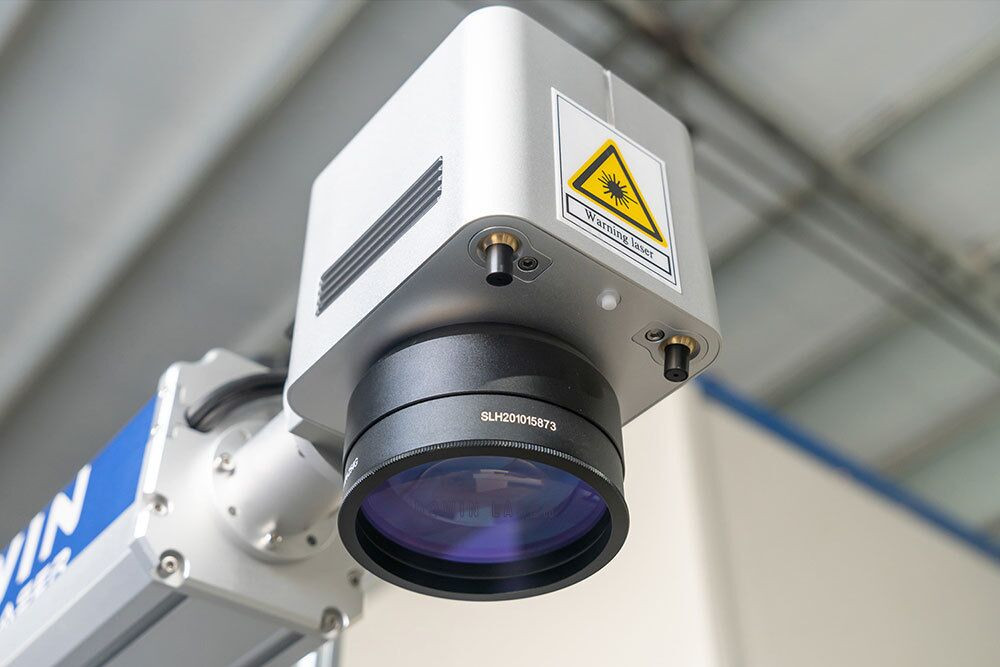

Co2 RF metal tube laser marking machine use High speed Galvo head, high precision and Speed.High quality laser scanning system makes the marking speed up to 7000mm/s.

02

03

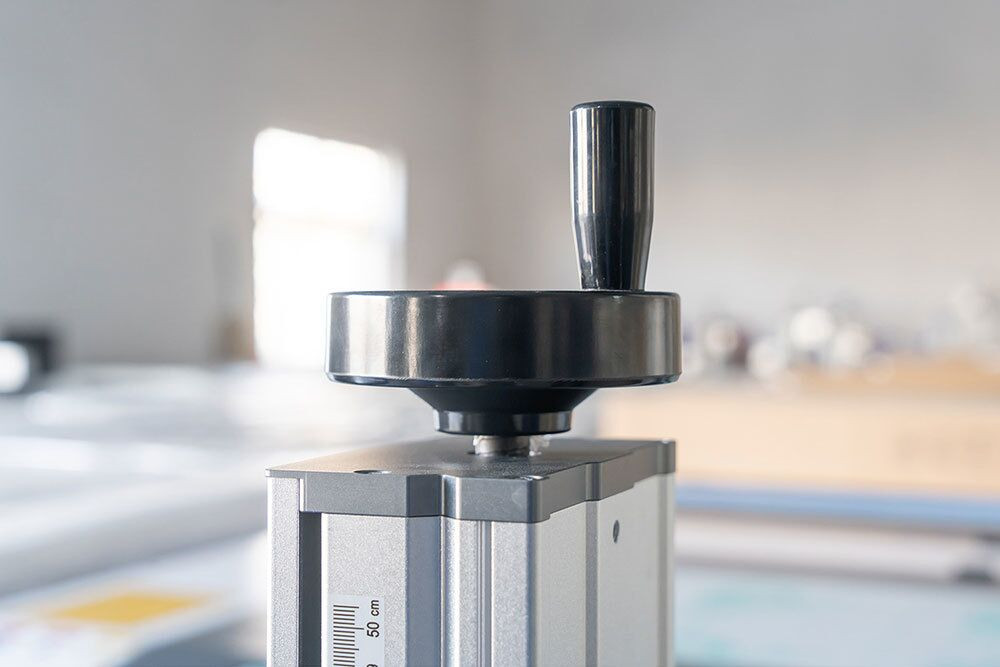

High precision lifting pillar
Hand-cranked lifting system, easy to operate and easy to use. The laser focal length can be adjusted up and down according to different kinds of materials and marking materials.Rocker arm can lift up and down the 500mm,Object effective marking height 330mm.(Optional)800mm height electric lifting column.

CO2 laser marking DW-30CO2 (1)
CO2 laser marking DW-30CO2 (4)

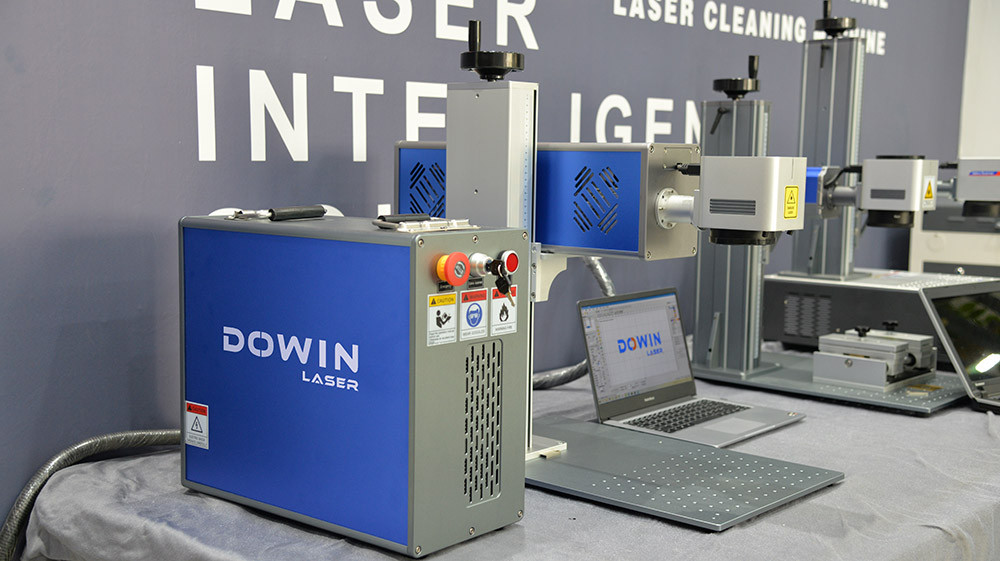

The shell material of our machine is all aluminum alloy ,no rust and bend.

04

05

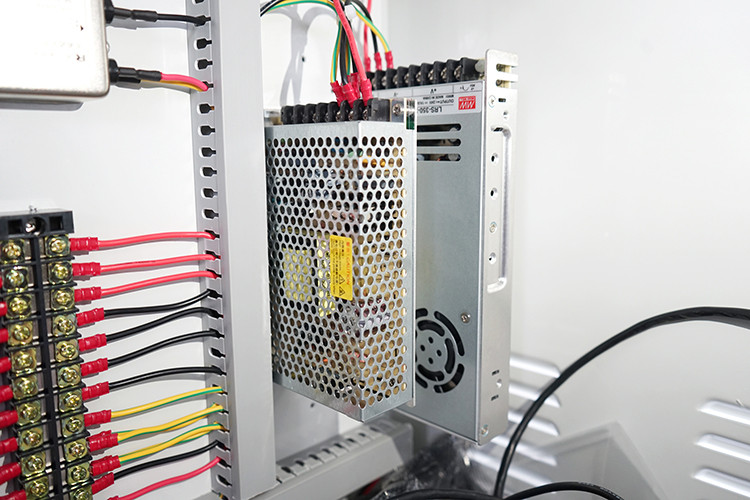

Use famous Taiwan“MW" power supply with stable performance.professional technology and long life time.

CO2 laser marking DW-30CO2 (2)

Tech Specifications

Laser Power 35W /60W (USA Synrad)

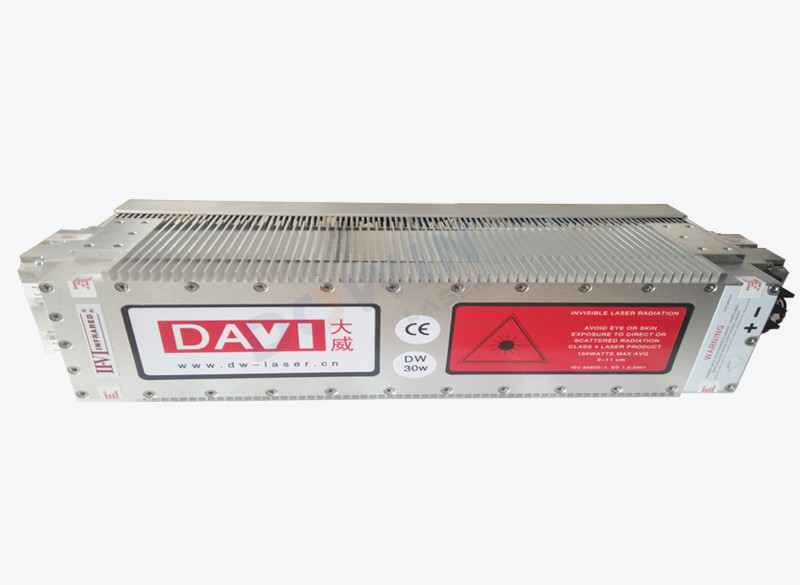

Laser source Davi /CDR RF metal tube
Software EZCAD
Control BJJCZ control card
Power supply Taiwan Meanwell
Wavelength 10.64UM
Laser medium CO2 Laser
Supports graphical format PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF ect.
Operation system Win7/8/10 system
Marking depth 3mm (according the material)
Marking speed 1-7000mm/s
Minimum line width 0.1mm
Minimum character 1mm
Precision ±0.01mm
Machine whole power 500w
Power supply 220v/110V±10%, 50~60Hz
Marking the frequency 0-20khz(adjustable)
Marking area 110*110/200*200mm
Applied materials Nonmetal material
Package size 73*48*54CM
Package weight 55KG

Application

Applicable materials
Suitable for leather, denim, acrylic, wood products, epoxy resin, unsaturated resin, textile, plastic, ceramics, medicine, rubber and some metal materials.

Applicable industries
Food packaging, beverage packaging, pharmaceutical packaging, building ceramics, clothing textiles, leather, buttons, fabric cutting, wood, bamboo carving, craft gifts, rubber products, electronic components, shell plate, etc.

CO2 laser marking DW-30CO2 (5)

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
