UV Laser Marking Machine

Discover DOWIN high precision UV laser marking machines, designed for precision and versatility on various materials, especially glass, plastic, and also can cover a whited range of applications, from plastics to metals crossing materials like wood or paper. This is the most common materials engraving with UV laser
Offering 3W, 5W, and 10W output power options and easy-to-use EZcad software, our machines cater to all your marking needs. Experience the DOWIN difference and explore our product range today.

Product Detail

The UV laser marking machine directly breaks the molecular chain of the material through short-wavelength laser, thus forming the required pattern, text or mark on the surface of the material. This processing method is cold processing and does not generate heat. Therefore, the heat-affected zone of the material during processing is extremely small, which can effectively avoid mechanical deformation and burning of the material. It is suitable for a variety of materials, including metals, non-metals, plastics, glass, etc., and the processing effect is clear and lasting.

紫外打标机

Feature of UV laser marking machine:

UV laser is cold light source . UV laser with short wavelength , focus , smaller spot , belongs to cold process with a little heat affecting , good beam quality , it can achieve perfect marking . Most materials can absorb ultraviolet laser , it is widely applied on industrial ; with very little heat affecting area , it won't have heat effect , there is no burning problem , pollution-free , non-toxic , high marking speed , high efficiency , the machine performance is stable, low power consumption.

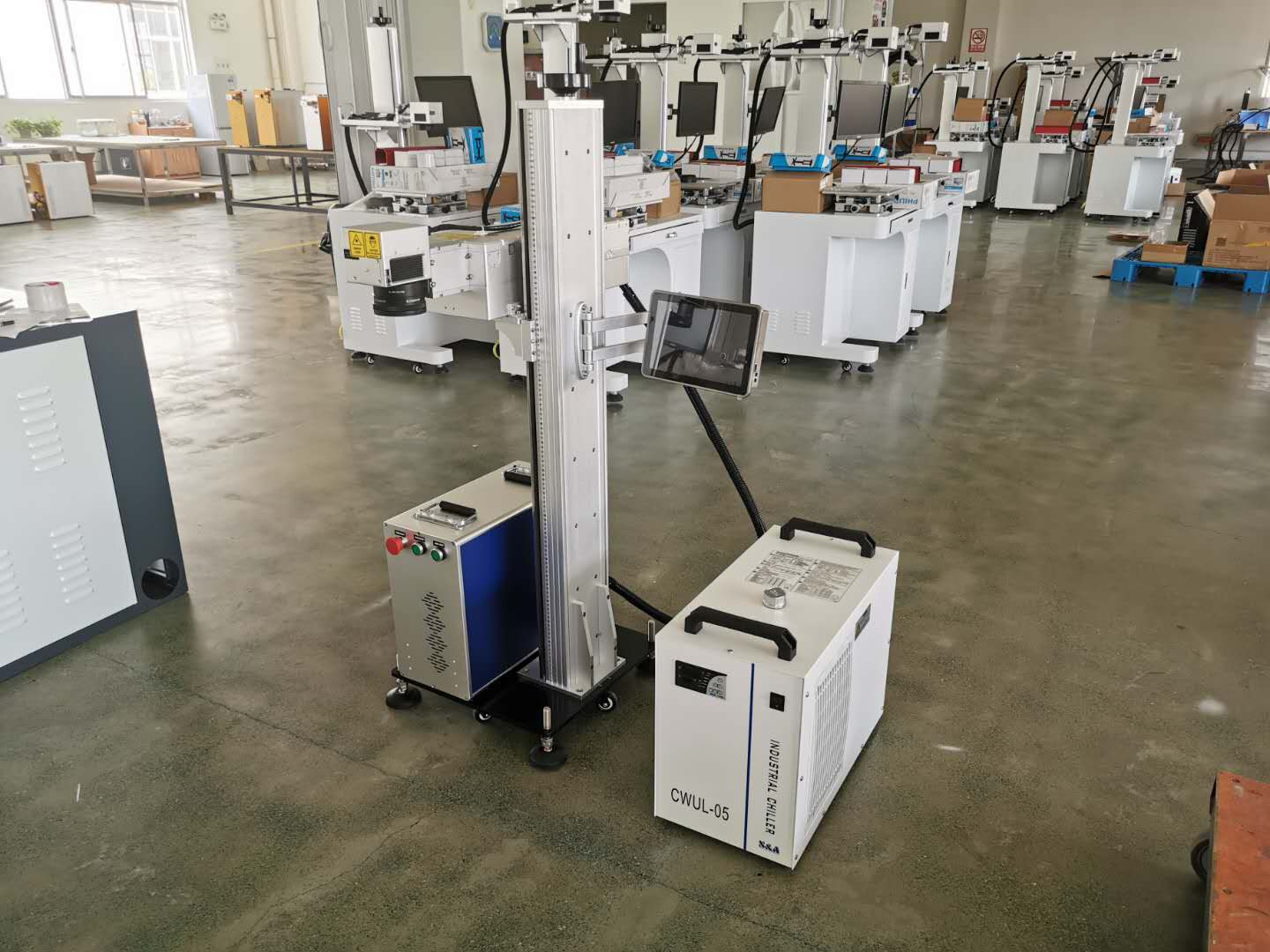

There are three different models of UV laser marking machines, one is portable model uv laser, other is desktop models uv laser, and we also can customize flying laser model, according to our clients; requirements.

Features of UV laser marking machine:

UV Laser Marking Machine works with the blue laser beam. And advanced technology with 100% ingrained pattern and it beats normal fiber laser. For more accuracy on smaller diameter spots and marking effect, it uses 355nm Light Laser source. It is used for a wide range of products like rubber, glass, plastic, and other metals.

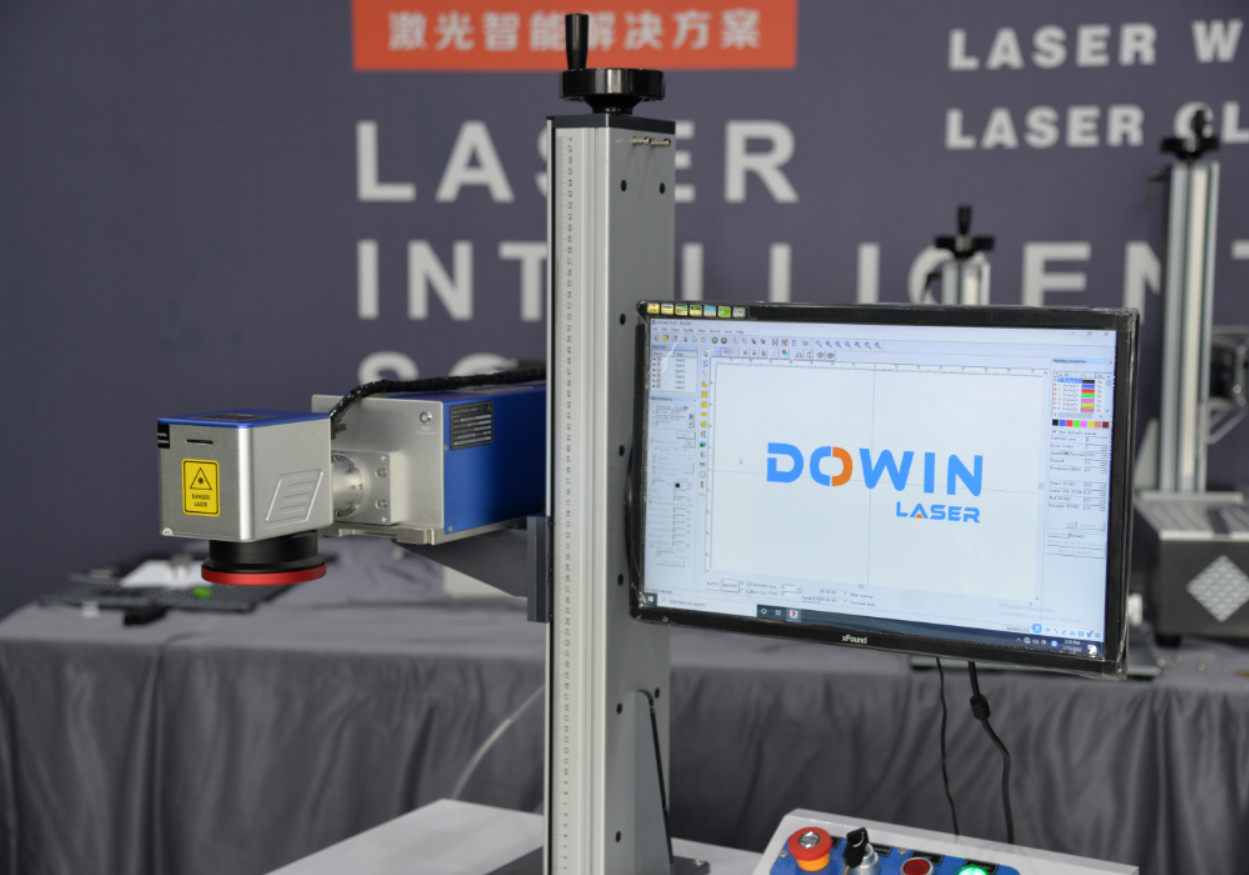

UV laser marking machine

Parameter of UV laser marking machine:

UV Laser Marking Machine is the best choice for industrial operations and the accurate cutting-edge technology for plastics, silicon, glass, and similar other materials and metallic surfaces.

Tech Specifications

Laser Type UV Laser Marking Machine
Working area 110*110/200*200/300*300(mm)
Laser power 3W/5W/10W/15W(Optional)
Laser wavelength 355nm
Laser generator brand Inggu, Huaray,  AOC
Cooling Mode Water Cooling
Repeated Precision ±0.003mm
Marking line width 0.01mm
Working voltage 110V~220V /50~60HZ
 Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT



Application of UV laser marking machine

1.355nm ultraviolet light focusing spot is very small, which greatly reduces the mechanical deformation of the material (cold light), because it is mainly used for ultra-fine marking and engraving, especially suitable for food, pharmaceutical packaging materials marking, micro-holes, glass High-speed division of materials and complex pattern cutting of silicon wafers and other application industries.

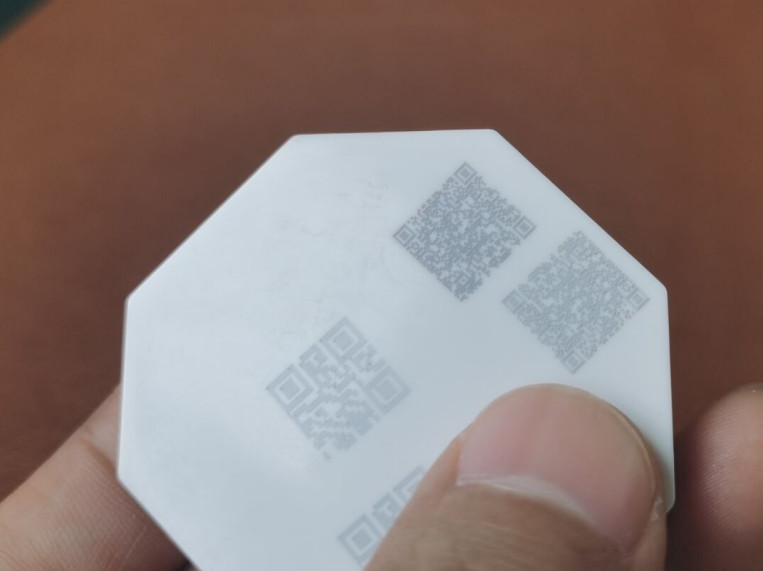

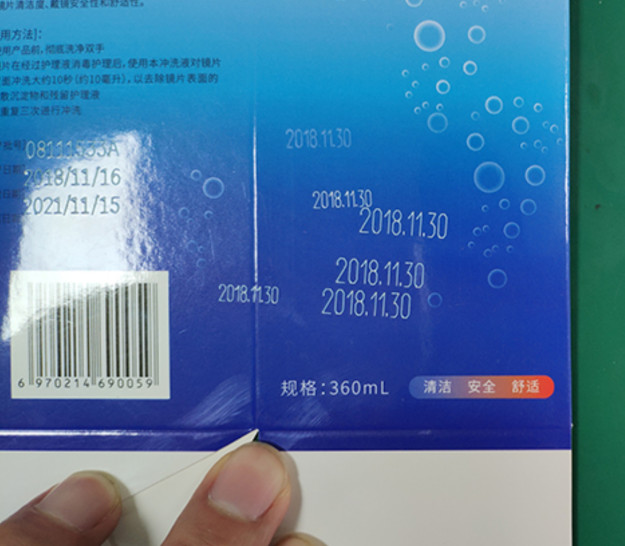

2. Mainly used in the high-end market of ultra-fine processing, marking the surface of packaging bottles of medicine, cosmetics, video and other polymer materials, the effect is very fine, the marking is firm and clean, better than ink coding and pollution-free; flexible pcb board marking Marking, dicing; silicon wafer micro-hole and blind-hole processing; LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, building materials

06200091a0d8561899cdd24195c2d69

Leaf carving technology

Leaf laser engraving is a new artistic expression and art form. Leaf carvings can be used as handicraft exhibitions, artistic business cards or bookmarks. Leaf carvings are environmentally friendly, natural, pollution-free, and highly ornamental and artistic. So DOWIN will introduce the UV laser marking machine engraving leaves.  In marking applications, UV laser called " cold laser", and it can maintain the original shape of the object to the greatest extent and reduce damage during processing. So for leaf carving, UV laser marking machine is best choice.

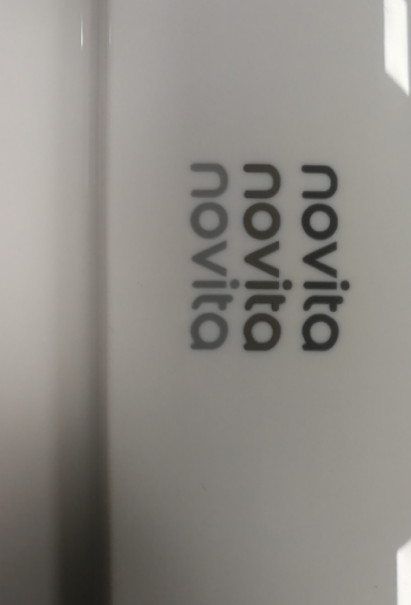

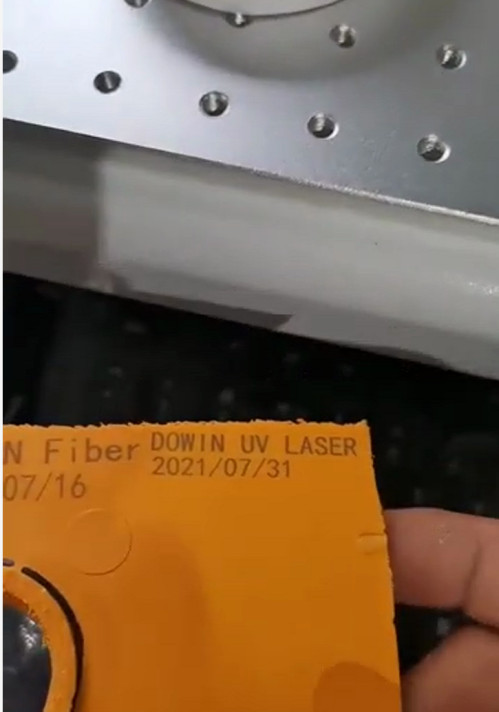

White plastic marking

Plastic marking technology

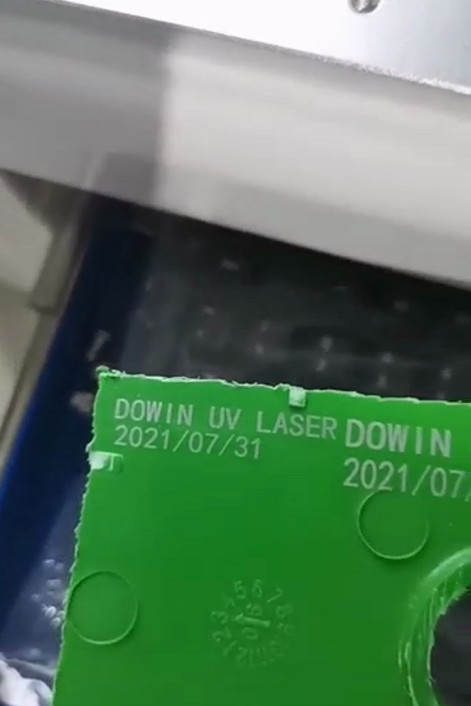

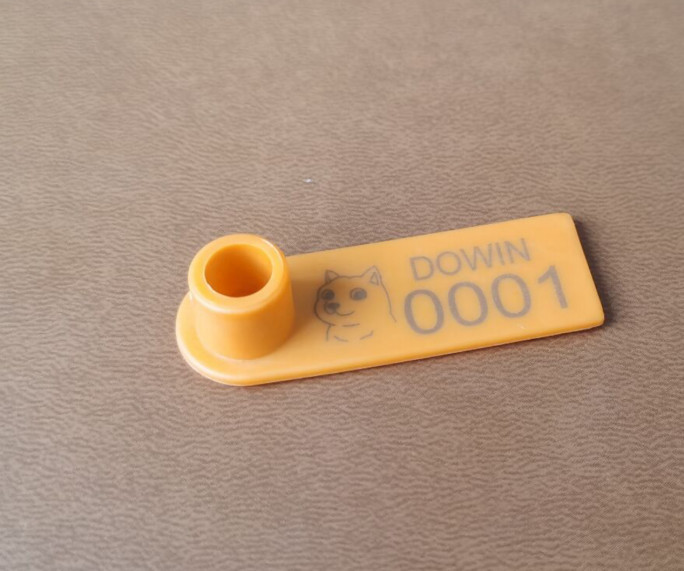

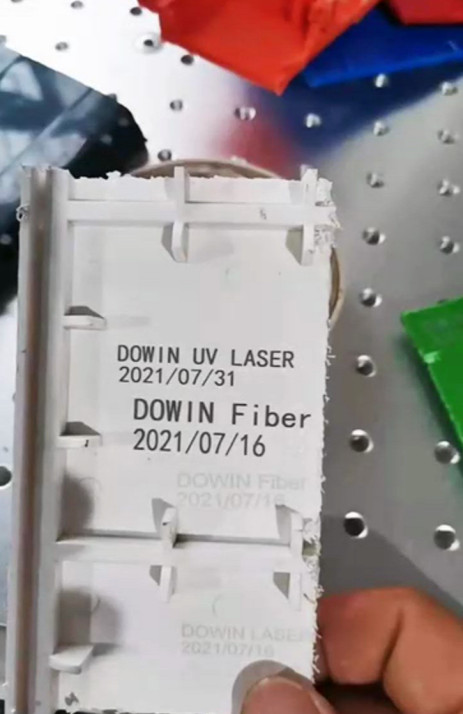

Plastic materials are common raw materials in the manufacturing industry. You can always find production date, model parameters, or patterns and other logos on them. A large number of these logos Laser marking machines can be used for processing and printing. Compared to plastic marking by fiber laser marking machine, UV laser marking machine marking effect is more precision. And for plastic materials, due to many different materials is made, many materials can not made by fiber laser. So UV laser machie is more popular and suitable

玻璃样品1

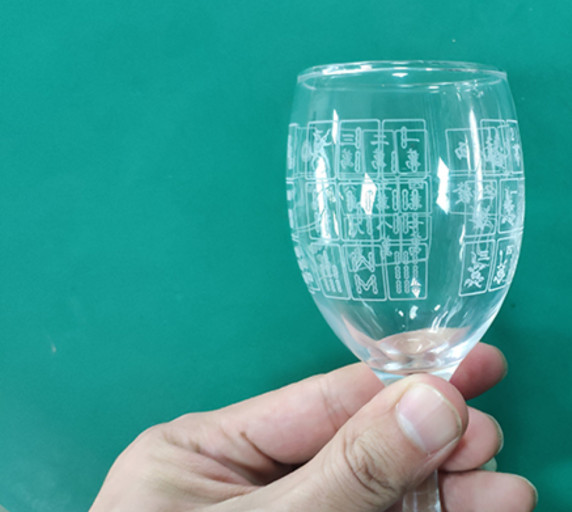

Glass marking technology

With the popularization of UV laser marking machine technology, UV laser marking machines are gradually being used for marking on many glasses. The UV laser marking machine has a very beautiful effect on glass marking, the surface is very smooth and flat, and the UV laser can also provide high-quality filigree and glossy marks.

Facial mask marking

N95 masks marking technology

Since the UV laser marking machine does not produce high temperatures and the light source focuses on a small spot, the mask marking effect is clear and there will be no ink scattering or burrs. Moreover, the UV laser marking machine for masks can cooperate with the assembly line, with a high degree of automation, which improves production. efficiency.

Service of UV laser marking machine

UV laser marking machine with safety wooden & carton box, and 15 months warranty of laser source. has any quality problem (except for human-made damage), DOWIN will provide free technical support. Has any questions, can feel free to contact us!



Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
