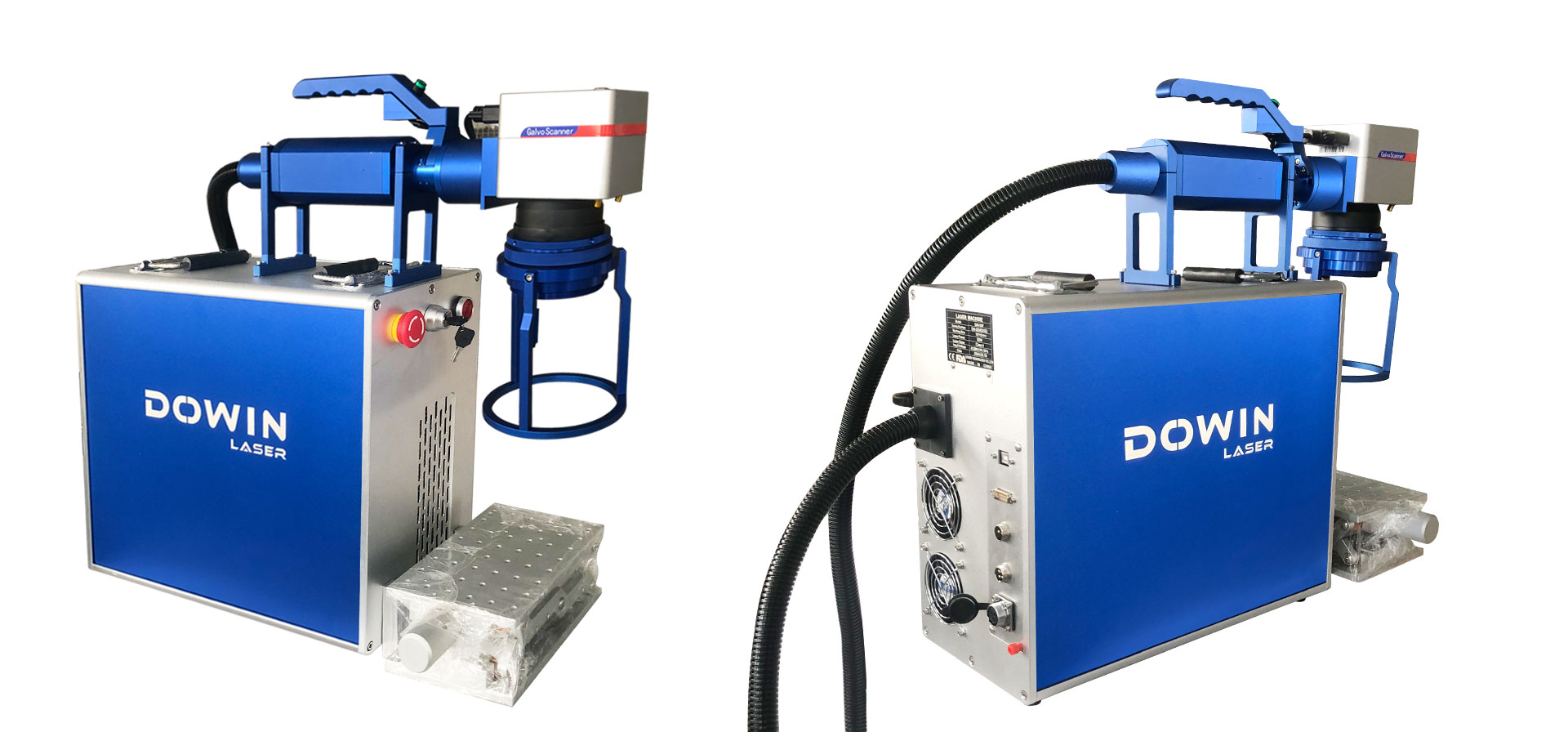

Portable Fiber Laser Marking Machine for Deep Marking of Truck Tires

*Desktop and handheld design , with removable fixed bracket, to meet a variety of marking needs.

*This laser marking machine adopts fixed automatic focusing bracket, and the laser marking machine is flexible and convenient to use.

*Laser beam stabilization: laser stability, small loss, free from the outside dust and mechanical impact, laser marking beam stability.

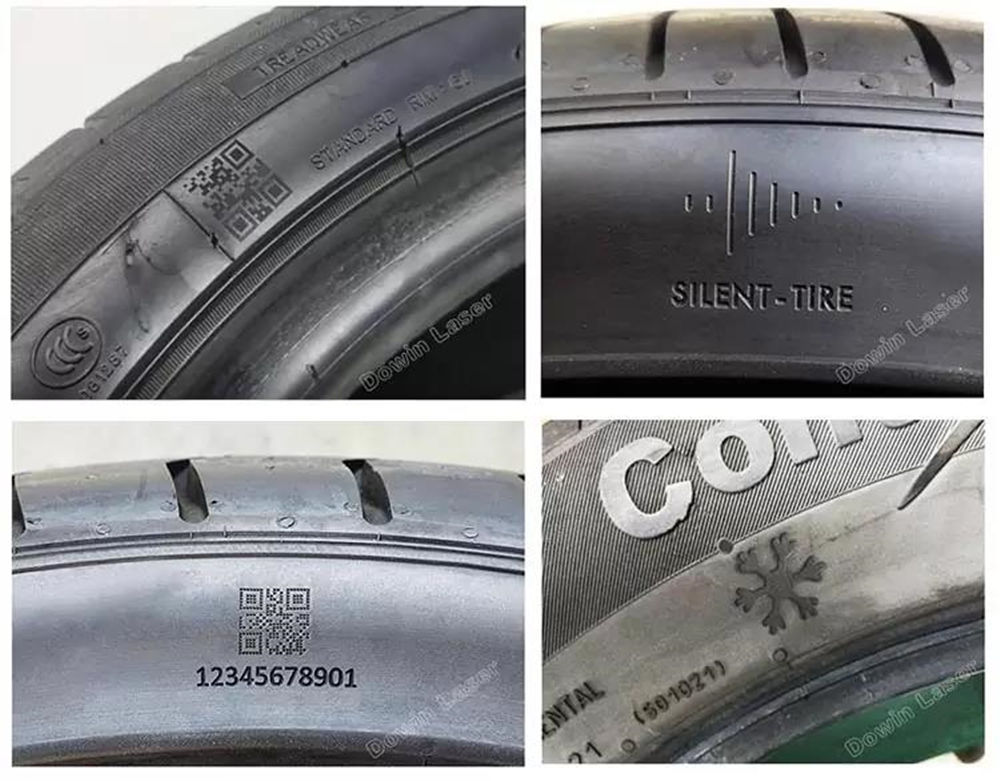

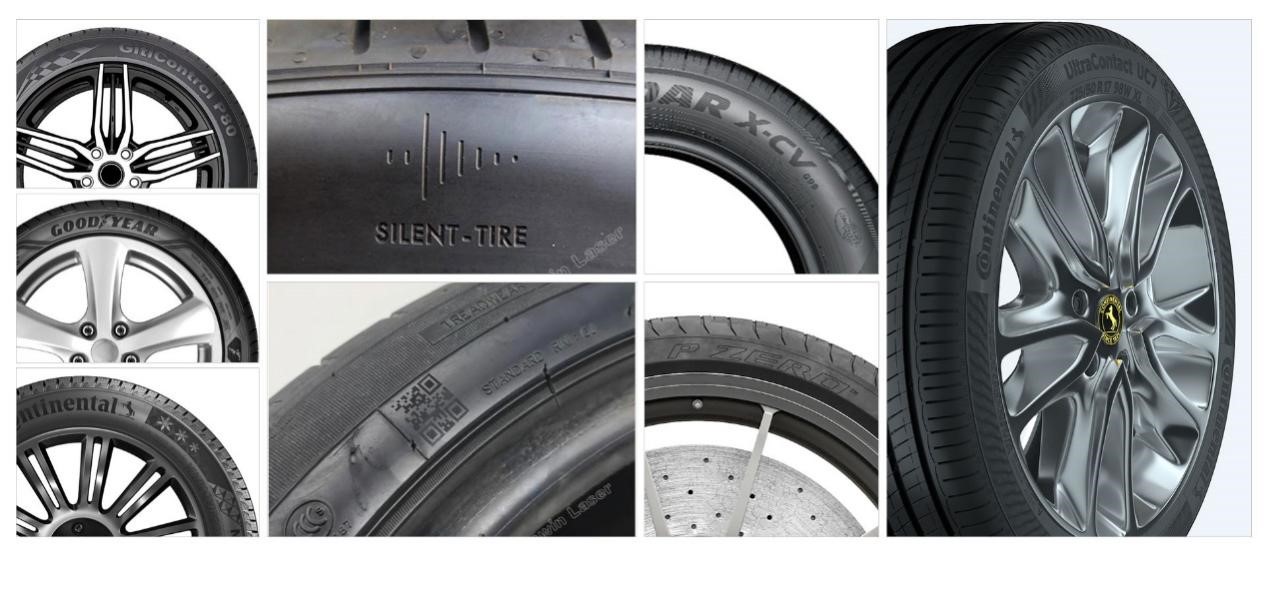

Tire Marking Effect Display

Tech Specifications

Model

DW-20FH Handheld Fiber Laser Marker

Laser Power

20W/30W/50W/100W

Laser source

Raycus (IPG optional)

Laser Wavelength

1064nm

Q-frequency

20KHz~30KHz

Divergence

0.3mard

Marking Range

110*110mm/200*200mm/300*300mm

Minimum Line Width

0.02mm

Indicate light

Double red light

Minimum Character

0.15mm

Marking Depth

0 ~0.5mm

Engraving Line Speed

≤7000mm/s

Repeatability Accuracy

±0.001mm

Beam Quality

M2:1.2~1.8

Marking Format

Graphics, Text, Bar Codes, Two-dimensional Code, Automatically

Marking the Date,Batch number,Serial number,Frequency,etc.

Support operation system

Win7/8/10 system

Graphic Format Supported

BMP,IPG,GIF,TGA,PNG,TIF,AI,DXF,DST,PLT,etc

Working Voltage

110V/220V 50~60Hz

Unit Power

<0.5kw

Use of the Environment

Clean and Dust Free or Dust less

Working Condition:Humidity

5%-75%,Free of Condensed Water

Laser Module Life

>100000 hours

Note: If your materials is special, dont know which type laser works ,Fiber/CO2/UV laser ,please send it to us ,we offer free testing.

Features

Laser Tire Marking increases the flexibility of tire production by shifting part of the tire sidewall marking further downstream after quality control, tire finishing operations or even to the warehouse. The number of stock keeping units can be reduced significantly helping to bring down working capital. The optical appearance of the tire is improved and a new level of flexibility in variant production can be achieved.

Aside from the permanency, the marking’s readability depends on the rubber laser marking technique. For example, laser-etched rubber products are clearer than laser-engraved products. Also, laser-annealed products have higher contrast coloration.

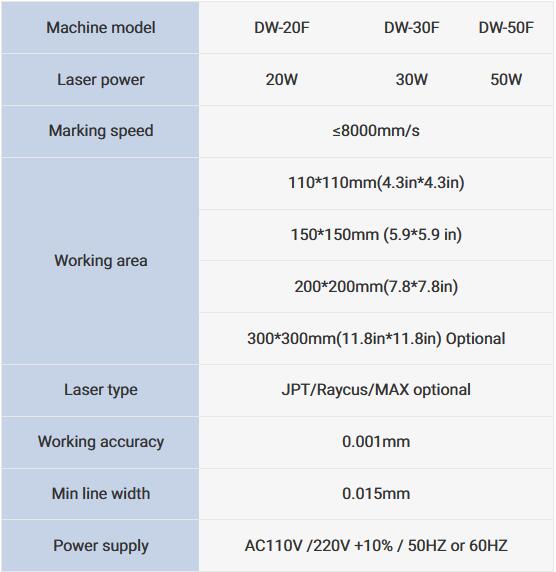

canshu

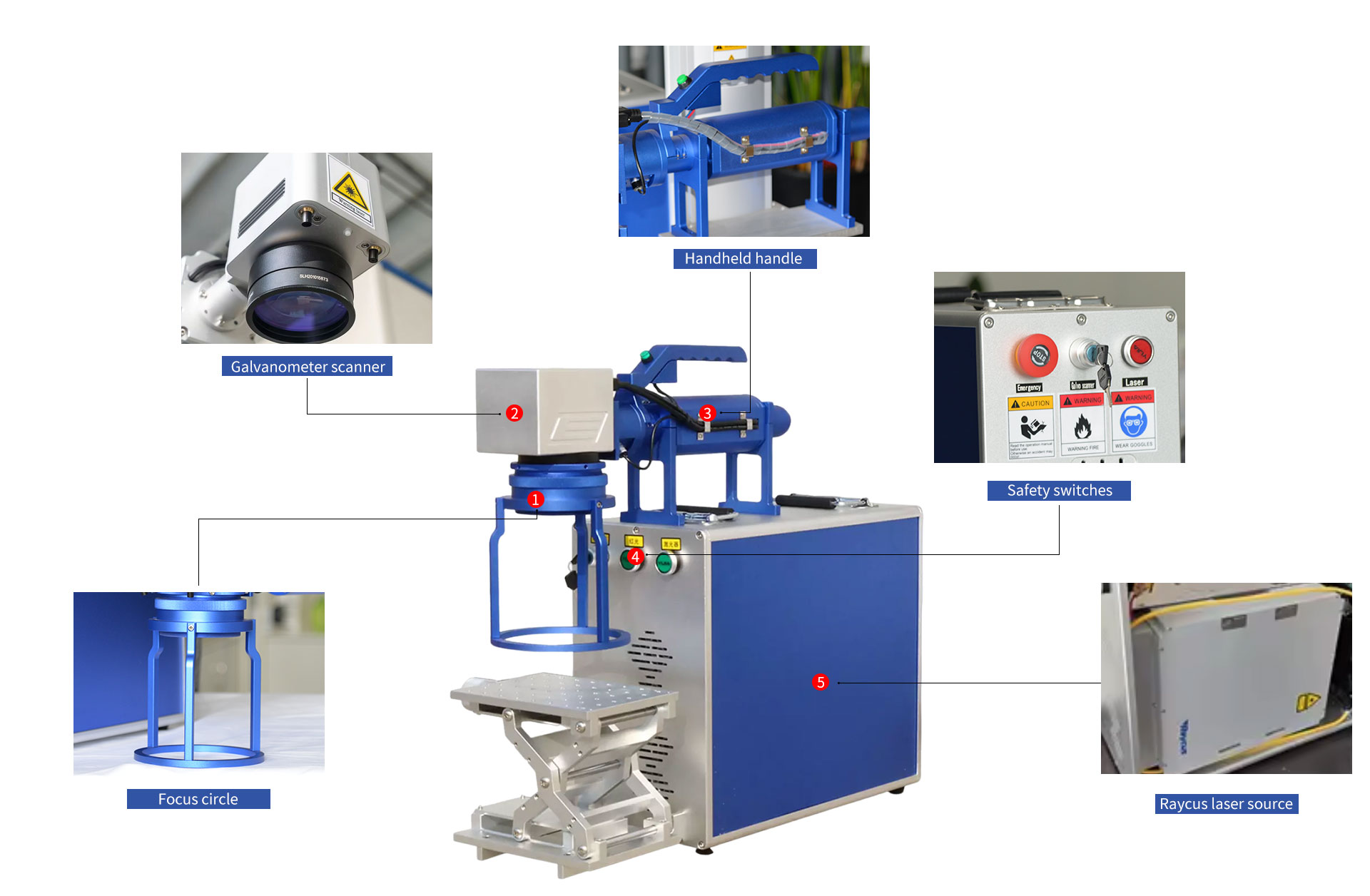

Product Details

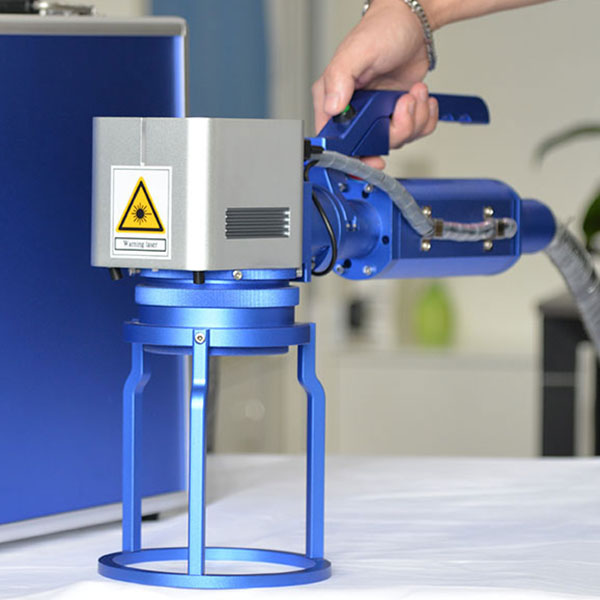

handhold

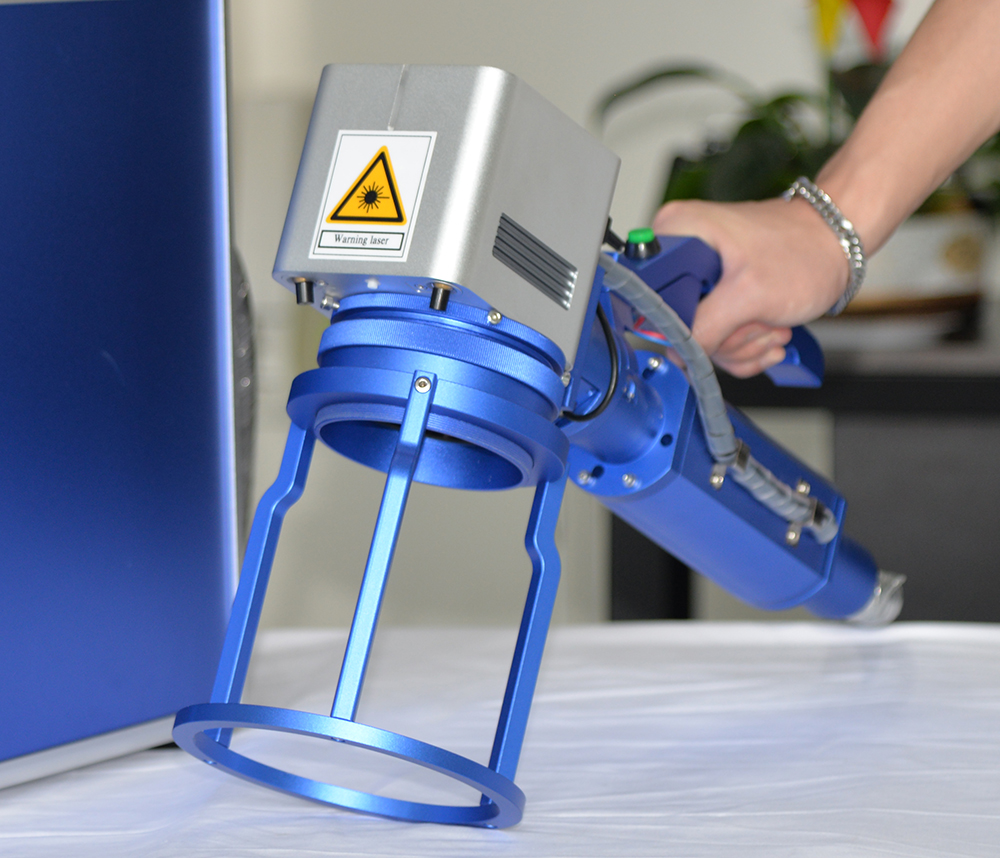

Handhold

Handheld design ,portable ,and more convenient for big tyres marking.

lens

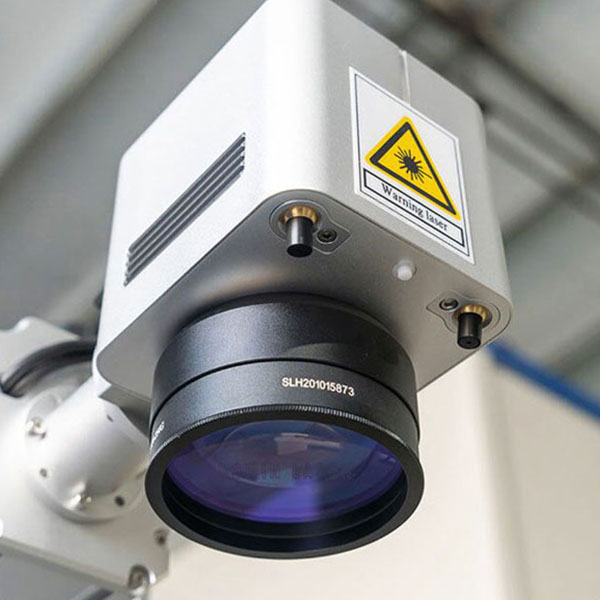

Galvo

Galvo head high speed galvanometer scan technology,digital signal,high precision and Speed.High quality laser scanning system makes the marking speed up to 7000mm/s.

厂镜.1

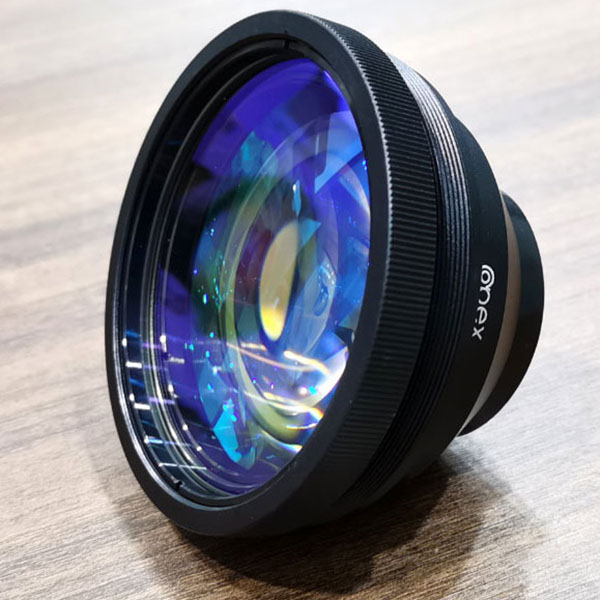

Field Lens

Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.

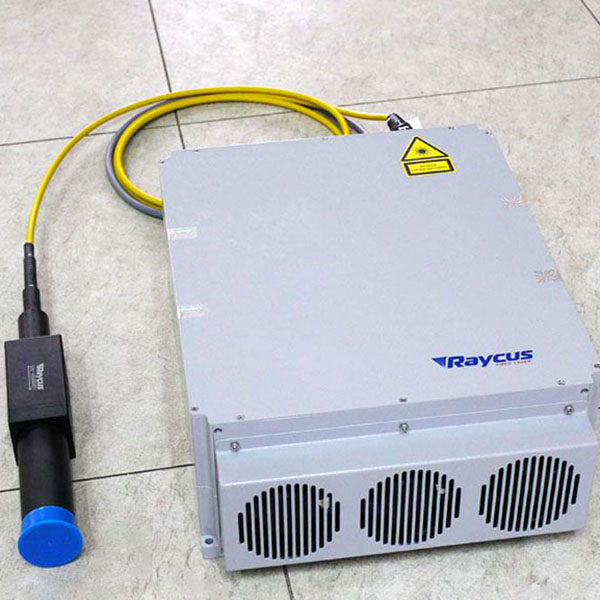

raycus 激光器.1

Raycus Laser Source

Famous brand Raycus laser source , with stable and long life time , max reach 10.0000+hours , IPG ,JPT laser source all available , let us know your request if any special request.

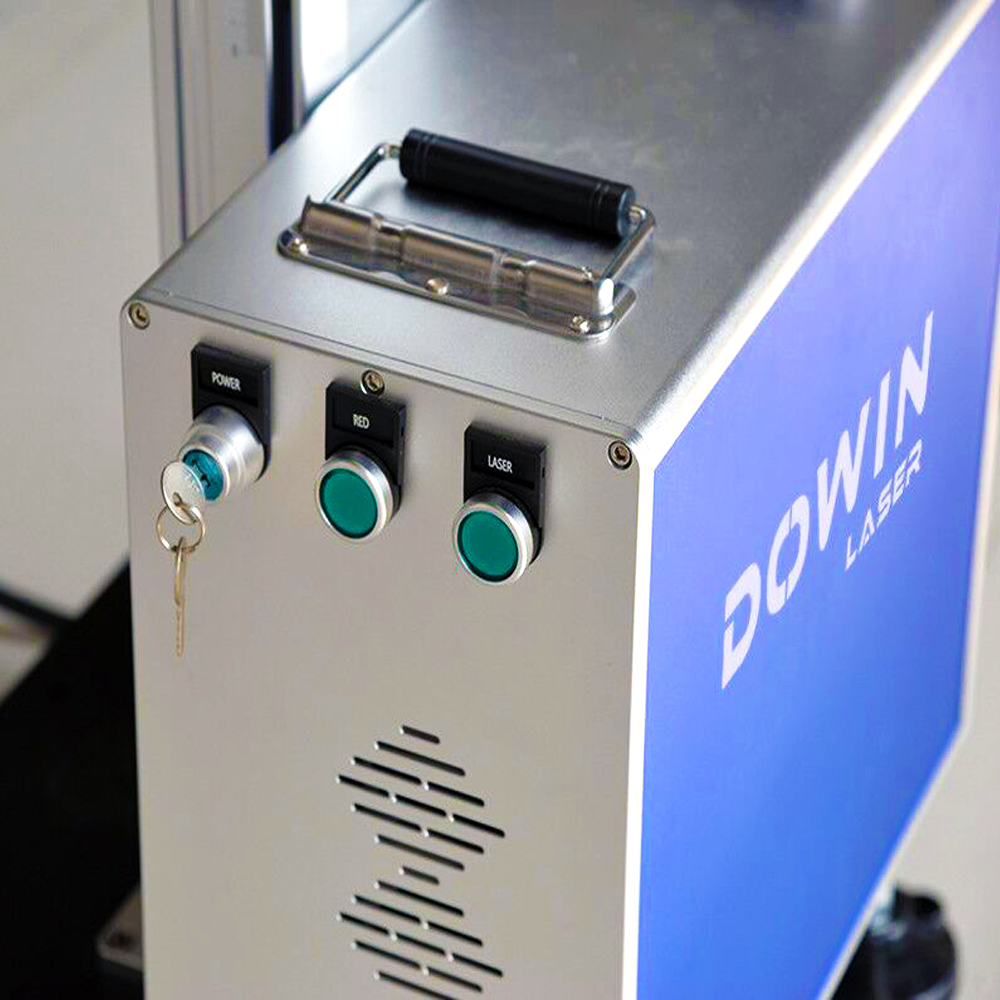

metal shell

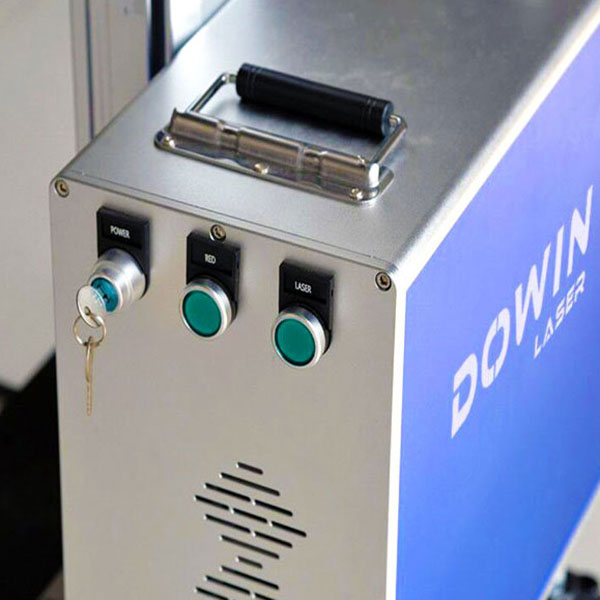

Metal Shell

The overall material of the casing is oxidized by precision aluminum alloy.Appearance is beautiful and wear-resistant. The internal mechanical structure is reasonable and convenient for maintenance.

Smart Control Card.

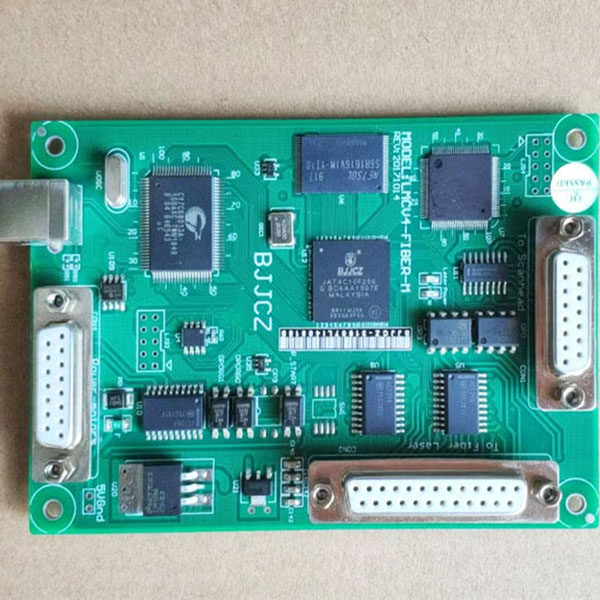

Smart Control Card

Professional marking software,Powerful editing function,Support Windows XP, Win 7, Win 10 system.

Kindly reminder :

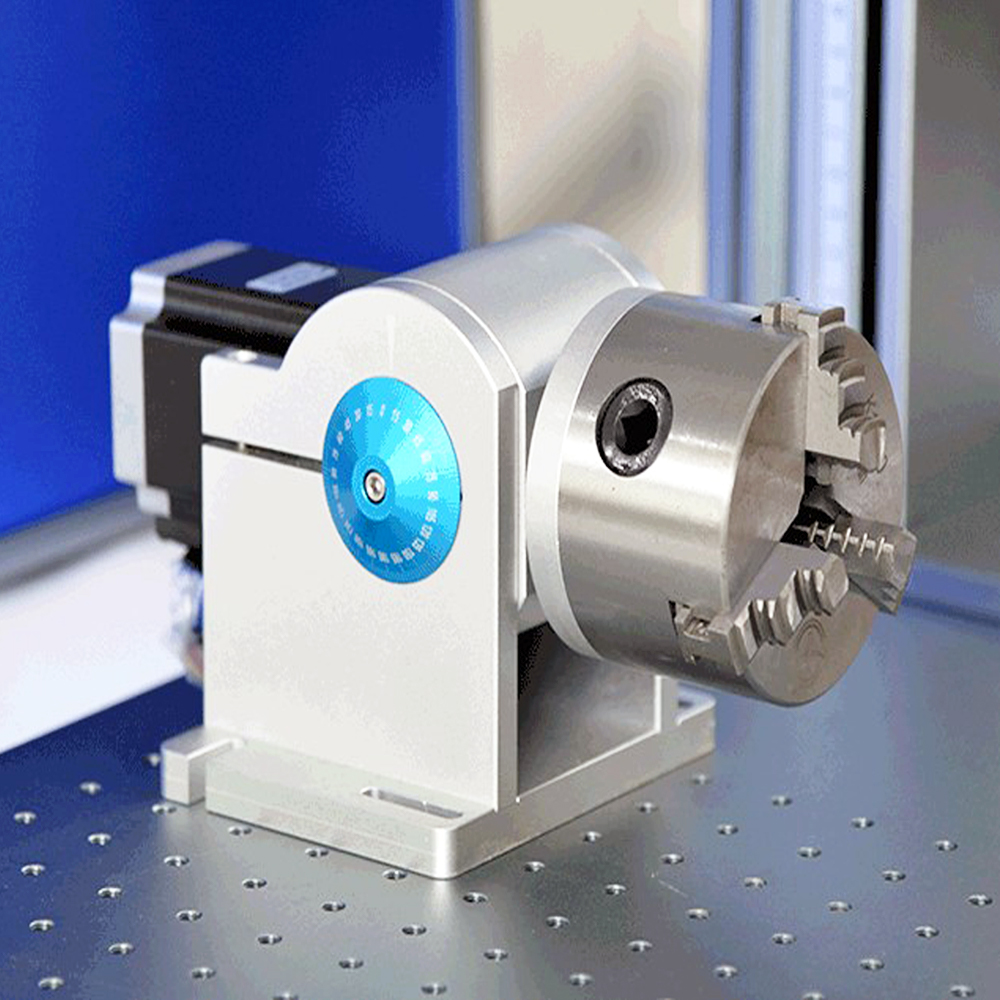

1. If you need for ring , jewelry , bracelet engraving , or tumbler marking , we have different models rotary device here , suitable for different work , so let us know in advance , we will recommend the suitable accessories device for you;

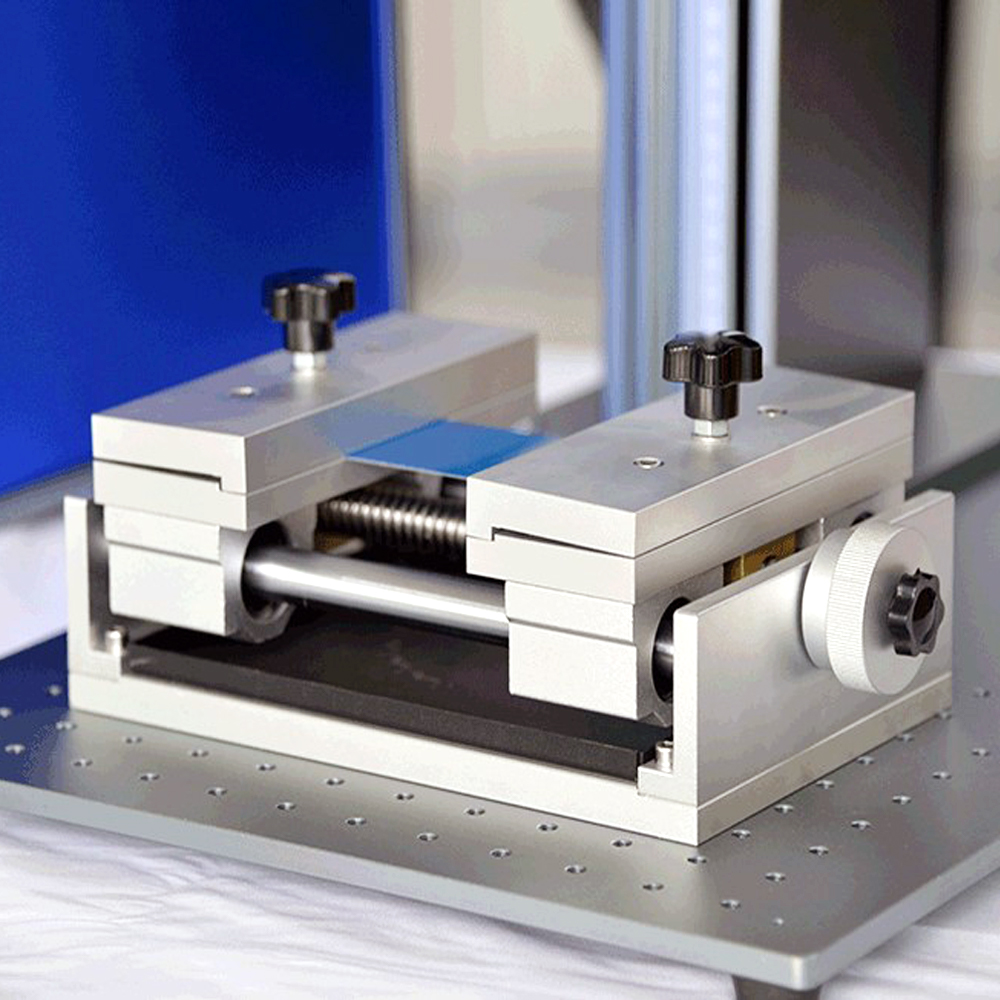

2. If you do gold , silver , stainless steel , aluminum cutting mostly , kindly suggest take the fixture together;

These two are the most popular , there are also have many option accessories , like pen rotary for pen fast speed marking , X Y table for help to adjust product height when working , without moving product etc , kindly list you request , we will recommend suitable accessories based on our professional laser device knowledge.

5
4

Application materials

This fiber laser marker price is economic with best quality, and it mainly used for marking on
Big size unmovable objects like tires , big diameter pipes ,and also could use as mormal fiber laser marker to mark on metal and nonmetal material like mobile phones buttons,  plastic translucent keys,  electronic
components, integrated circuits(IC), electrical appliances, communication products,sanity ware,tools,
accessories,knifes,medical device industry,jewelry, glass and clocks,auto parts,luggage buckle,cooking
utensils,stainless steel products and other industries, etc.

sample
nameplate
stone
jewelry

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!

8
exhibition
1390 technician

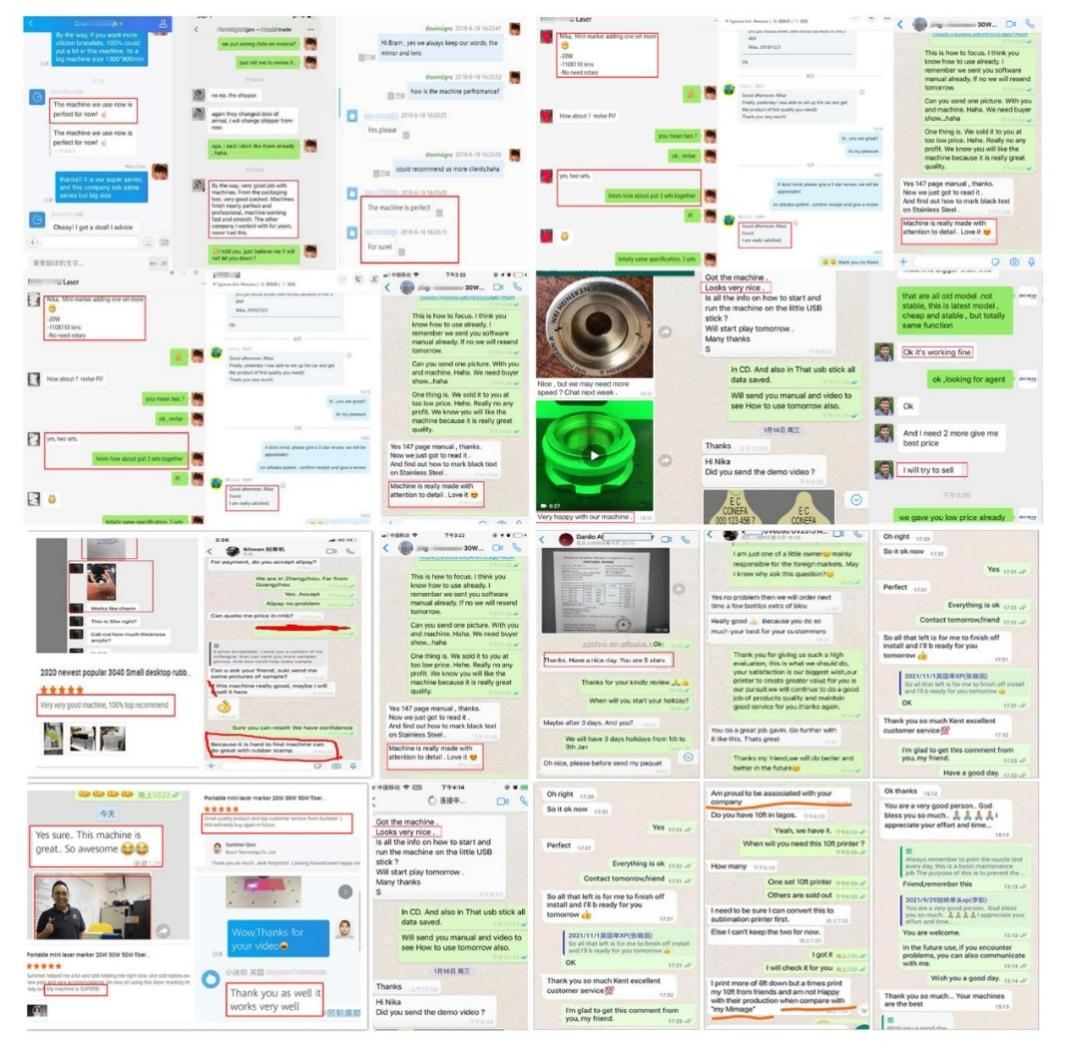

Customer's Feedback
