20w 30w Desktop Fiber Laser Marking Machine For Aluminum Copper Stainless Steel Marking Engraving

The operation is simple, no plate making is required, the content can be edited at will, and it can be operated with zero foundation.
No need for any other consumables, just plug in and use, and the marking effect is corrosion-resistant.
High efficiency, sustainable 24-hour marking, fast speed, high efficiency, clear permanent marking.

Send email to us

Laser marking machine usage scenarios

Get A Quote !

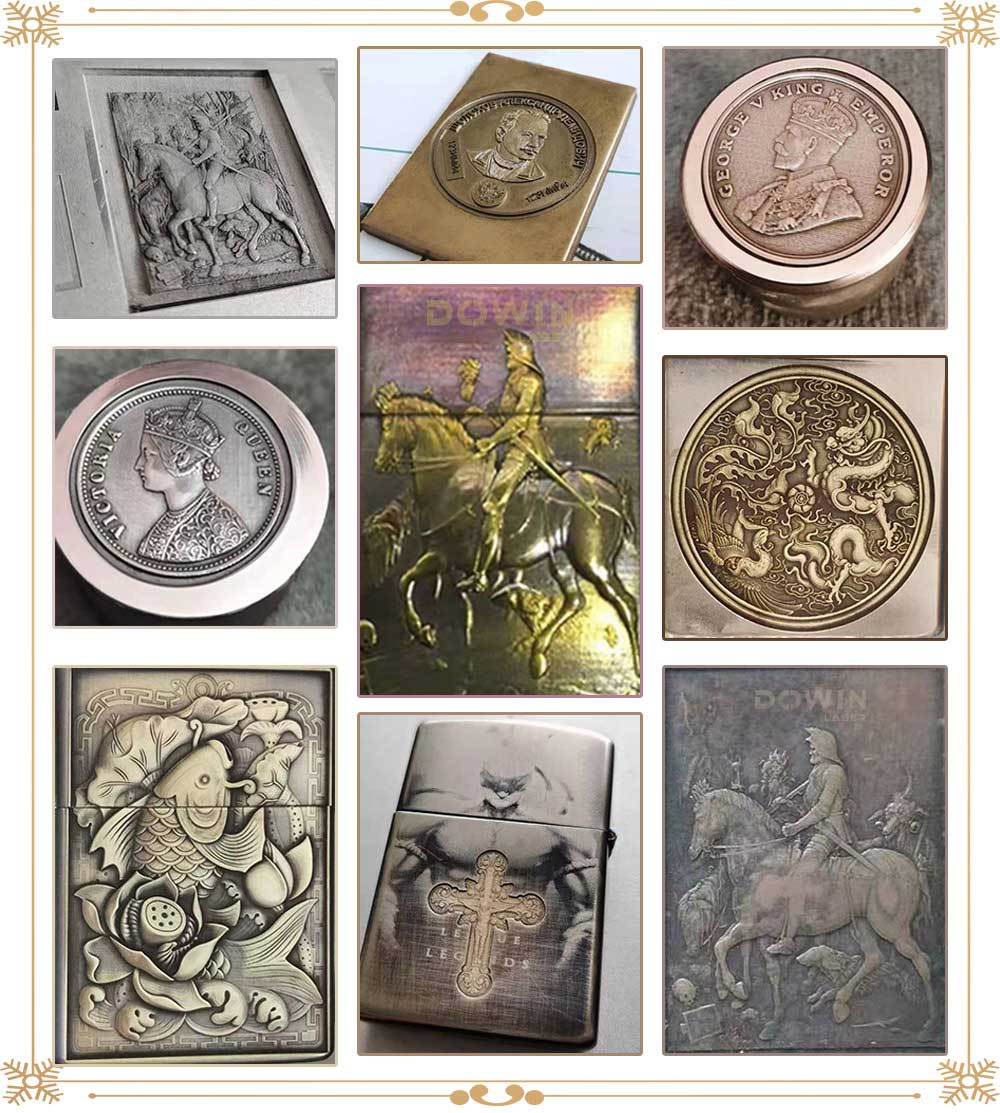

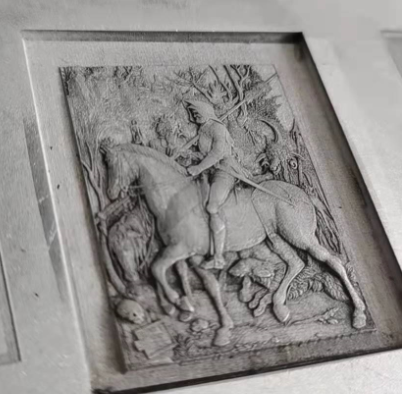

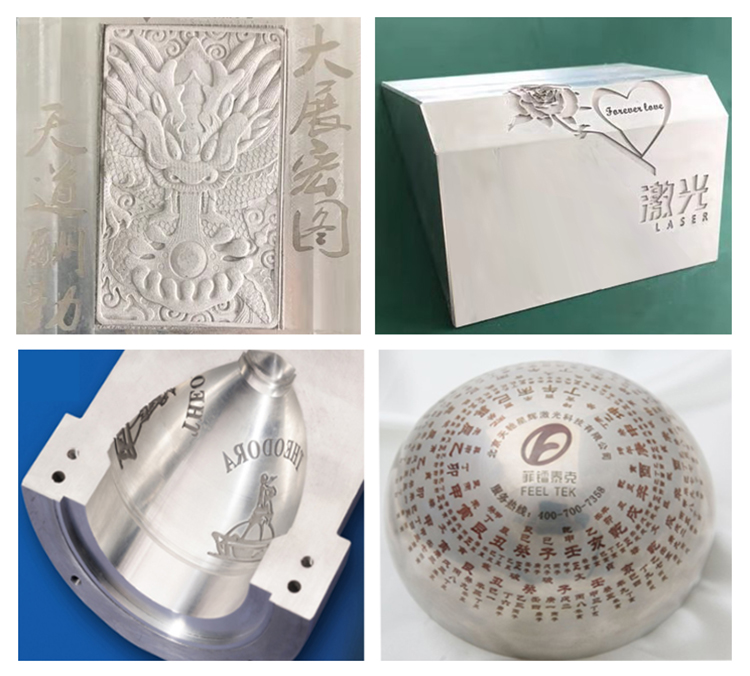

Applications

Fiber laser marking machine applicable material:

Metal:

marking and engraving on the surface of stainless steel, alumina, aluminum alloy, aluminum, copper, iron, gold, silver, carbide and other metal materials.

Plastic:

hard plastic, PVC material, etc. (different materials have different components, and the marking effect will be different accordingly)

Industry:

Nameplates, Metal/Plastic Accessories, Hardware, Jewelry, Rings, Bird Rings, Animal Ear Tags, Auto Parts, Tires, Ceramics, Chips, etc.

Get A Quote !

Laser marking machine parameter details

Laser types	Fiber laser marking machine
Laser power	20W/30W/50W/100W
Laser source brand	Raycus,JPT
Optical quality	<0.5
Laser wavelength	1064nm
Standard marking area	110 x 110 mm
Optional marking area	150x150mm, 200x200mm, 300x300mm
Working table	Aluminum alloy working table
Working speed	7000mm/s
Positioning accuracy	±0.01mm
Laser frequency	1-4000kHz
Control system	Digital offline control system( USB Controller)
Cooling system	Air cooling
Power supply	AC220V ± 5% 50/60HZ / AC110V, 60HZ
Support operation system	Win7/8/10 system
Format supported	AI , BMP, PLT, DXF, DST , PCX, JPG etc.
Machine size	73x48x54cm
Gross weight	55KG
Optional collocation	Rotary attachment
Gross power	≤800W
Working temperature	0-40℃

Product Details

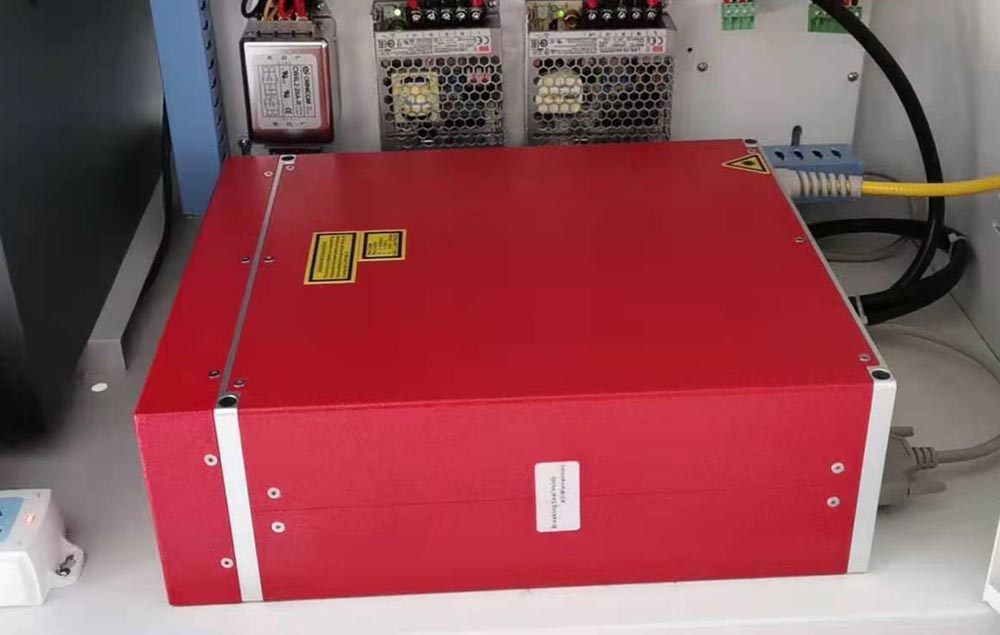

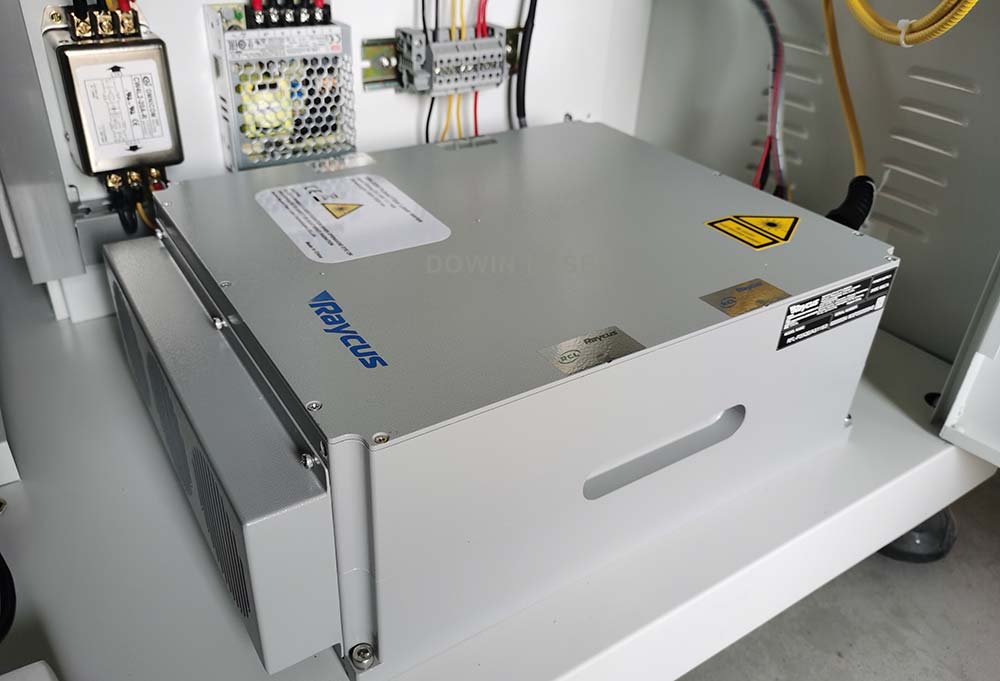

Raycus Laser Source

Famous brand,with stable and long life time,max reach 100000+hours JPG,JPT laser source all available.

JPT Laser Source

The JPT brand laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty.

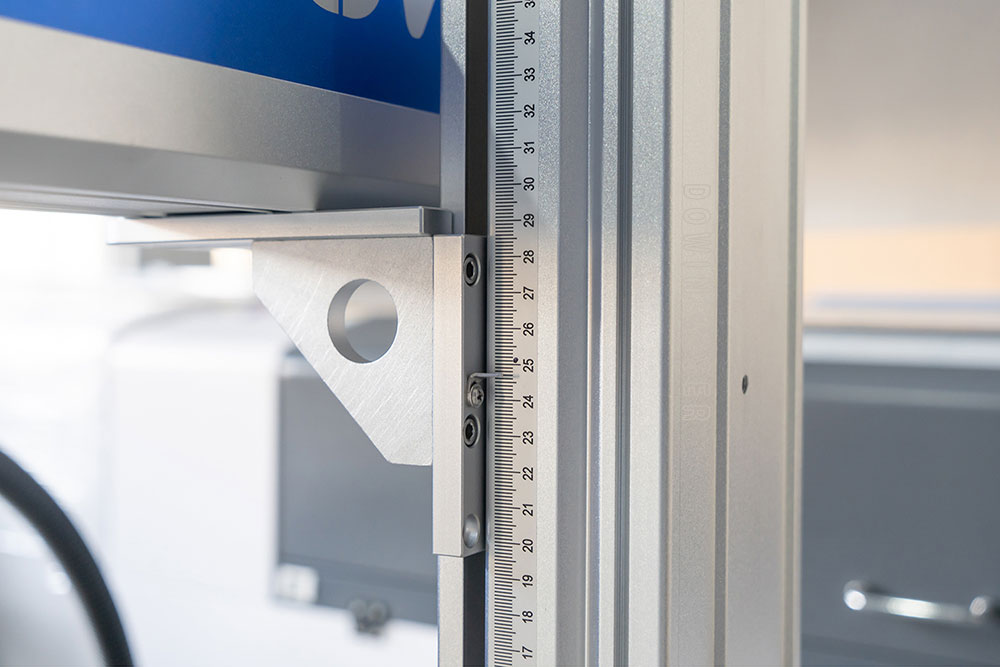

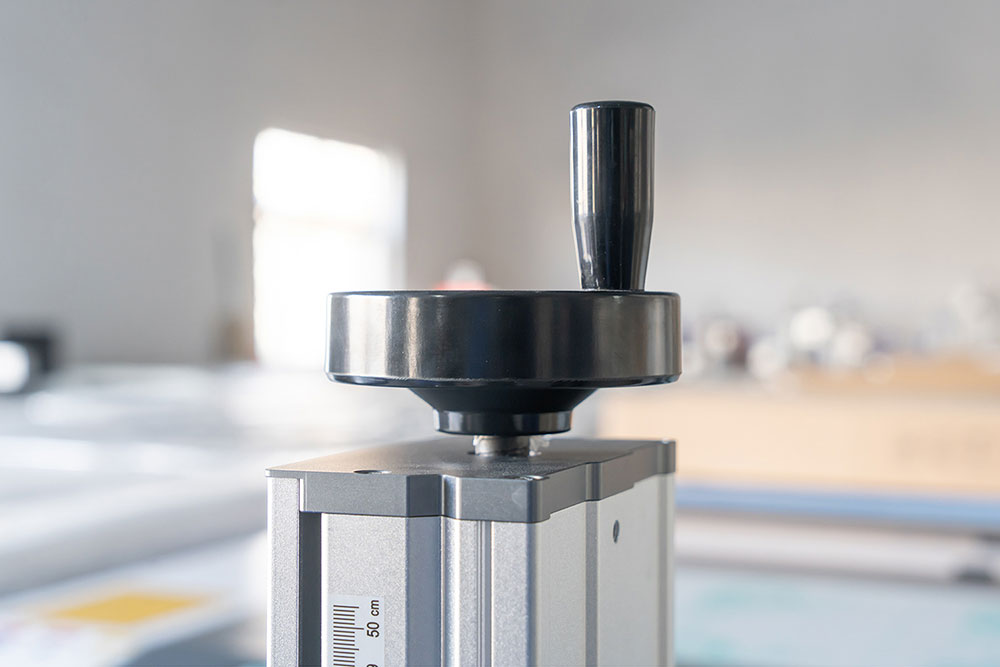

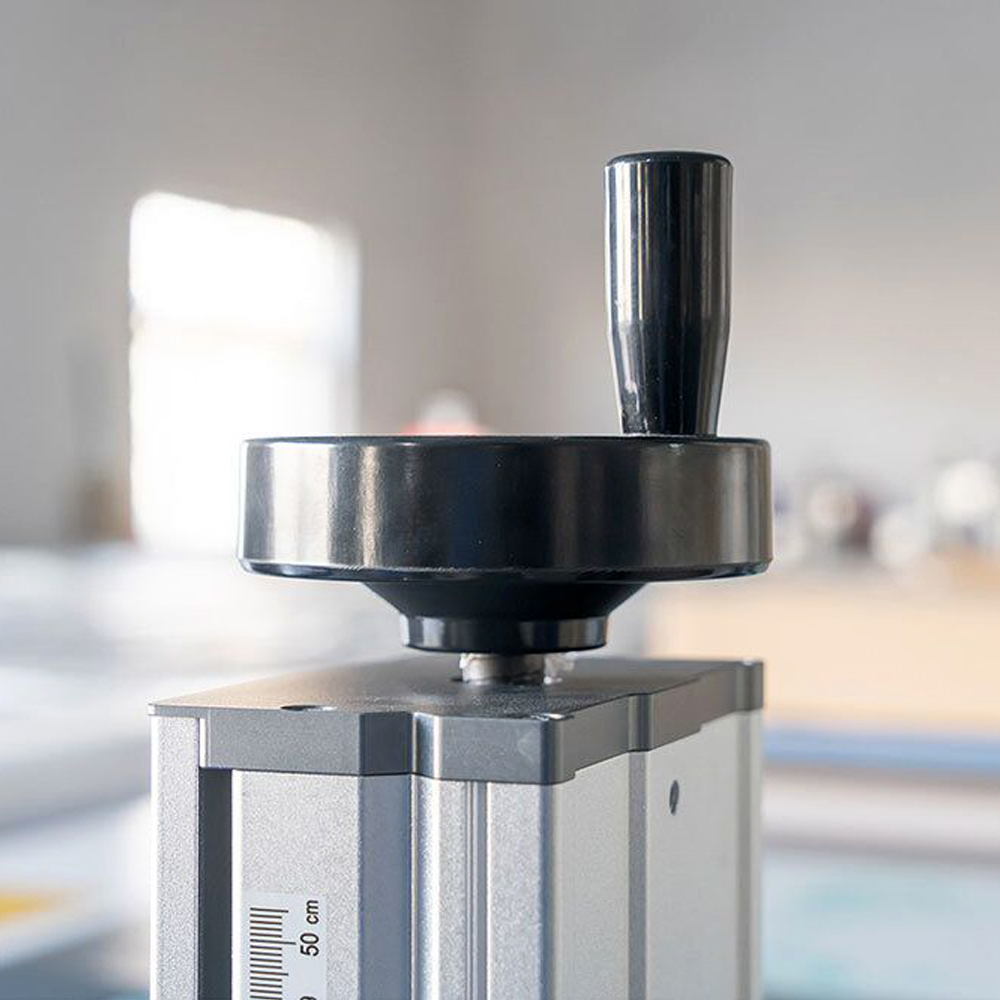

Lifting Shaft

Manufactured by professional manufacturers, high-quality materials, effective and stable,with clear positioning accuracy.

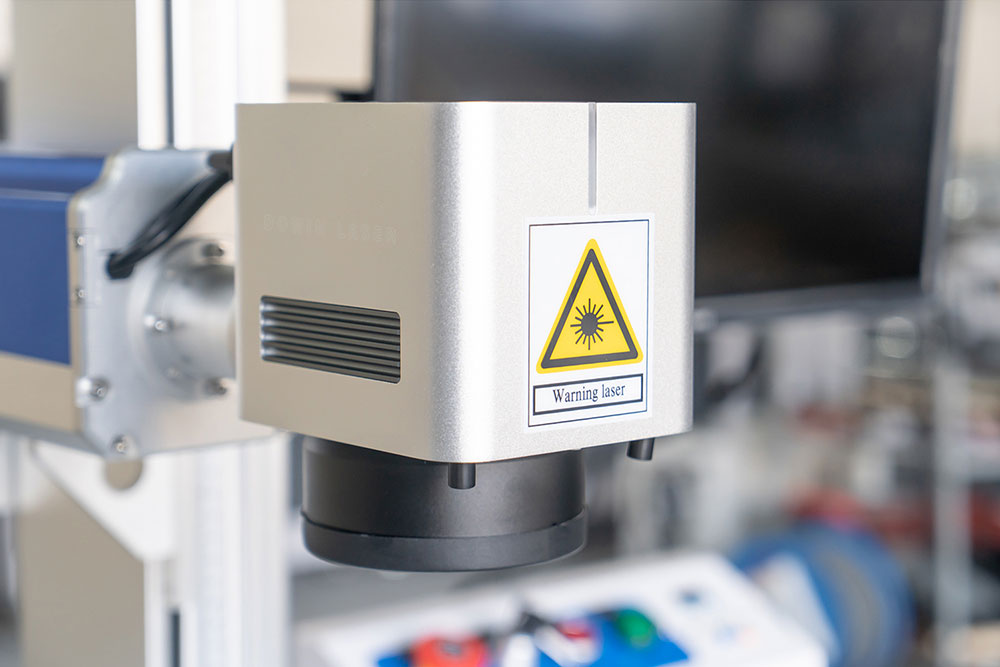

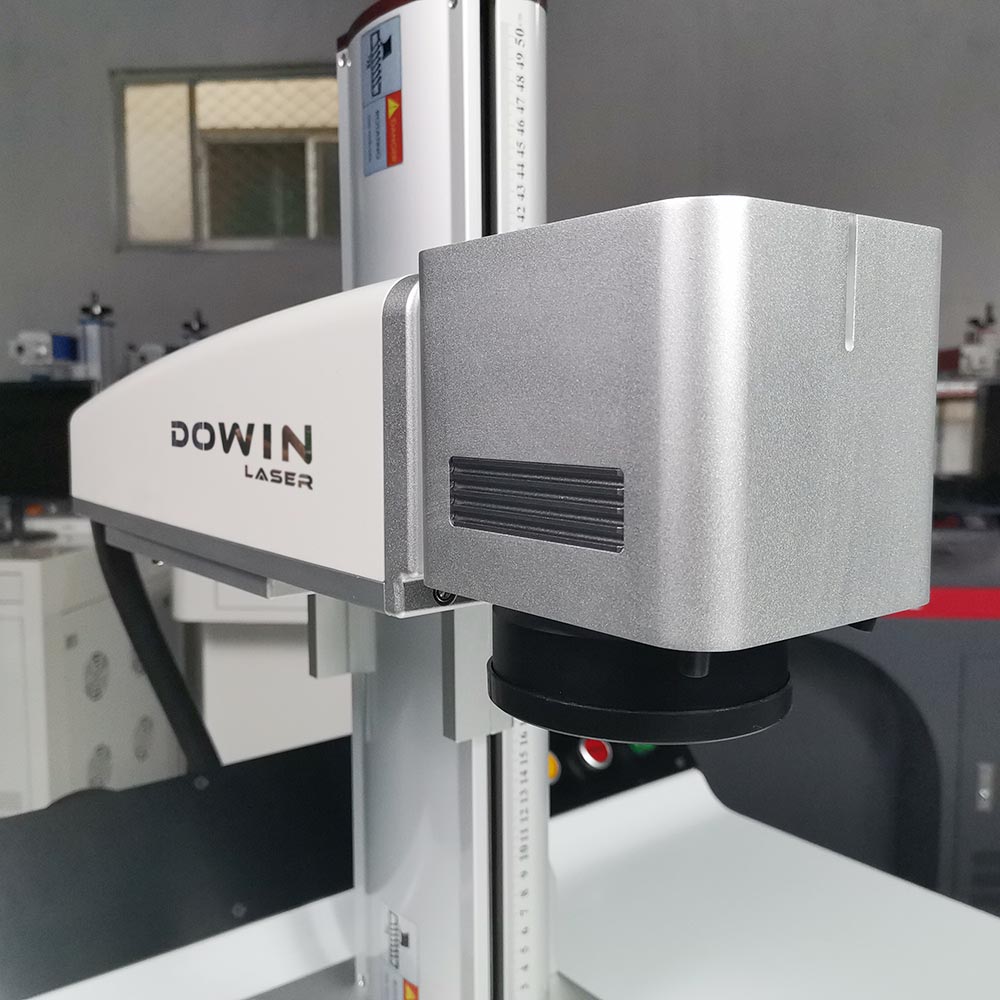

Galvo

3D dyamnic galvo head high speed galvanometer scan technology,digital signal,high precision and Speed.High quality laser scanning system makes the marking speed up to 7000mm/s.

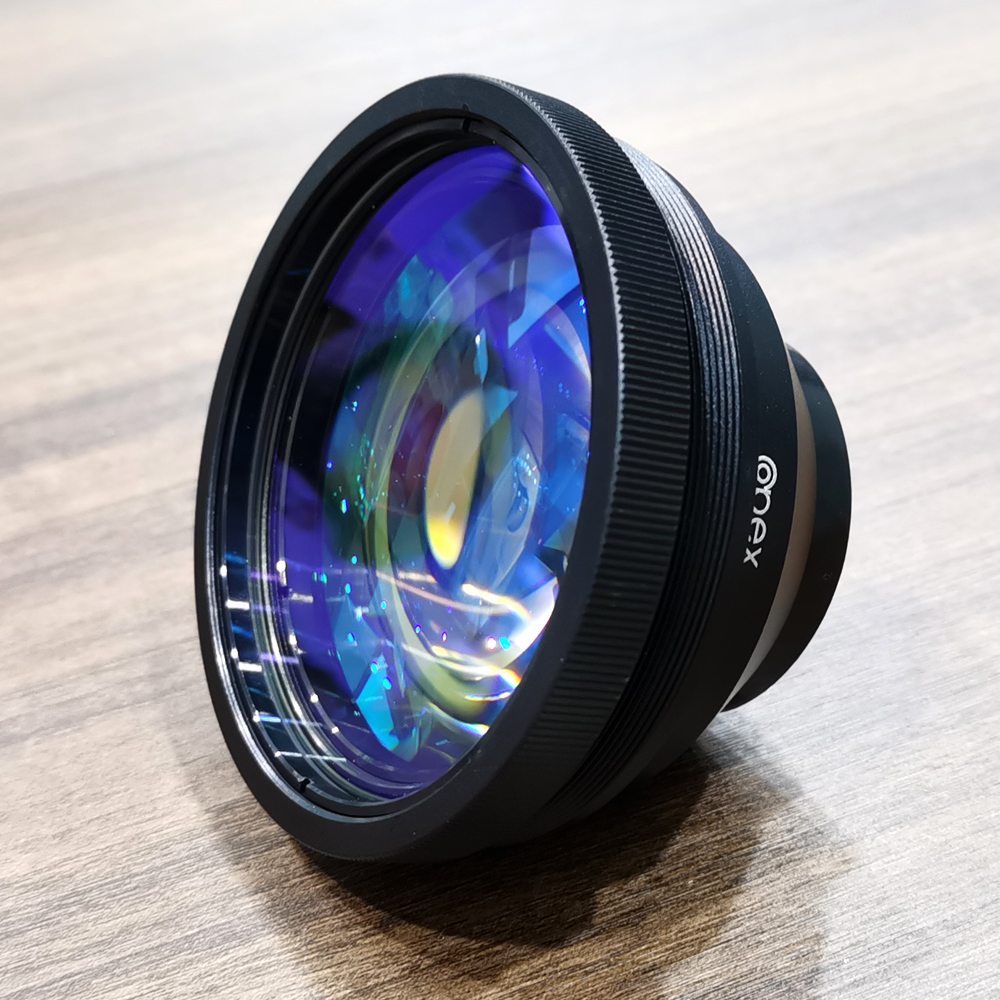

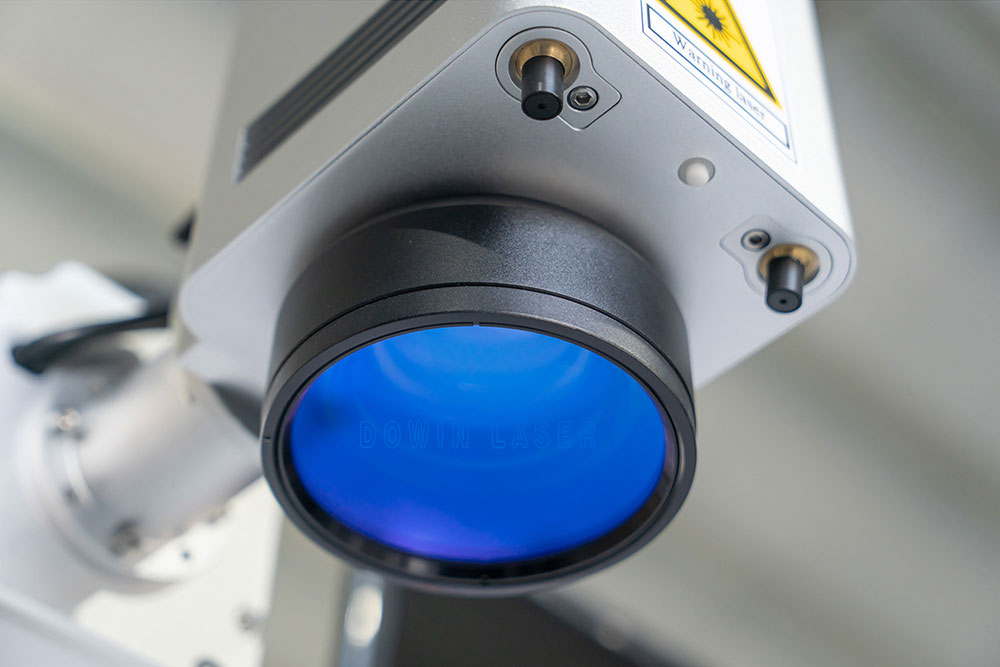

Field Lens

Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.

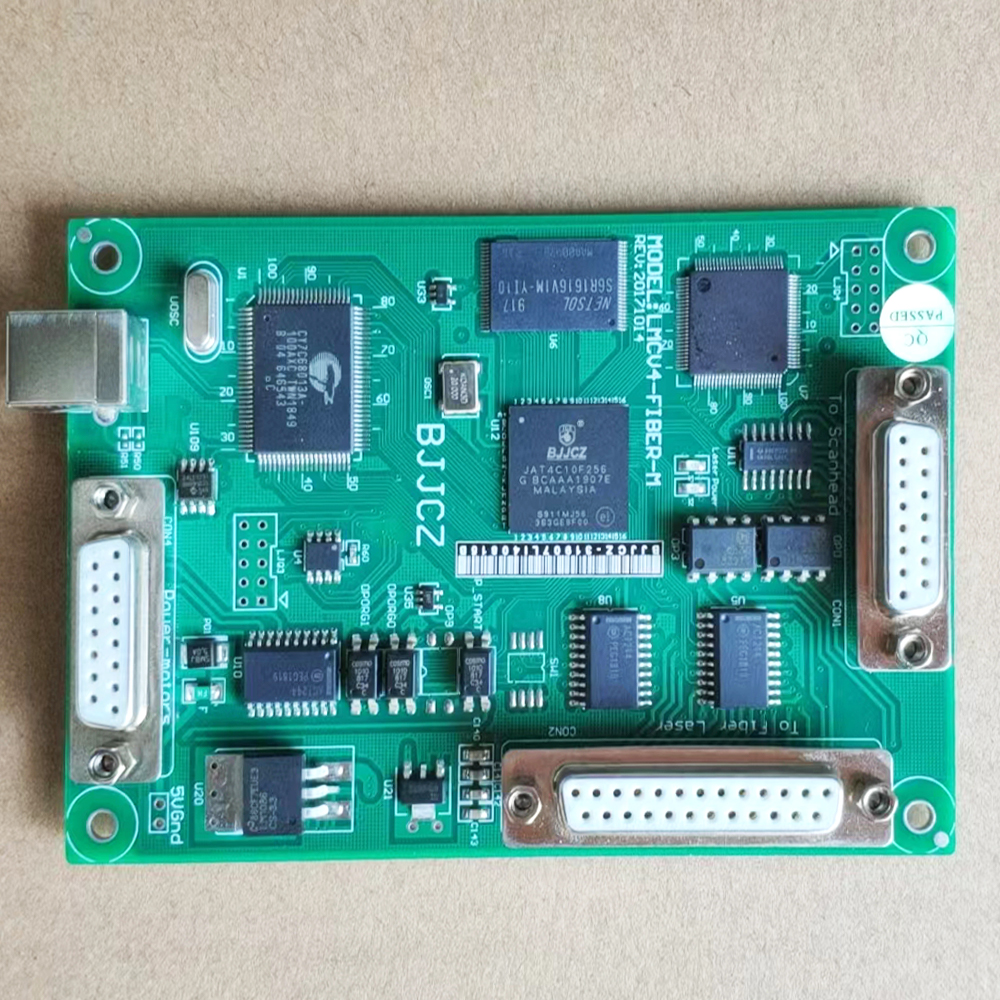

Smart Control Card

Professional marking software,Powerful editing function,Support Windows XP, Win 7, Win 10 system.

Get A Quote !

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
