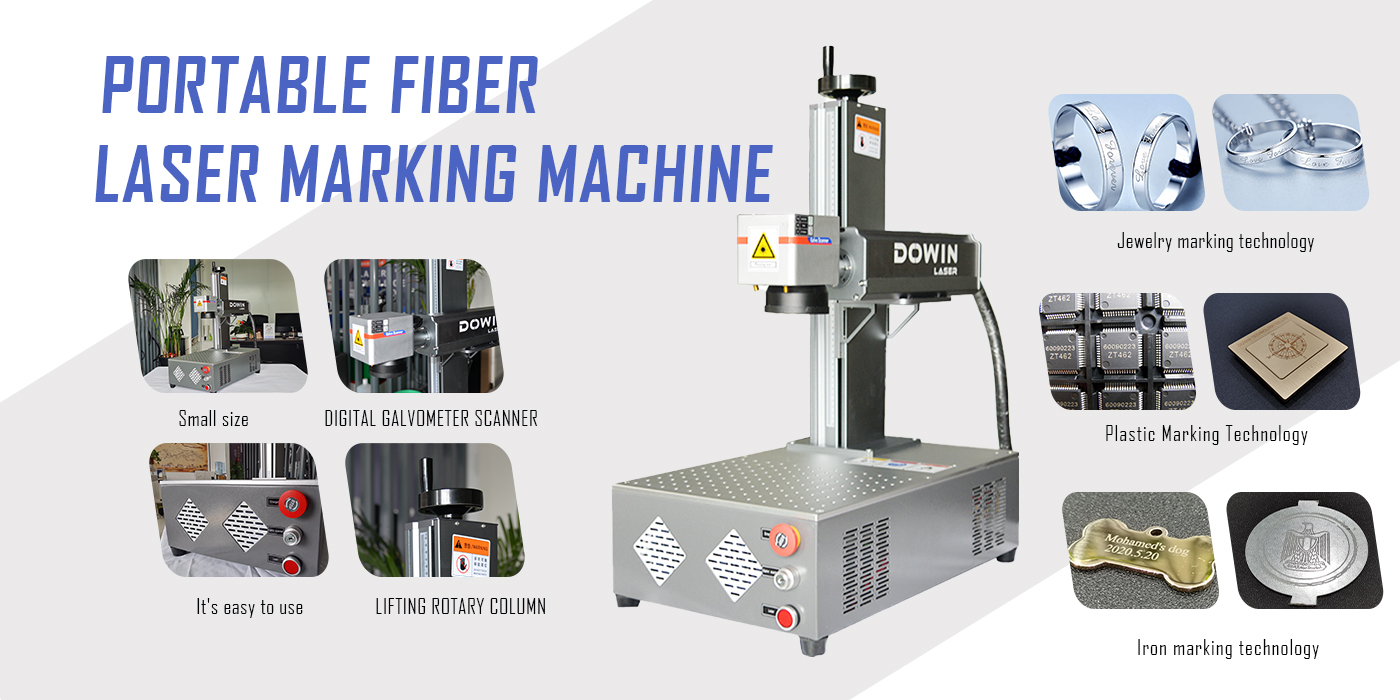

Portable Fiber Laser Marking Machine

Small and portable: This laser marking machine is small in size and light in weight. It is easy to carry. The galvanometer can be rotated 90 degrees as needed, which is suitable for side marking and assembly line operation.
Stable laser beam: The laser marking light speed is stable, the loss is small, and it is not affected by external dust and mechanical shock.
The processing speed of the laser marking machine is 2-3 times that of the traditional laser marking machine.
The laser marking machine has excellent spot quality and high peak power, and can achieve the best marking effect on the same material.
Adopting an integrated air cooling system and an integrated design, the laser marking machine has a simple appearance.
The fiber laser has a very long life and can reach more than 100,000 hours under normal use.

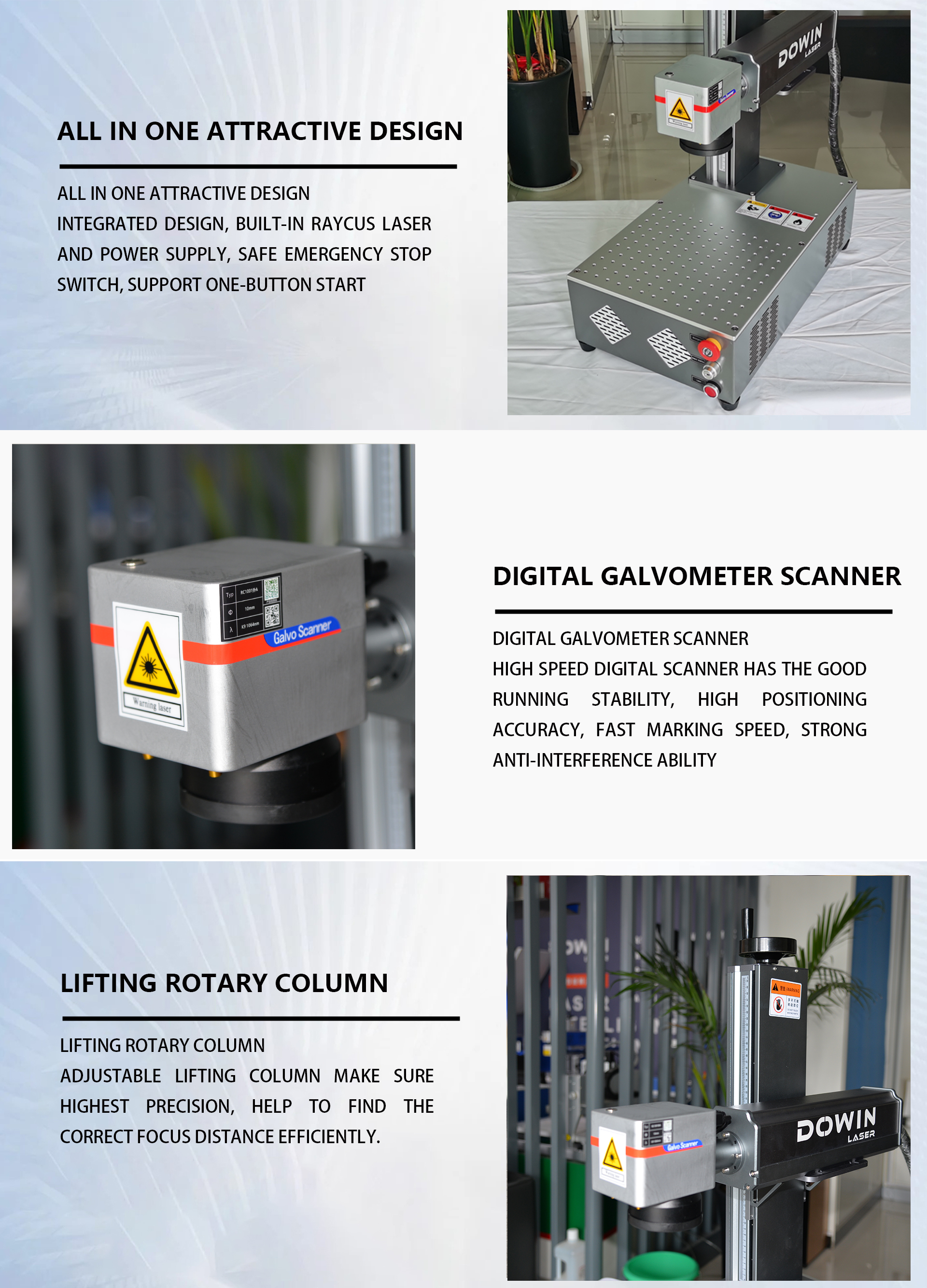

Product Detail

Video introduction

Advantages

Humanized design: Smaller volume design, saves space and is easy to move.

Easy operation: The operation of the equipment is relatively simple, and users can quickly get started without complicated training.
Wide range of applications: It can be used for marking a variety of materials such as metal, plastic, glass, ceramics, etc.
High marking accuracy: It can achieve fine marking, clear and durable marking.
Fast marking speed: It can improve production efficiency and shorten marking time.
Good stability: It has high stability and can maintain stable work for a long time.
Energy saving and environmental protection: The marking machine has low energy consumption and does not generate a large amount of waste and pollutants.

Tech Specifications

Laser power	20W 30W 50W
Laser wavelength	1064nm
Beam quality	M2<0.05
Control software	Ezcad
Marking depth	≤0.3mm
Cutting depth	≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
Marking speed	≤7000mm/s
Minimum line width	0.01mm
Minimum character	0.5mm
Marking Size	110 * 110mm ( 200mm 300mm optional )
Electric power	<500W
Working voltage	110/220V ± 10%, 50/60HZ
Cooling way	Air cooling
Ambient operating temperature	5° C - 40 ° C
Supported graphic formats	AI，BMP，DST，DWG，DXF，DXP，LAS，PLT
System Operation	WinXP/ 7/8/10 32/64bits
Life-span of Fiber Laser Module	100 000hours
Communication Interface	USB
Machine net weight	32KG
Machine dimension size	70* 35 * 78CM

Application

Applicable Industries:
Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Application Materials:
Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon,etc.

Is The Machine Quality Guaranteed?

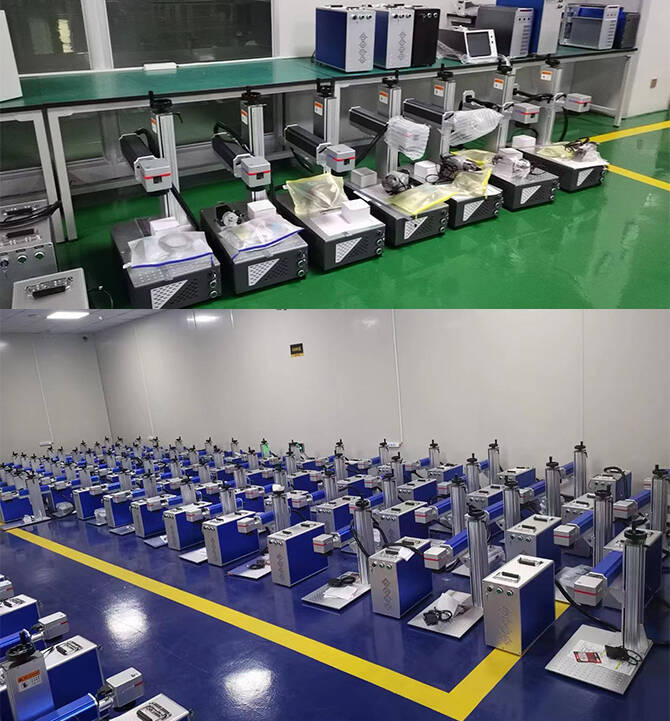

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
