| Model | DW-6080 |
| Laser type | Fiber laser, 1080nm |
| Laser power | 1000w / 1500w / 2000w / 3000w |

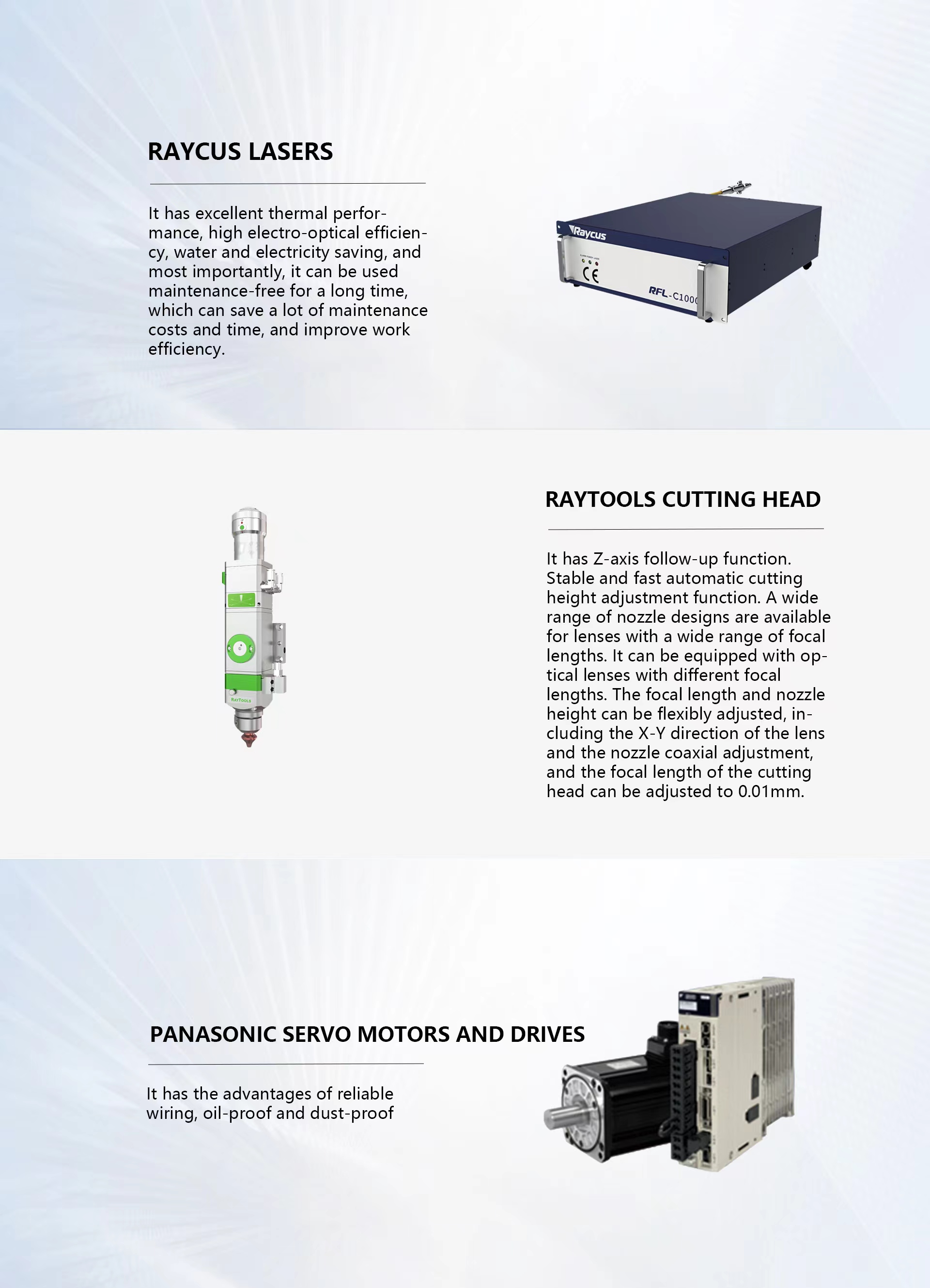

| Fiber laser brand | Raycus / MAX / RECI / BWT |
| Working area | 600 x 800 mm |
| Min Line width | 0.1mm |
| Positioning accuracy | 0.03mm |
| Max. Cutting speed | 30m/min |
| Transmission type | Precision dual ball screw transmission |
| Driving system | Serve motors |
| Cutting thickness | Depending on laser power and material |
| Assisting gas | Compressed air, oxygen and nitrogen |

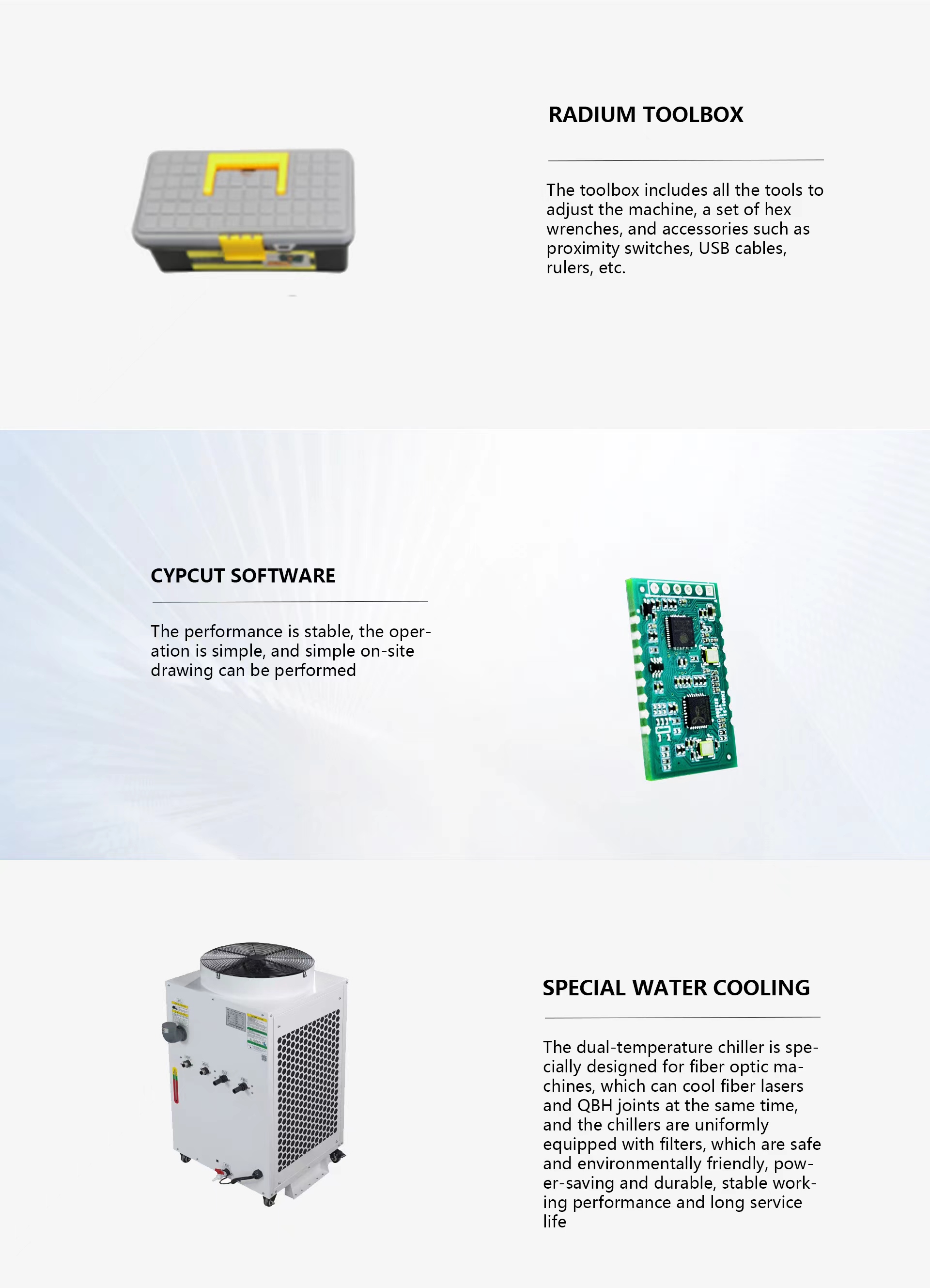

| Cooling mode | Industrial circulation water chiller |
| Visual positioning | Red dot |
| Working voltage | 220V/380V |
| Machine dimensions/Net Weight | 1800*1720*1820mm/1500kg |
| Packing dimensions/Gross Weight | 2500*1900*2090mm/1700kg |
Before purchasing this machine,First, the operator have to know computer expertise, could use the relevant editing graphics software, such as: Photo-shop,Auto-cad,Coreldraw and other graphics software.
Second: the operator has a certain knowledge of Optics and related mechanical and electrical equipment maintenance and maintenance knowledge.
Third: to confirm whether the device is familiar with the operation of the equipment before the operation process and can operate according to the high precision fiber laser cutting equipment.
| Laser Gas | Purity | Application Material | Pressure limit(BAR) |
| O2 | 99.99% | Carbon steel | 0<=P<=10 |
| N2 | 99.99% | Stainless steel | 0<=P<=30 |
| Compressed Air | 99.99% | Carbon steel etc | 0<=P<=30 |

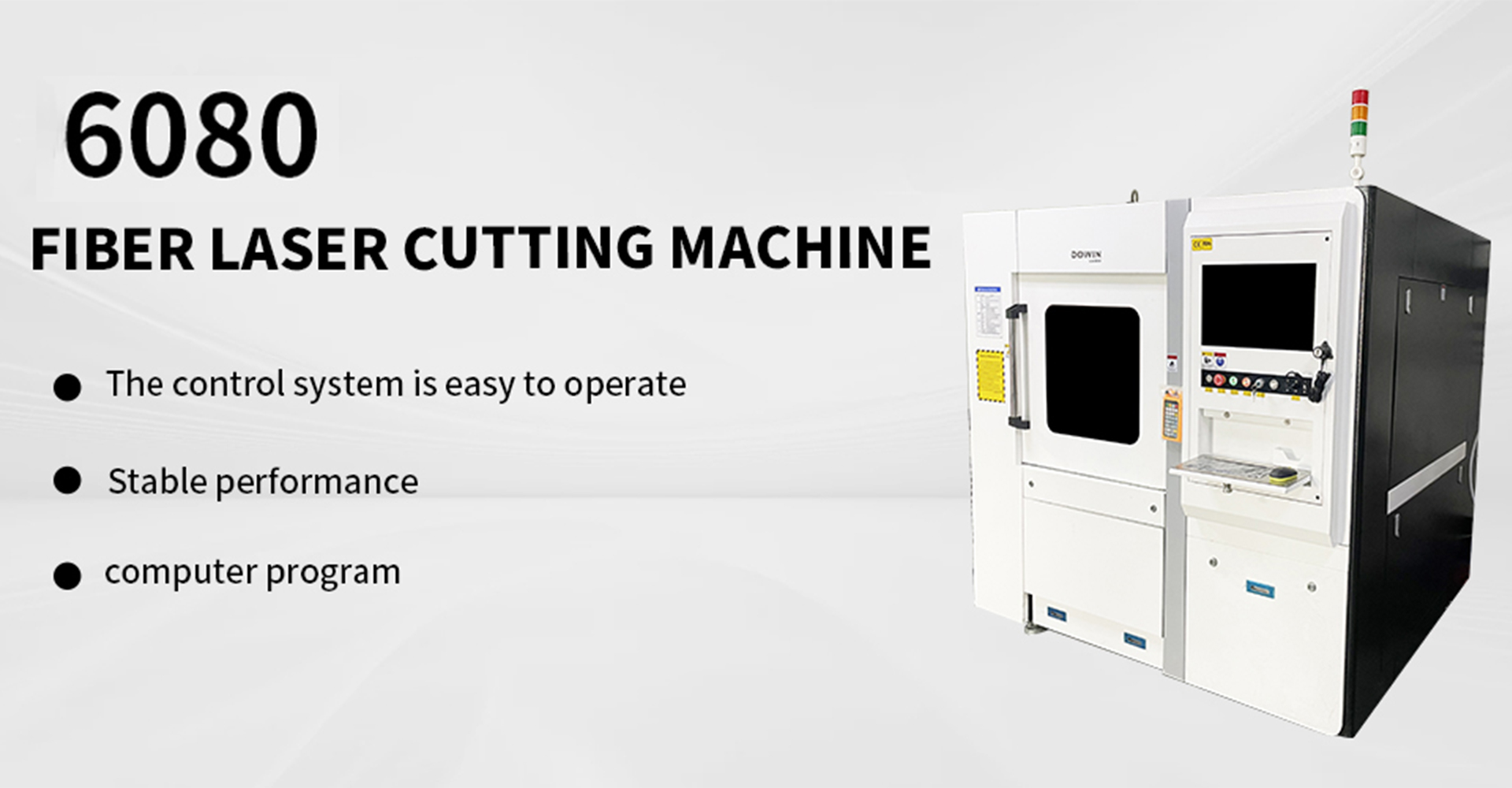

6080 High-precision metal fiber laser cutting machines are mainly used in electronic circuit PCB boards, sheet metal processing, electrical appliances, glasses legs, accessories, advertising decorations, craft gifts, tool processing, metals, carbides, ceramics, crystals, composite materials, mineral materials, electronic components, biomaterials, etc.
