Metal Pipe Fiber laser cutting machine

High-power and high-efficiency tubes/pipes laser cutting machine, intelligent and precise feeding, batch processing of various tubes. This large laser cutting machine can realize the precision cutting of opening, cutting, intersection line and various special-shaped and complex graphics that are difficult to achieve by conventional methods.

  • Laser Power: 1000-6000W
  • Moving Speed: 100RPM/min
  • Working Voltage: 380V/50-60Hz
  • Product Detail

    Details

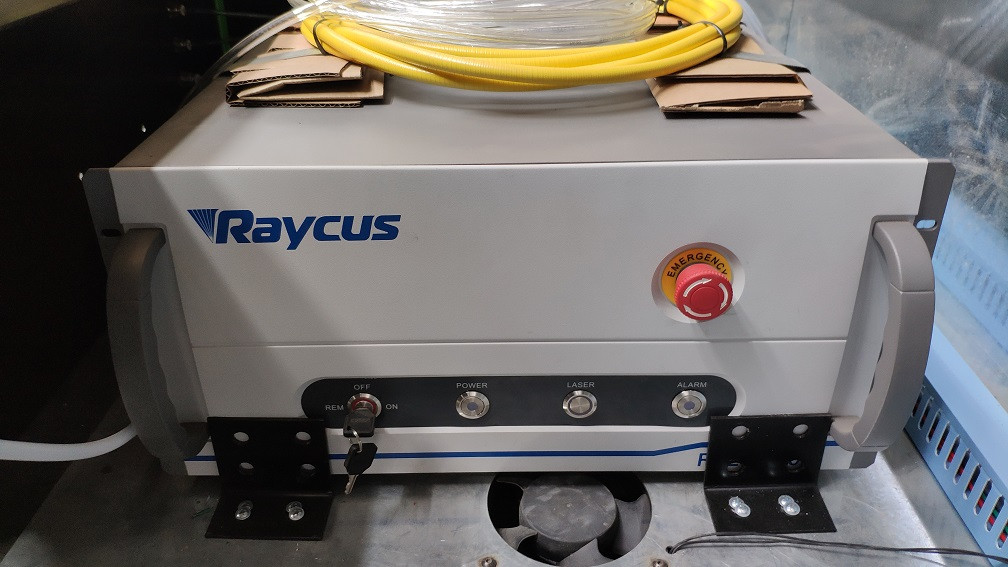

    Raycus Fiber laser generator

    Metal Pipe Fiber laser cutting machine

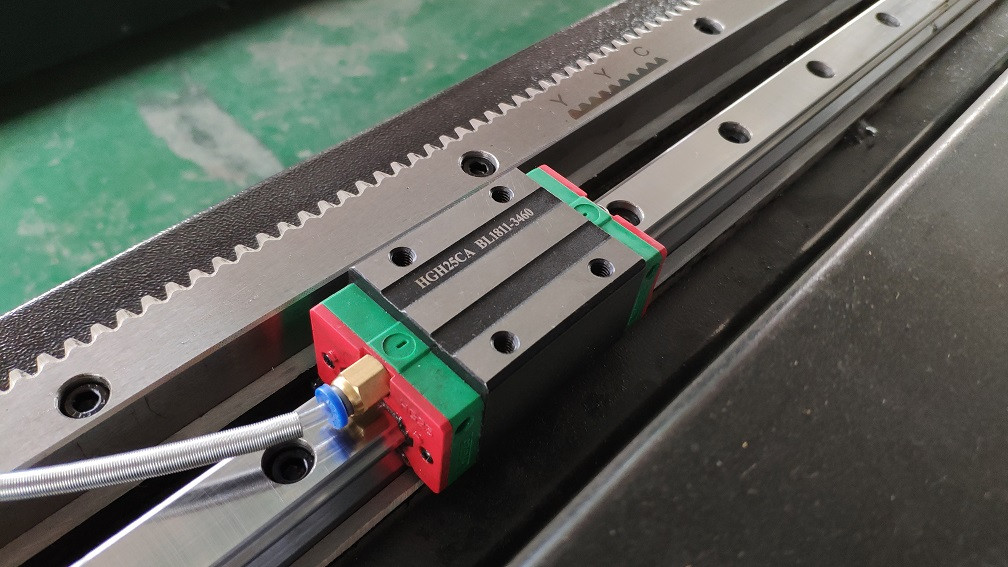

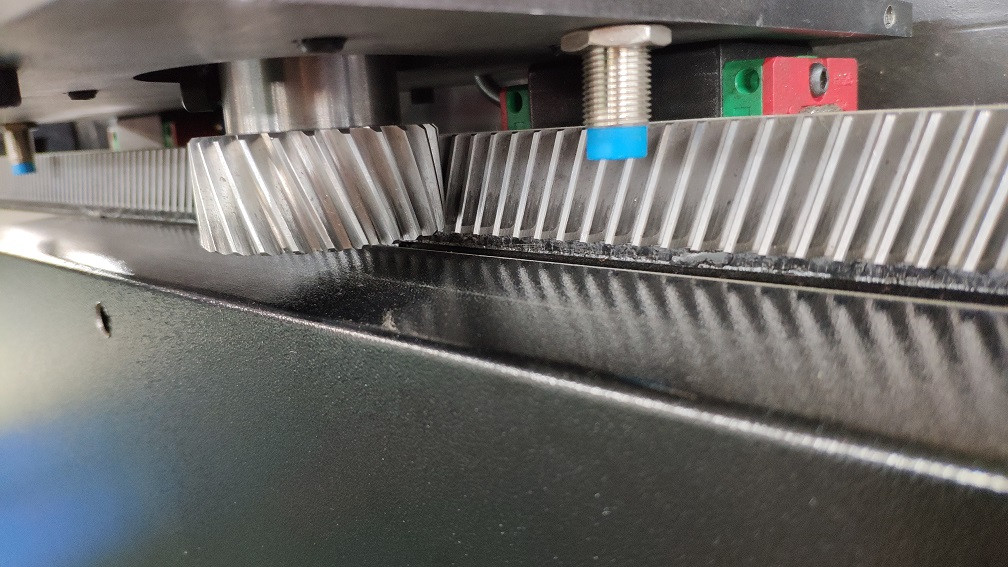

    Taiwan Hiwin Rails and YYC brand Gear:

    Metal Pipe Fiber laser cutting machine
    Metal Pipe Fiber laser cutting machine

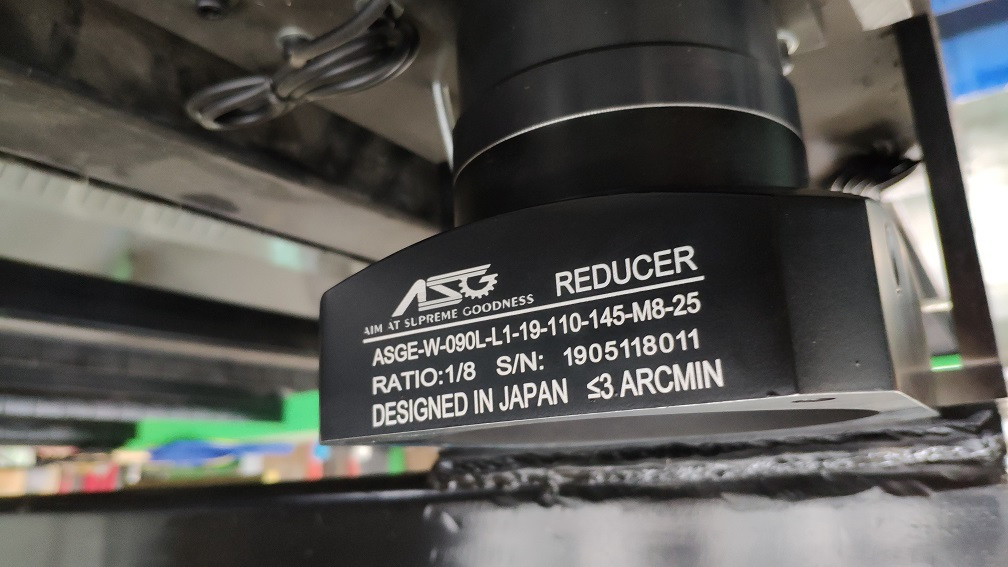

    Japanese Reducer and Yaskawa AC servo motors:

    Metal Pipe Fiber laser cutting machine

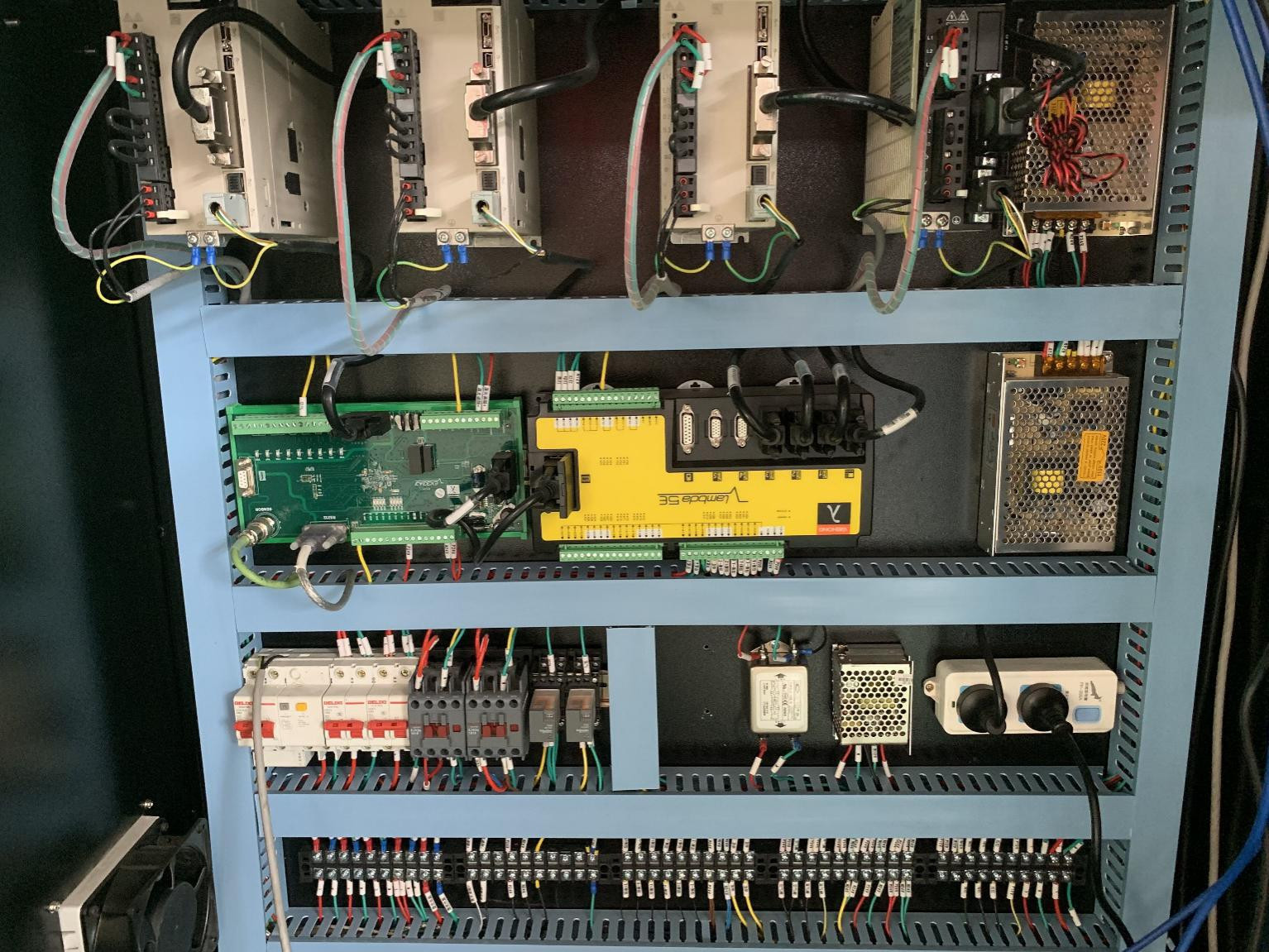

    Clear electric box

    Metal Pipe Fiber laser cutting machine

    Video introduction

    Tech Specifications

    Size 6m/9m  Fiber laser cutting machine
    Diameter Dia 250mm
    Laser Power 1000W/1500W/2000W/3000W/4000W/6000W Wuhan Raycus Fiber laser generator
    Laser Wave Length 1064nm
    Maximum Idle Running Speed 1200mm/s
    Moving speed 100RPM/min
    Position Accuracy ±0.03mm/m
    Position Speed 20m/min
    Minimum Line Width ± 0.02mm
    Maximum Acceleration 0.8G~1.0G
    Cutting Thickness Depends
    Software and Control System Cypcut Version 3000+CypNest system
    Position Type Red dot
    Power Consumption ≤3.0 KW (Example 1000W power)
    Working Voltage 380V/50-60Hz
    Auxiliary Gas oxygen, nitrogen, air
    Working life of fiber module More than 100000 hours
    Fiber laser cutting head Raytools
    Software Compatible with various formats
    Computer Yes
    Water cooling system Hanli industry chiller
    Motor&Driver Fuji Japan (Optional Yasakawa )
    Reducer Shimpo From Japan
    Liner guider system Taiwan HIWIN
    Rack gear transmission YYC Precision double rack drive
    Electric component Schneider made in France
    Proportional valve Yes
    Lubrication system Yes Automatic
    Weight 1500Kgs
    Warranty 3 Years

    Applicable Industry

    This machine is widely used in various industries such as advertising decoration, kitchen ware, engineering machinery, steel and iron, automobile, metal plate chassis, air-conditioner manufacturing, metal plate cutting, etc.

    Applicable Materials

    Mainly used for cutting metal plates such as stainless steel, carbon steel, galvanized plate, various alloy, etc
