Ball Screw Transmission Co2 Laser Cutting Machine

Top Precision Laser Cutter, And More Suitable For Cutting Thick Materials, Such As 25mm Acrylic Sheet, Make Sure Precision And Perfect Cutting Edge At Same Time.

This CO2 laser cutting machine is widely used in mobile phones, computers, LCD screens, packaging, leather, printing, advertising decoration, architectural decoration, handicrafts, models, electronics and other industries. It can meet the needs of these industries for high-precision, high-speed and high-quality cutting.

Engraving Speed: 0-1000mm/s

Cutting Speed: 0-600mm/s

Get a Quote

Send Email to Us

Get Price on Whatsapp

Product Detail

Video Show Of Engraving And Cutting Wood

Tech Specifications

Working area	1300*2500MM
Laser power	300 W
Laser type	Sealed water cooling CO2 laser tube
Engraving speed	0-1000mm/s
Cutting speed	0-600mm/s
Repositioning accuracy	<0.05mm
Minimum shaping character	<1*1mm
Working voltage	AC110-220V±10%，50-60HZ
Control software	Art Cut, Photoshop CorelDraw, AutoCAD
Graphic format supported	PLT/DXF/DST/BMP/AI etc.
Packing size	380019601210mm
Gross weight	1000kg
Working temperature	0-45℃
Warranty	12 months, consumable parts excluded

Main Configuration
& Feature

1.300 watts Big power laser tube
2. High-strength integrated machine body
3. Y-axis unilateral ball screw servo drive
4. X-axis precision lead screw module servo drive
5. TBI lead screw, Taiwan CSK track
6. One-piece aluminum alloy gantry

7. Ruida edge-finding cutting system
8. Constant laser path design
9. Famous S&A brand industrial chiller CW6000
10. Super suction design, double funnel, double smoke pipe, two 750W exhaust fans
11. Multifunctional toolbox.

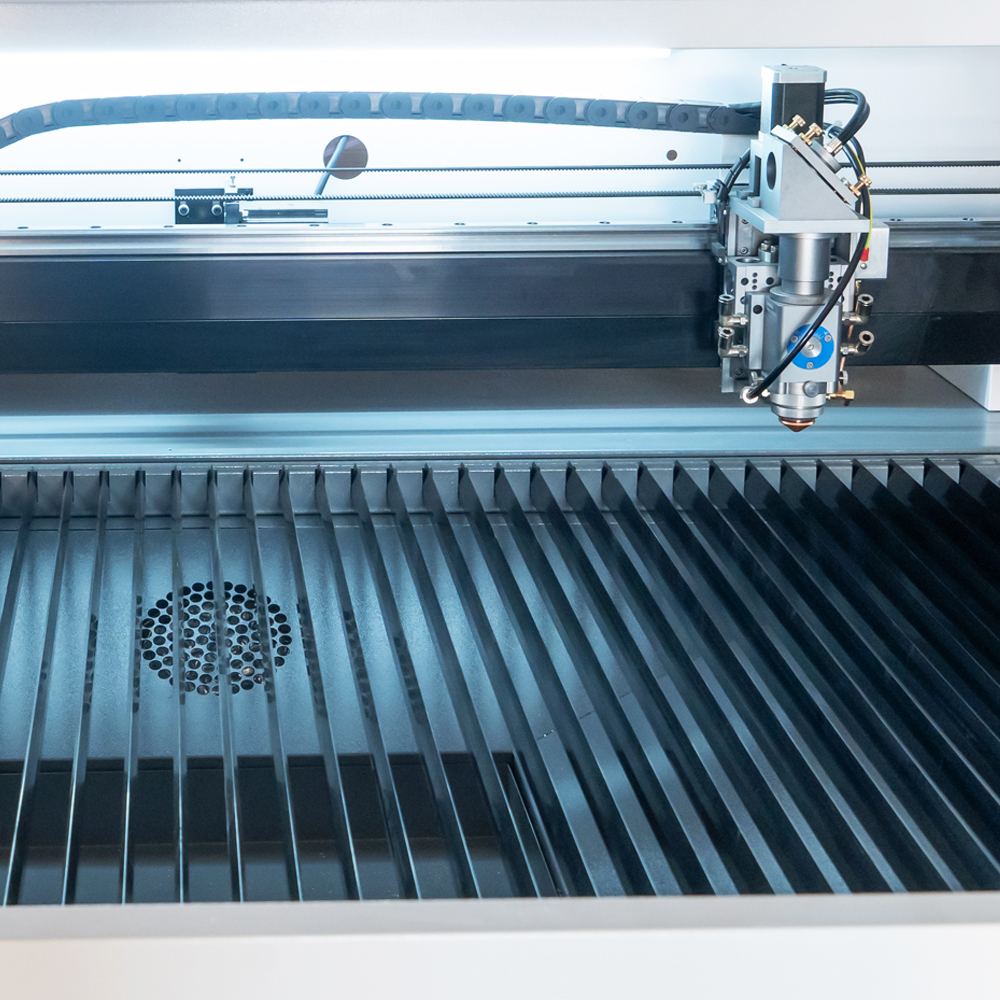

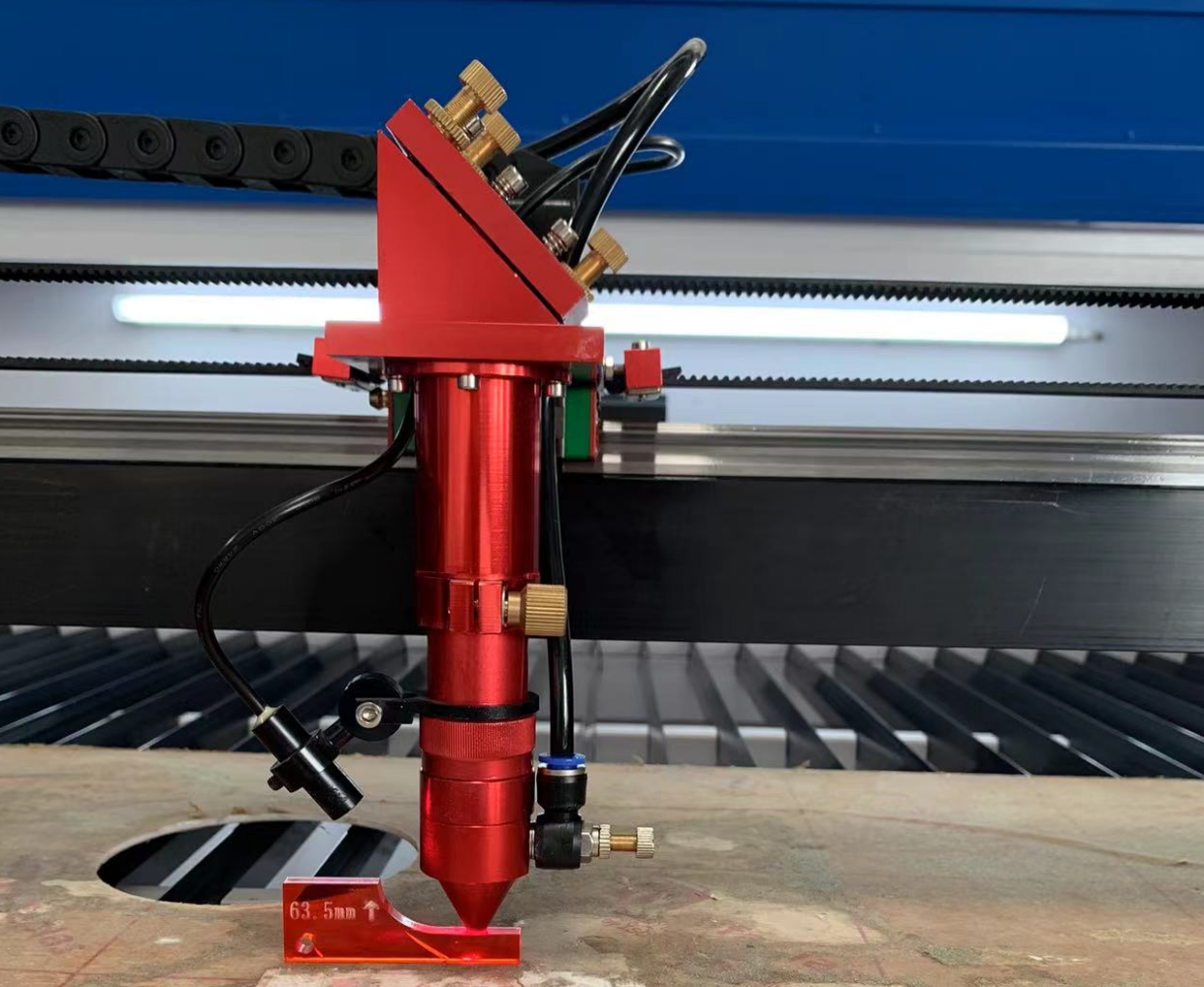

Laser Head With Red Point

The aluminum alloy laser head is lighter than other iron laser heads, which can minimize the inertia error when the laser head moves.

Get A Quote

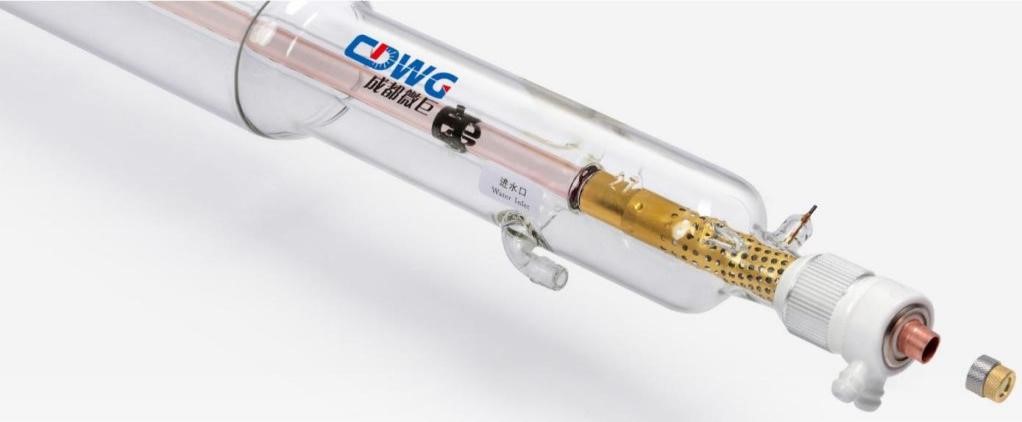

CDWG (CWG) Laser Tube

Dowin Co2 laser cutter machines all install famous brand CDWG & RECI laser tube, durable and stable performance, lifetime last 10000 hours, and we offer you 12 months.

Get A Quote

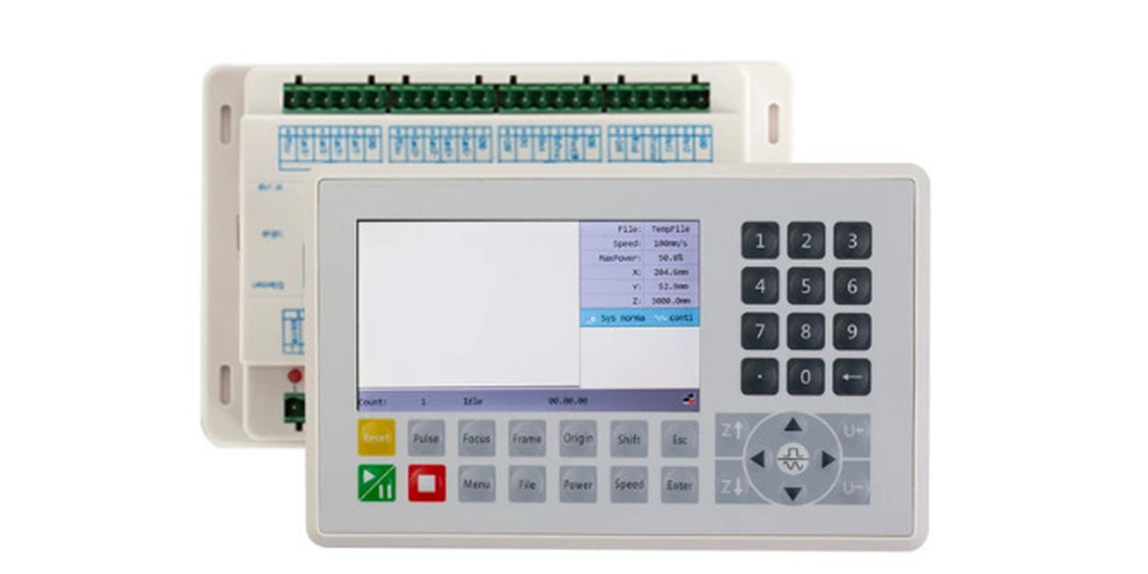

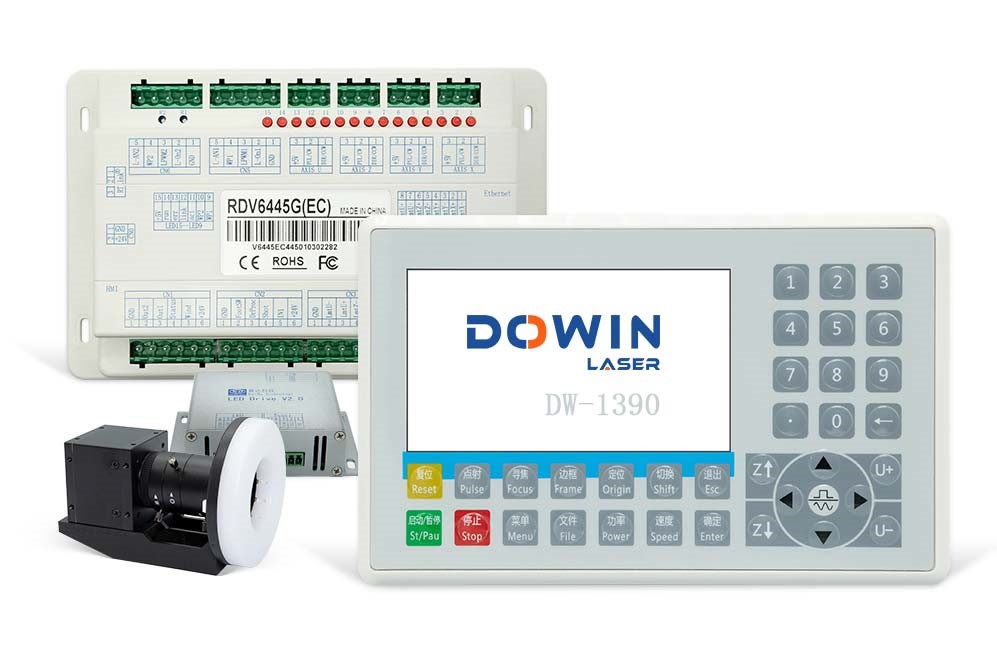

Ruida Control Panel & Software

Ruida control system Supports USB cable controlled by computer and and also offline control system by just a U disk. Compatible with Lightburn.

Get A Quote

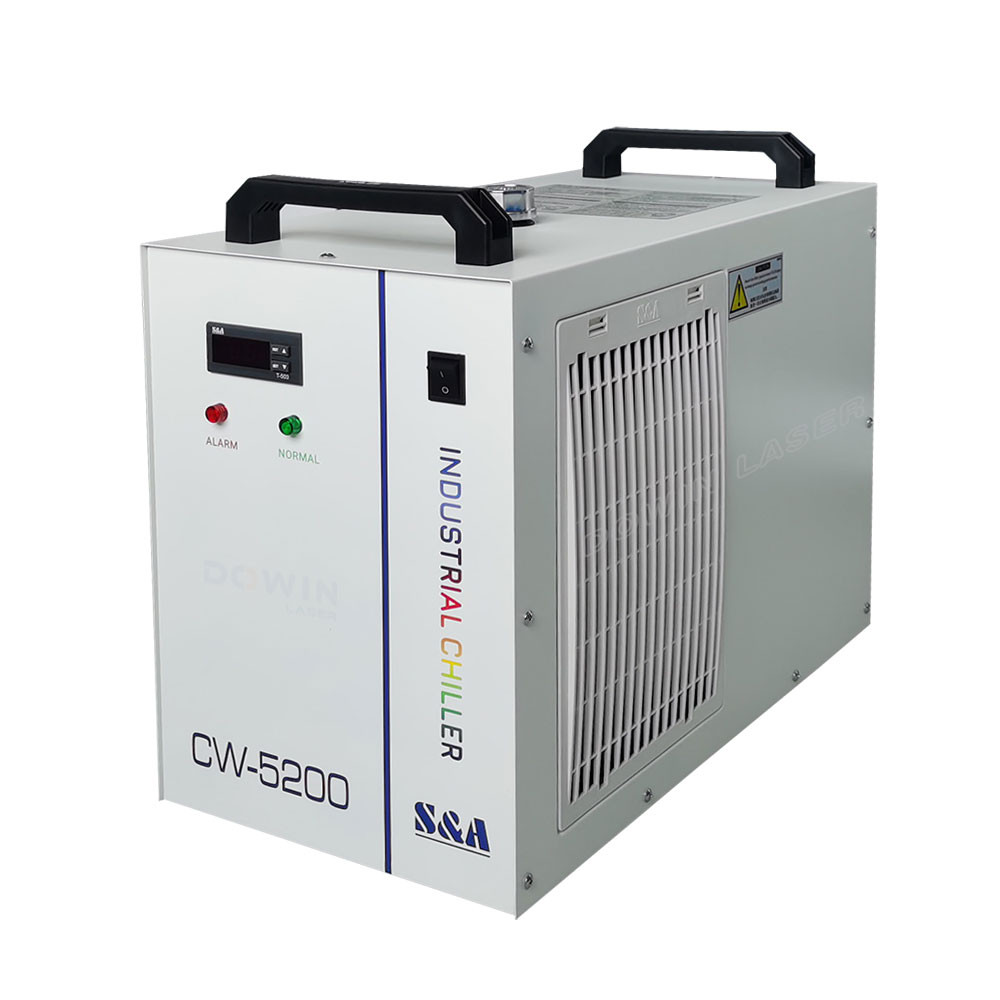

S&A CW5200 Water Chiller

After long working time, the laser tube working at high temperature can be cooled quickly. And exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction.

Get A Quote

Rack Workshop

We also can customize the machine, accroding to your requirements, such as laser cutter with ball screw transmission & rack transmission.

Get A Quote

Main configuration features

一	Machine part
1	Laser tube	1 PCS	Laser Tube 300W
2	Dedicated laser cutting head	1 Unit	DOWIN Customized

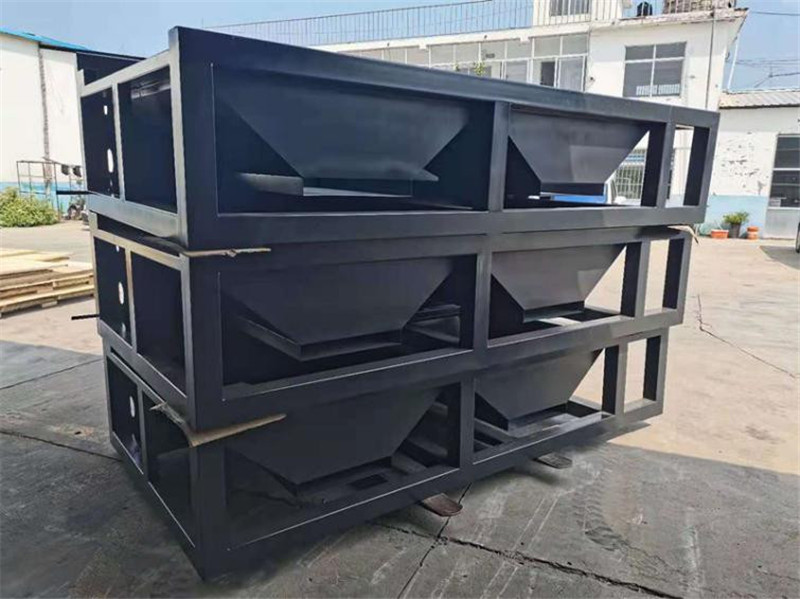

3	Machine bed	1set	Steel structure welding machine
4	Y-axis ball screw	1set	TBI lead screw
5	X-axis ball screw module	1set	TBI lead screw
6	Precision guide	unit	CSK
7	XY axis motor and driver	2unit	Leadshine Servo
8	Main electrical components	unit	High end
9	Control cabinet	1unit	Customized made
10	Machine tool accessories	unit	High end
11	CNC system	1unit	Ruida 6445G
12	S&A Famous brand Water Chiller	1unit	CW6000
13	Dust extraction device	1unit	Equipment matching

Machine detailed pictures

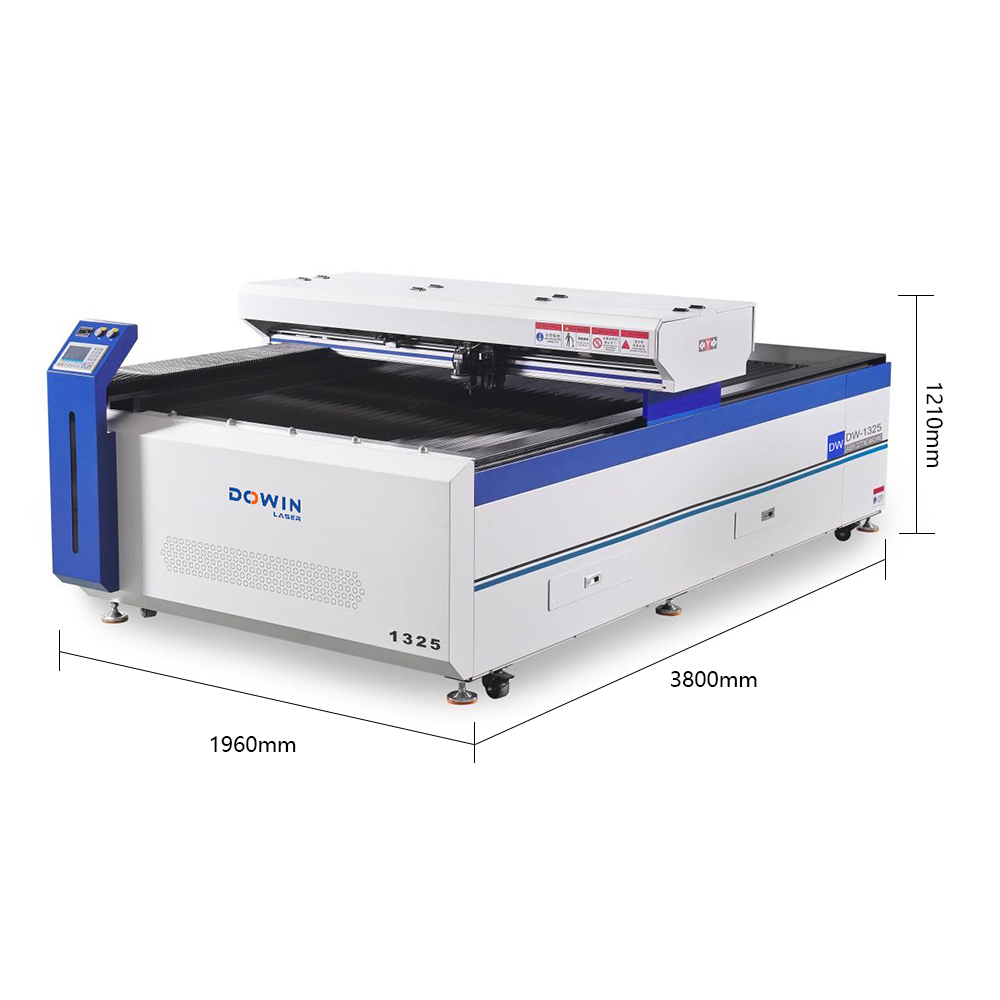

300W CO2 laser cutting machine

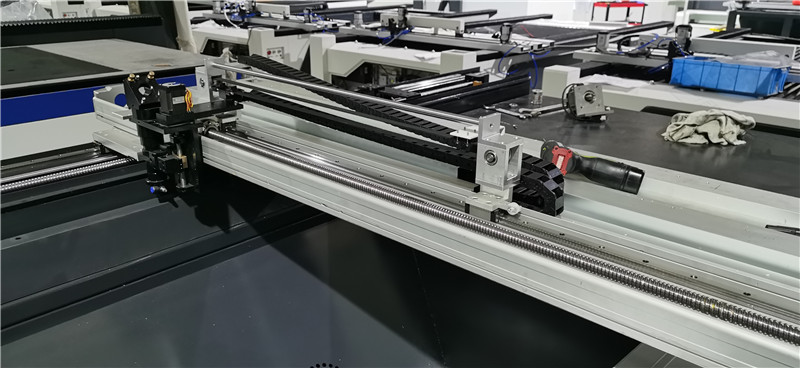

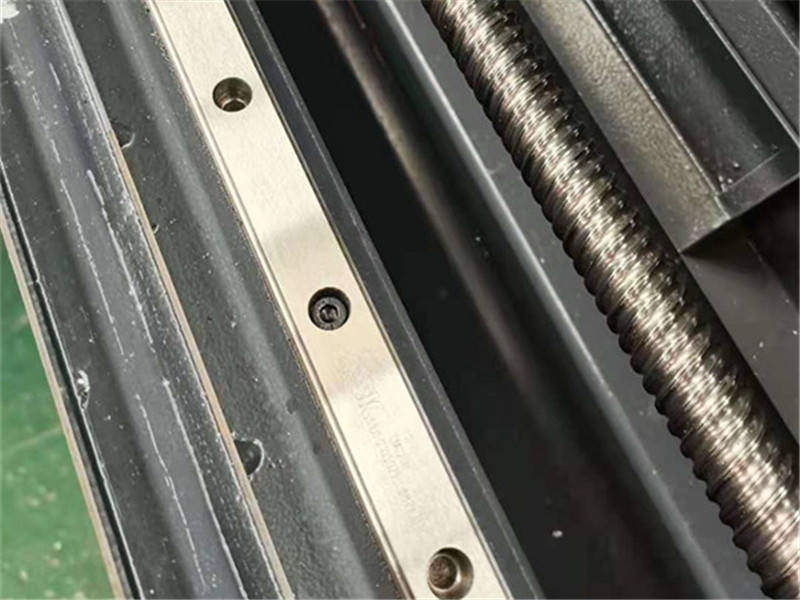

Y-axis single-sided ball screw

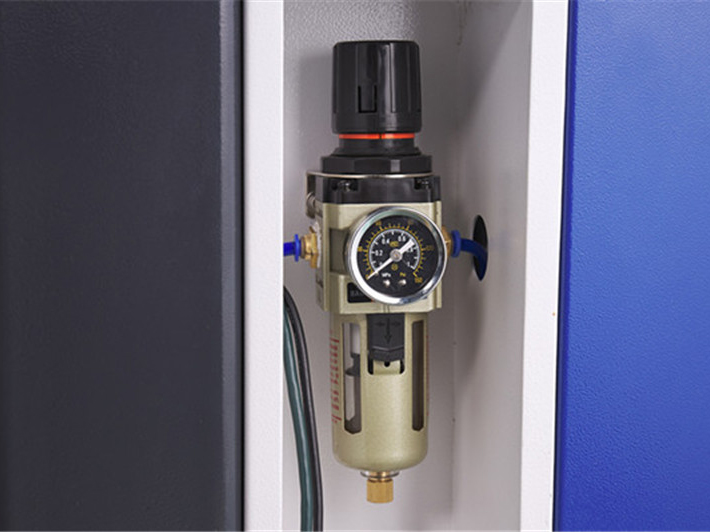

Water oil separator

300W CO2 big power laser cutting machine (8)

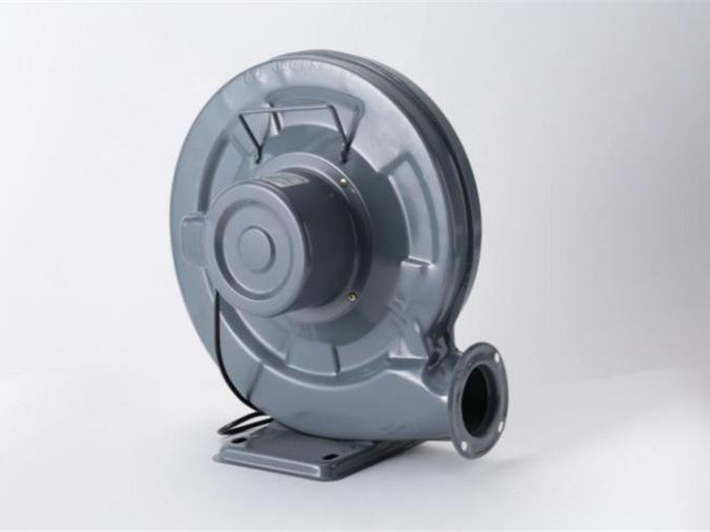

Exhaust fan 750W

300W CO2 big power laser cutting machine (5)

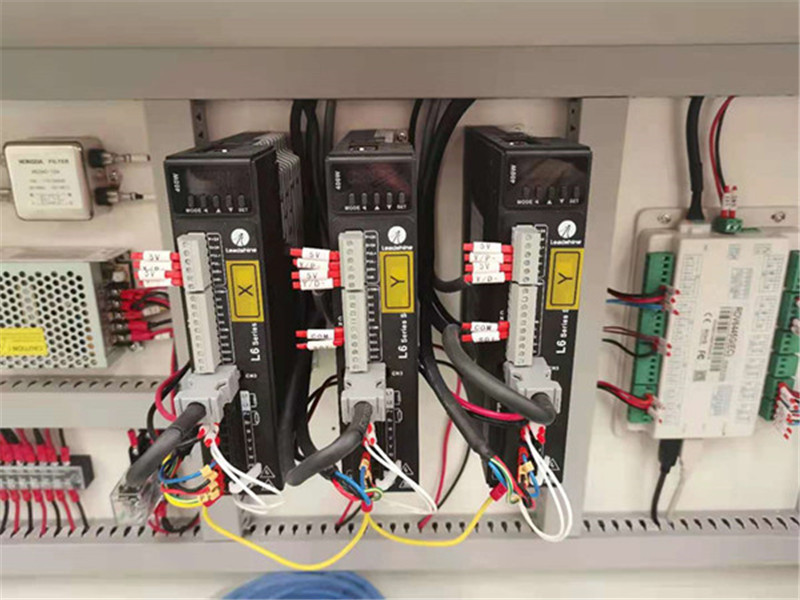

Leadshine Servo Motor Y-axis Dual Driver

300W CO2 big power laser cutting machine (10)

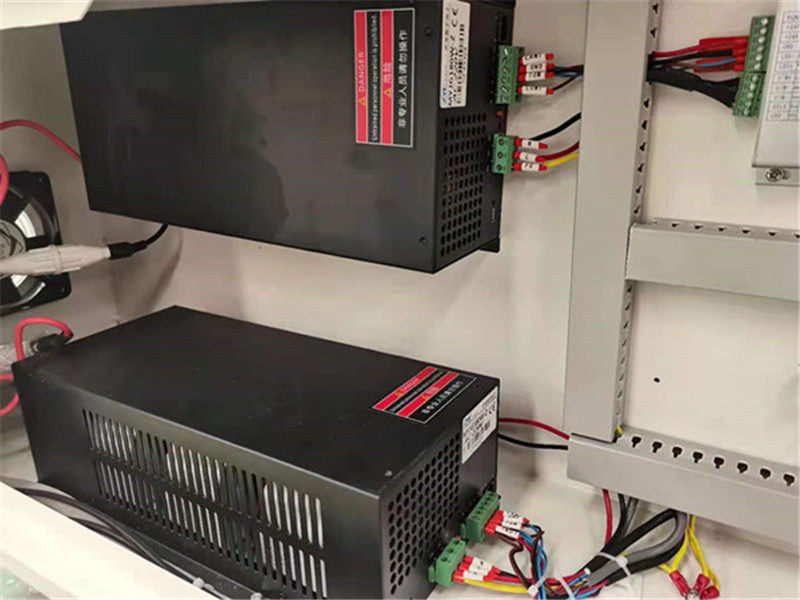

Mingyu laser power supply

Ruida's latest offline color screen control card

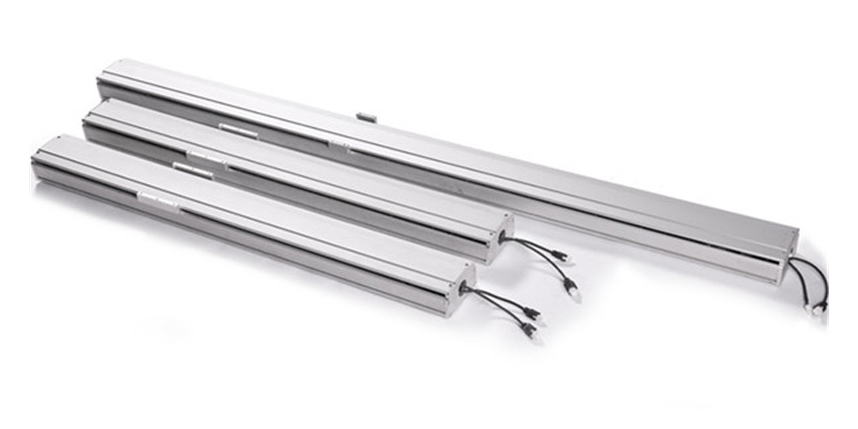

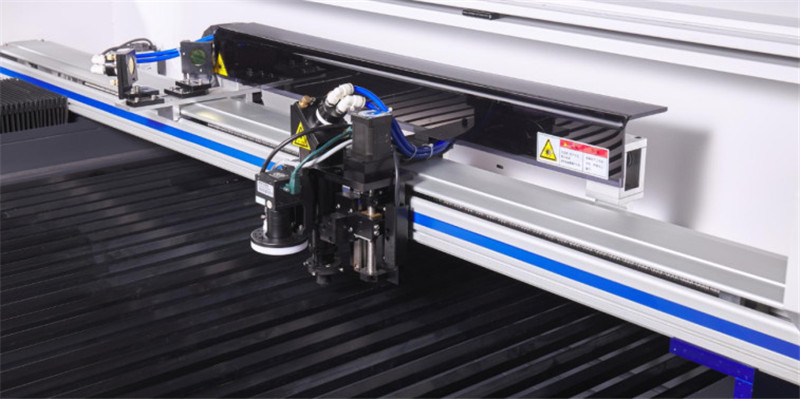

X-axis precision screw module

Constant laser path design

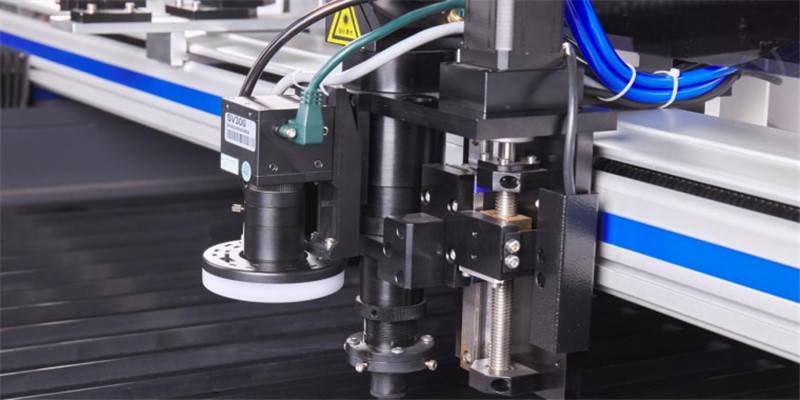

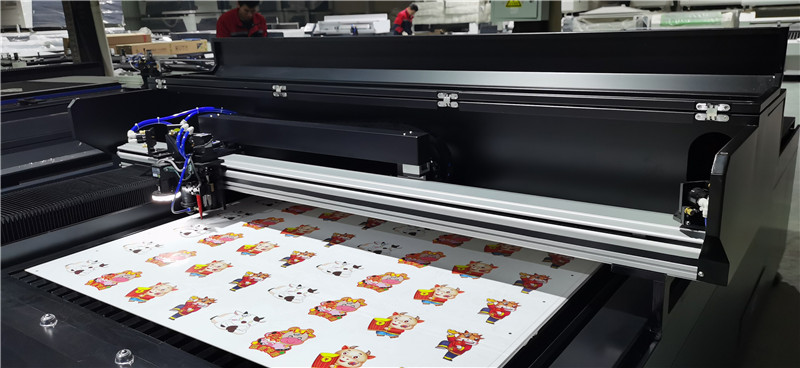

Ruida CCD edge-finding positioning system

Get A Quote !

Applicable Materials And Industry

Applicable Materials:
Nonmetal materials like leather,cloth,plexiglass,acrylic,rubber,plastic,wooden product,ceramic etc.
Applicable Industries:
Advertisement decorations,handicraft,garment,shoes,bags,computerized embroidery and clipping, template cutting,toys,furniture,packing,printing and other industries.

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
