Conveyor Belt auto feeding CO2 Laser cutting Machine 1600*1000mm

1600mm x 1000mm (63″ x 39″) work area, accommodates roll materials up to 1600mm (63”) wide. This machine features a conveyor bed that is synchronized with the powered roll feeder in order to bring your material forward as needed. Although designed for roll materials, this laser machine is versatile enough to laser cut flat materials in sheet.

Conveyor Belt auto feeding CO2 Laser Cutting Machine 1600*1000mm

Product Detail

Details

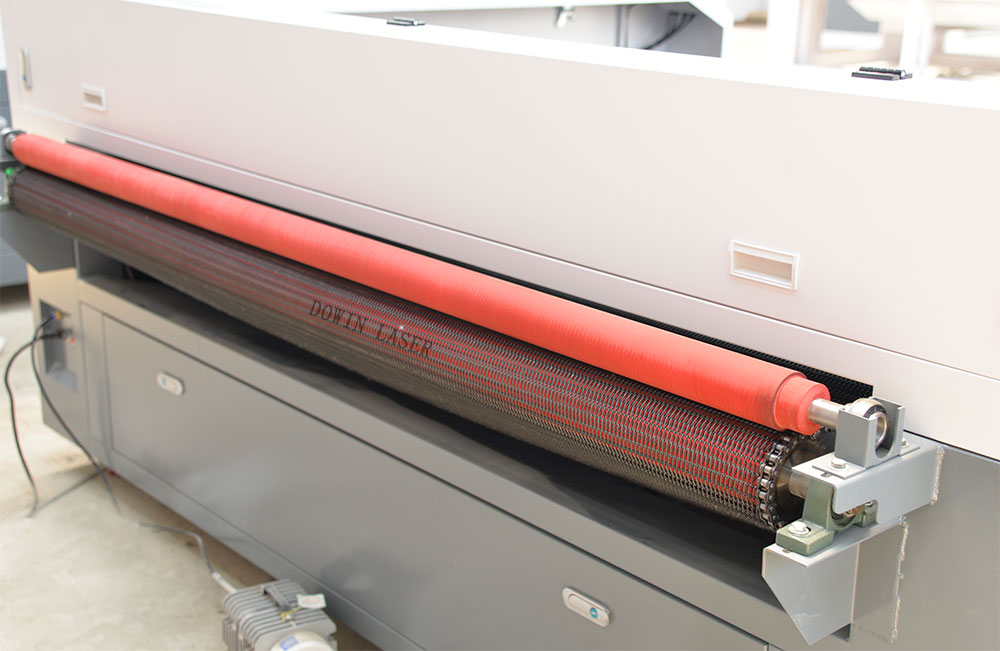

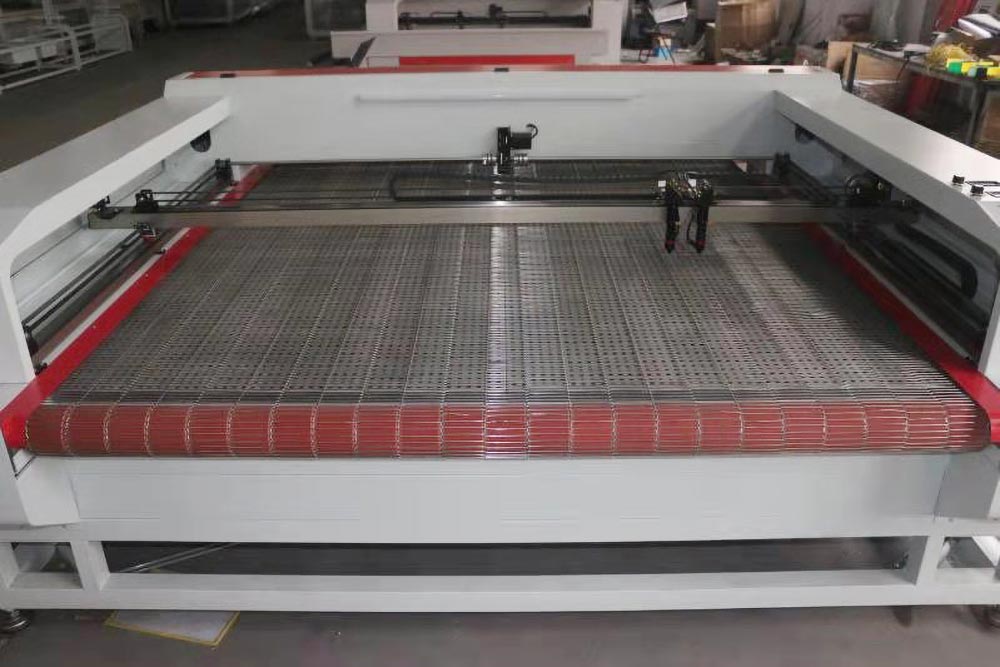

Long life span auto feeding conveyor and nylon wheels

Fabric laser cutter (1)

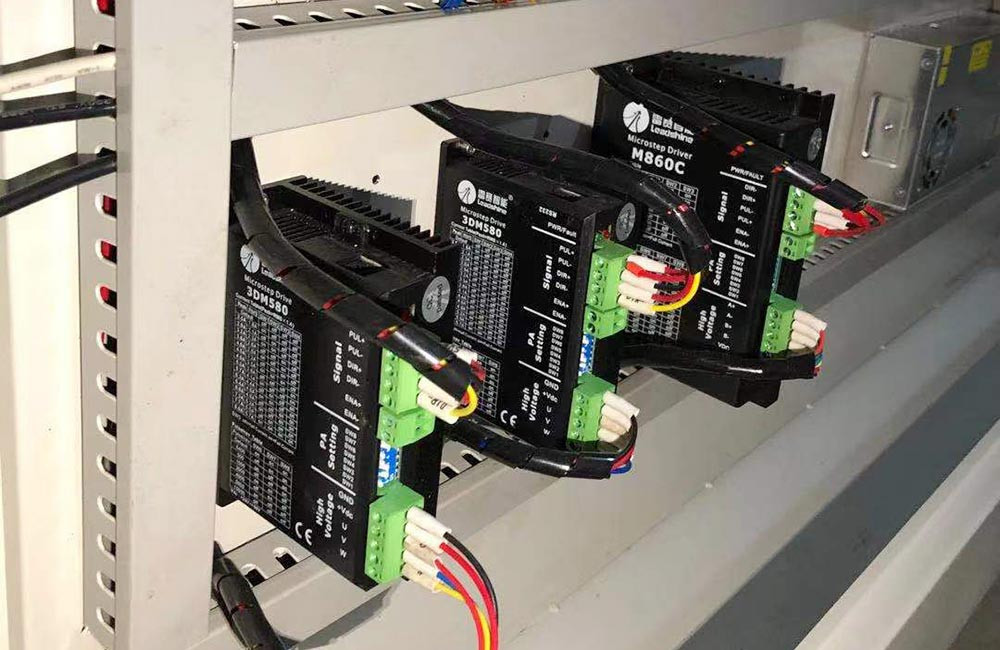

Chinese famous brand leadshine motor and driver.

photobank (43)
Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (4)

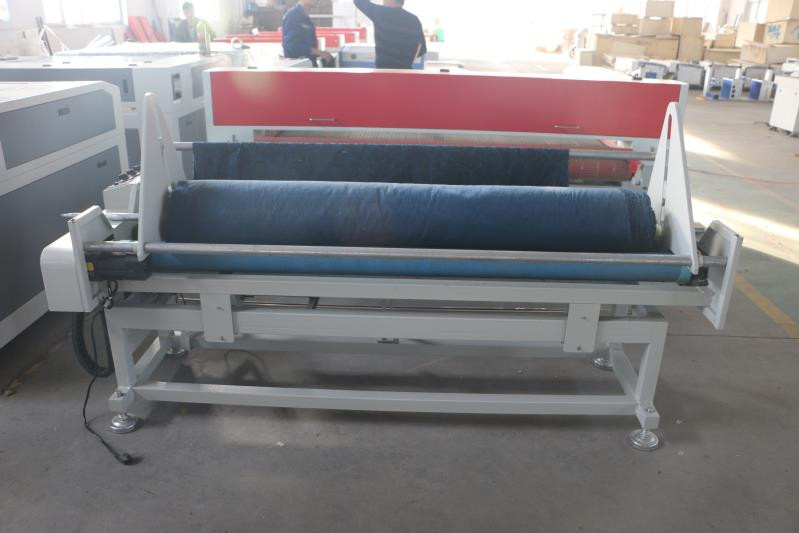

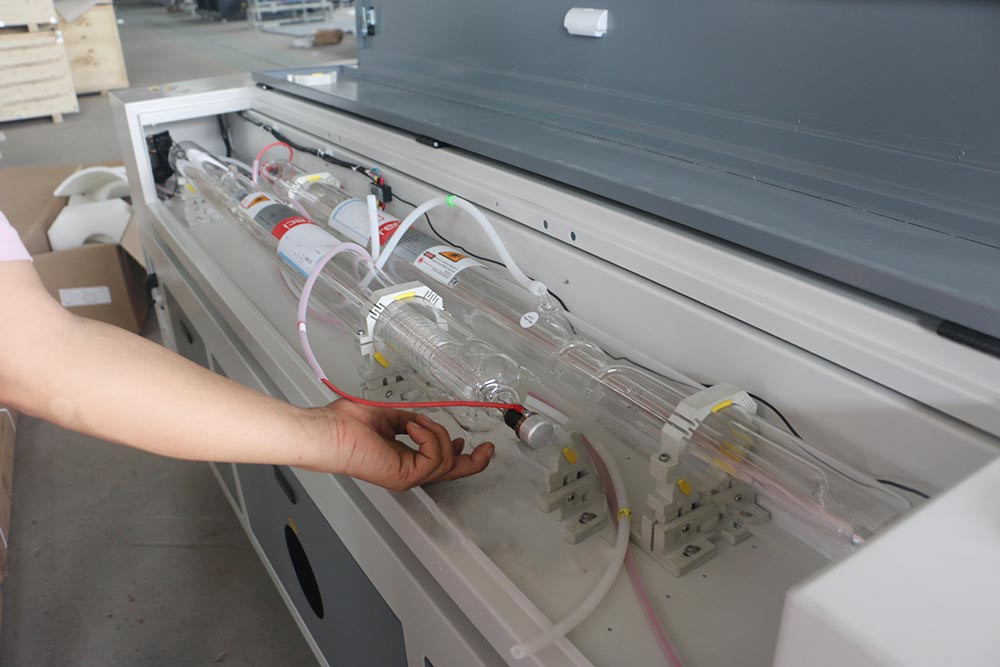

Double tubes & heads , Auto adjust roll holder are optional

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (3)
Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (7)

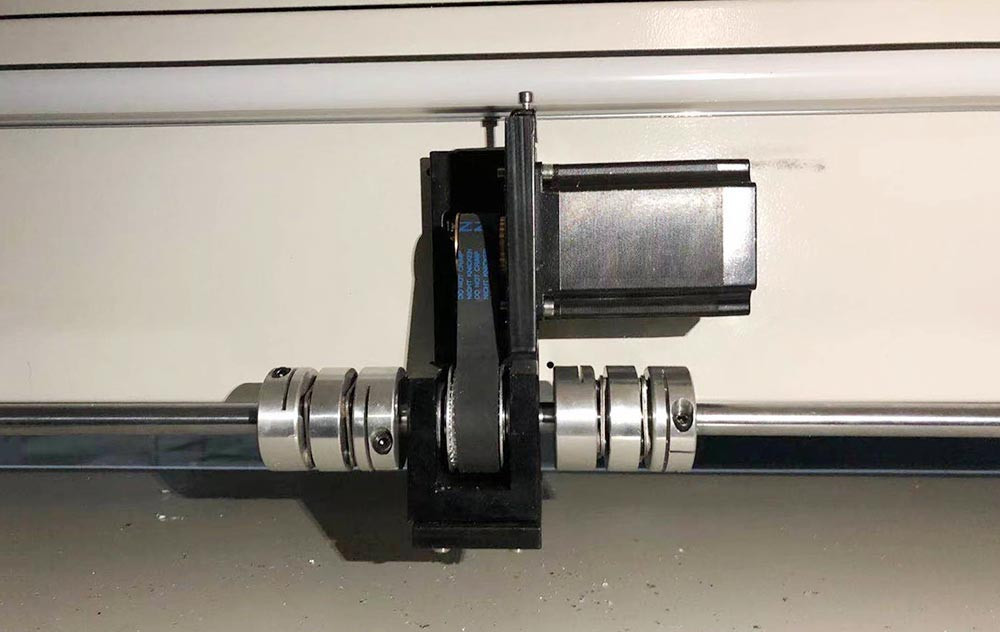

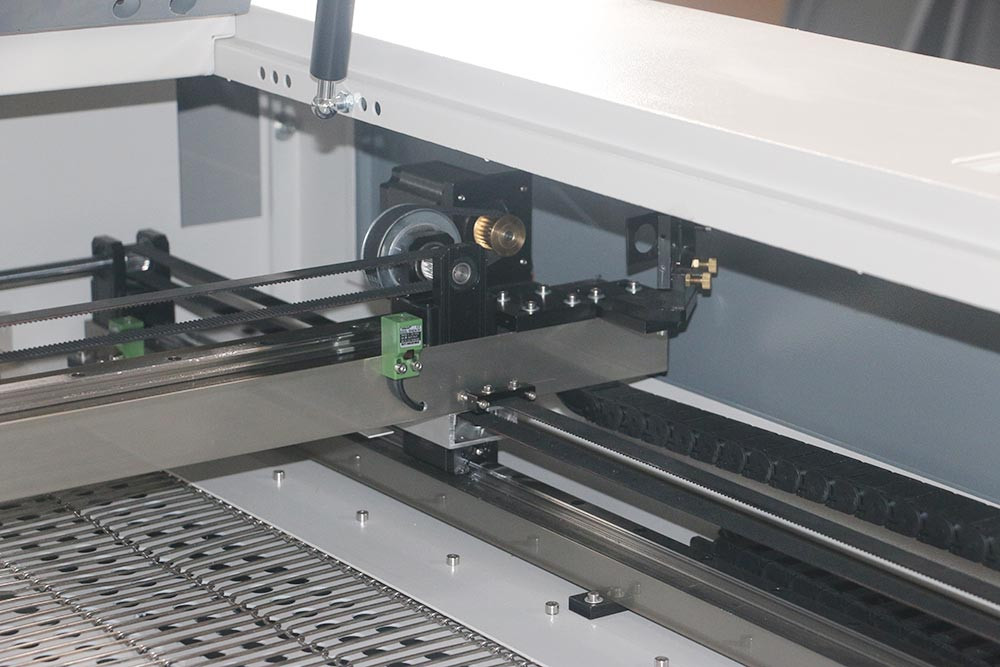

High precision high speed moving rails

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (5)
Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (6)

Video introduction

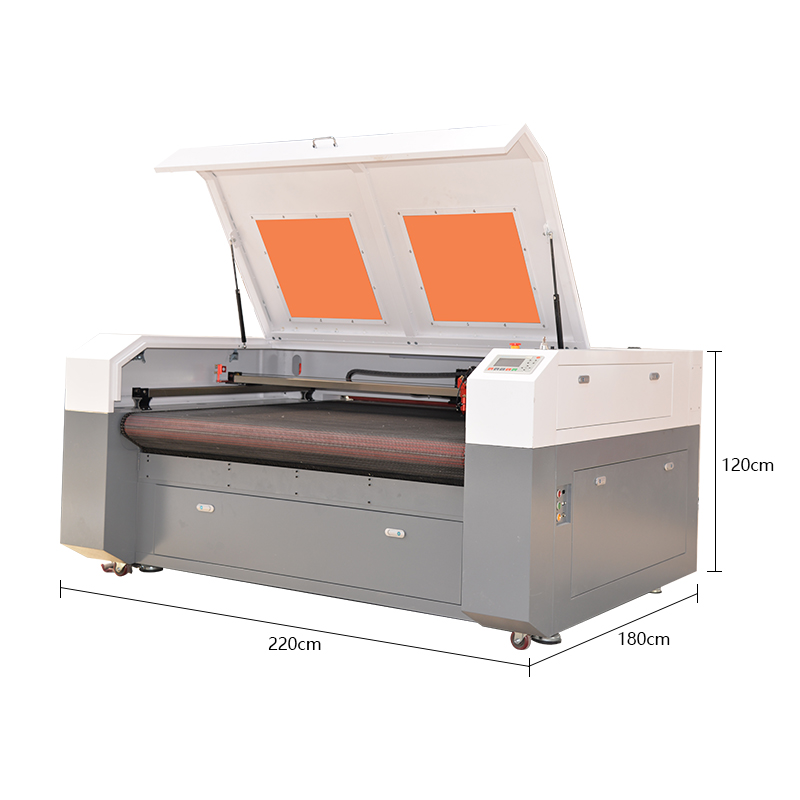

微信图片_20241108161126

Tech Specifications

Laser Type

CO2 glass laser tube

Laser Power

80W / 100W / 130W / 150W

Working Area

1600mm×1000mm

Working Table

Conveyor working table

Motion System

Step motor / Servo motor

Positioning Accuracy

±0.1mm

Cooling System

Constant temperature water chiller

Exhaust System

550W / 750KW Exhaust fan

Air Blowing System

air compressor

Power Supply

AC220V ± 5% 50/60Hz

Graphic Format Supported

AI, BMP, PLT, DXF, DST

External Dimensions

2200mm (L)×1800mm (W)×1200mm (H)

Net Weight

680KG

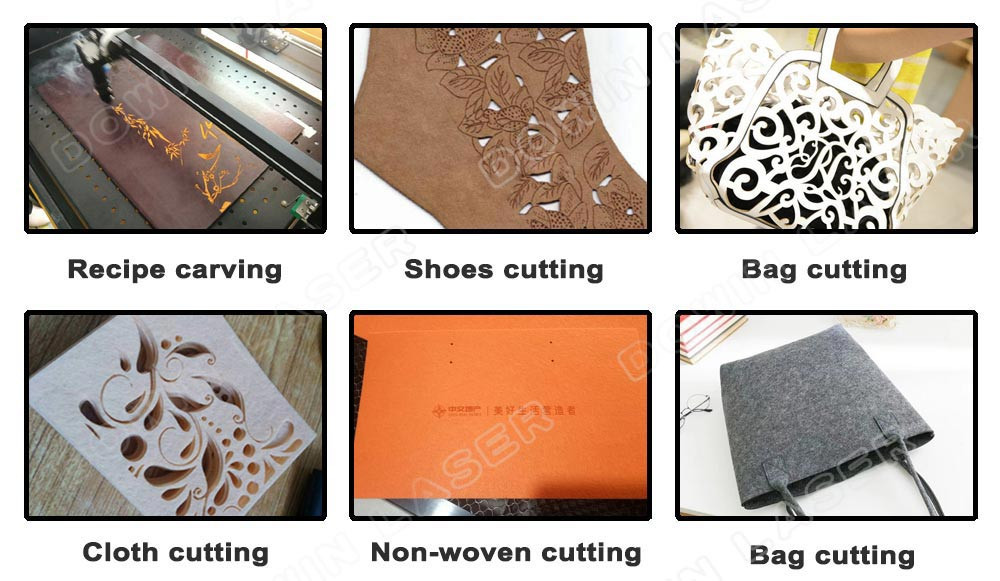

Applicable industry and materials

Apparel industry: Auto feeding laser cutting machine used for garment accessories cutting (label, applique), collar and sleeve cutting, garment decorative accessories cutting, apparel samples making, pattern making, etc.

Shoe industry: 2D/3D shoe upper, warp knitting shoe upper, 4D printing shoe upper. Material: Leather, synthetic leather, PU, composite material, fabric, microfiber, etc.

Bags and suitcases industry: engraving, cutting and perforating leather or textile of complex text and graphics.

Automotive industry: Suitable for cloth cover of car seat, fiber cover, seat cushion, season cushion, light- avoid mat, truck mat, car side-kick mat, large surrounded mat, car carpet, steering wheel cover, explosion-proof membrane. Material: PU, microfiber, air mesh, sponge, sponge+cloth+leather composite, woollens, fabrics, cardboard, Kraft paper, etc.

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (2)
