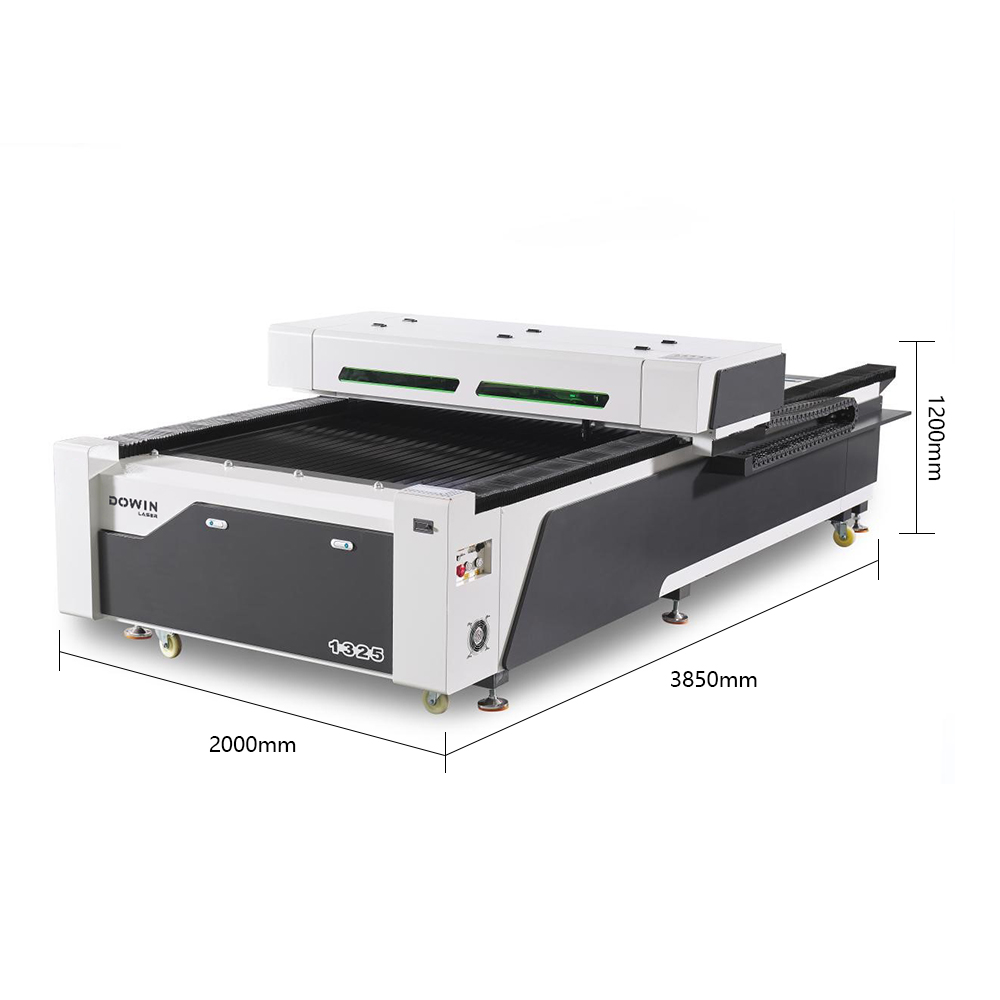

Rack And Pinion Transmission Co2 Laser Cutting Machine

With 300w, 500w And 600w, Make Sure Fast Speed And Higher Cutting Precision

Main Configuration
& Feature

1.Big power 150W-300W CO2 glass tube laser cutting machine
2. High strength integrated machine body, special sheet metal;
3. Y axis double-side rack double-drive servo motor drive combined with precision reducer
4. X axis rack and double rail servo drive;
5. Taiwan T-WIN rack, Taiwan CSK track;
6. One-piece aluminum alloy gantry;

7. Ruida edge-finding system,Each layer parameter can be set separately to realize cutting and etching function on template,easy operate.
8.Support incorruptible engraving recovery after power-off Compatible with Light Burn
9. Constant laser path design,make sure high precision
10. Famous brand S&A brand industrial chiller CW6000

300W CO2 big power laser cutting machine

Video introduction

Tech Specifications

Working area	1300*2500MM
Laser power	150W-300 W
Laser type	Sealed water cooling CO2 laser tube
Cutting speed	0-600mm/s
Repositioning accuracy	<0.05mm
Minimum shaping character	<1*1mm
Working voltage	AC110-220V±10%，50-60HZ
Control software	Art Cut, Photoshop CorelDraw, AutoCAD
Graphic format supported	PLT/DXF/DST/BMP/AI etc
Packing size	380019601150mm
Gross weight	800kg
Working temperature	0-45℃
Warranty	12 months, consumable parts excluded

Main configuration features

一	Machine part
1	Laser tube	1pcs	Laser Tube 300W
2	Industrial laser cutting head	1unit	DOWIN customized
3	Machine bed	1set	Steel structure welding machine
4	Y-axis rack	2units	T-WIN rack
5	X-axis rack	1unit	T-WIN rack
6	Precision guide	unit	CSK
7	XY axis motor and driver	3units	Leadshine Servo
8	CNC system	1unit	Ruida 6445G with CCD system
9	Famous brand S&A Water Chiller	1unit	CW6000
10	Dust extraction device	1unit	Super suction design, double funnel, double exhaust pipe, Double 750W exhaust fans

Machine detailed pictures

300W CO2 big power laser cutting machine (9)

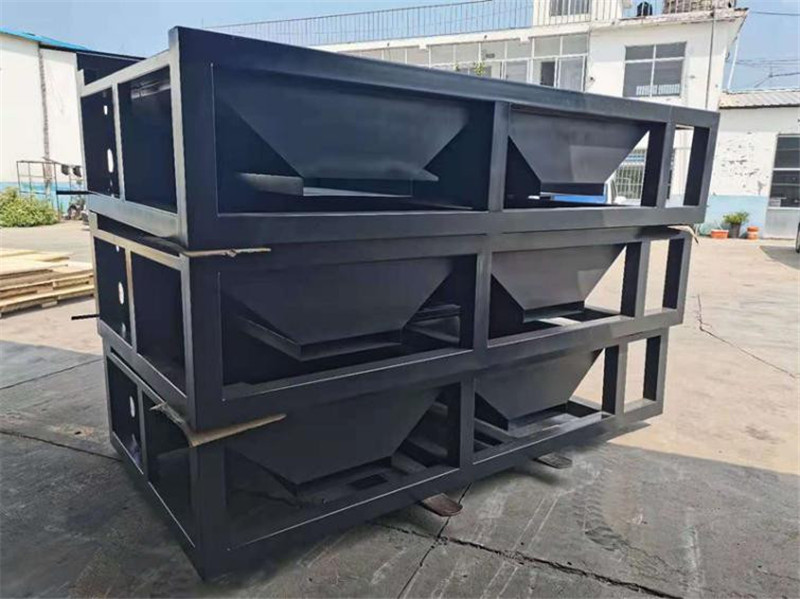

High-strength integrated machine body

300W CO2 big power laser cutting machine (7)

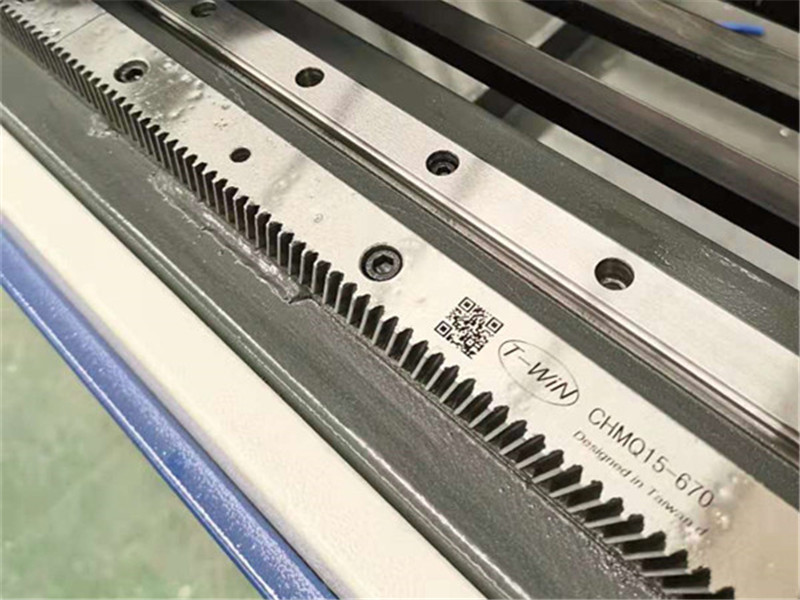

Y-axis rack

300W CO2 big power laser cutting machine (4)

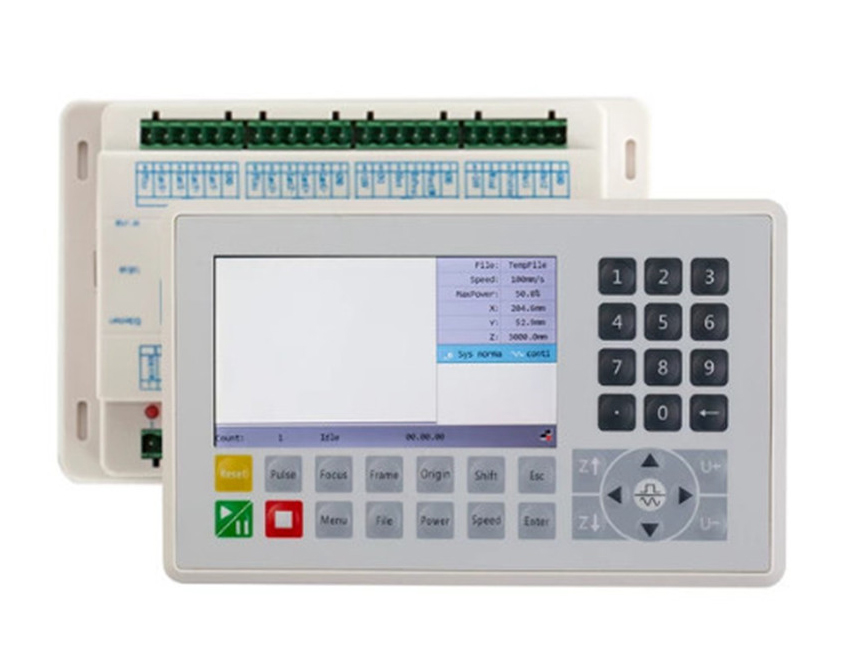

Ruida's latest offline color screen control card

300W CO2 big power laser cutting machine (6)

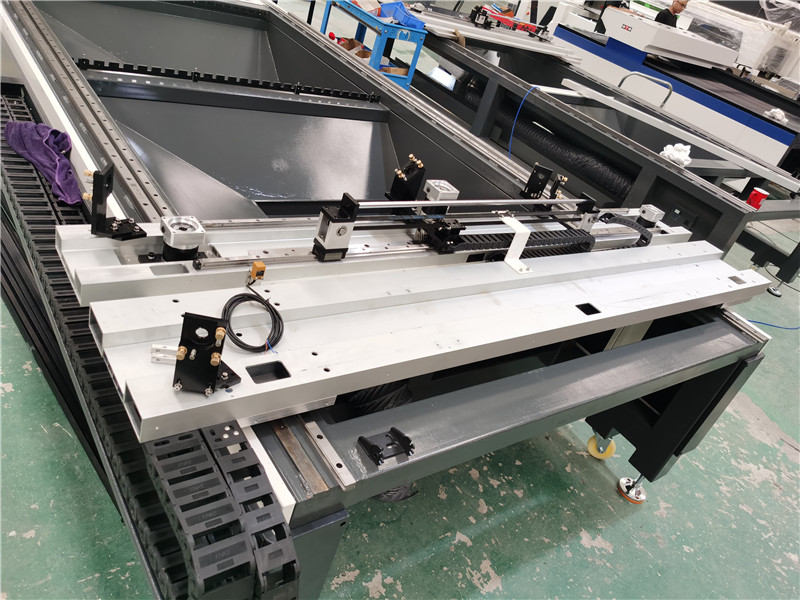

X-axis rack

300W CO2 big power laser cutting machine (1)

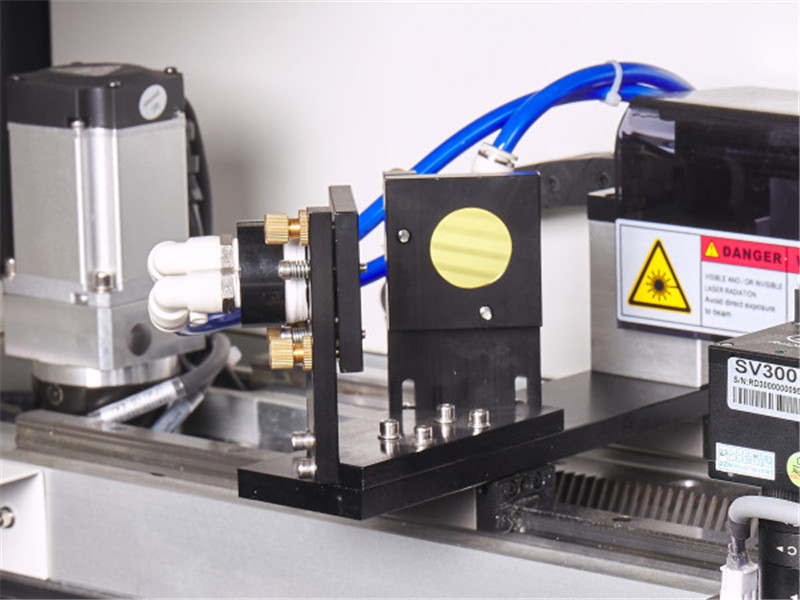

Constant laser path design

300W CO2 big power laser cutting machine (2)

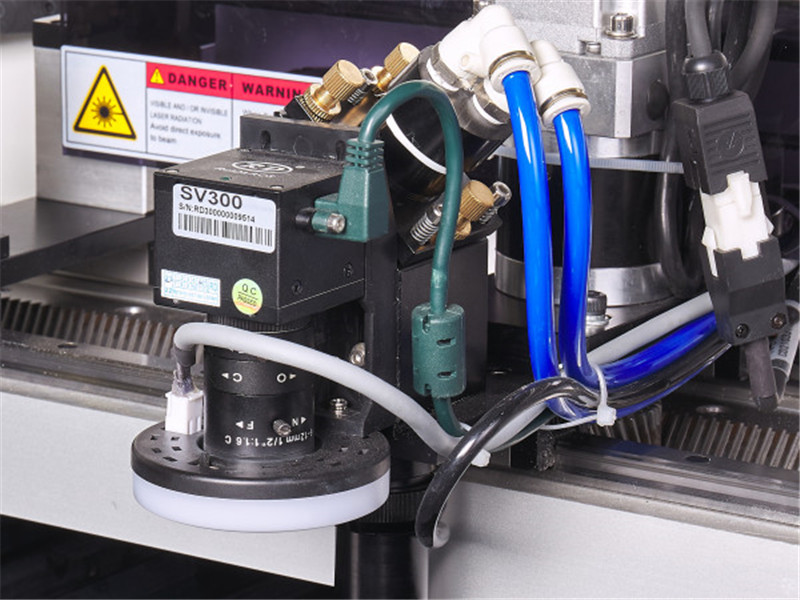

Ruida CCD edge-finding positioning system

300W CO2 big power laser cutting machine (8)

Exhaust fan 750W

300W CO2 big power laser cutting machine (5)

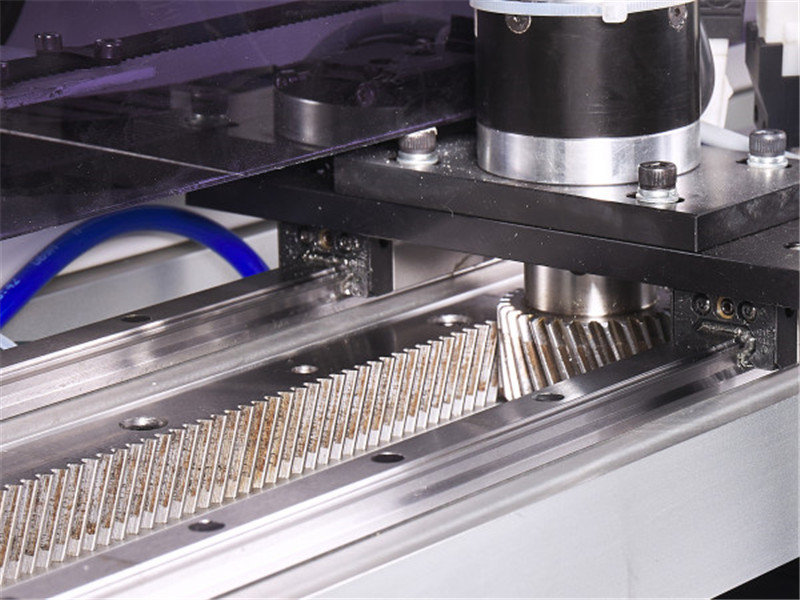

Leadshine Servo Motor Y-axis Dual Driver

300W CO2 big power laser cutting machine (10)

Mingyu laser power supply

300W CO2 big power laser cutting machine (3)

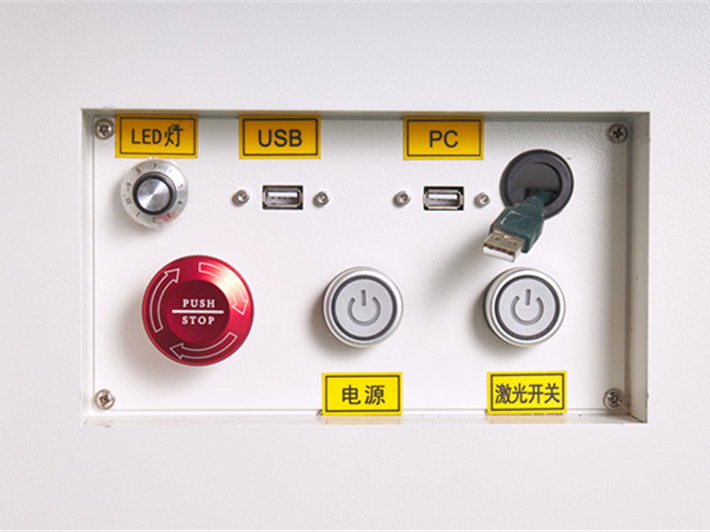

Built-in control switch

Applicable industry and materials

This big power gear transfer system laser cutting Machine suitable for 25mm acrylic products cutting , 15mm wood cutting ,related industries, advertising industry, lighting industry, photo frame and other woodworking industries, architectural model industry, handicrafts, decoration industry.
