Metal and nonmetal CO2 mix Laser cutting machine

  • Light Source : CO2 Tube Power 150-300Watt / Gas Inlet O2
  • Movement : XY Cartesian, Z vertical up and down with automatic electric Auto Focus
  • Control Panel: 5-inch color display, status indication, keypad, Numeric keypad and Z-axis touchscreen.
  • Software : RD Work (Genuine License) supports Photoshop, AutoCAD, illustrator, PLT, DST, DXF, BMP, DWG, AI,
  • OS : Window 7, 10 or Higher
  • Connection : Online-connected via computer, Offline-operated via control panel, via USB Drive, LAN, wifi
  • Cutting Speed ​​: 0-10000mm/min
  • Engraving Speed ​​: 0-60000mm/min
  • Accuracy : 10-50Micron
  • Cooling system: Chiller CW5200-CW6000 / Air Compressor
  • Safety: Door Sensor, Cooling Sensor





Product Detail

metal and nonmetal laser cutter

What are the advantages of one Mixed metal and nonmetal laser cutter ?

AVAILABLE IN 150 & 300W The best value proposition workhorse for high speed precision metal cutting. From prototyping to full scale manufacturing, the DW-1390M Metal Cutter can cut most materials quickly and accurately. It is Perfect for short-run production and just-in-time manufacturing. From small jobs to large-scale output, this laser will increase your profitability and minimize your production cycle times.

You will be able to cut many types of materials, such as Thin Metal (Mild Steel, Stainless Steel, Carbon Steel), MDF, Acrylic, Plastic, plexiglass, etc. You can engrave on MDF, Marble, Granite, Glass, Tiles, Leather, etc.

Video introduction

Machine detailed pictures

Metal and nonmetal CO2 mix Laser cutting machine  (5)

Water cooling reflective mirrors and lens to cool down laser mirrors and lens from broken

Metal and nonmetal CO2 mix Laser cutting machine  (4)

Leadshine Driver and Meanwell power supply

Metal and nonmetal CO2 mix Laser cutting machine  (8)

Ruida's latest offline color screen control card

Metal and nonmetal CO2 mix Laser cutting machine  (9)

Gas Valve

Metal and nonmetal CO2 mix Laser cutting machine  (7)

LFS Live focus system

Metal and nonmetal CO2 mix Laser cutting machine  (3)

Professional Auto up-down laser head

Metal and nonmetal CO2 mix Laser cutting machine  (2)

Exhaust fan 750W

Metal and nonmetal CO2 mix Laser cutting machine  (1)

Industry chiller

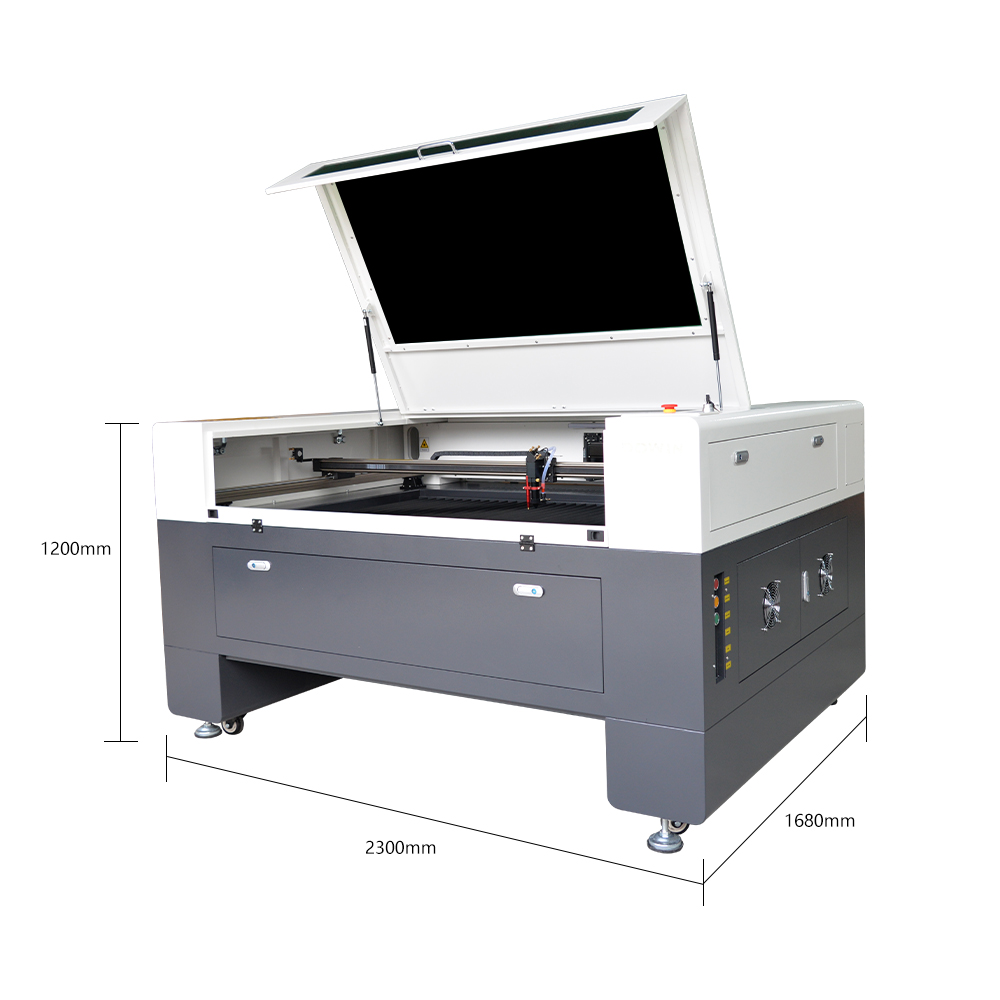

1390-1

Supported materials

Wood, various plastic sheets such as Acrylic, PolyCabonate, Plaswood, HIPS, plywood, real wood, leather, rubber (various non-metallic materials).
Acrylic cutting thickness maximum : 40mm+ / sheet metal, stainless steel, maximum thickness not more than 3mm

Metal and nonmetal CO2 mix Laser cutting machine  (9)
Metal and nonmetal CO2 mix Laser cutting machine  (9)
