Automatic 400W YAG Laser Medical Tool Mould Repair Laser Welder Stainless Steel Mould Repair Laser Welding Machine For Aluminum.

Laser welding is a welding technique used to join multiple pieces of metal through the use of a laser beam. The laser weldingsystem provides a concentrated heat source, allowing for narrow, deep welds and high welding rates. This process is used frequently in high volume welding applications, such as in the Automotive Industry.

Send email to us

Video introduction

Please check Video to see more details and how it works introduction:

Features

● This Automatic laser welder use electric XY Working table, auto focus laser head ,could welding on curving surface controlled by software.when use Rotary, it is 4 axis automatically ,Could add Automatic wire feeding system.
● CNC2000 Software and computer and CCD viewing system free with machine.
● Output power, frequencies, the pulse width and other parameters of the Laser set up directly in system.
● PLC controls Workbench moving speed & directions (forward, backward, left or right), produce a flat and tidy welding line or welding point to optimize the results.

60W 80W Desktop Laser engraving machine for Crystal Trophy

400W 600W Automatic YAG laser welder for mould refurbishing

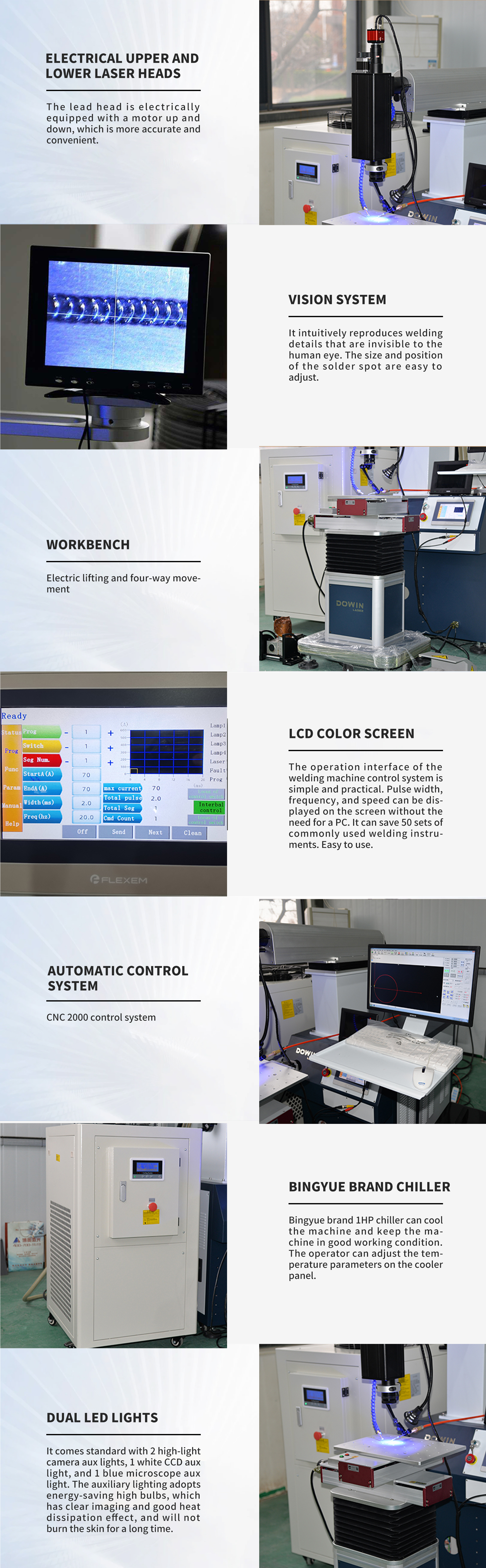

Electrical Up Down Laser Head

Lead head electrical up and down with motor , more precision and convenient.

Get A Quote

Visual System

It can relects the welding details intuitively which can not be discovered by human eyes. Convenient adjustment for light spot size and position of solder joint.

Get A Quote

Double LED Light

Standard comes with 2 high-light camera auxiliary lights, a white CCD auxiliary light, and a blue microscope auxiliary light. The auxiliary lighting uses energy-saving high-light bulbs with clear imaging and good heat dissipation effect, and will not burn the skin for a long time.

Get A Quote

Working Table

Electric lift and move in four directions.

Get A Quote

LCD Colorful Screen

The operation interface of the welding machine control system is simple and practical.Pulse width, frequency and speed can be adjusted on the screen and no need PC. Can save 50 sets of frequently used welding parameters. easy to use.

Automatic Control System

CNC 2000 control system .

Get A Quote

Water Chiller

Bingyue brand 1HP water chiller can cool the machine and make the machine work in good condition.

Operators can adjust the temperature parameters on the chiller panel.

Get A Quote

Tech Specifications

Models	DW- 400A DW-600A
Travel Path(X, Y, Z)	X=300mm ,Y=200mm,Auto X & Y Axis and focus control by software .Electrical adjust Z Axis.
Worktable Bearing Load	100KG
Machine Weight	380kg 450kg
Power Supply	220V±10%/50Hz/60Hz / 380V±10%/50Hz/60Hz
Laser Type	Nd:YAG Pulse
Laser Spot	0.1-3mm
Wavelength	1064nm
Pulse Width	0.5-25ms
Max. Average Power	400W 600w
Whole Power	12KW 17Kw
Pulse Frequency	0-100Hz
Focusing Size	110mm
Chiller	Water Cooling System Bingyue 2.8KW chiller
Observing System	CCD
Protective Gas	Argon
Welding Wire Dimension	0.1-1.0mm

Application materials

400W 600W Automatic YAG laser welder used for mould refurbishing, welding of copper nickel, nickel titanium, copper titanium, titanium molybdenum, brass copper, low carbon steel copper and other dissimilar metals.Industry like electronic components, mobile phone batteries, jewelry, sensors, watches, precision machinery, communications, elevator accessories, stainless steel door handle, stainless steel wine pot, communications, crafts, high-end cabinets, high-end furniture and other industries.

Application materials

1.What material do you need to laser process?
2.Do you need wire feeder
3.Could you send materials to us for free testing?
4.Your company name, website, Email, Tel (WhatsApp…)?Are you reseller or need it for your own business?
5.How do you want to ship it , whether do you have your own forwarder?

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!

Get A Quote !

Customer's Feedback

Gold coated metal cavity, ensure long life span and strong power

Offer free factory training

Gold coated metal cavity, ensure long life span and strong power
