100W 130W 150W nonmetal Laser engraving cutting machine

  1. 100W/130W/150W CDWG brand water cooling sealed CO2 glass laser tube
  2. Laser head with red laser pointer and auto focus system
  3. Ruida 6445 software ,Compatible with Light Burn ,Coreldraw .Support incorruptible engraving recovery after power- off
  4. Z axis use Double leadshine motors with belt Electric ball screw lifting working table controlled by software,intelligent and high precision,with debris drawer
  5. Standard model with High speed Square rails (can upgrade to module rails)

Double smoke cleaning system

Double smoke cleaning system with 550W exhaust fan,move smoking fast protect machine from smoke

100W 130W 150W nonmetal Laser engraving cutting machine
100W 130W 150W nonmetal Laser engraving cutting machine
100W 130W 150W nonmetal Laser engraving cutting machine

Video introduction

This video shows how the DW-1390 laser cutting machine looks like and how it works

Super production

Super production capacity we can deliver in 5-7 working days for 0-10 sets 13090 laser cutting machine

100W 130W 150W nonmetal Laser engraving cutting machine

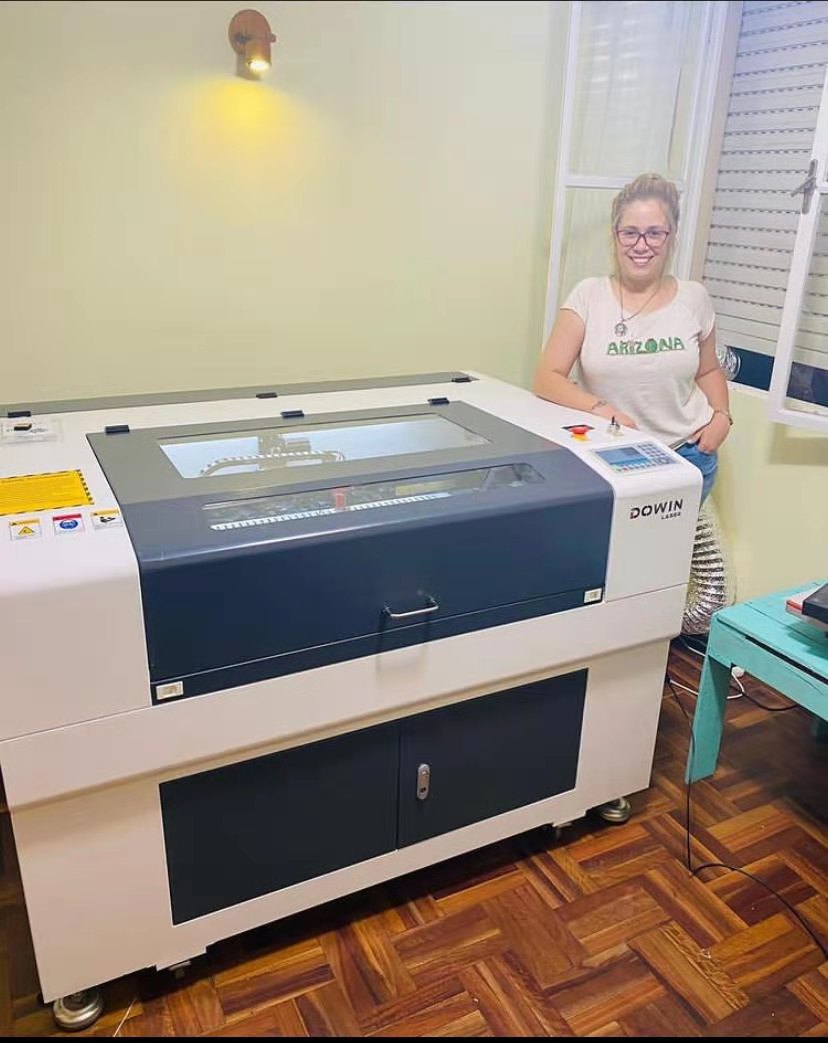

Dowin laser in Australia
100W 130W 150W nonmetal Laser engraving cutting machine

Please check the detail dimension to see whether you have enough space for it.

100W 130W 150W nonmetal Laser engraving cutting machine

Specifications

Main Technical Parameters of the DW-1390 CO2 laser cutting machine

Processing area

1300*900mm(51.1”×35.4”)

Laser tube

100W/ 130W/150W CO2 glass tube

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Resolution ratio

<0.01mm

Motor

Step motors

Voltage

110V±10%/ 220V±10% ,50HZ ~60HZ

Minimum character

Letter 1.0 x 1.0mm

Laser tube's life

10000+ hours

Interface

USB and network

Control system

RUIDA-6445

Working table

Honeycomb or blade working table

Graphic Format Supported

PLT, DXF, AI, BMP, DST, etc.

Cooling system

constant temperature water chiller

Standard configurations

Air compressor,exhaust fan, chiller included

Dimension/Packing size

195*145*120cm/203*155*130cm

N.W/G.W

380Kgs/450Kgs

Options

Electrical 0-30cm lifting table , Auto focus system, rotary engraving device, Servo motor,Module rails

Note: As products are constantly updated, please contact us for the latest specifications.

Application materials

Nonmetal materials like wood, MDF, leather, cloth,acrylic, rubber, plastic, PVC , paper, epoxy resin, bamboo engraving and cutting glass, ceramic, marble, stone and coated metal engraving.

about us

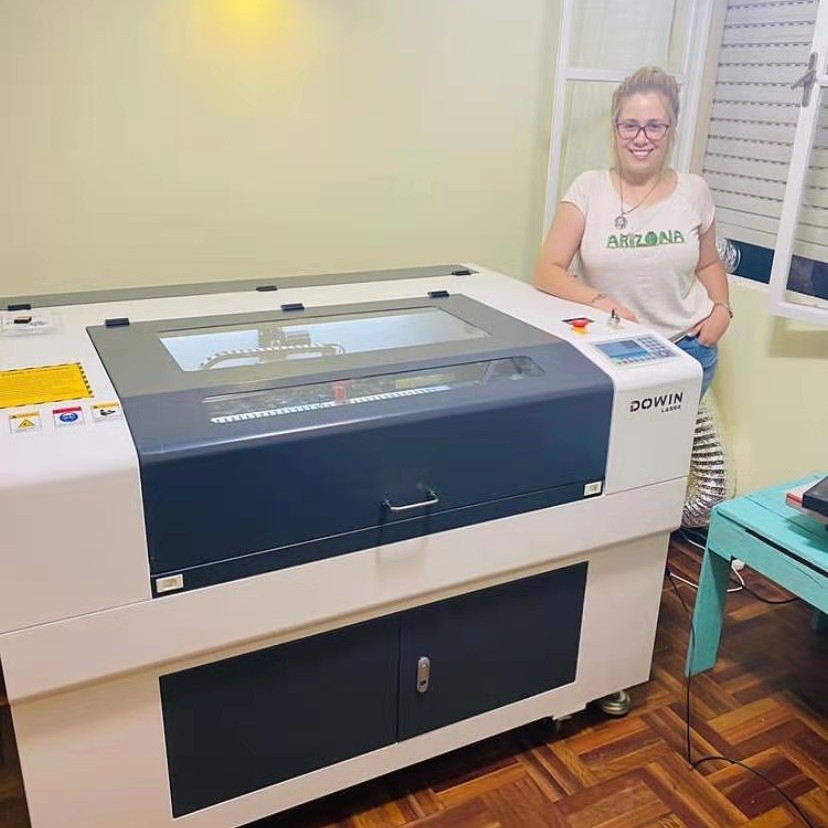

Dowin laser in Australia
