Small size FIBBER LASER CUTTING MACHINE

1.Working area 1300*900mm

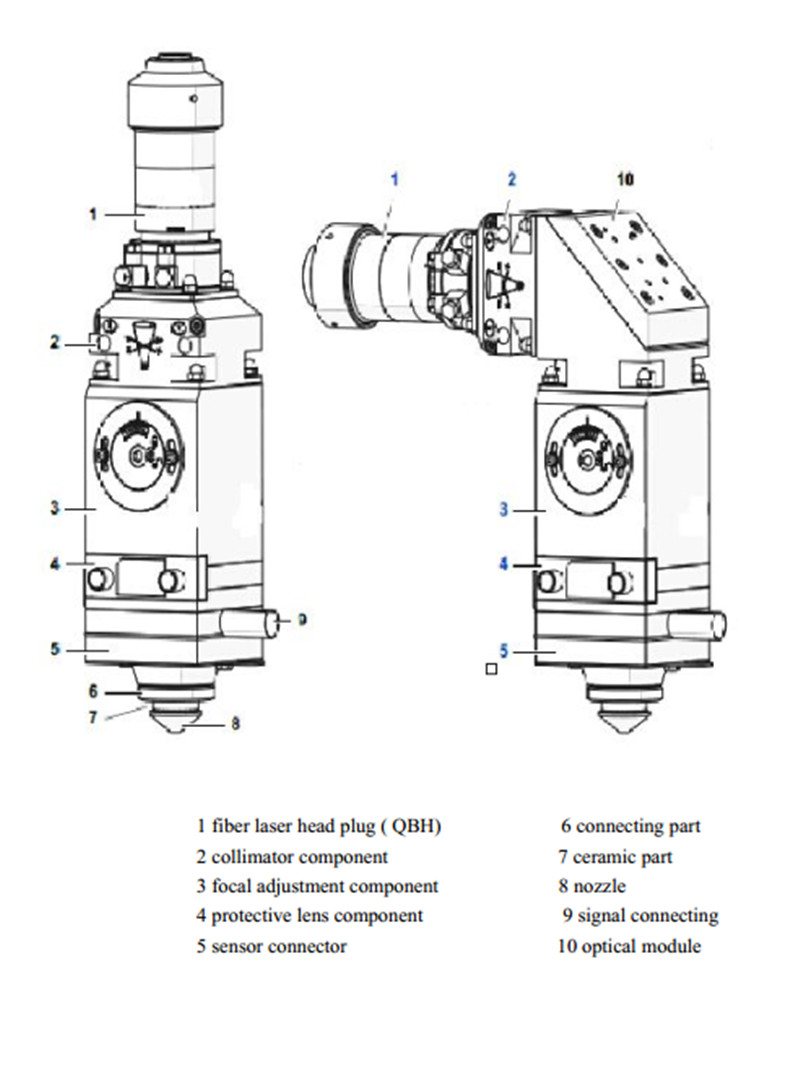

2.Raytools laser head
3.Raycus fiber laser generator
4.Taiwan Hiwin square rails and YYC brand gear
5.Janpanese Yaskawa servo motor
6.Proportional valve and Auto lubrication system
7.Special designed wheel carriers for easy loading
8.Hanli Water chiller system
9.Crypcut control system
10.Computer free
11.Europe CE and FDA certifications
12.Packing size 229*185*185CM &70*60*107CM  total 1500kg

Details

Real machine picture

Small size FIBBER LASER CUTTING MACHINE (3)

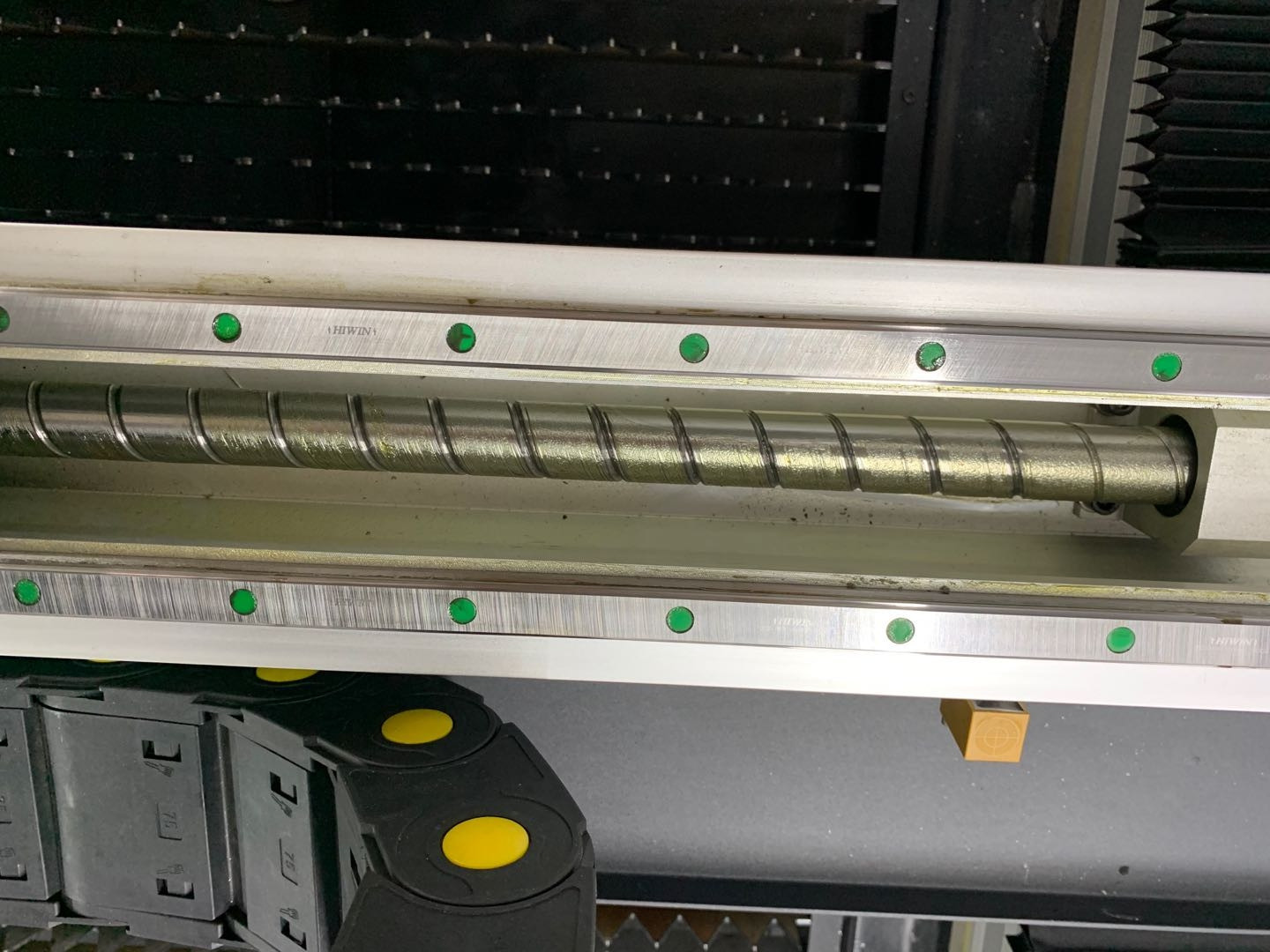

Highest precision ball screw transfer system

Small size FIBBER LASER CUTTING MACHINE (2)

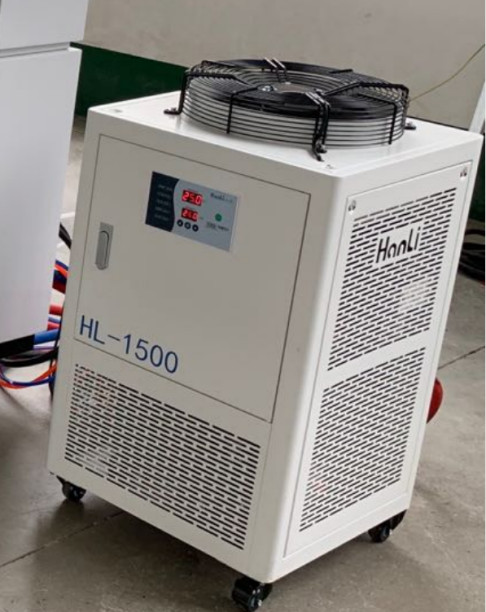

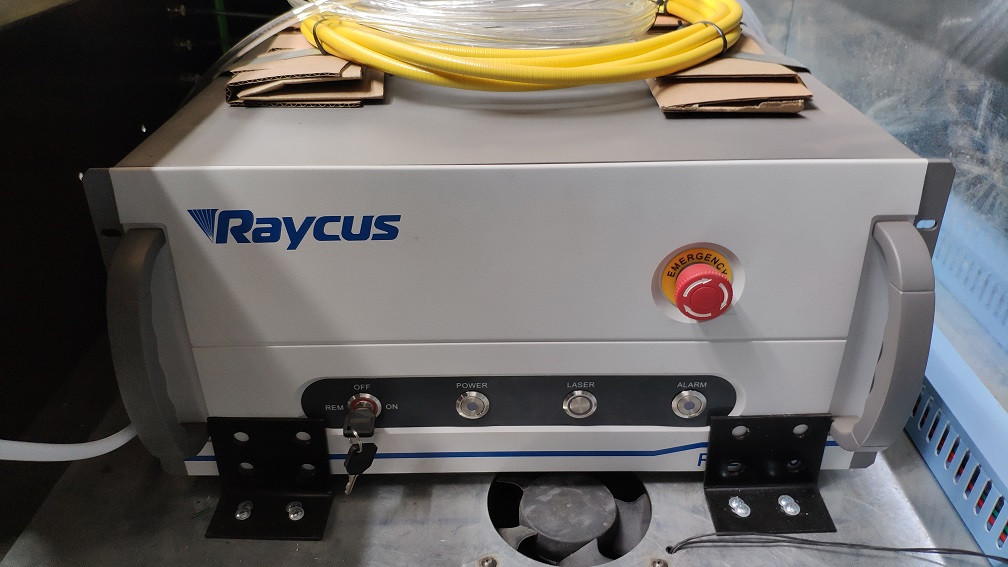

Raycus Fiber laser generator and Hanli brand water chiller

Small size FIBBER LASER CUTTING MACHINE (4)
Small size FIBBER LASER CUTTING MACHINE (1)

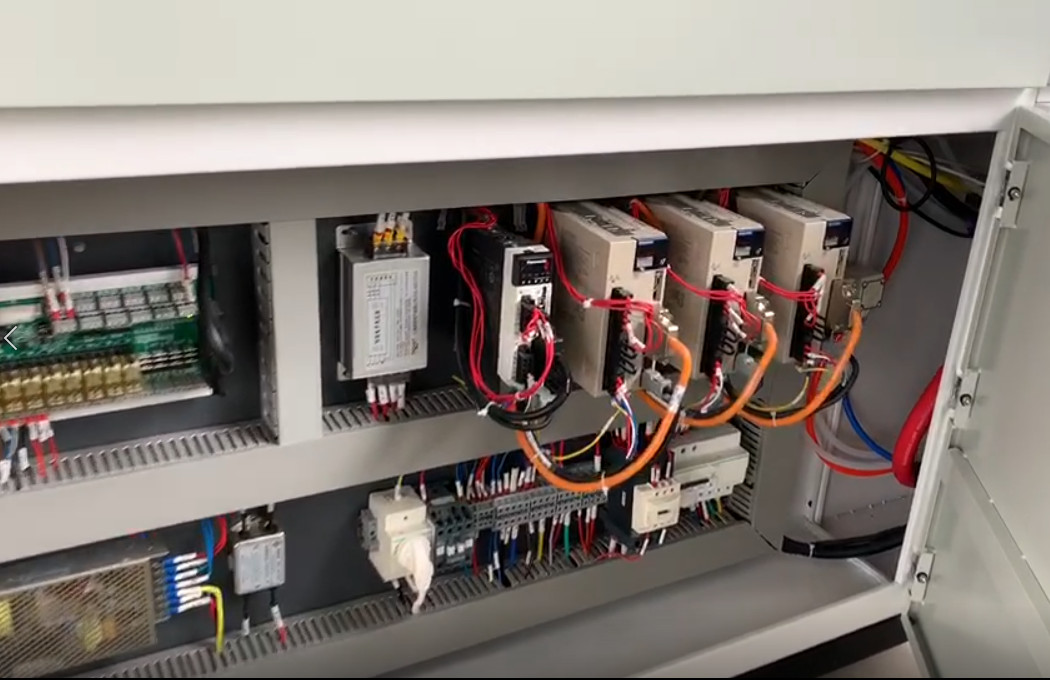

Japanese Yaskawa and Panasonic

Small size FIBBER LASER CUTTING MACHINE

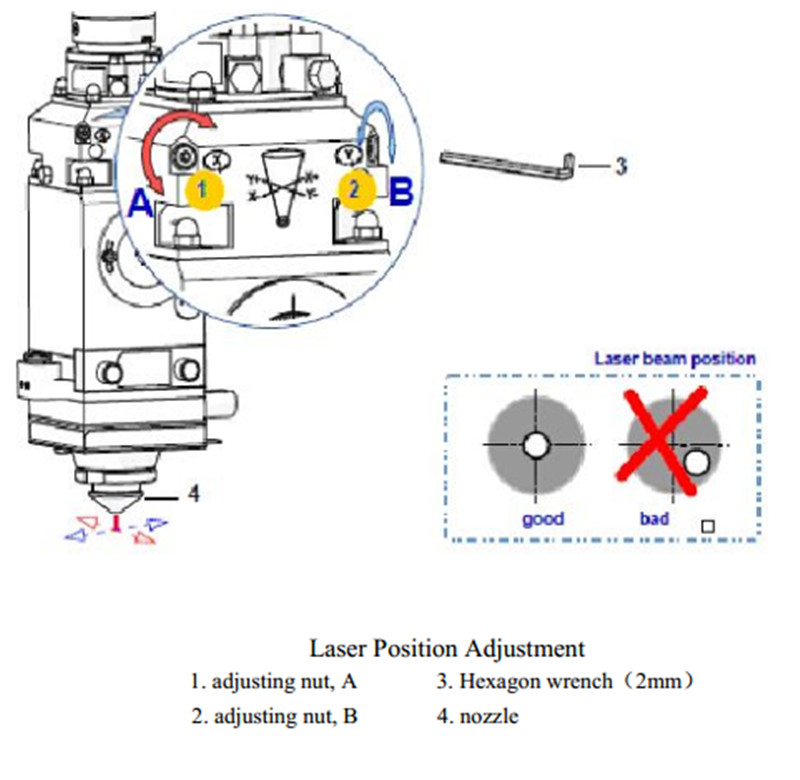

Professional User manual with clear picture indication ,Offered great after-sale service

Small size FIBBER LASER CUTTING MACHINE (1)
Small size FIBBER LASER CUTTING MACHINE (2)
Small size FIBBER LASER CUTTING MACHINE (4)
Small size FIBBER LASER CUTTING MACHINE (3)

Video introduction

Before purchasing this machine,First, the operator have to know computer expertise, could use the relevant editing graphics software, such as: Photo-shop,Auto-cad,Coreldraw and other graphics  software.
Second: the operator has a certain knowledge of Optics and related mechanical and electrical equipment maintenance and maintenance knowledge.
Third: to confirm whether the device is familiar with the operation of the equipment before the operation process and can operate according to the high  precision fiber laser cutting equipment.

※Fiber laser cutting machine Cutting gas requirements of purity :

Laser Gas Purity Application Material Pressure limit(BAR)
O2 99.99% Carbon steel 0<=P<=10
N2 99.99% Stainless steel 0<=P<=30
Compressed Air 99.99% Carbon steel etc(materials which less requested) 0<=P<=30

Applicable Industry

DW-1390F fiber laser cutting machine is specially designed for high precision cutting. It is widely used in machinery, microelectronics, glasses, electronics and other industries, which has high requirements on the cutting accuracy. Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal material.
