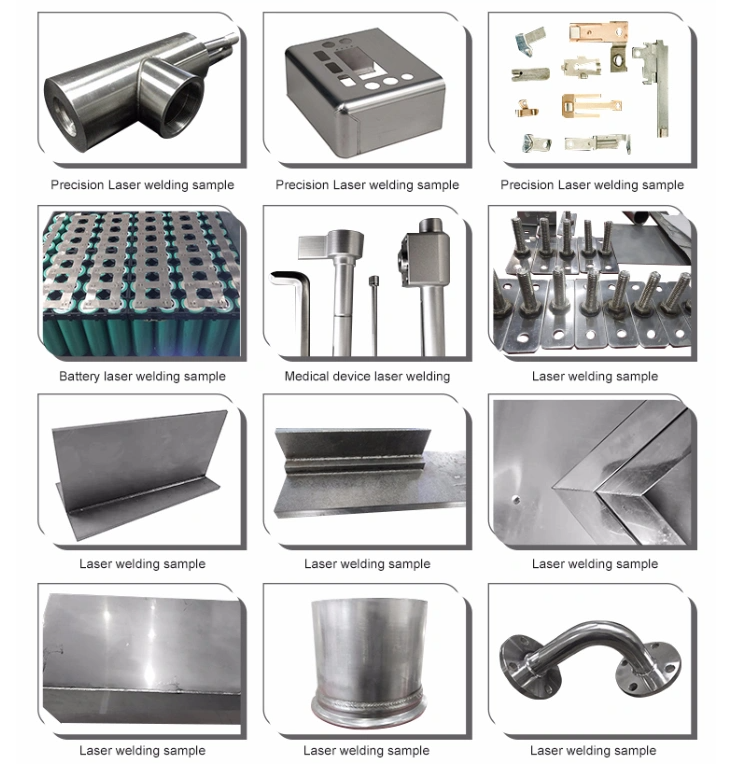

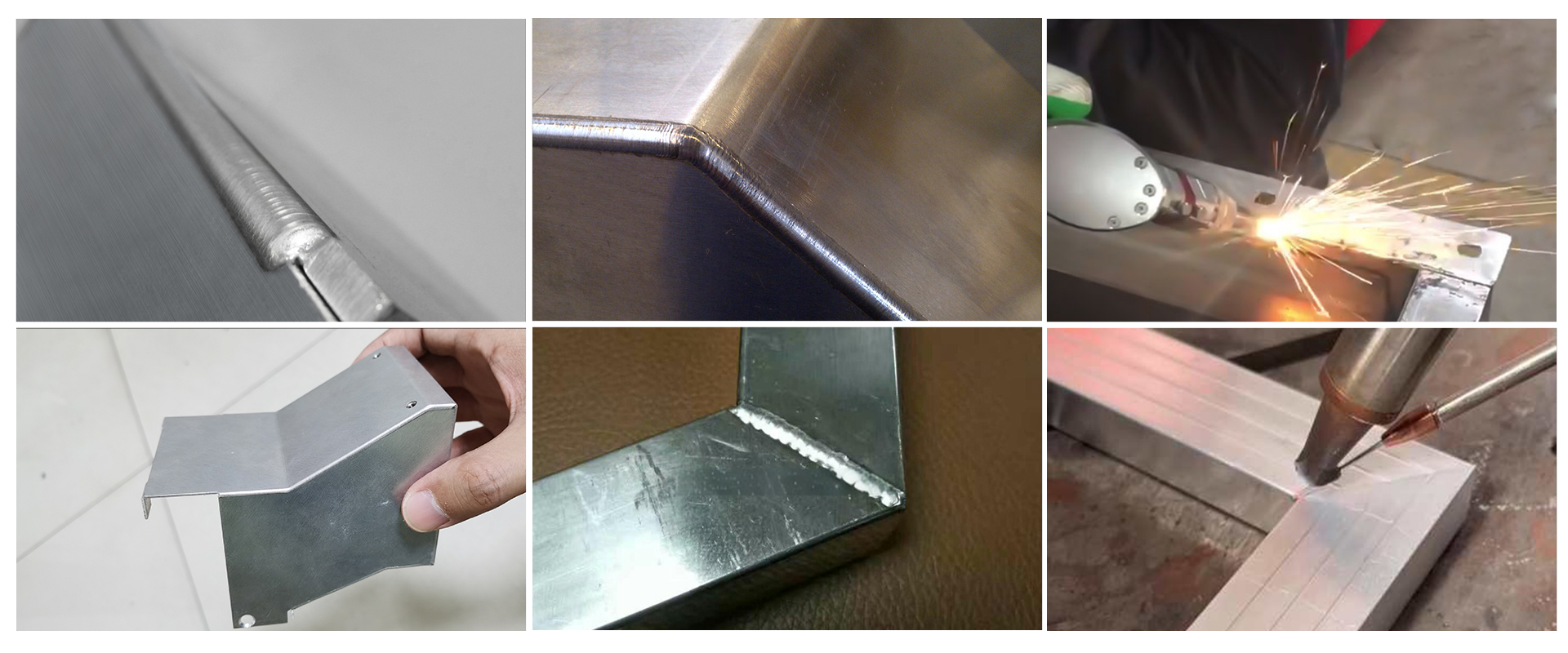

Samples
Fiber laser welding Machine handheld model used for shell sheet metal welding,Kitchen cabinets,staircase elevator,Food Machinery,shelf, oven,stainless steel door,window guardrail,distribution box,medical equipment,communications equipment,craft gifts,household and other industries.Stainless steel,copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials.
Main Configuration & Feature
01
1000W 1500W 2000W 3000W continue fiber laser welding
02
High-precision accuracy for joining even small parts
03
Low heat input for minimal distortion
04
Non-contact welding - no degradation in welding quality
05
No current passes through the part
06
Weld dissimilar metals (e.g. Cu to Al)
07
Minimal maintenance – high tool availability
Standard features
(all the features below are included in the price)

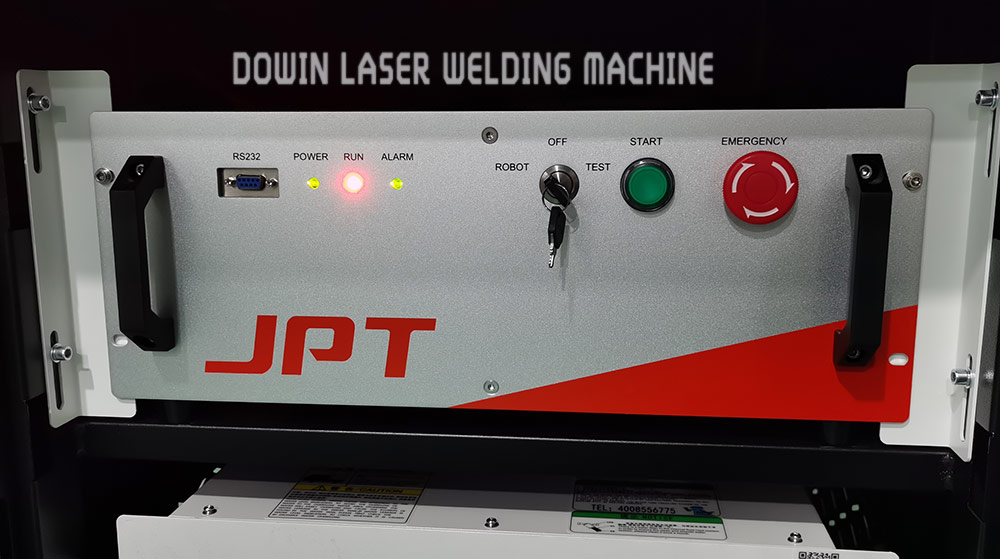

Laser Welder Laser Source
Raycus, JPT and IPG brand laser source has a normal working life of 100,000 hours.The industry's best quality fiber optic manufacturer.

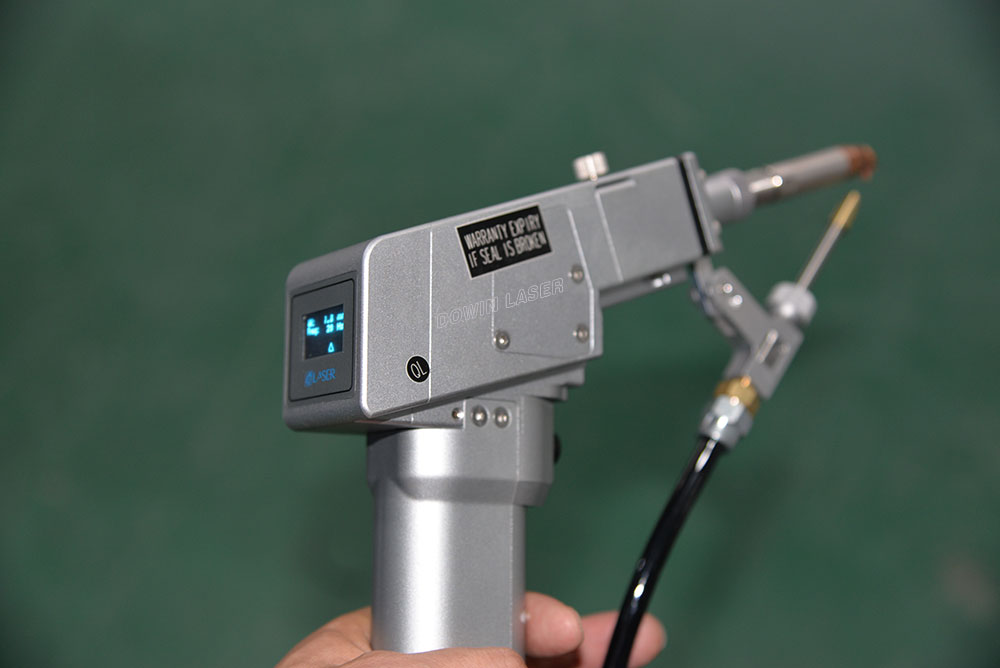

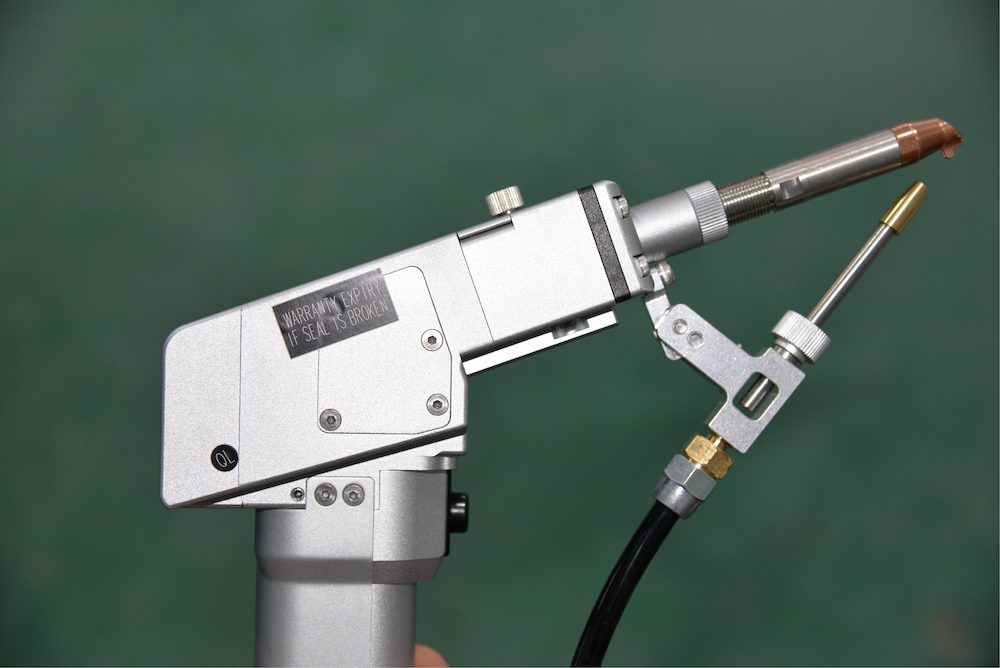

Laser Welding Head
Install high quality laser welding head, with fast welding speed, 2~10 times faster than traditional welding.saves time and cost.Easy to operate.

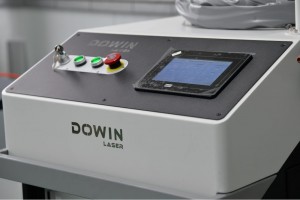

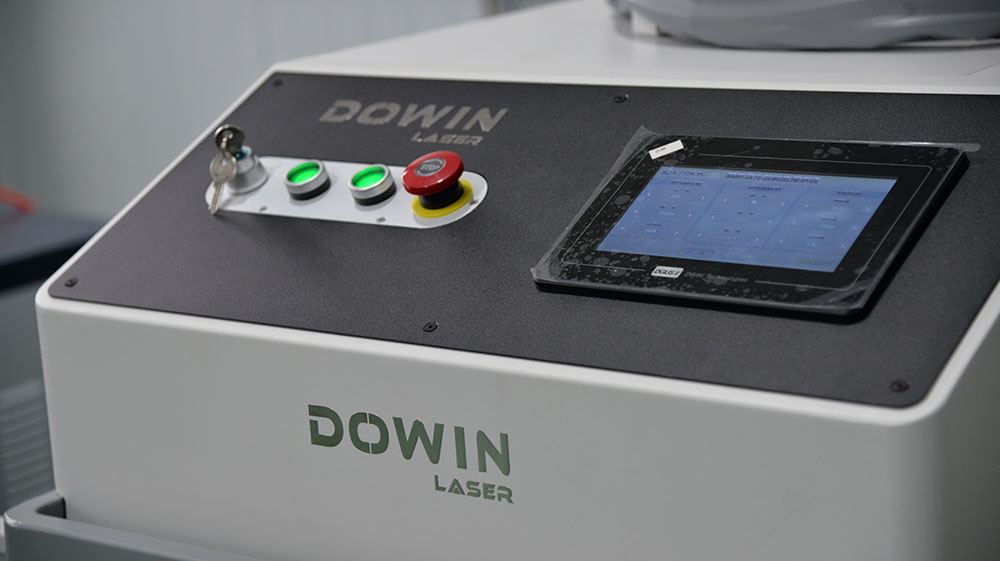

Control Board
QILIN laser welding system with auto layout optimization, ensure high speed operation of whole machine.

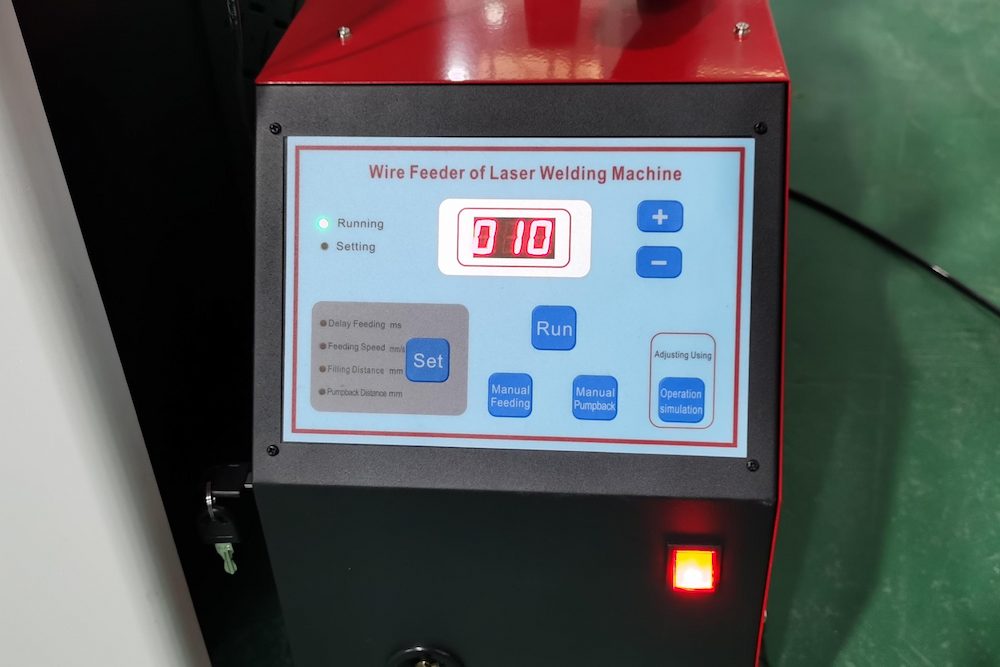

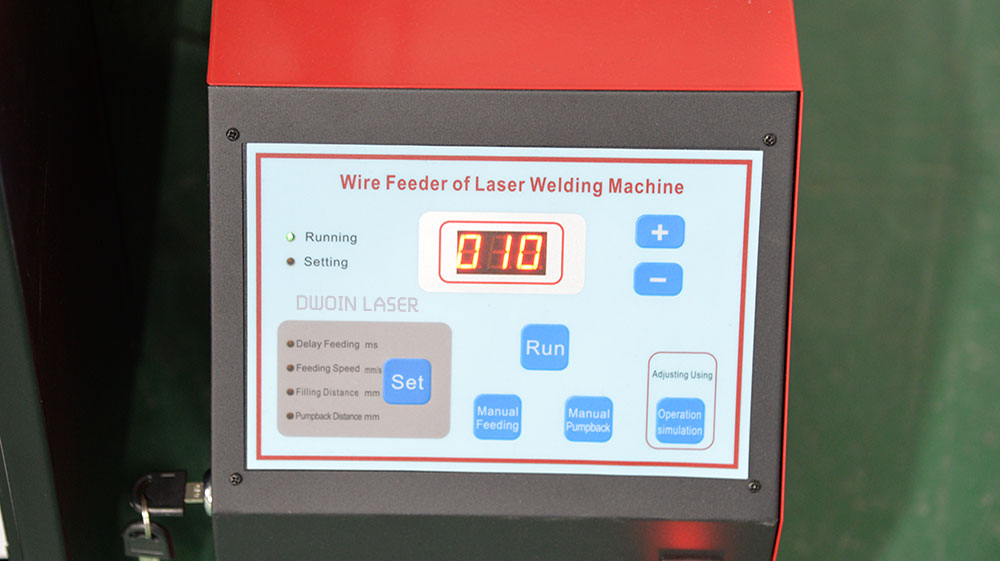

Wire Feeder
*Industrial design
*Digital panel,easy to use and operate
*Powerful and compact
*Auto feeding,high efficiency.
*Auto feeding,high efficiency.

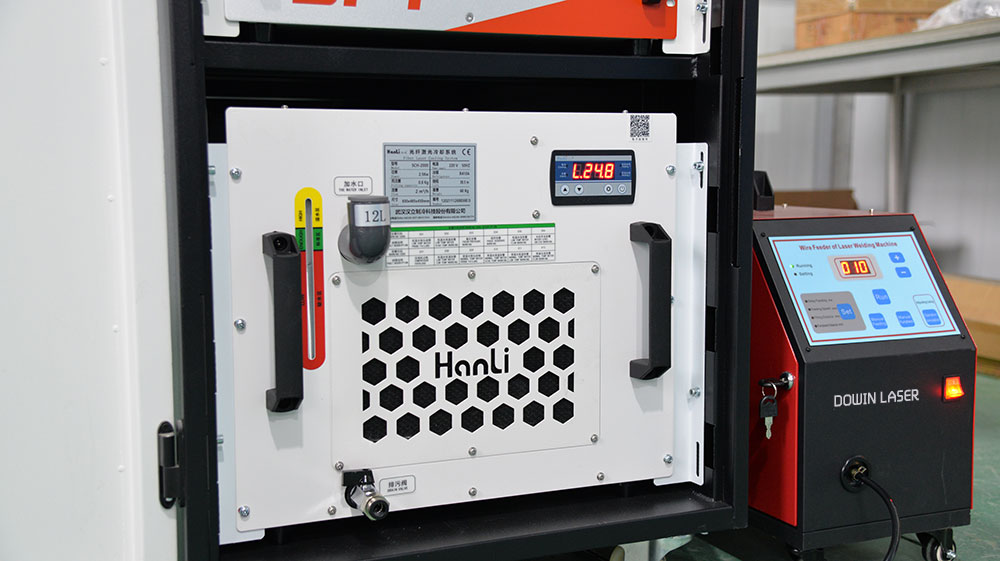

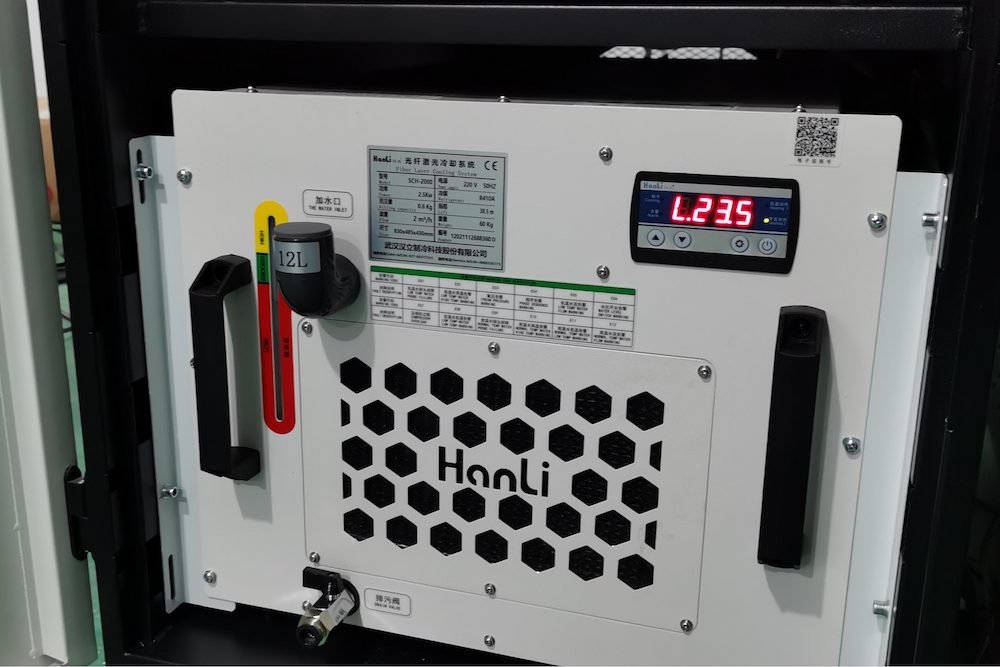

HENLI Industrial Chiller
With compressor could cool down fiber laser quickly to ensure that the fiber laser has stable power and efficient and fast
operation. Exclusive no water warning and automatic protection system,if there's no water or the water flows in opposite
direction,there'll be no laser,can protect the working life of fiber laser effectively.
Tech Specifications
|
Laser power |
DW- FW1000/DW-FW1500/DW-FW2000 |
|
Laser wavelength |
1064nm |
|
Laser source operating mode |
continuous |
|
Power consumption |
6KW/7KW/8Kw |
|
Maximum weld seam depth, mm |
3.0 |
|
Minimum weld seam depth, mm |
0.1 |
|
Auxiliary gas |
nitrogen, argon |
|
Pulse width |
≤20ms |
|
Laser welding frequency |
≤100Hz |
|
Size of min light spot |
0.1mm |
|
Rated power |
3.5KW/4.5Kw/5.5Kw |
|
Power supply |
220V/Single phase （1000W-1500W ） 380V/3 phase （2000W ） 50-60Hz |
|
Cooling method |
Built-in Water cooling |
|
Packing size& weight |
1450*840*1360mm/300Kgs |
|
Laser welding depth |
stainless steel |
carbon steel |
copper |
Aluminum |
|
1000w |
4mm |
4mm |
1mm |
2mm |
|
1500w |
5mm |
5mm |
2mm |
2.5mm |
|
2000w |
6mm |
6mm |
2mm |
3.0mm |
Packing list
01
JPT/RAYCUS continue fiber laser generator with 8m long fiber wire
02
One set 1000W/1500W/2000W inside installed Water chiller system
03
One set Wobbling hand held laser head
04
One set Fiber laser wire shelf
05
One set Auto wire feeding system
06
One pair Protect glasses free+5 lens protect cover
After sale service and feedback.
The whole machine warranty is 2 years,consumable part like lens and nozzles excluded,If any issue within warranty period,we do as following:
>If machine have problem within warranty period,we offer video support , our technician group will help to analysis and give solution and send replacement spare parts .
Is The Machine Quality Guaranteed?
Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
