automatic continuous fiber laser welding machine 1500w 2000w 3000w

automatic fiber laser welding machine can easily realize all-round and multi-angle splicing and welding.
It has the characteristics of convenient operation, beautiful weld seam, high power and wide application range.





Model: DW-AW1500/2000/3000

Laser Power: 1500W(2000W/3000W)

Laser Type: Continuous

Product Detail

Welding faucet video display

Tech Specifications

Model

DW-AW1500/2000/3000

Laser Power

1500W (2000W/3000W)

Laser source brand

MAX/Raycus/JPT

Laser source

1500W continuous fiber laser (optional 2000W/3000W)

Laser wavelength

1070nm±5nm m

Laser mode

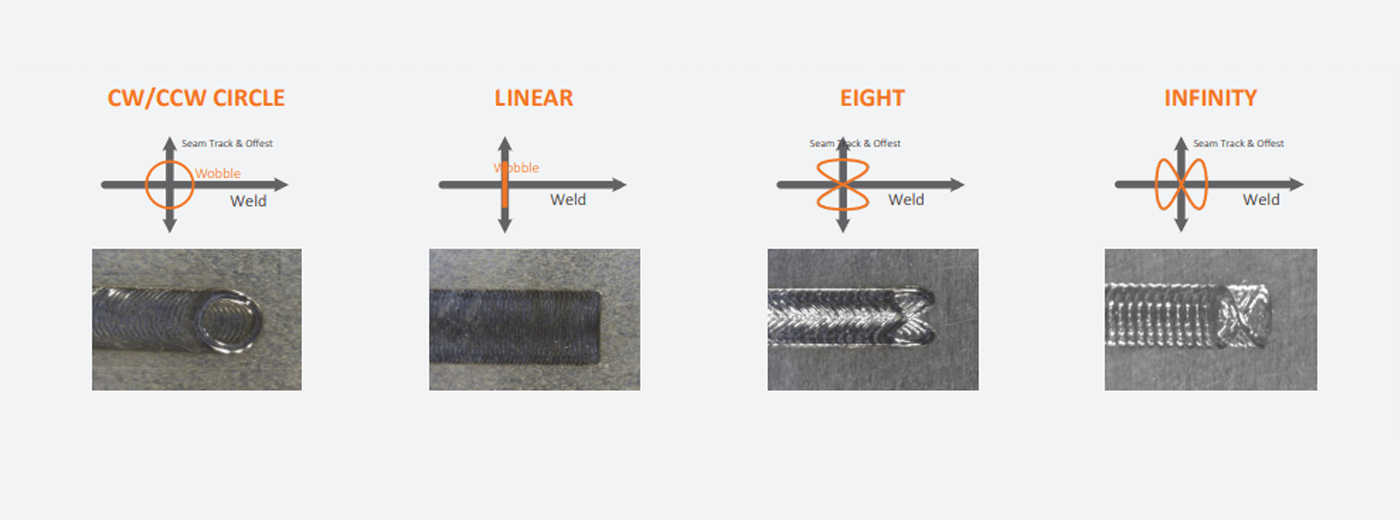

Multiple modes

Working method

continuous

Average output power

1500W

Power adjustment range

5-95%

Power instability

≤2%

Transmission fiber core diameter

50um

Minimum spot

0.2mm

Fiber length

10m

Equipment Features

01

Fiber laser output Excellent laser beam quality,fast welding speed, can be equipped with robot or assembly line.

02

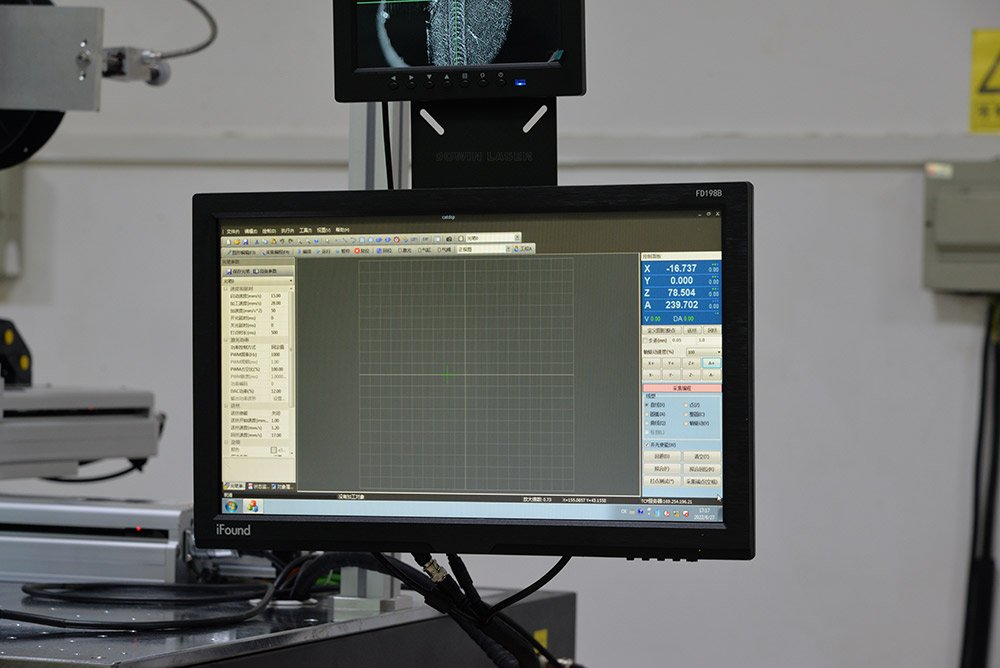

Controlled by PC, special software assisted, welding any point, straight line, circle, square or any plane graphic composed of straight line and arc.

03

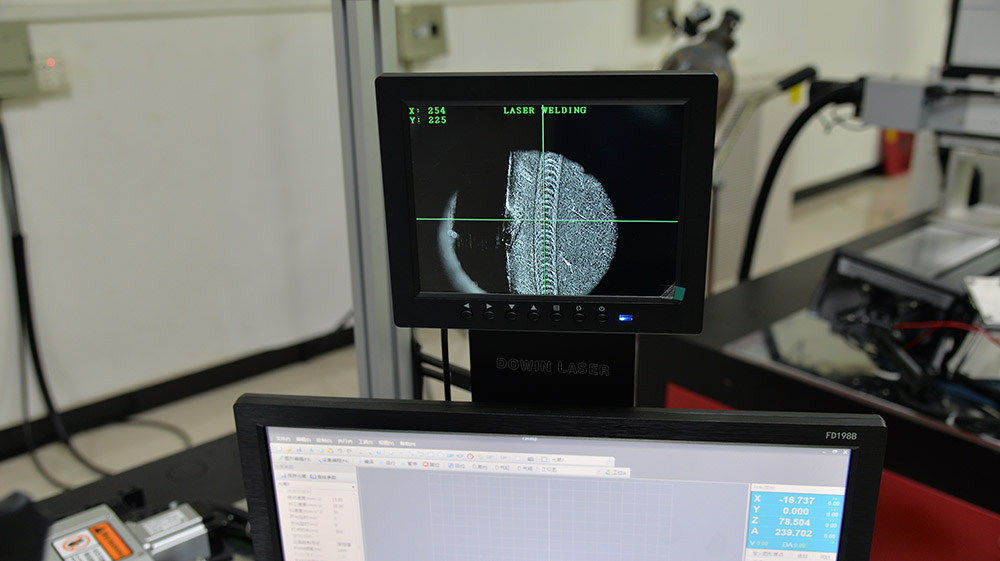

CCD liquid crystal monitoring and observation system, can clearly observe product positioning and welding effect according to red light indication.

04

High elector-optic conversion rate, low energy consumption, no consumables, small volume,Can save a lot of processing cost for users after long term use.

05

It can be continuously and stably processed for 24 hours to meet the needs of industrial mass production and processing.

1

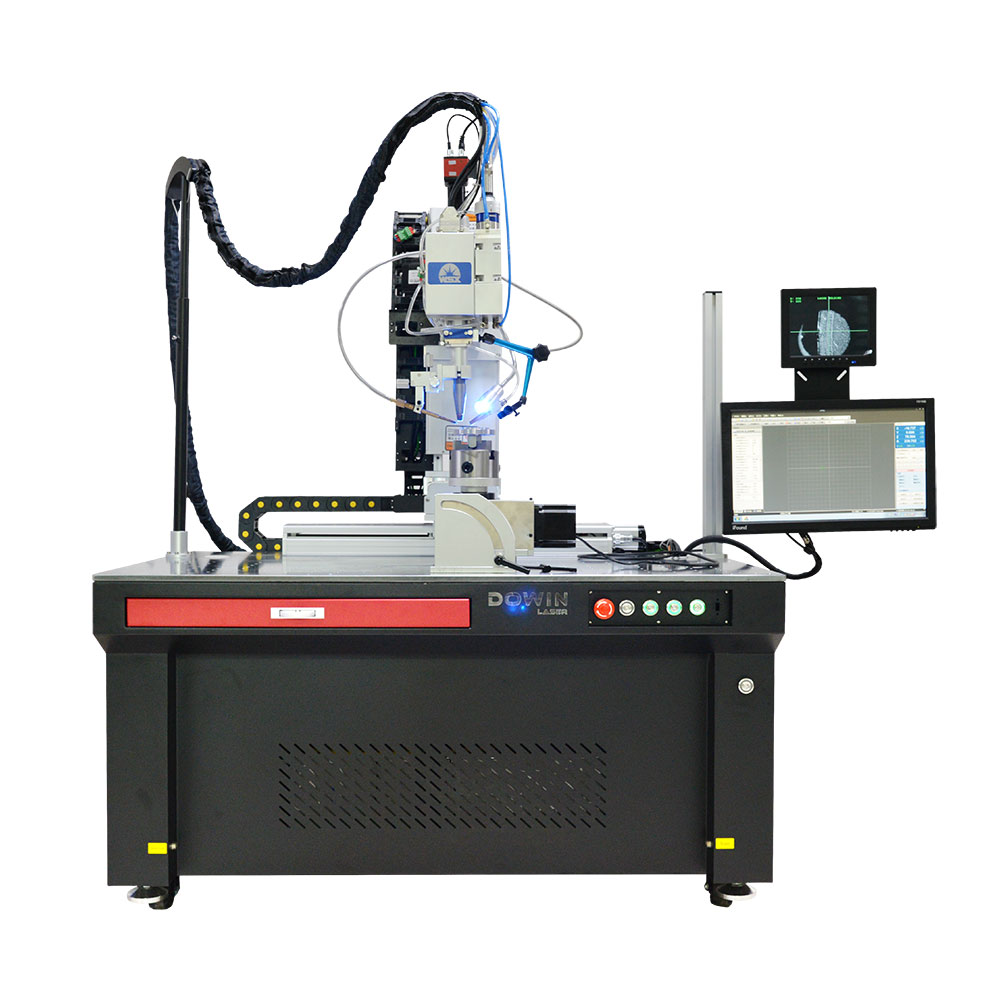

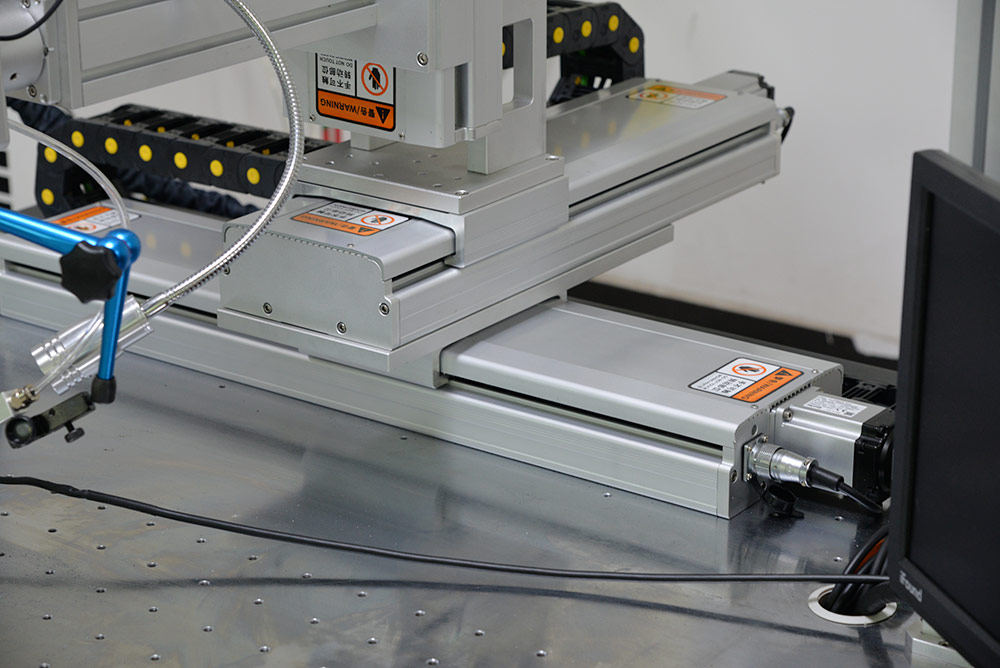

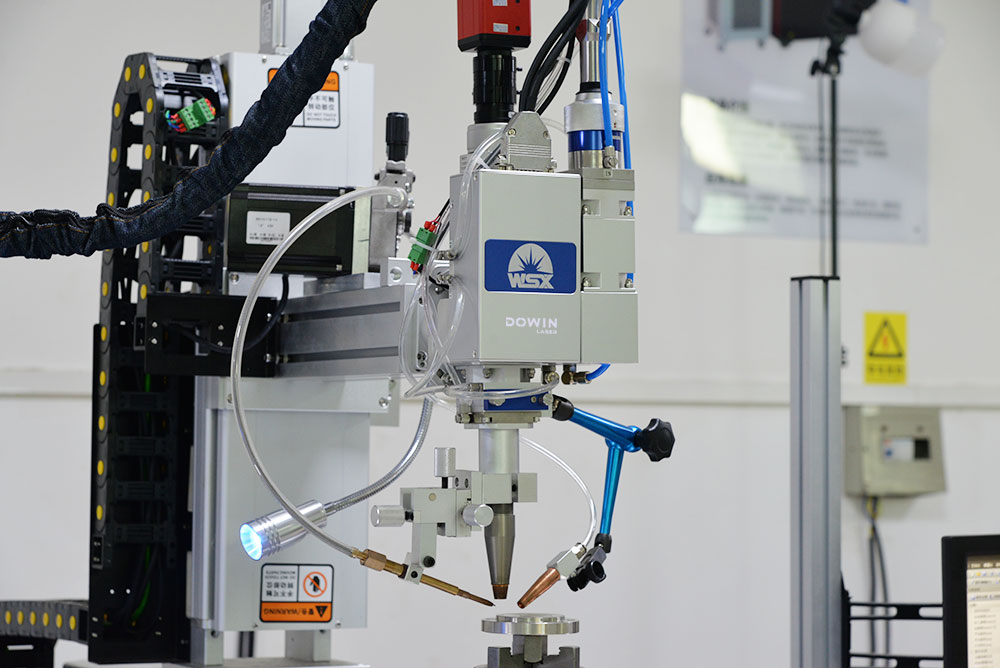

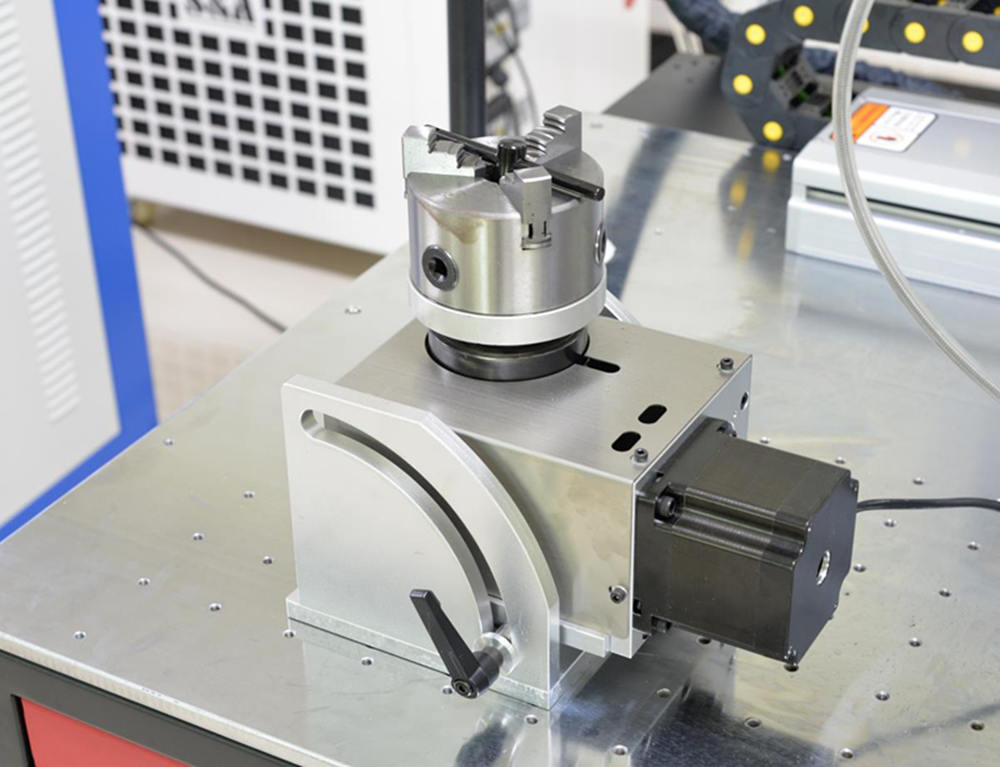

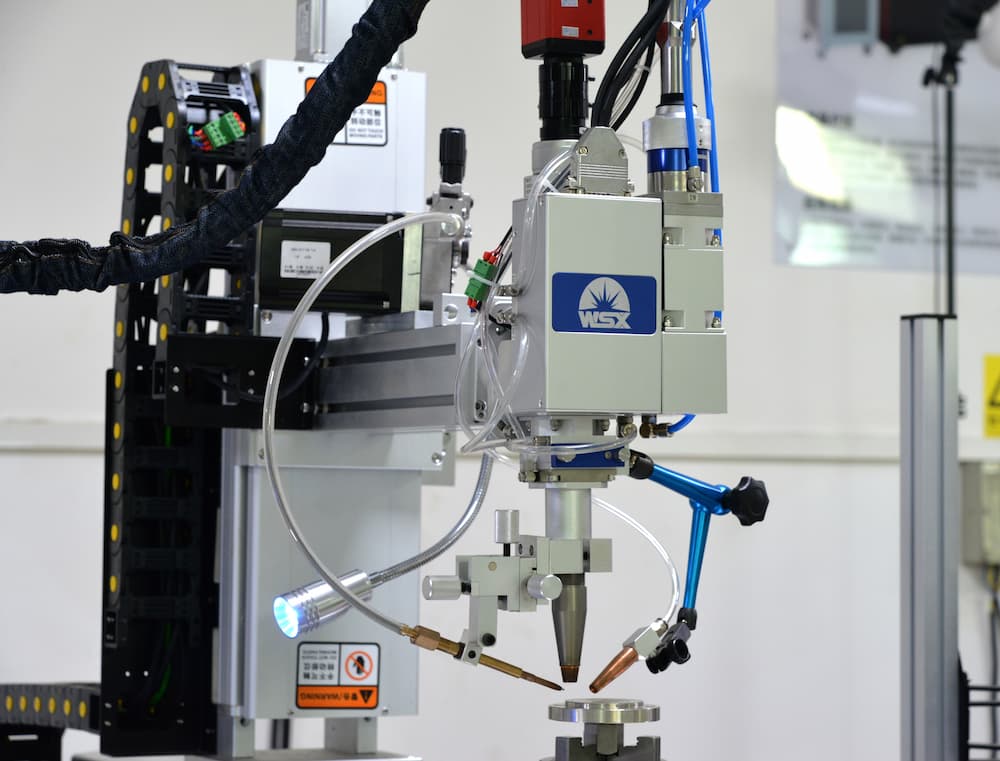

Machine configuration

光纤自动焊

Application industries

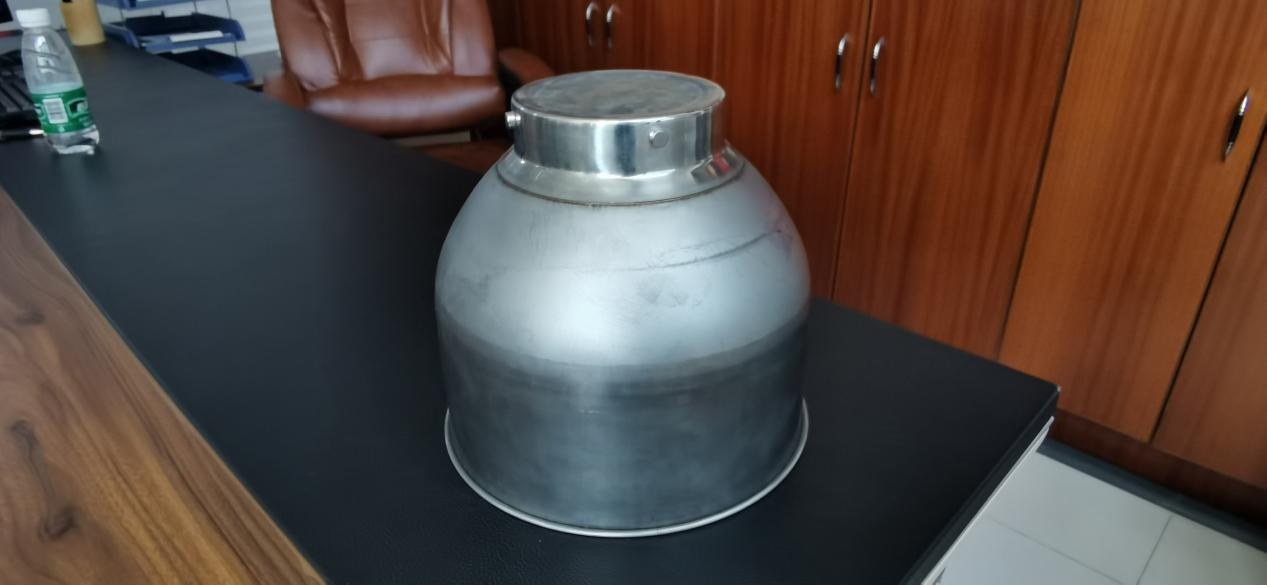

kitchen industry :

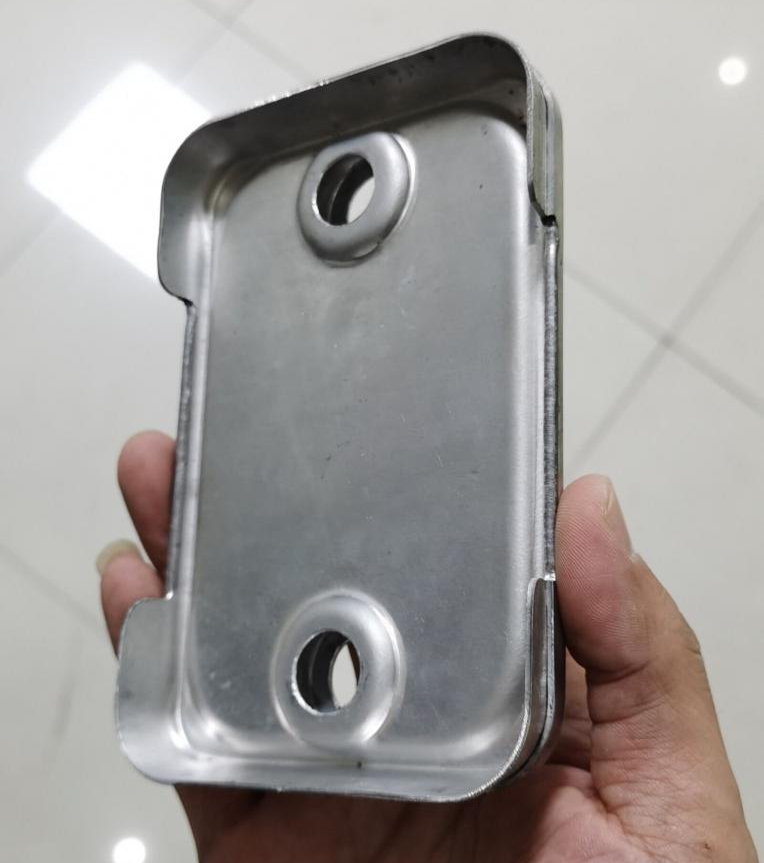

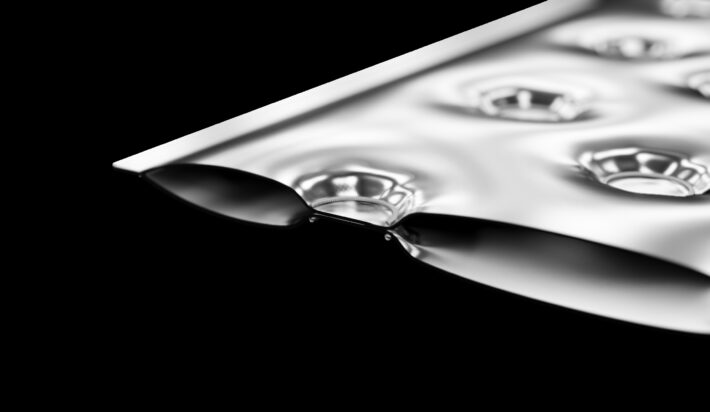

The High Peak Energy And Non-Contact Processing Form Of Continuous Fiber Laser Welding Machines Are Particularly Suitable For Sheet Metal Processing, Which Can Achieve High Processing Speed, High Size Accuracy, No Deformation Of Parts, And Low Production Cost.
Compared With The Traditional Argon Arc Welding Process, The Laser Welding Process Has The Advantages Of Fast Welding Speed, Small Deformation Of Workpiece, Smooth And Beautiful Weld, And No Need For Secondary Processing.

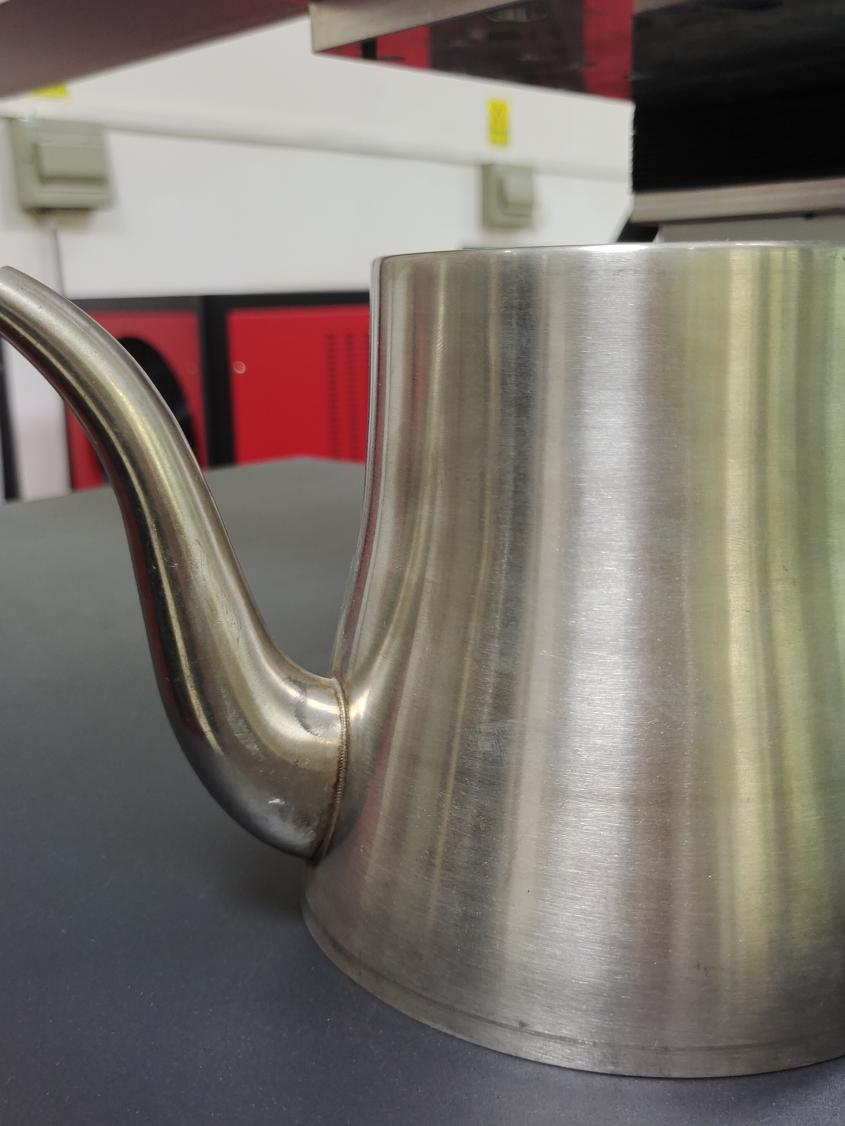

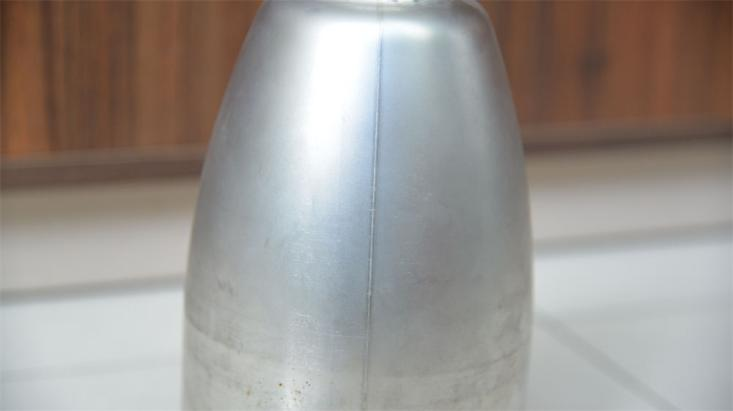

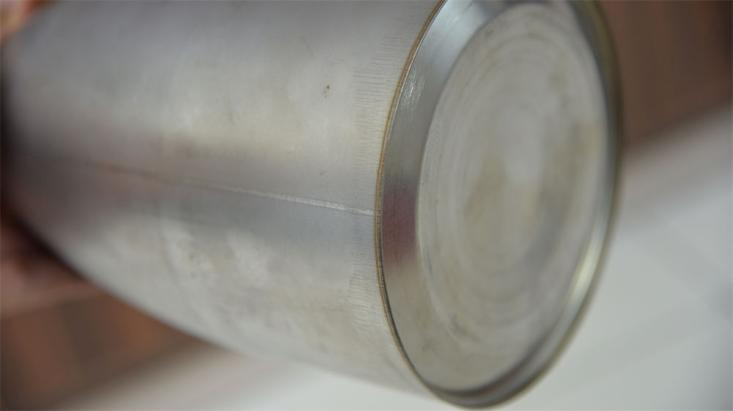

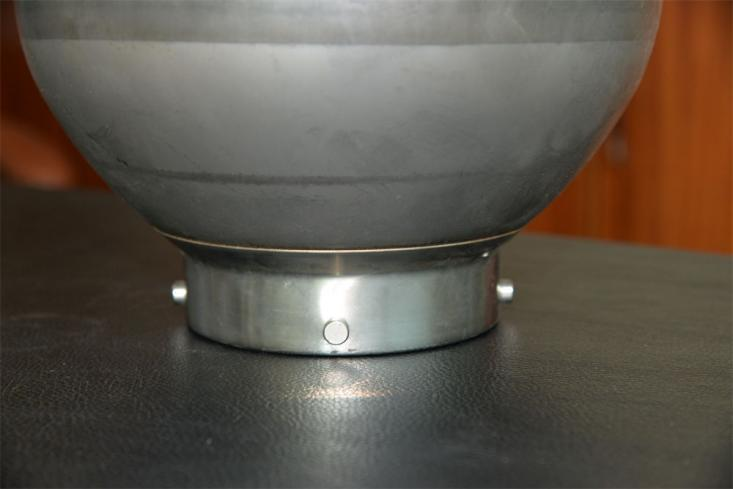

Suitable For All Kinds Of Kitchen Hard Wares , Including :Kitchen Utensils, Stainless Steel Door Handles, Electronic Components, Sensors ,Teapot , Bowl ,Kettle , Water Bottles Etc

厨房
3
2

Bathroom industry

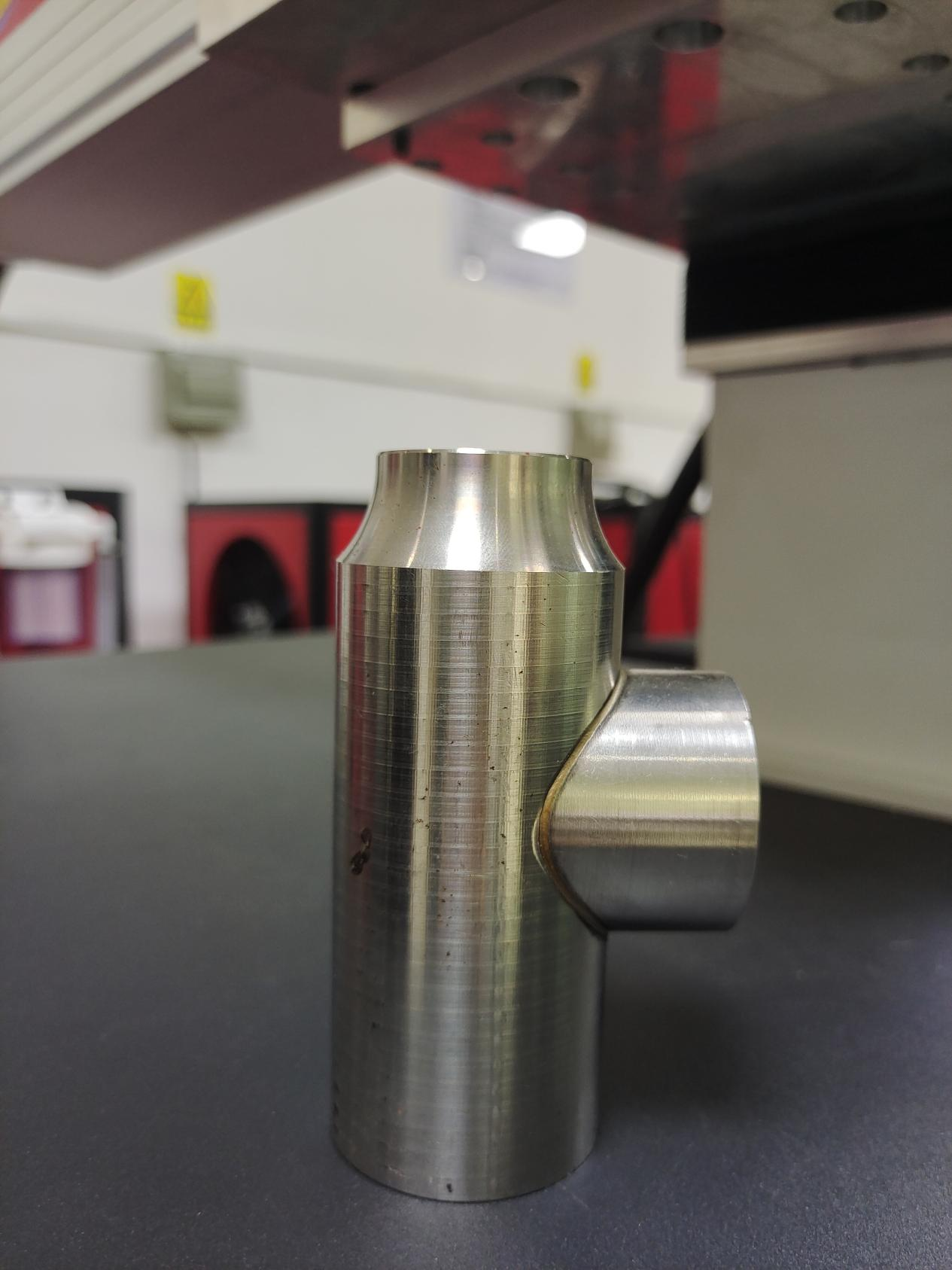

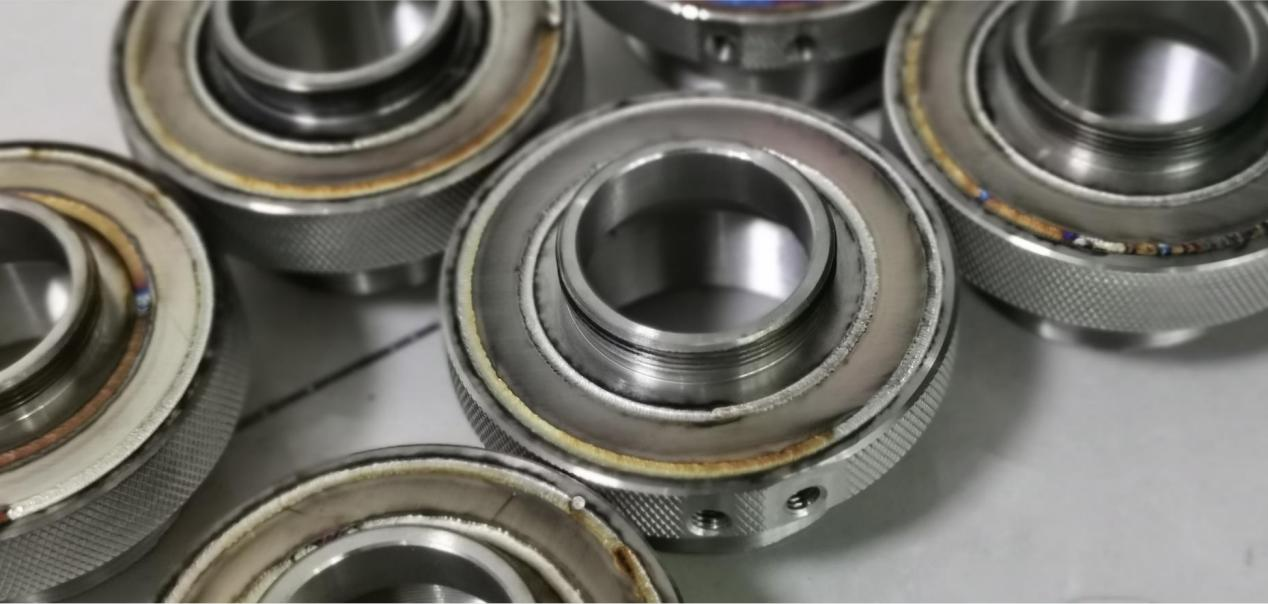

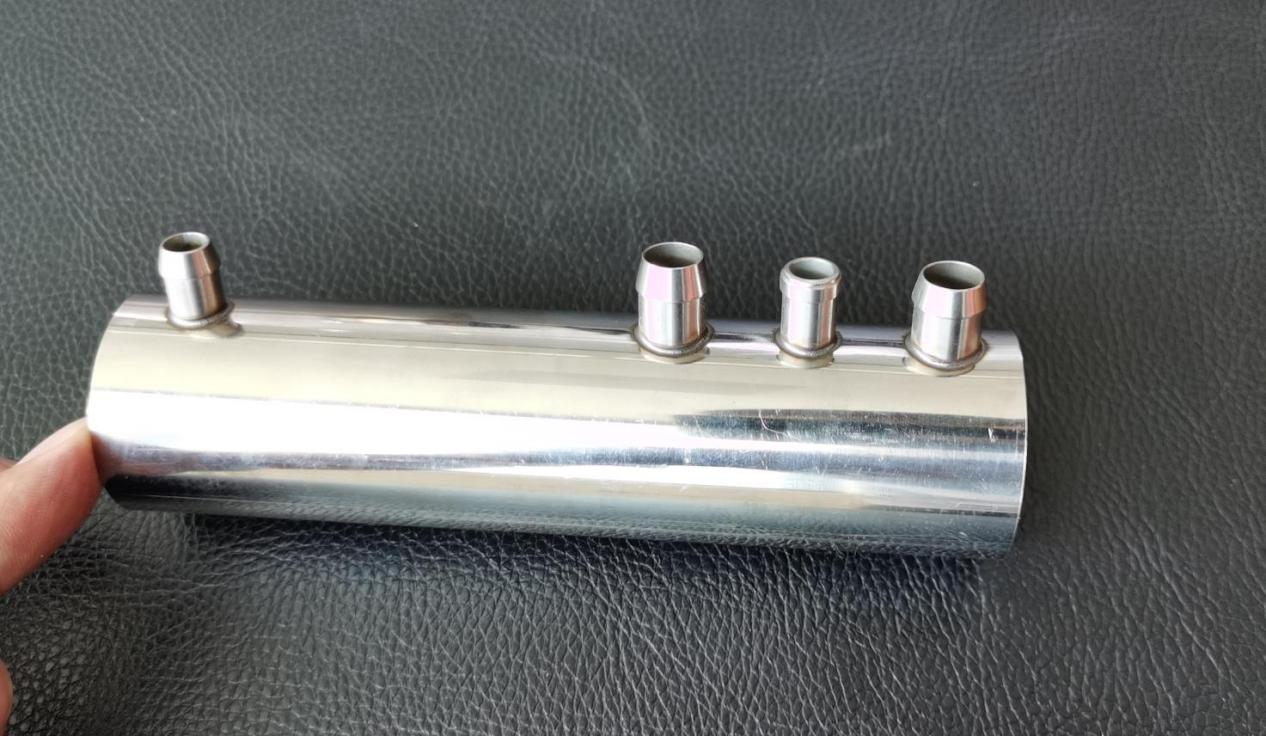

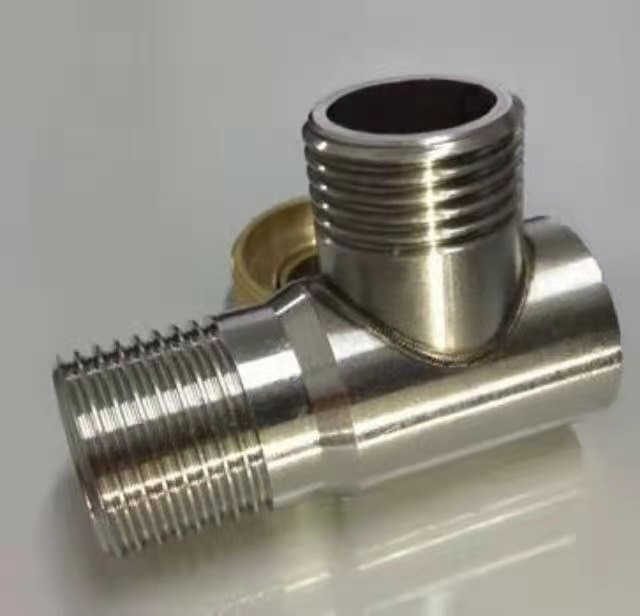

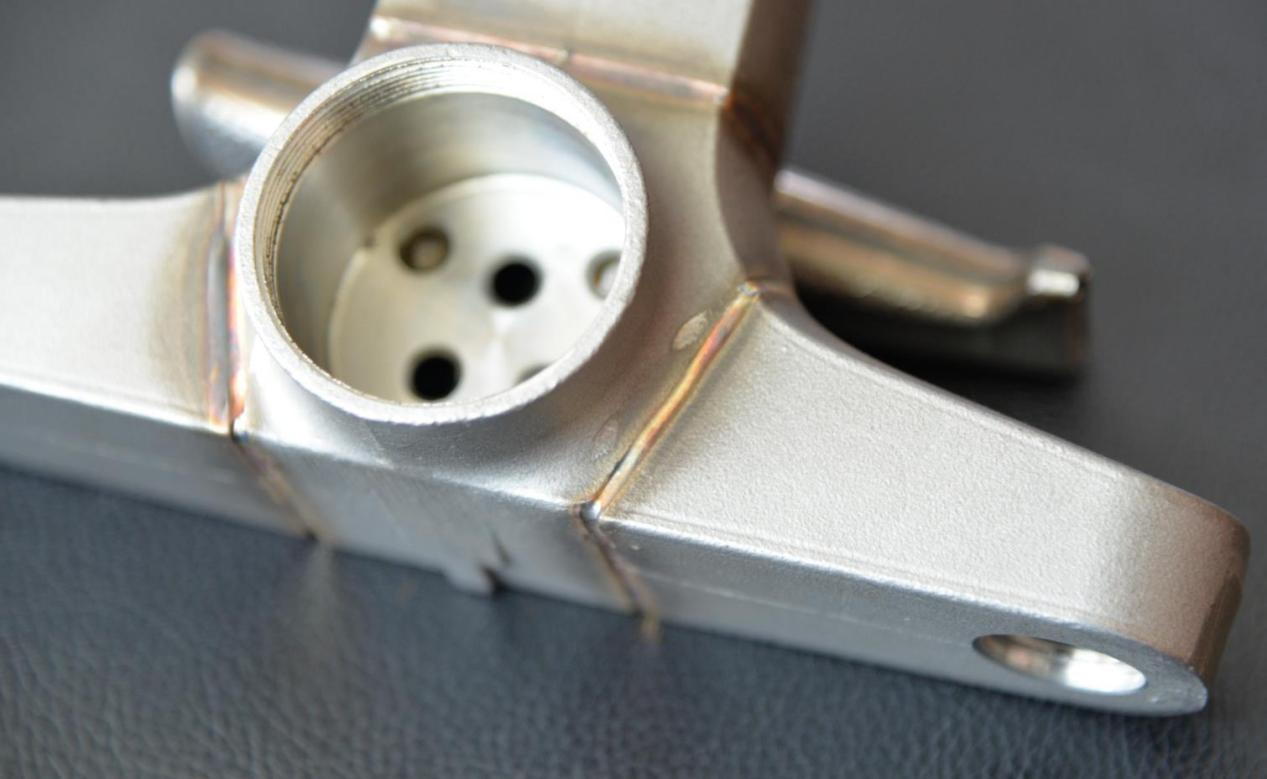

Mainly used for water pipe joints, adjustable joints, tees, valves, shower of the welding.

High welding efficiency, good effect, simple and convenient operation, mainly using computer programming to complete automatic or semi-automatic continuous  welding, butt welding, lap welding, sealing welding, and complete complex plane straight line, arc and arbitrary trajectory welding. Can be customized according to customer requirements.


Automotive Industry:

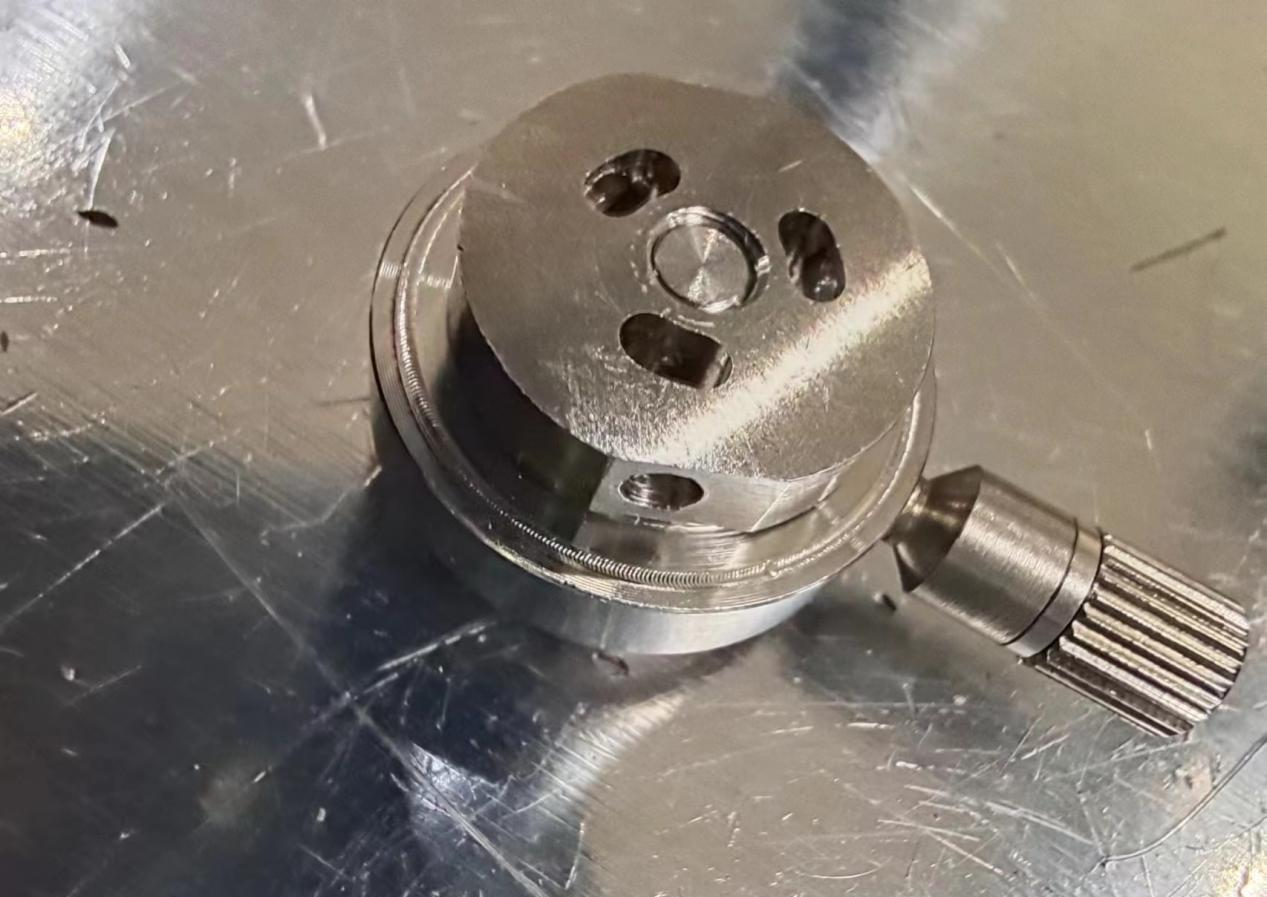

Tailor welding, lap welding, body welding and parts welding are used for auto parts, while laser welding can be welded flexibly, and the weld seams of welded products are firm and beautiful. Laser welding can also be seen in auto parts, such as: engine cylinder gasket, hydraulic tappet seal welding, automotive high voltage relay, filter, torque sensor, turbocharger, oil rail, cylinder gasket, spark plug, There are many applications such as block motor stator, seat adjustment screw, air bag, etc.


Heat transfer&Electronics industry:

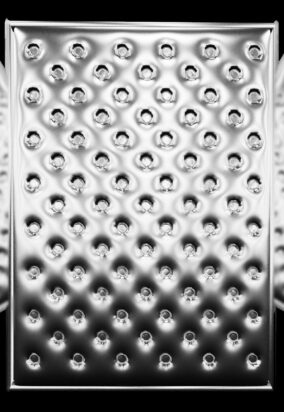

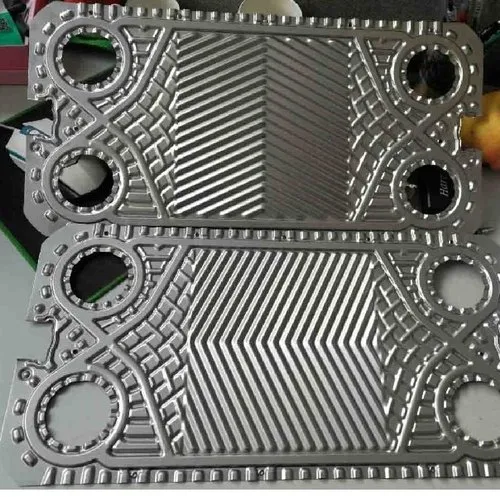

Heat transfer industry: Fiber optic automatic welding can achieve precise control at the micron level. This high-precision feature is particularly important in the heat transfer industry because even tiny welding differences may affect the heat conduction effect. Through precise welding, the sealing and heat conduction efficiency of the heat transfer components can be ensured, thereby improving the performance of the entire heat transfer system.

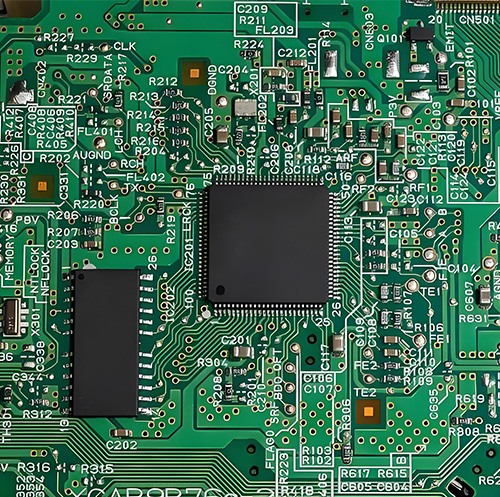

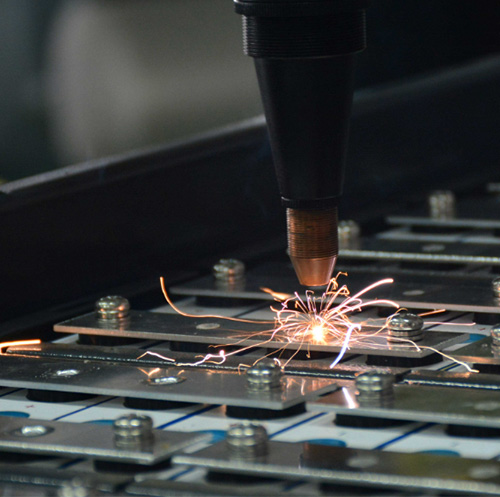

Electronics industry: Fiber optic automatic welding can achieve precision welding of various components on circuit boards, such as resistors, capacitors, integrated circuits, etc. It can also achieve high-speed, non-destructive welding of sensor housings, pins, battery tabs, connectors, etc. High-precision welding ensures the stability and reliability of the product and improves the performance of electronic products.

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!

8
exhibition

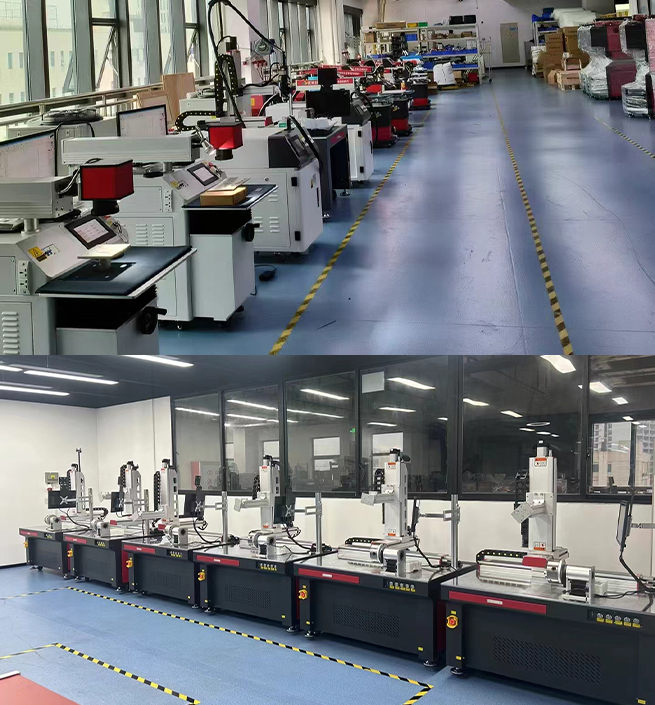

auto factory
