DW-1812 Pro Large Flatbed Laser Cutting Machine with Visioning

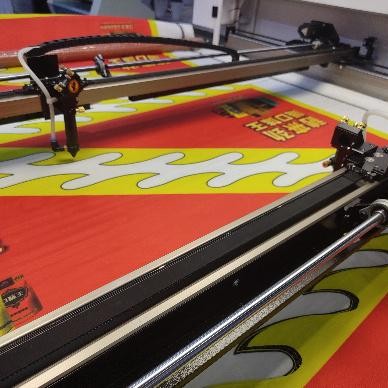

The DW – 1812 model features double asynchronous laser cutting heads mounted on two independent guide rails, enabling the cutting of diverse pattern shapes. One-time cutting of plain fabrics with dimensions of 1800*1200mm. Moreover, we provide customization services for any size requirements, ensuring that our products meet the specific needs of every customer.

- SMART System
- Camera recognition
- Servo motors
- Stronger module liner

Get a Quote

Send Email to Us

Get Price on Whatsapp

Product Detail

Standard Configurations

1. 1800*1200mm working size, DW-1812 model
2. Single or double laser heads (optional) with red point
3. Dual X-axis with stronger and more durable inner rail
4. 150W CWG brand co2 laser tubes
5. High-speed and accuracy servo motors
6. TL5269/AWC7824K control software and panel
7. Air Compressor, Exhaust fan, wooden package

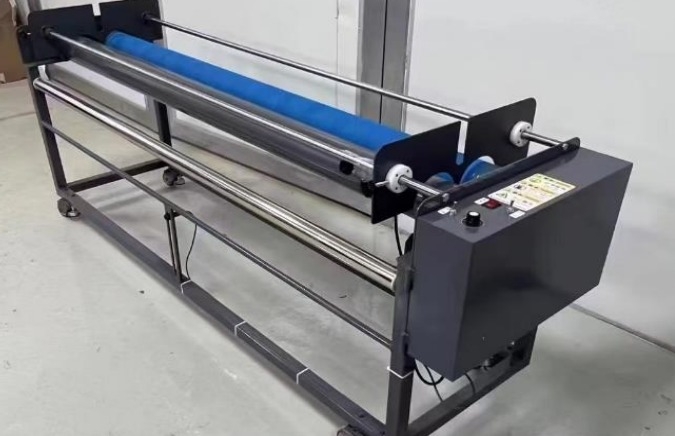

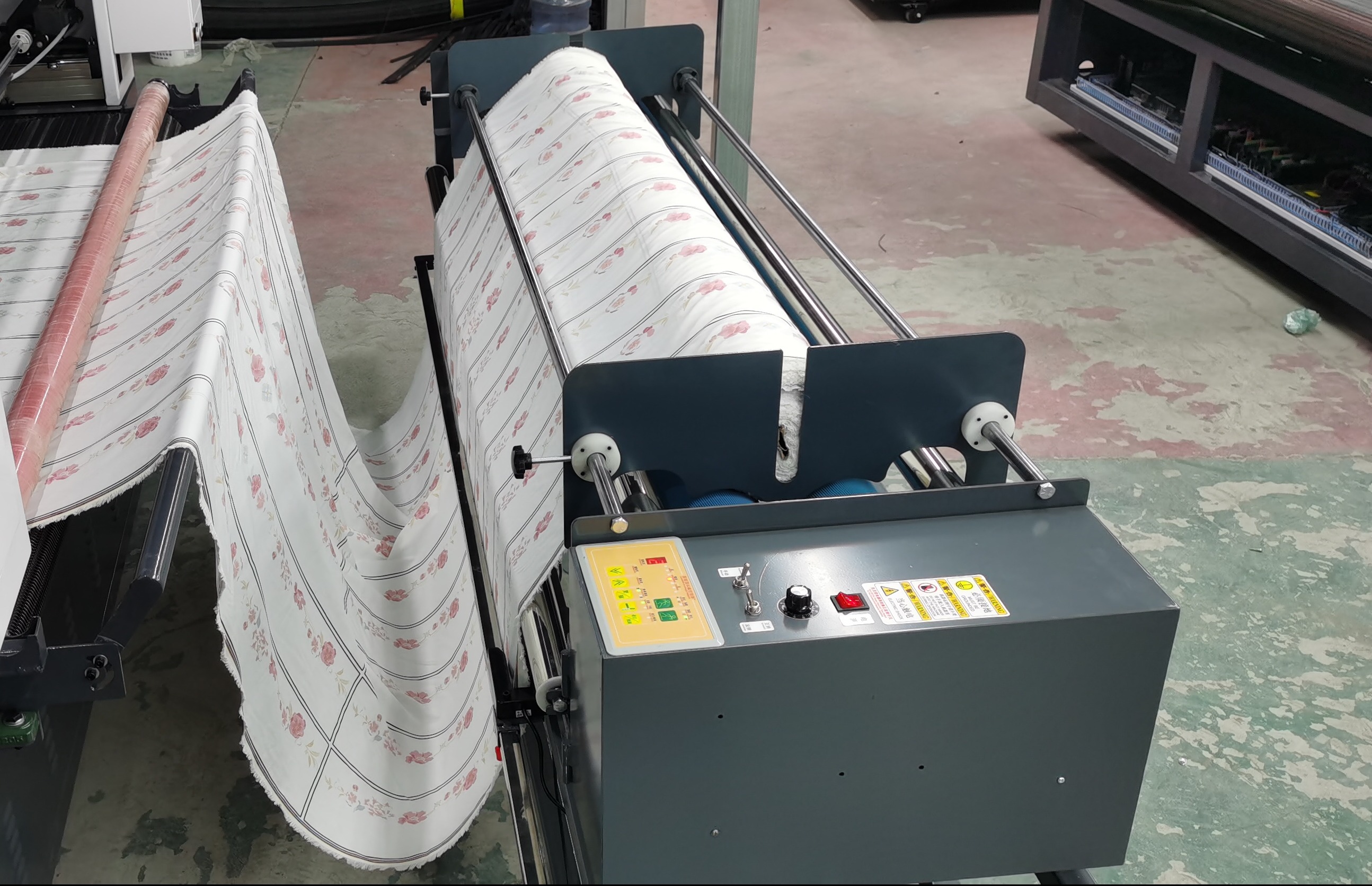

8. Auto feeding table to load & unload the cloth roll
9. S&A brand CW-5202/ CW-5200 water chiller
10. Safety sensor, and positioning light

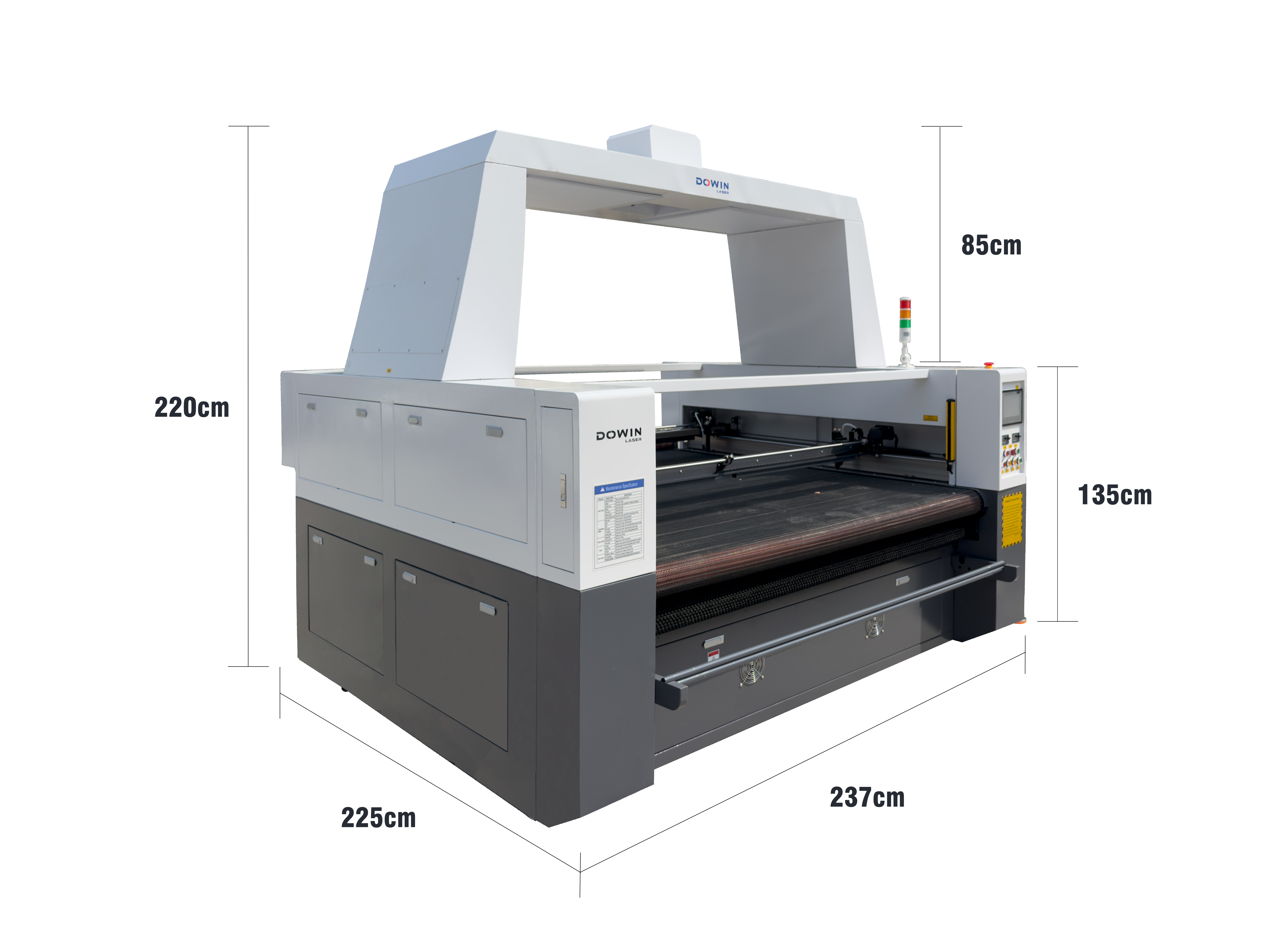

Machine size : 237*225*220cm Gross Weight : 980Kgs

Specification

Product model	DW-1812
Laser type	CO2 laser tube
Laser power	150W
Processing format	1800*1200mm
Cutting speed	0-800mm/s
Repeat accuracy	±0.05mm
Control system	Trocen software
Cooling system	Industrial constant temperature water cooling
Electricity demand	AC220V±10%， 50/60HZ, 10A max
Support graphic format	DWD, DXF, JPEG, AI, TIFF, PLT, CDR, BMP
Total power	2350W
Overall size	237225220cm
Total weight	980kg

Products Details

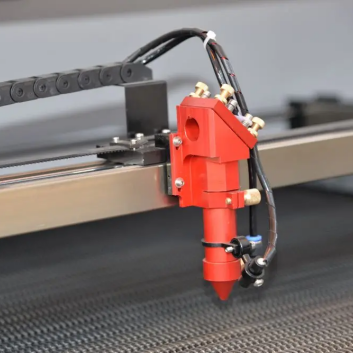

Laser head

Industrial Camera

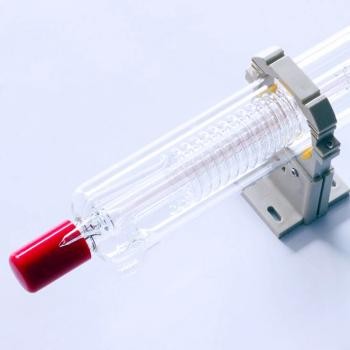

150W CWG laser tube

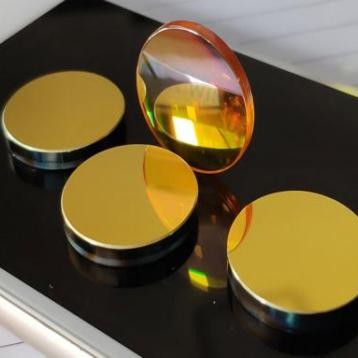

OPEX or USA ⅡⅥ lens and mirrors

Trocen software

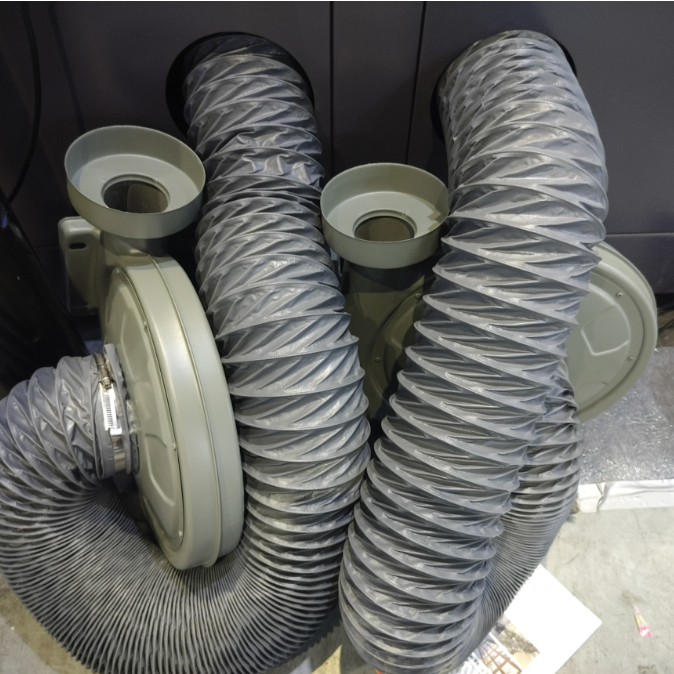

Double exhaust fans

Double X axis

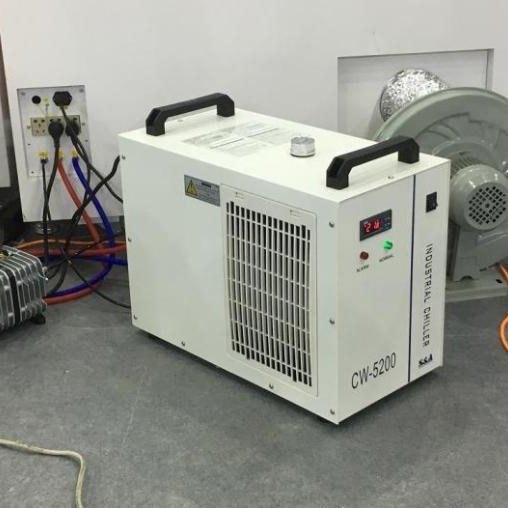

S&A CW-5200/5202 water chiller

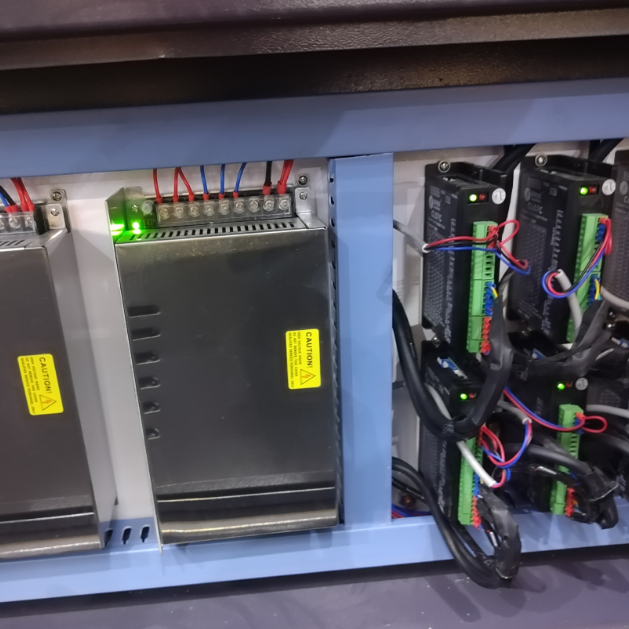

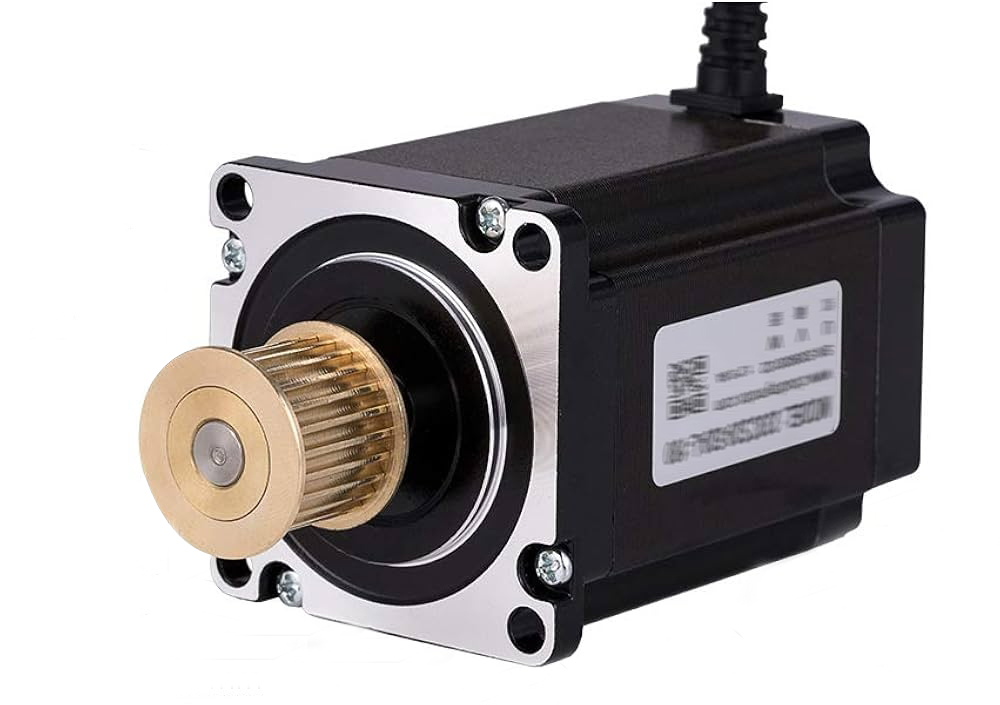

Leadshine servo and motor

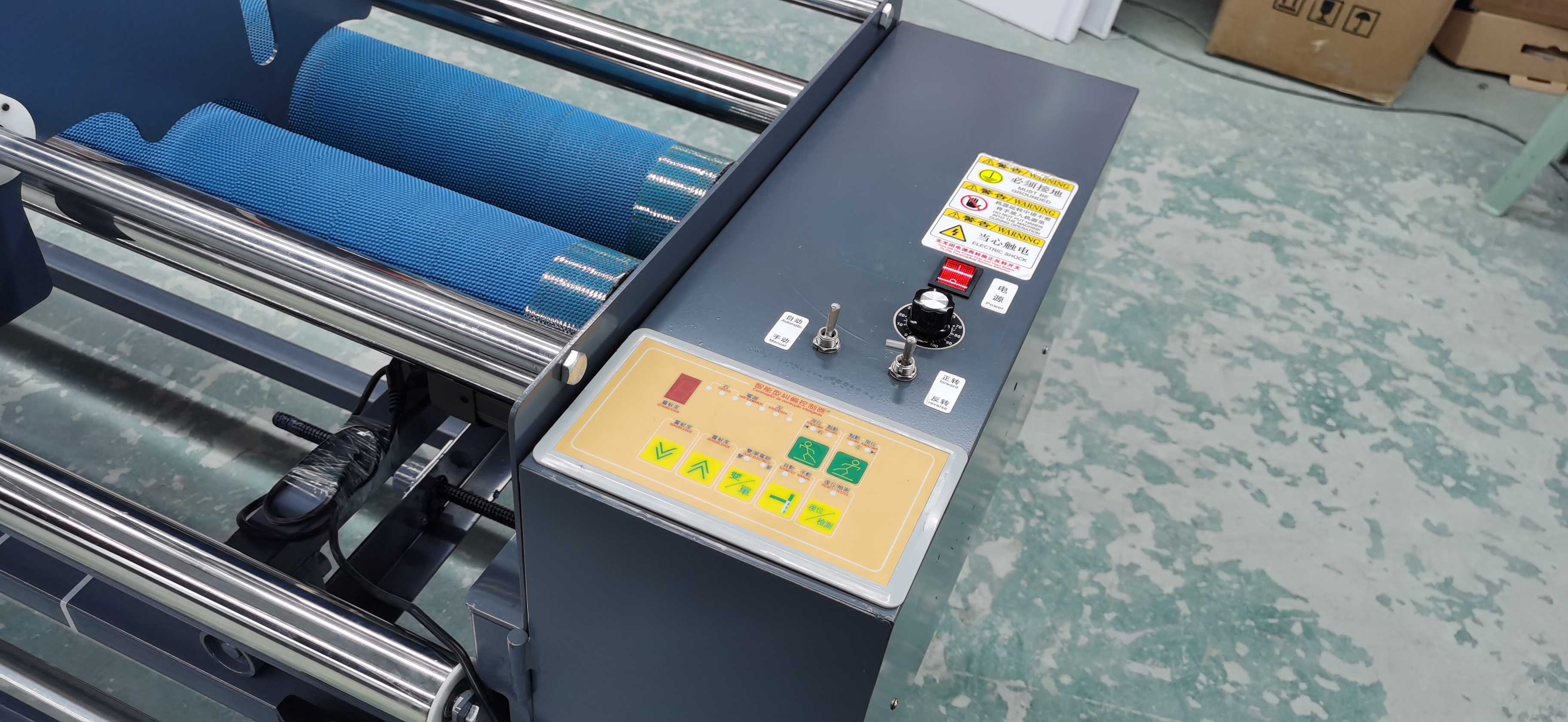

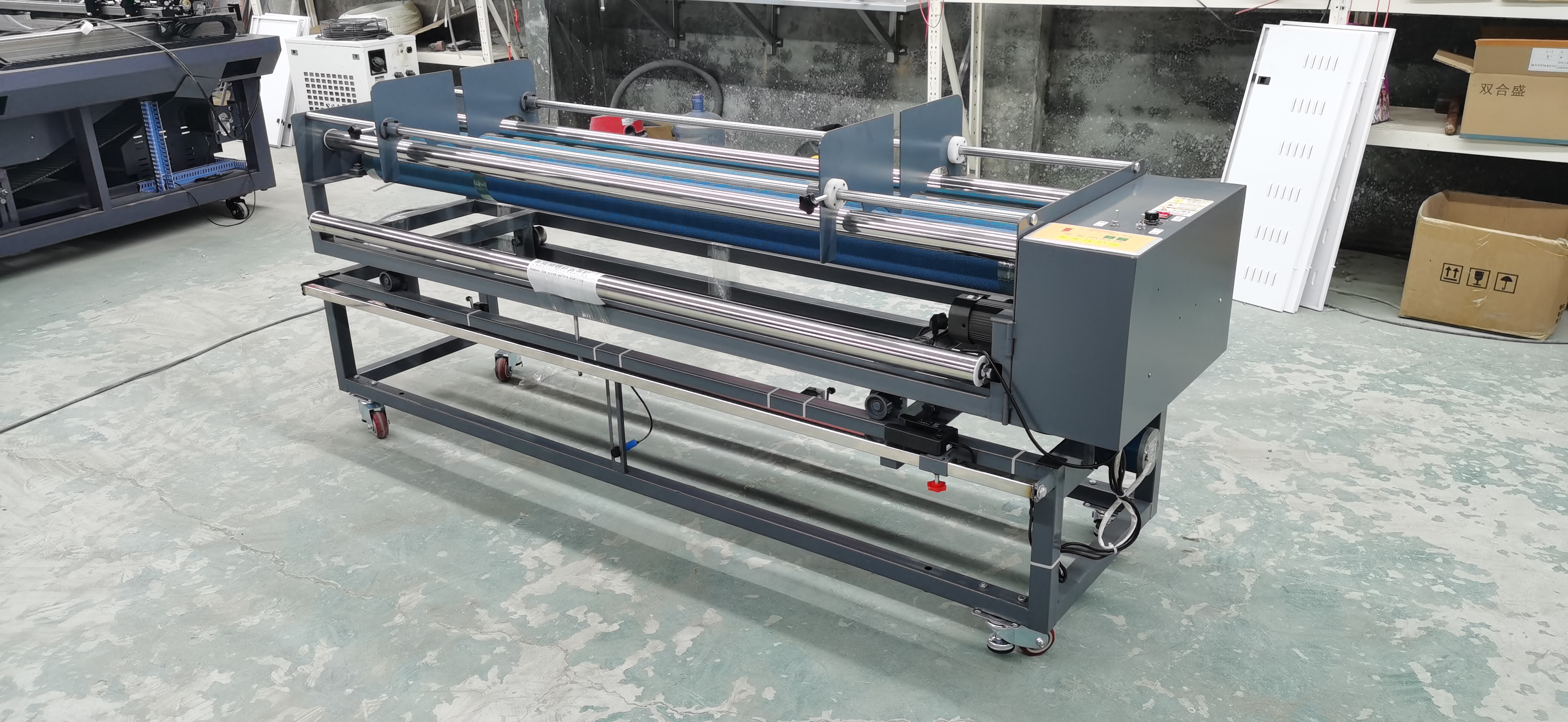

Auto feeding table

Product Feature

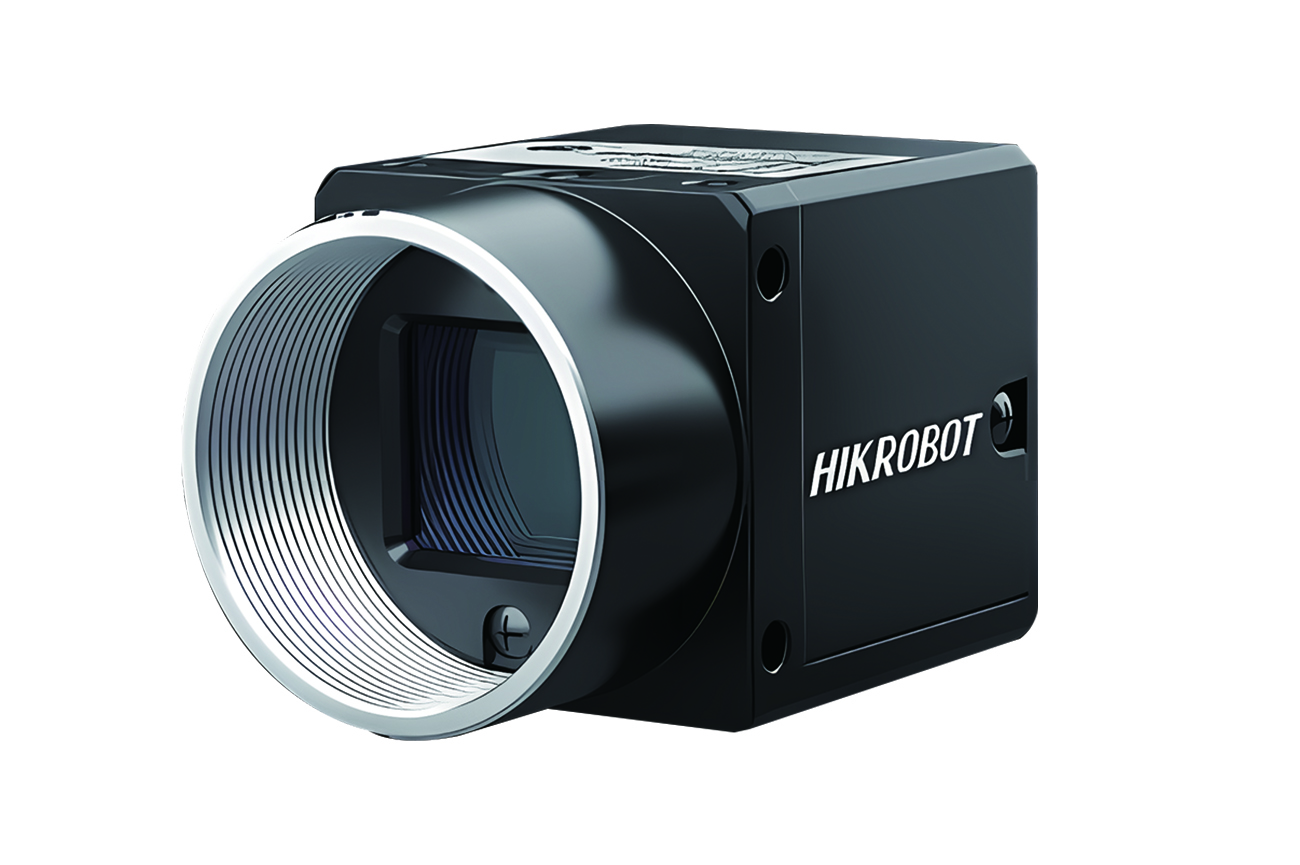

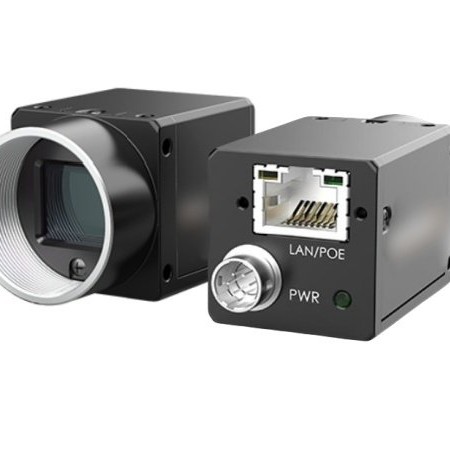

HIKVISION MV-CS200

Industrial Wide Angle Camera

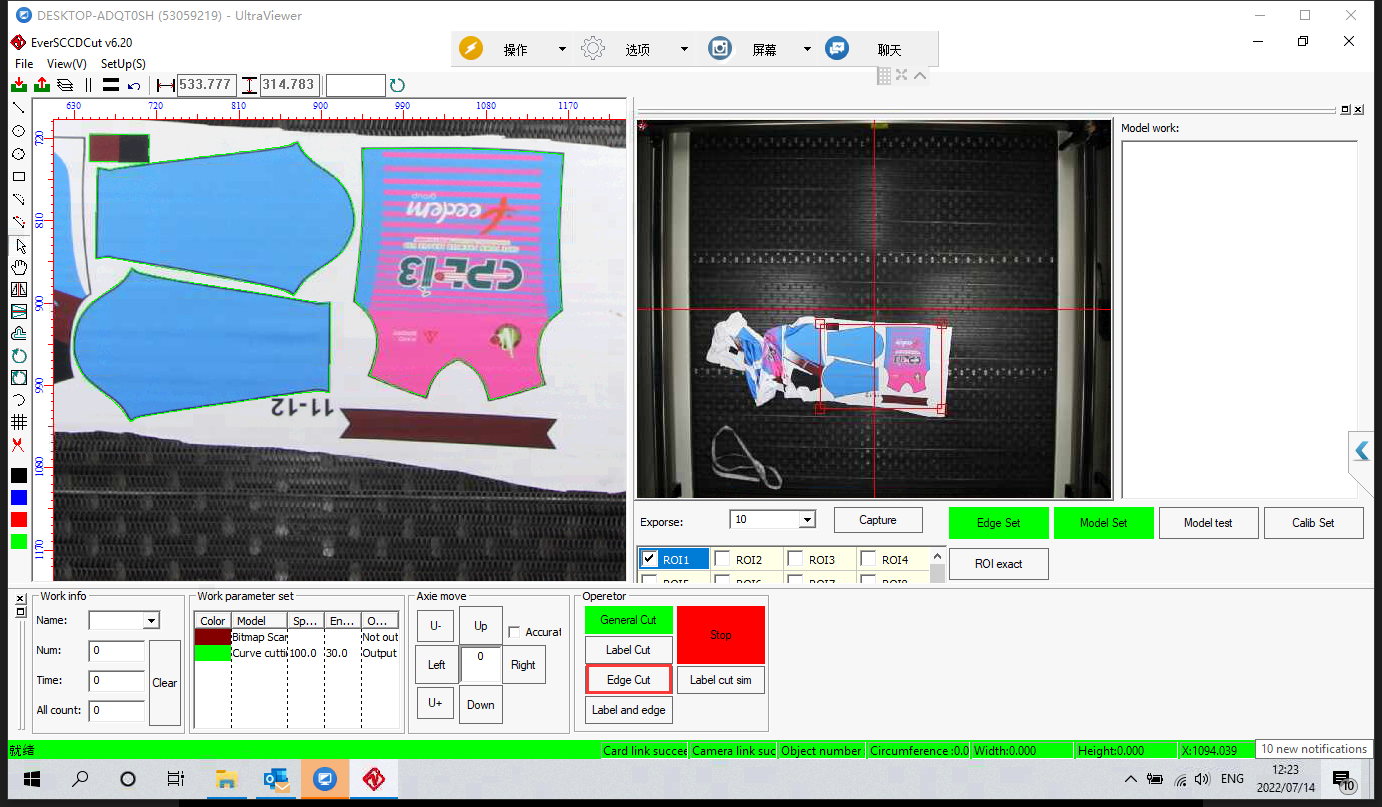

CCD Smart Vision Location System

Equipped with a Hikvision MV-CS200 industrial wide-angle camera with 24 million effective pixels. Smart vision systems can automatically recognize the contour of printed or embroidered fabrics, leather, and other flexible materials and then cut with super-high accuracy and efficiency.

img_v3_02m4_68033381-553b-4a44-bf43-52add5f9d92g

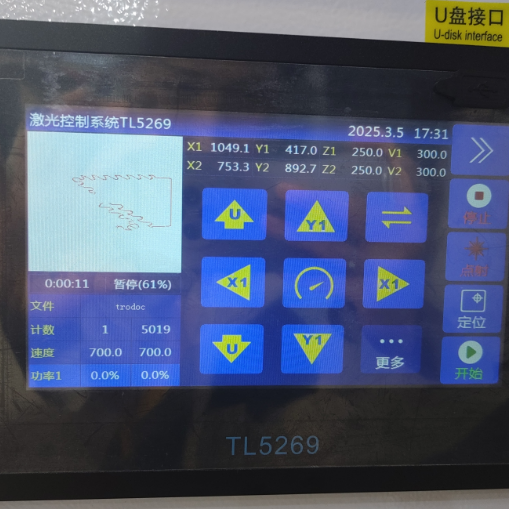

FABRIC CUTTING CONTROL SOFTWARE

Equipped with professional fabric cutting control software, and it is good at cutting fabric, cloth, etc...soft
materials, support multiple languages, stable performance, and easy to operate.
