| Working area | 1300*2500MM |
| Laser power | 130W 150W 200W 300W 500W 600w |
| Laser type | Sealed water cooling CO2 laser tube |
| Cutting speed | 0-600mm/s |
| Repositioning accuracy | <0.05mm |
| Minimum shaping character | <1*1mm |
| Working voltage | AC110-220V±10%, 50-60HZ |
| Control software | Art Cut, Photoshop CorelDraw, AutoCAD |
| Graphic format supported | PLT/DXF/DST/BMP/AI etc |
| Packing size | 3800*1960*1150mm |
| Gross weight | 800kg |
| Working temperature | 0-45℃ |
1.300 watts Big power laser tube
2. High-strength integrated machine body
3. Y-axis unilateral ball screw servo drive
4. X-axis precision lead screw module servo drive
5. TBI lead screw, Taiwan CSK track
6. One-piece aluminum alloy gantry

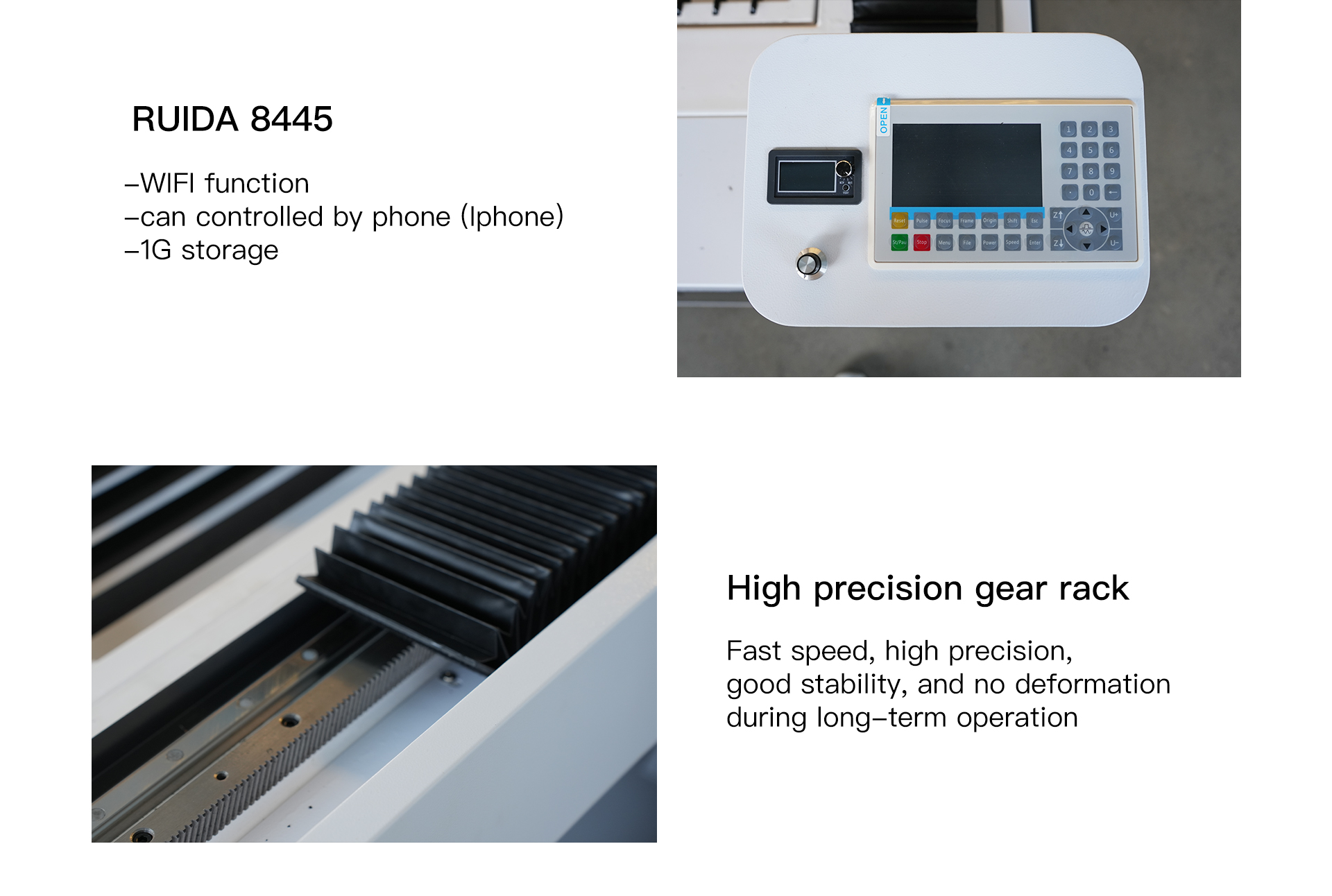

7. Ruida edge-finding cutting system
8. Constant laser path design
9. Famous S&A brand industrial chiller CW6000

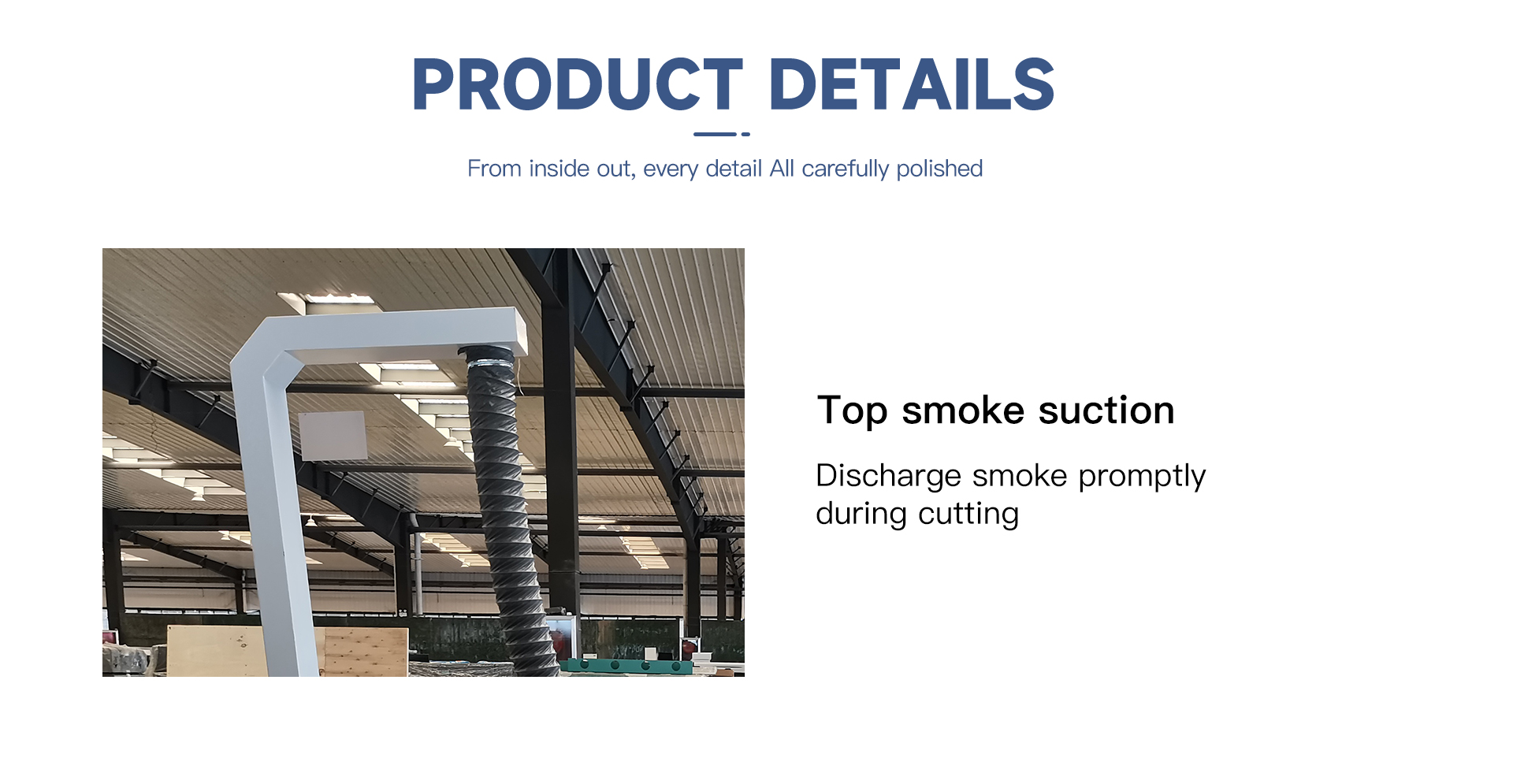

10. Super suction design, double funnel, double smoke pipe, two 750W exhaust fans
11. Multifunctional toolbox.
Dowin Technology Co., Ltd. has its own R & D team and business team, the production of the machine have CE certification, the software you need to use will be installed and tested for you before packing., you receive the goods can be used directly, if you meet the use of the problem, don't worry! We have professional after-sales service, you can rest assured that the purchase!
