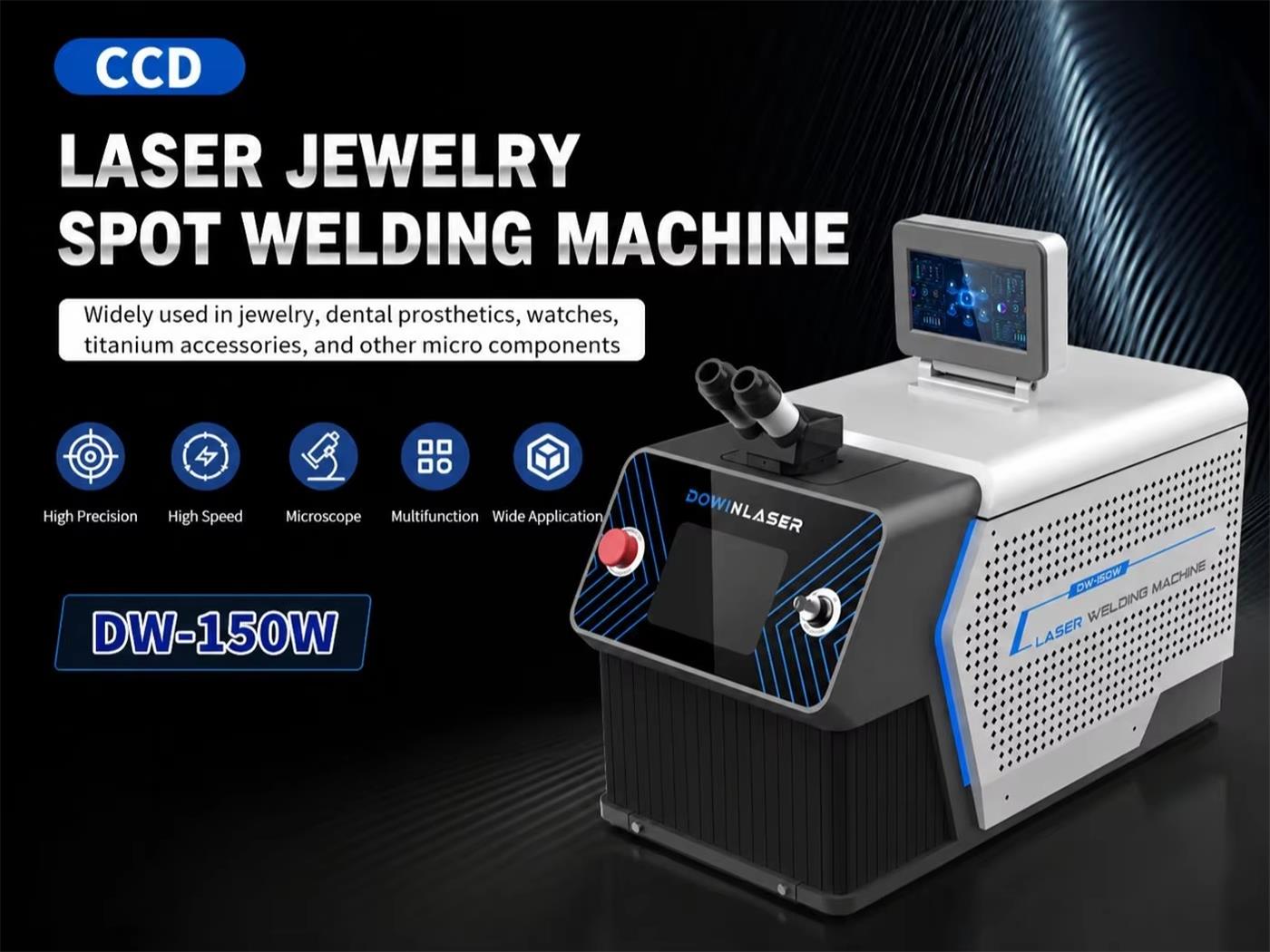

The Dowin New 150W Desktop Laser Jewelry Welder is designed for precise repair and fabrication of gold, silver, platinum, and other precious metal jewelry. Its focused laser beam allows operators to work accurately on small areas without unnecessarily heating the surrounding material.
|
Model
|
Desktop Jewelry Laser Welding Machine
|
|
Maximum laser power
|
150W/200W
|
|
Laser wavelength
|
1064nm
|
|
Laser frequency
|
1-20Hz
|
|
Pulse width
|
0.2-10Ms
|
|
Spot adjustment range
|
0.2-2mm
|
|
Rated power
|
5KW
|
|
Electricity demand
|
220V±5V 50Hz/60A
|
|
Focusing cavity reflector
|
Imported ceramic focusing cavity
|
|
Visual system
|
Microscope+CCD
|
|
Control system
|
LCD touch control panel
|
|

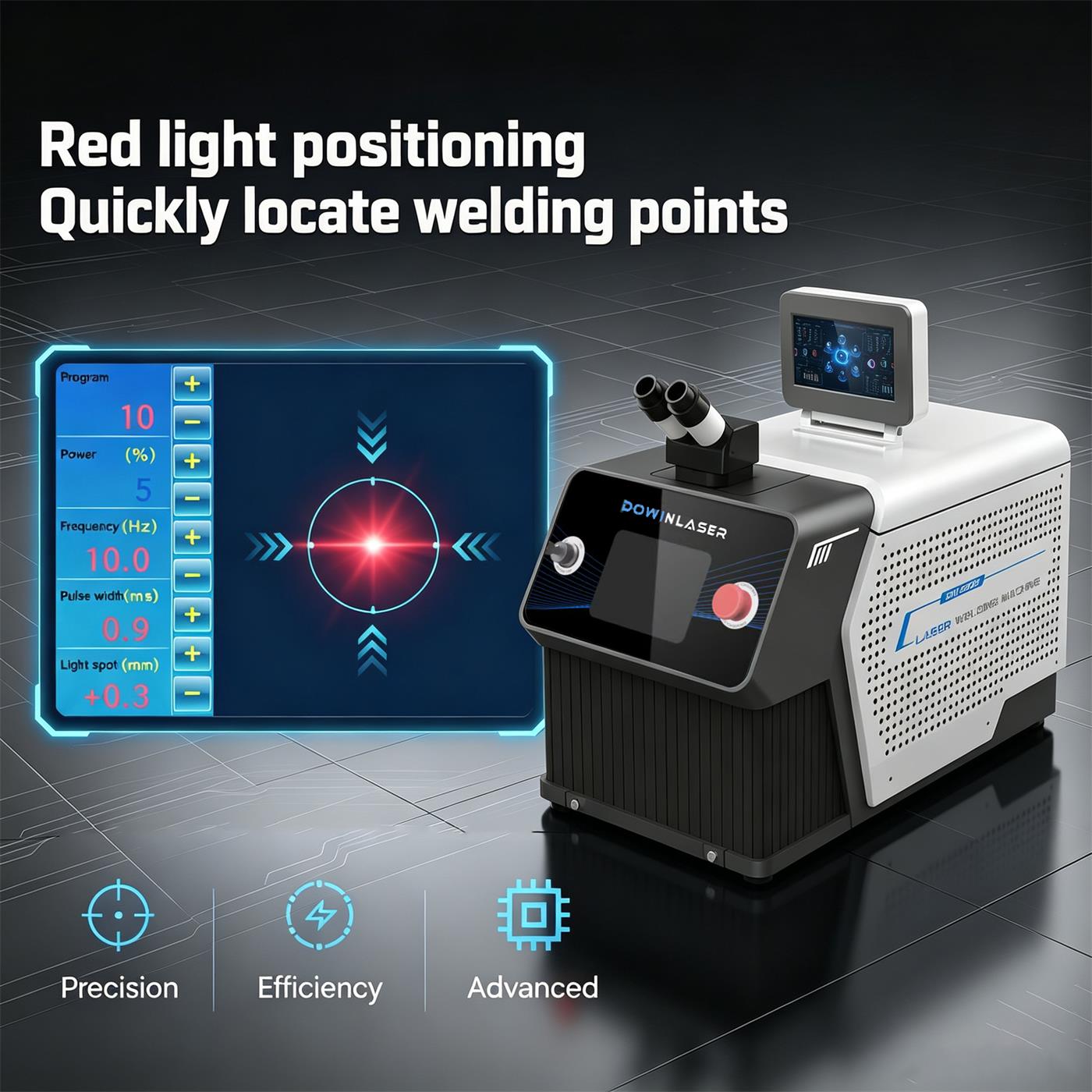

Aiming and positioning
|
Microscope, camera system
|
|
Cooling mode
|
Air Cooling
|
|
Applicable Material
|
24K gold, Silver, Stainless steel, Titanium steel, Brass, Copper
|
|
Welding industry
|
Widely applicable to all kinds of micro parts of precision welding, such as Jewelry, electronics, Dental, watches, glasses,etc.
|
|
Machine dimension
|
810*450*600mm
|
|
Machine weight
|
70Kg
|
Jewelry often contains delicate structures, polished surfaces, or heat-sensitive stones. Laser welding concentrates energy directly on the welding point, helping reduce heat transfer to nearby areas. This makes it suitable for repairing fine details while helping maintain the original shape and appearance of the jewelry.
From broken chains and ring joints to prong repair, cracks, casting defects, and small missing areas, the 150W desktop laser welder provides the control needed for detailed jewelry work. It is particularly useful where traditional soldering can be difficult to control.
Because laser welding can produce a narrow and localized weld, there is generally less excess material and less thermal distortion compared with conventional high-heat repair methods. This can reduce grinding, polishing, and refinishing work after welding, helping improve overall repair efficiency.
Discover how the Dowin New 150W Desktop Laser Jewelry Welder can improve precision, reduce heat-affected areas, and simplify fine jewelry repairs. Whether you repair gold chains, rings, settings, or other precious metal pieces, Dowin can provide a practical laser welding solution for your workshop.
Contact Dowin today for machine details, specifications, and a customized quotation.
