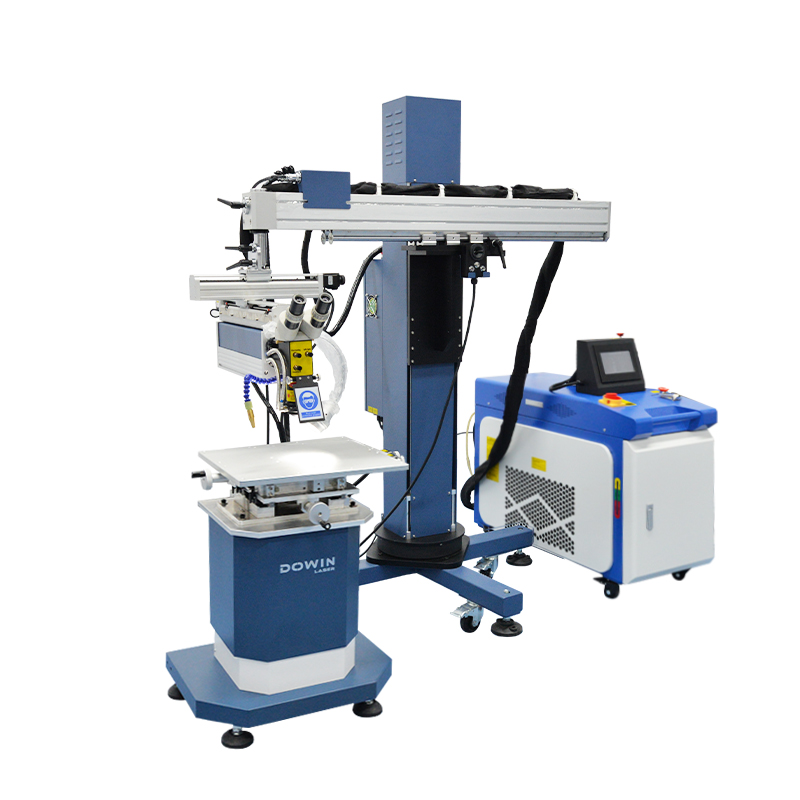

Boom type fiber laser welding machine

Cantilever fiber mold laser welding machine is a new type of welding processing, mainly for thin-walled material precision parts welding, can realize butt welding, sealing welding, spot welding, stack welding, etc., small welding seam width, high depth to width ratio, small heat affected zone, small deformation, fast welding speed, smooth and beautiful welding seam, no treatment or only simple treatment after welding, high quality welding seam, no porosity, precise control of positioning accuracy, small focusing spot, easy to realize welding automation.

Get a Quote

Send Email to Us

Get Price on Whatsapp

Product Detail

1.It adopted CW FIBER laser source

2.Equipped special designed Laser welding head to meet Spot welding and laser spot diameter adjustable function .

3.Long time working, lower electricity cost ,Working life 100000 hours . No consumptive materials .

4.Do not need laser patch adjustment .

5.Do not need more Service and maintenance

6.No special request on Working Condition .

Parameter

Laser power	DW- 1500W/2000W
Maximum laser power	1500W/2000W
Laser wavelength	1064nm
Laser welding depth	Depends
Pulse width	≤20ms
Laser welding frequency	≤100Hz
Size of min light spot	0.1mm
Rated power	5.5KW/7KW
Power supply	1500W with 220V /single phase/50-60Hz
Power supply	2000W with 380V/3 phase/50-60Hz
Cooling method	Water cooling
Packing size and weight	15065105cm/217Kgs
Packing size and weight	9090190cm/200Kgs （the motor arms）
Certificate	CE and FDA

Fiber Laser Laser Welding Machine Mold Repairing Unique Features
Specifically designed for mould industry, introduce German technology, adopt unique structure design, suitable for all kind of large, medium and small mould repair.

1. Use top China brand Raycus fiber laser device as the laser generator,so the laser output beam is more fine and stable .whole machine is free of maintenance,no consumables,no need any special welding skills .

2. Specally designed controlling system which has double laser output model,continuous and pulse yag spot welding model,meeting the thicken and thin welding sheets requirements.

3. Strong Stability, Easy operation

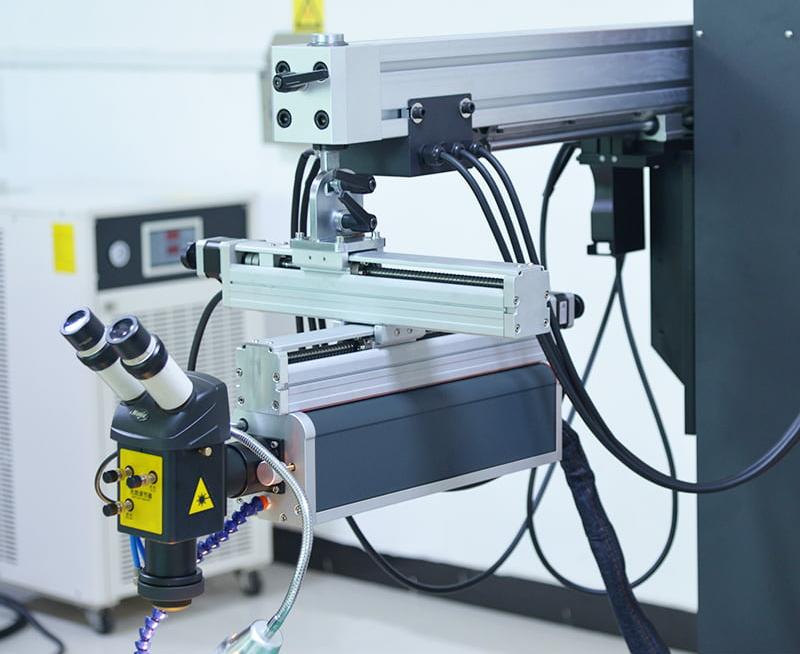

4. Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving front and back,
5. Especially suitable for all kinds of large, medium and small mould repair;
Parameter adjustment adopts intelligent remote control, simple and quick operation;
6. Three-dimensional moving workbench can be electric hoist;
7. One-time investment , No more Cost.

6 Axis Portable

The 6-axis laser welding machine utilizes multi-axis technology to meet the repair needs of molds of various sizes. Whether it's for small, complex molds or large, precision molds, the machine delivers efficient and precise repairs, ensuring high-quality welding and operational flexibility. Its multi-axis design allows for easy operation in confined or hard-to-reach spaces, significantly improving repair efficiency and accuracy. This makes it especially suitable for mold repair in industries such as automotive, aerospace, and manufacturing.

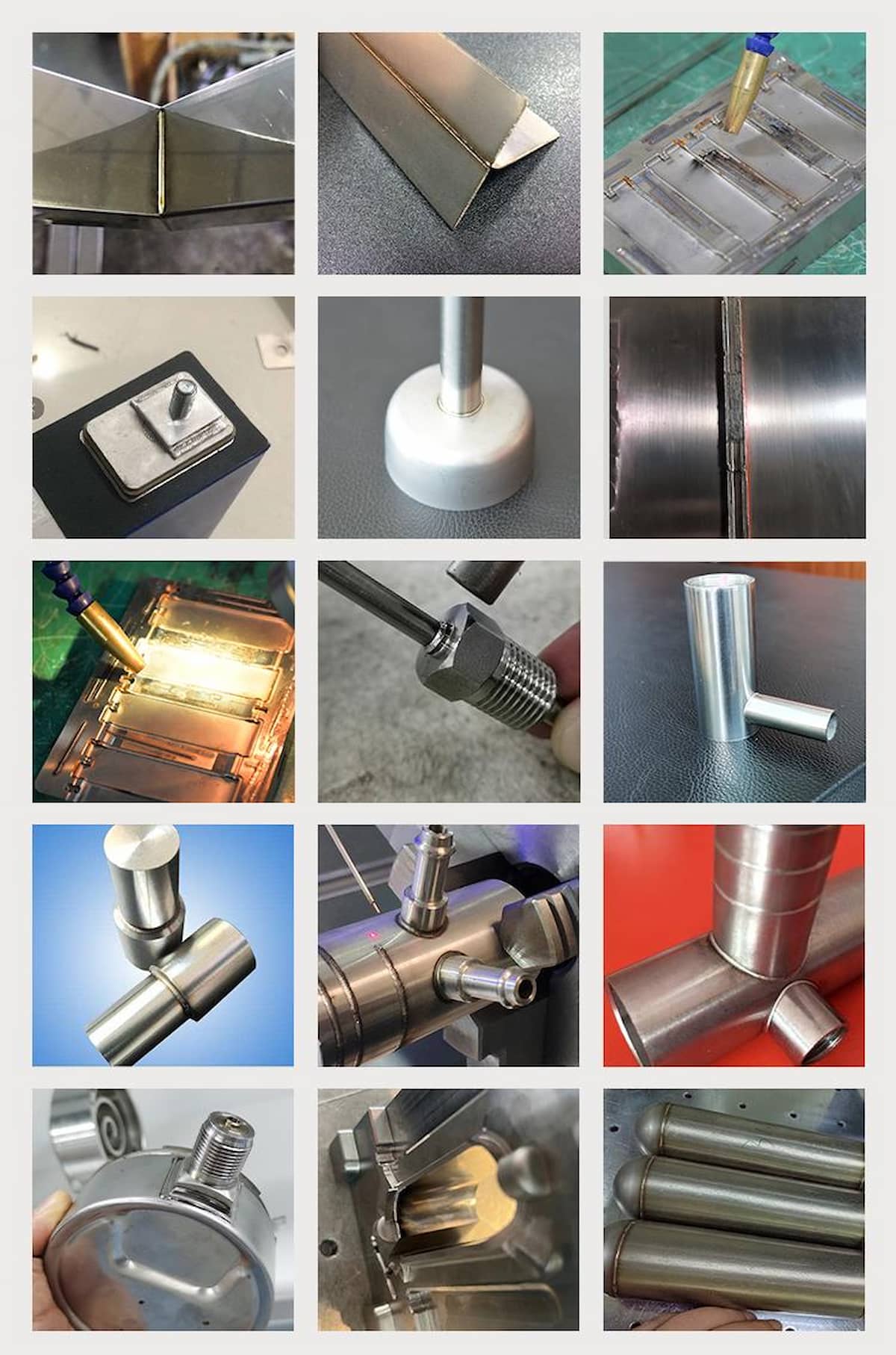

APPLICATIONS

Is The Machine Quality Guaranteed?

Dowin Technology Co., Ltd. has its own R & D team and business team, with CE , FDA ETC certificate for EU and USA countries , machine and software all install and test well before delivery , only need to connect the big parts like chiller , working table , electricity etc , manual , video and technician online support all available , make sure your machine work well after received , you can trust us , work with dowin laser , your machine quality and money is safe with us !
