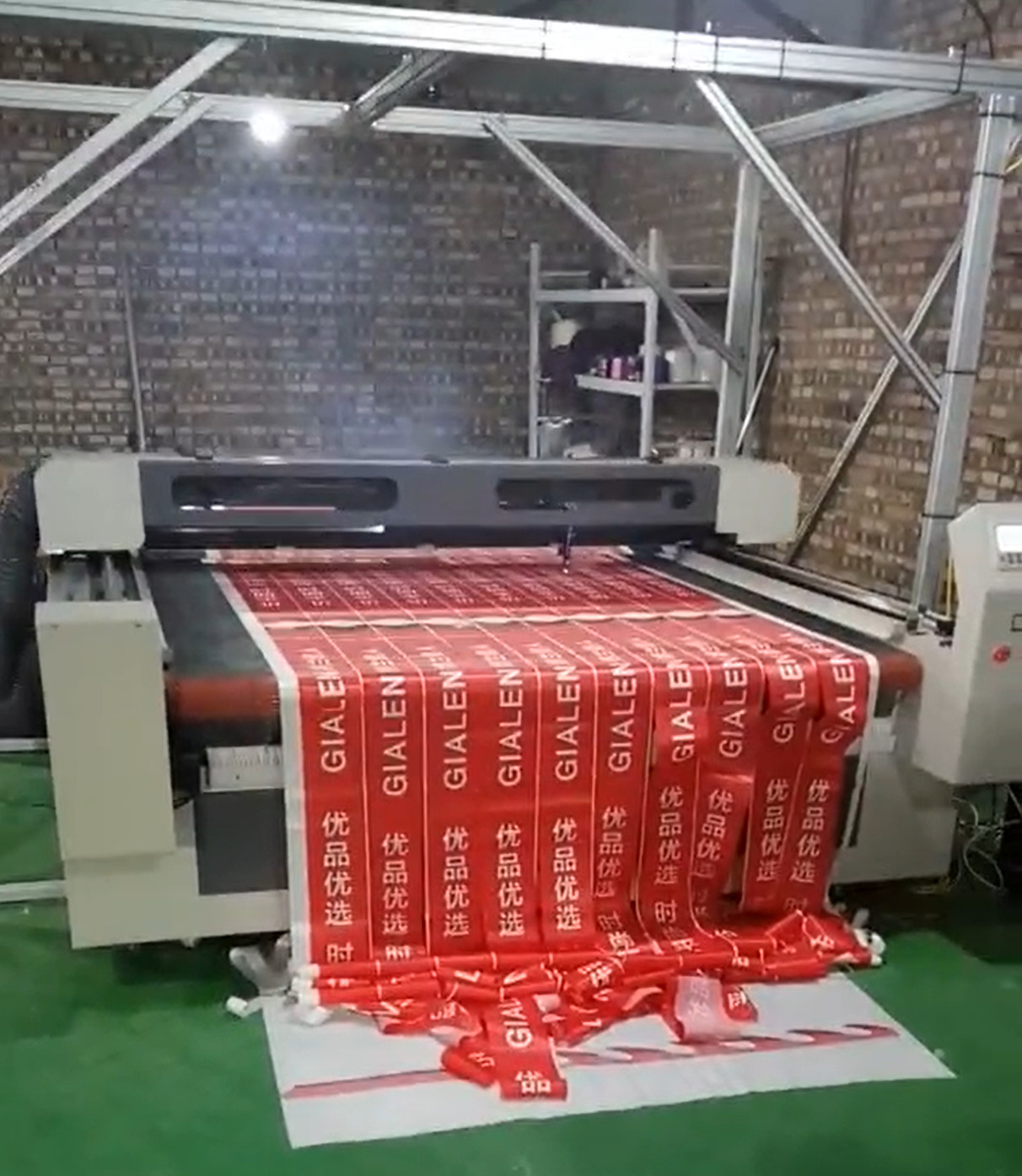

Auto Feeding Fabric Laser Cutting Machine With Camera

Widely used in the industries of trademarks, garment leather, cloth toy, computerized embroidery cutting, templates cutting, paper products and other industries, with the development of garment industry towards personalization, heterotroph trademarks demand more and more, in traditional cutting technology can’t meet the need, but the camera laser cutting machine is the perfect do different trademark cutting, macro laser machine series, high-grade configuration, stable performance, faster.

Send email to us

Application Industry

Under the car seat cushion blanking, snow boots slippers, pillow under the warm hand treasure material, clothing affixed cloth embroidered, woven label, trademark cutting, garment accessories, ornamental engraving, punching and trimming, leather punch, lofting and cutting, organic glass, plastic, PVC, paper, wood and bamboo, ceramic, granite, graven images industry.

Application material

All kinds of fabric, leather, wool cloth with soft nap , pu , genuine leather , organic glass, PVC, paper , wood , bamboo rubber , resin , ceramic, granite and other non-metal

Video introduction

Tech Specifications

Model	DW-1825/1630Camera
Processing area	5001800mm/30001600mm
auto feed cutting table	yes
cutting Speed	0-18000mm/min
Camera	Canon
laser tube power	80W/100W/130W/150W
Laser wave length	10.6um
Resolution ratio	0.025mm
Minimum shaping character	Chinese character 2mm/ letter 1mm
Resetting positioning accuracy	±0.01mm
Voltage	Ac220v±10%,50HZ/60HZ
Operating Temperature	0℃-45℃
Operating humidity	5%-95%
Graphic Format Supported	BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop
software supported	Coreldraw,AutoCAD,Photoshop.llustrator etc
lens	reflect lens(3pcs)+import focus lens(1pcs)
guide Rail	high quality mould rails
Driver Type	leadshine stepmotor
cooling sytem	S&A CW-5200
software	TROCEN
Opearate System	Win98/Win2000/WinXP/Win 7/vista

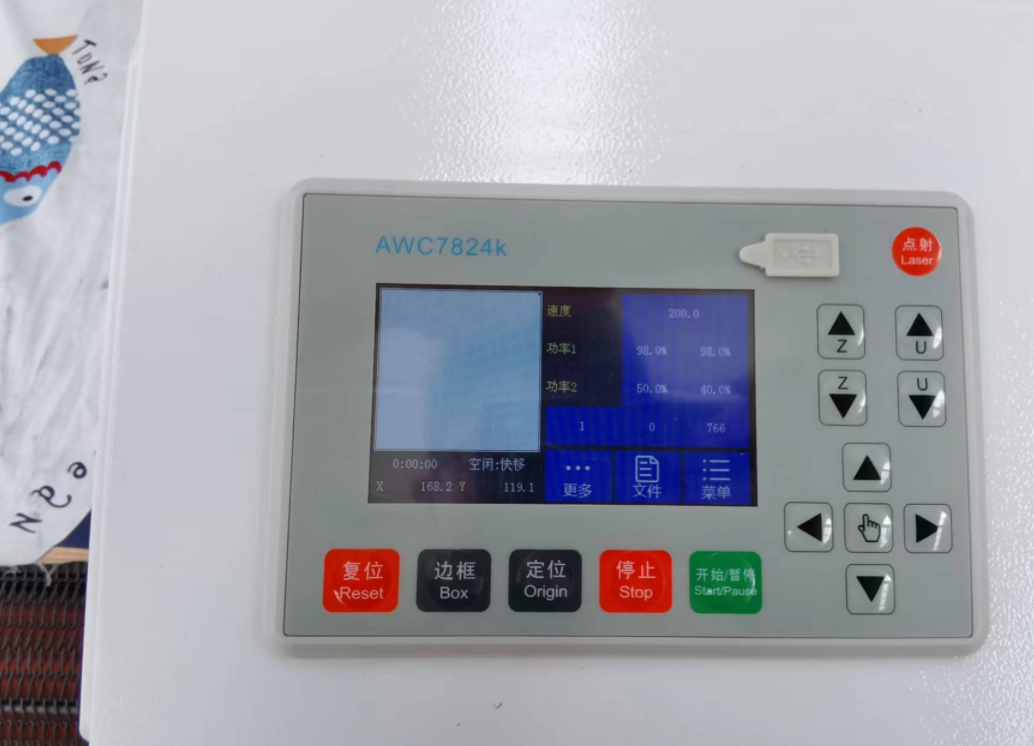

interface	LCD screen with USB interface
pass through doors	Allow to cut extremely long materials
Free Assistant equipment	exhaust-fan,air pump,industry chiller CW5200
Optional	One head/Dual heads same steps/Dual X rails
